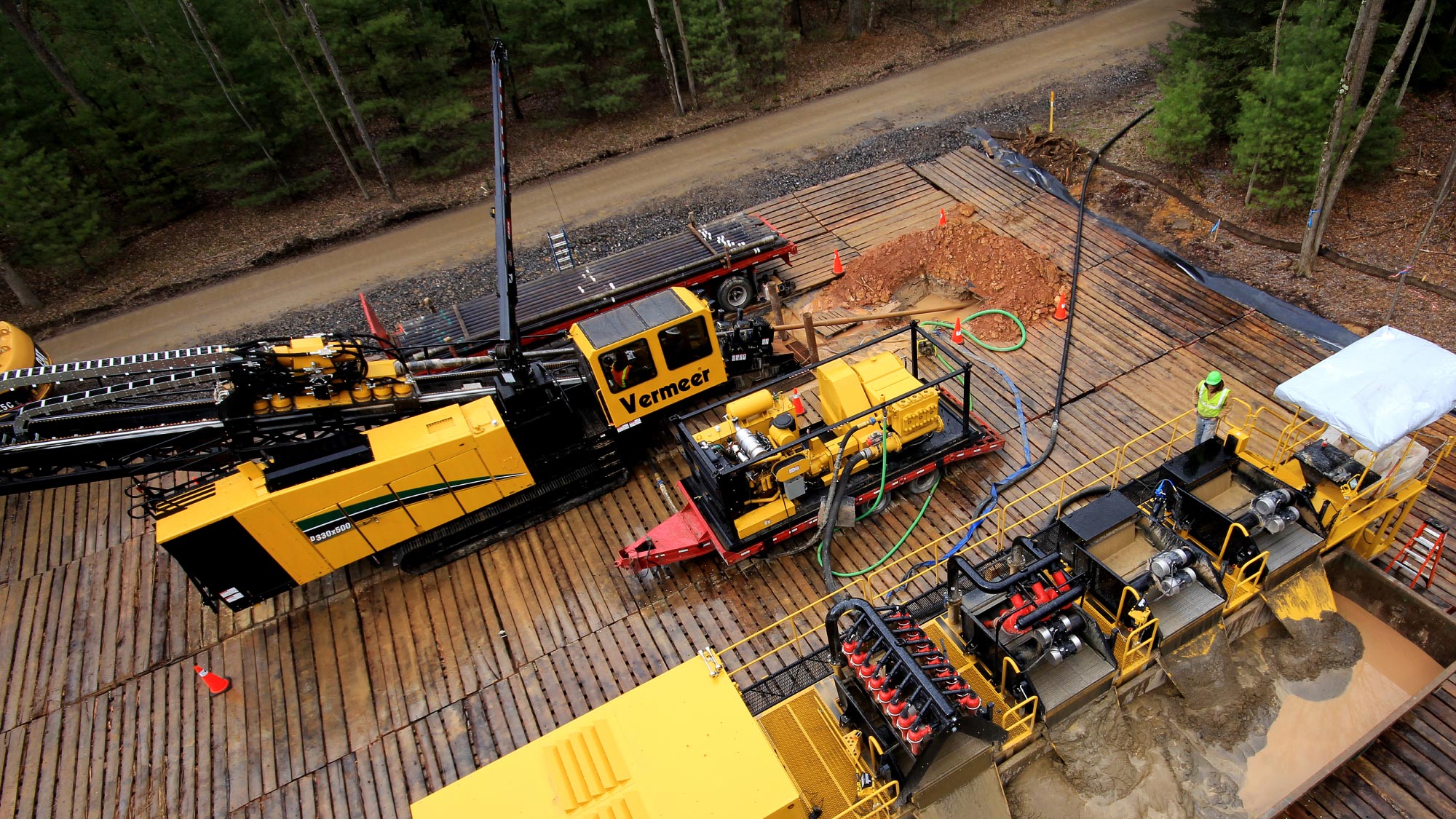

Field-tested to demonstrate they can handle the most exacting large-diameter projects, Vermeer horizontal directional drills are equipped with the features operators need to get the job done.

D100x140 S3 Navigator® Horizontal Directional Drill

  • Weight: 22588.9 kg
  • Fuel Type: Diesel
  • Power: 275 hp (205.1 kw)
  • Rotational Torque: 14,000 ft-lb
  • Thrust Pullback: 100000 lbs

D220x300 Navigator® Horizontal Directional Drill

  • Weight: 33565.8 kg
  • Fuel Type: Diesel
  • Power: 415 hp (309.5 kW)
  • Rotational Torque: 30200 ft-lb
  • Thrust Pullback: 242100 lbs

D330x500 Navigator® Horizontal Directional Drill

  • Weight: 40823.3 kg
  • Fuel Type: Diesel
  • Power: 540 hp (402.7 kw)
  • Rotational Torque: 50,000 ft-lb
  • Thrust Pullback: 330,000 lbs

D500x500 Navigator® Horizontal Directional Drill

  • Weight: 37194.6 kg
  • Fuel Type: Diesel
  • Power: 800 hp (596.6 kW)
  • Rotational Torque: 50,000 ft-lb
  • Thrust Pullback: 500,000 lbs

D750x900 Navigator® Horizontal Directional Drill

  • Weight: 45812.8 kg
  • Fuel Type: Diesel
  • Power: 800 hp (596.6 kW), 1200 hp (894.8 kW) or 1600 hp (1193.1 kW)
  • Rotational Torque: 92,000 ft-lb
  • Thrust Pullback: 750,000 lbs

D1000x900 Navigator® Horizontal Directional Drill

  • Weight: 2721.6 kg
  • Fuel Type: Diesel
  • Power: 800 hp (596.6 kW), 1200 hp (894.8 kW) or 1600 hp (1193.1 kW)
  • Rotational Torque: 92,000 ft-lb
  • Thrust Pullback: 1,000,000 lbs

D1320x900 Navigator® Horizontal Directional Drill

  • Weight: 45812.8 kg
  • Fuel Type: Diesel
  • Power: 800 hp (596.6 kW), 1200 hp (894.8 kW) or 1600 hp (1193.1 kW)
  • Rotational Torque: 102,500 ft-lb
  • Thrust Pullback: 1,360,000 lbs
