Horizontal Directional Drill

  • Weight: 22,498.2 kg
  • Fuel Type: Diesel
  • Power: 260 hp (193.9 kW)
  • Rotational Torque: 58,000 ft-lb
  • Thrust Pullback: 130,000 lb
Vermeer D130SG2 Horizontal Directional Drill
Vermeer D130SG2 Horizontal Directional Drill
Vermeer D130SG2 Horizontal Directional Drill
Vermeer D130SG2 Horizontal Directional Drill
Vermeer D130SG2 Horizontal Directional Drill
Vermeer D130SG2 Horizontal Directional Drill
Vermeer D130SG2 Horizontal Directional Drill
Vermeer D130SG2 Horizontal Directional Drill

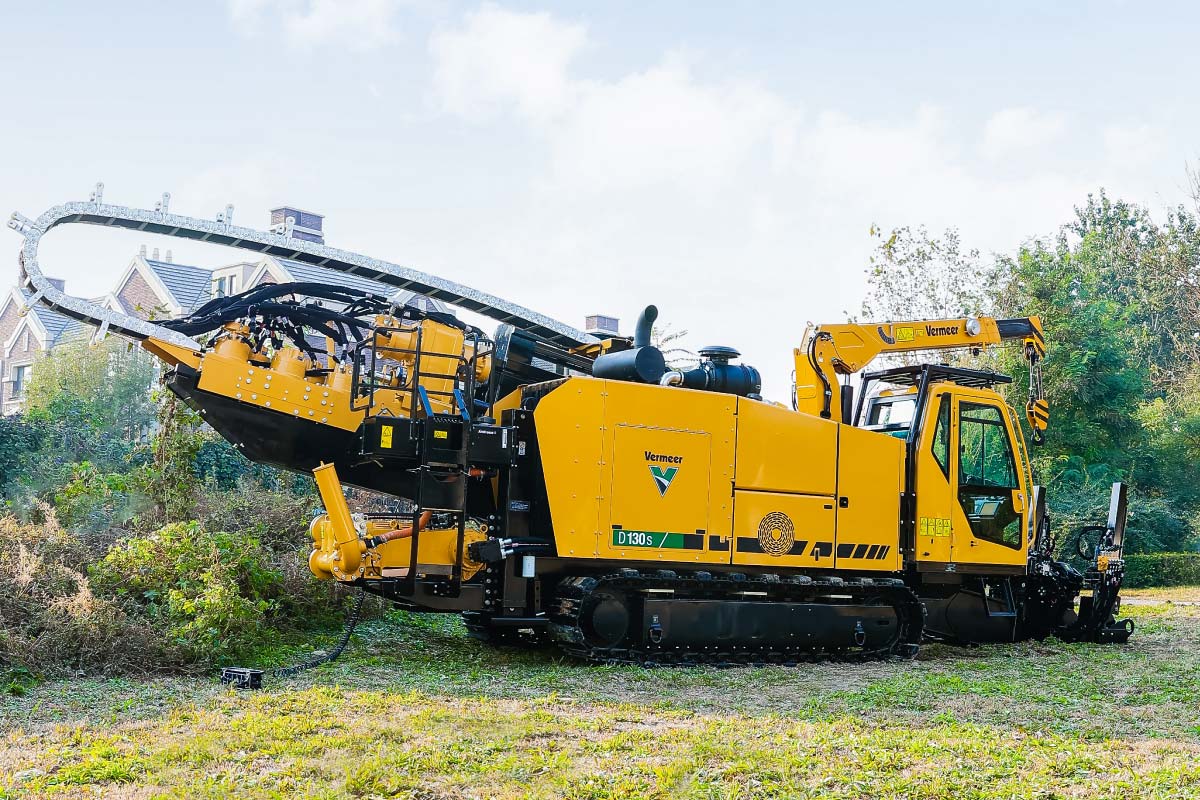

Built for big bores

The Vermeer D130SG2 is engineered to take on Australia’s most demanding trenchless installations. Delivering 130,000 lb of pullback and 58,000 Nm of rotational torque, it provides the muscle required for long bores, large diameter pipe and challenging ground conditions. Advanced automation, a refined drilling system and simplified access for daily servicing help improve productivity while minimising downtime. Inside the cab, intuitive controls and a proven Vermeer design philosophy support consistent performance across major pipeline, energy and civil infrastructure projects.

Features

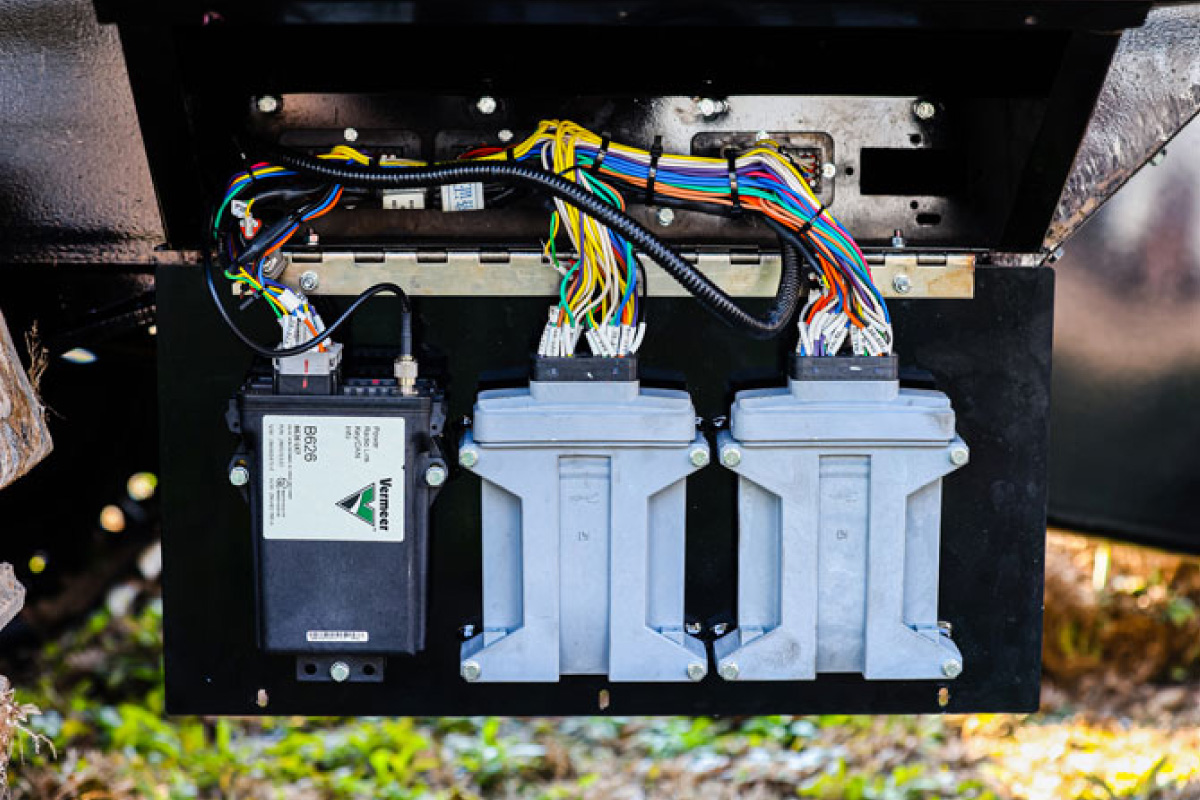

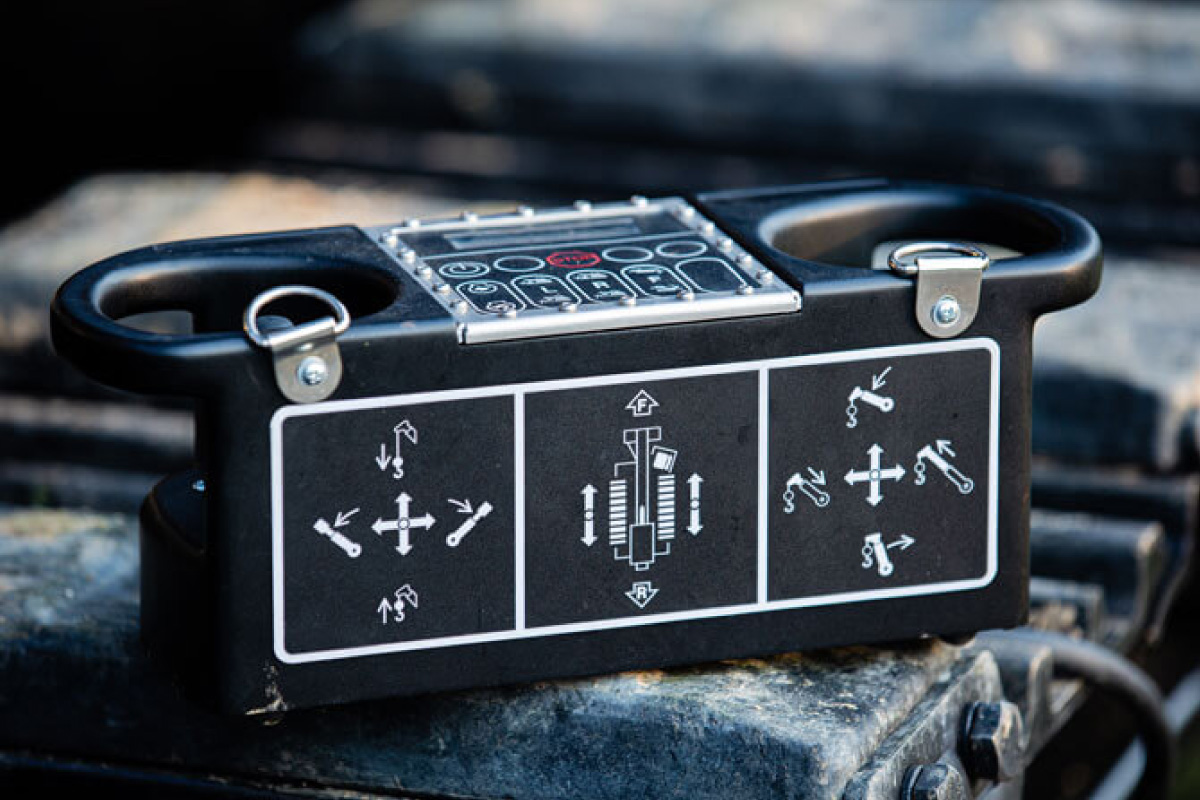

Plus+1 control system

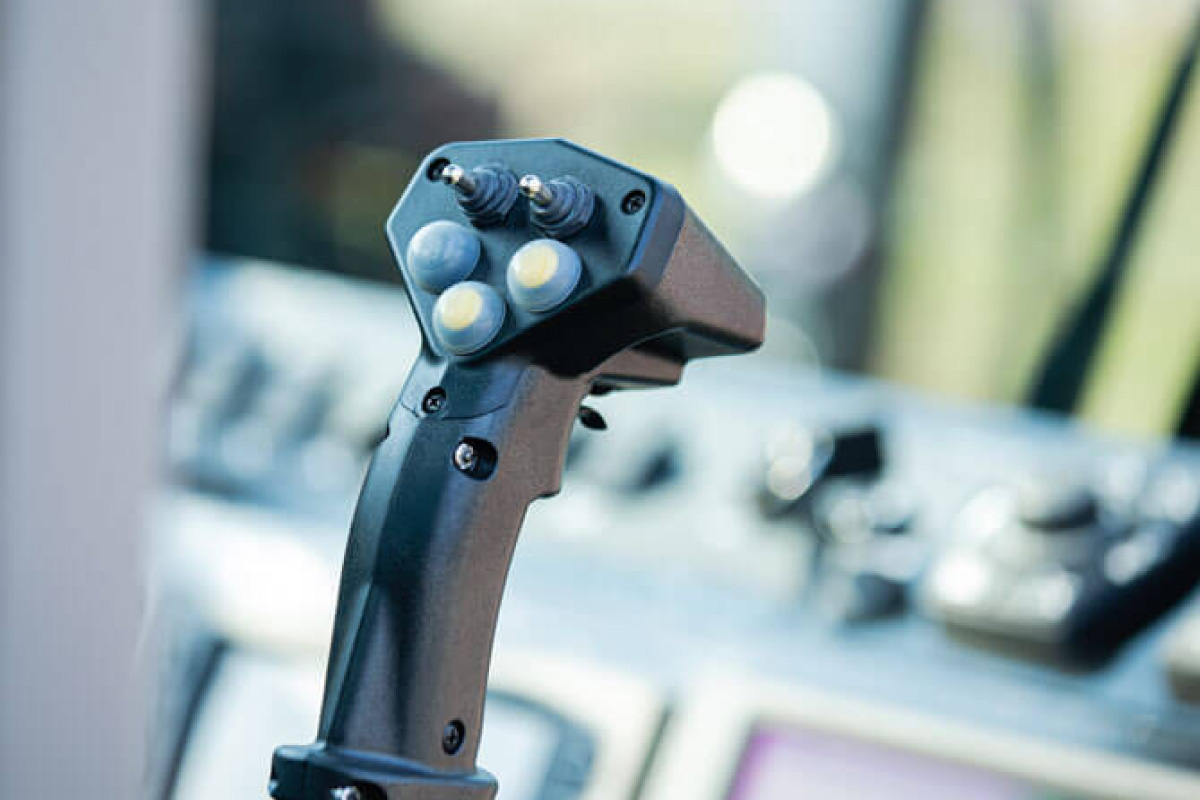

For precision and reliability, the control system in the D130S has been upgraded to Plus+1. This drill also includes the AutoSteer system, which automates certain drill head motions, helping you to set and adjust rotation duration and direction while maintaining a preset thrust pressure to get through hard ground conditions. This enables drilling consistency. To top it off, the updated console design helps provide a seamless, user-friendly bore path adjustment experience for the operator.

Increased rod-loading capacity

The operator-controlled rod loader helps reduce labour involved with manually loading and unloading drill rod. The stackable rod box increases the rod loading capacity of the D130S, improving overall drilling efficiency by enabling a full set of rods to be loaded into the machine with a touch of a button.

Compact footprint and ease of transport

Machine manoeuvrability is key to navigating tight, narrow jobsites. With a length of 33.5 ft (10.2 m), and width of 8.2 ft (2.5 m), the self-contained, compact design of the D130S allows for convenient transportation, navigability and minimized setup time.

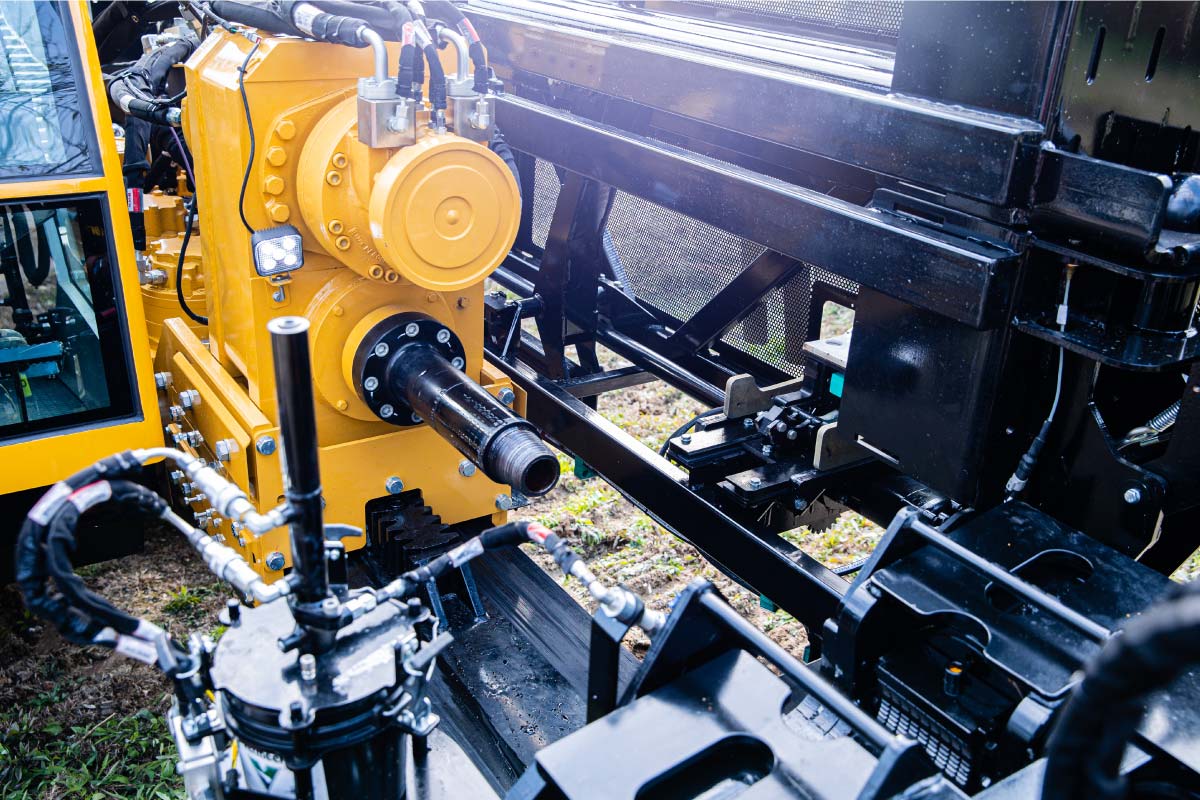

High-powered rotational torque and thrust

Consisting of 130,000 lb (578,200 kN) of thrust and pullback and 15,000 ft-lb (20,337 Nm) of rotational torque, the D130S is able to penetrate through different and difficult terrains efficiently and effectively.

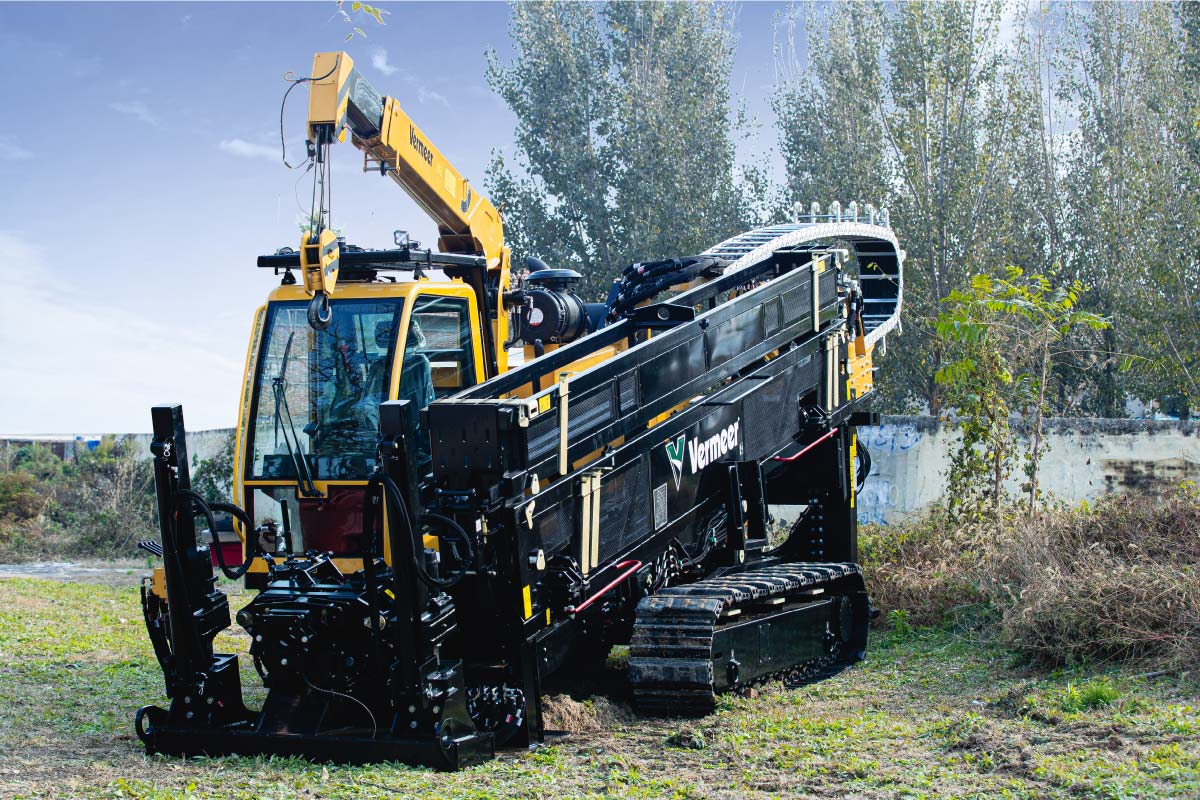

Optional crane

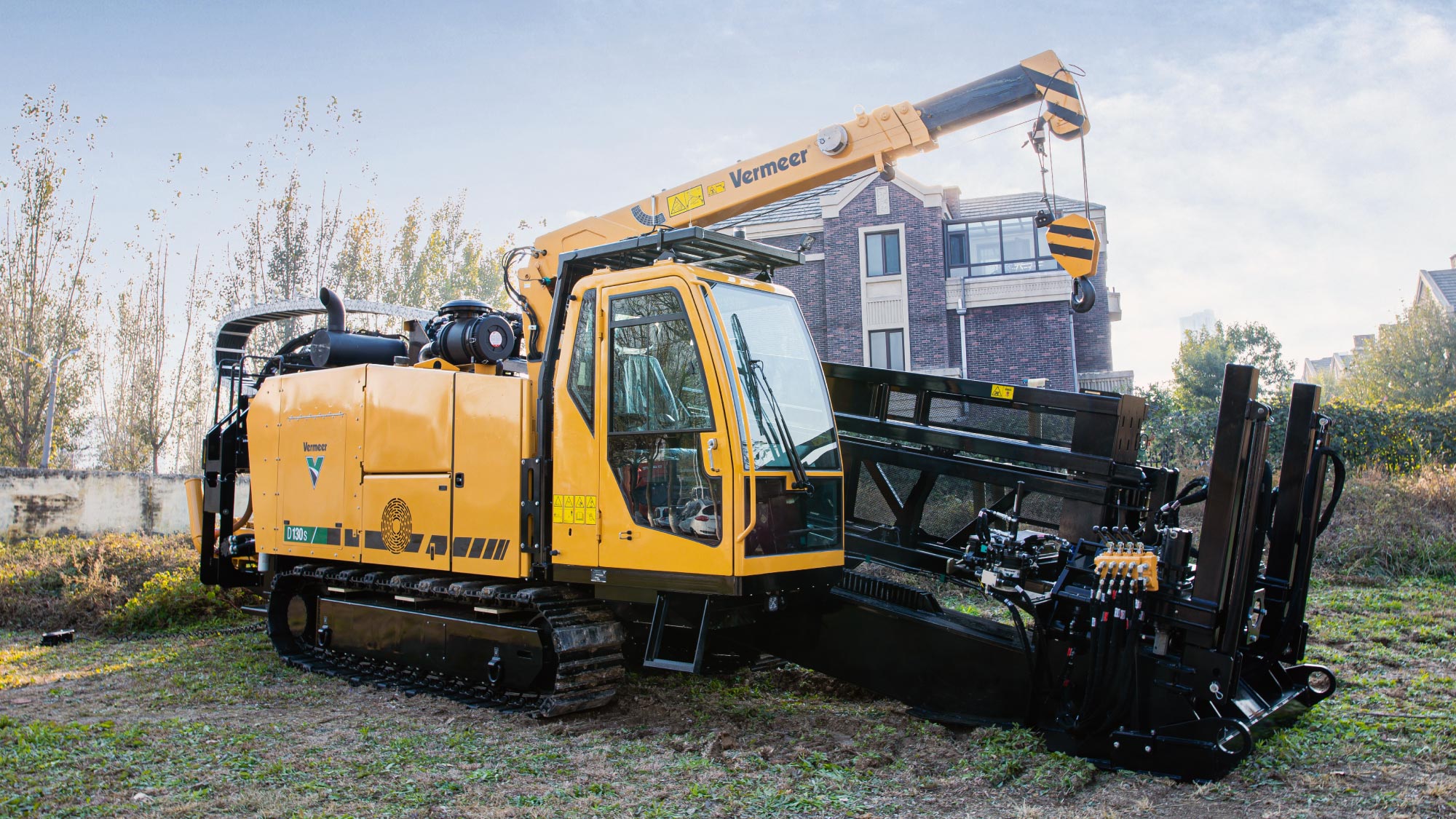

Lesser support equipment is required onsite with the choice of a telescoping crane, thus freeing up more working space. This option can help maximize jobsite productivity by aiding rod box load/unload and manoeuvring large tooling on rig side.

Optional rotary stakedown system

Cut down on setup time and the number of materials needed with our optional rotary auger-style stakedown

General Dimensions and Weights

  • Length (Minimum Transport): 1045.5 cm
  • Width (Minimum Transport): 249.9 cm
  • Height (Minimum Transport): 329.2 cm
  • Height (With Cab): 332.2 cm
  • Weight: 22498.2 kg
  • Angle of Approach: 16 deg

Engine

  • Make and Model: Dong Feng Cummins (QSB6.7-C260)
  • Maximum Engine RPM: 2200 rpm
  • Idle Speed: 900 rpm
  • Rated RPM: 2200 rpm
  • Gross Horsepower: 193.9 kw

Operational

  • Thrust: 578.7 kN
  • Pullback: 578.7 kN
  • Maximum Carriage Speed at Maximum Engine RPM: 25 m/min
  • Maximum Carriage Speed in Low at Maximum Engine RPM: 10.1 m/min
  • Maximum Spindle Torque (Low at Maximum Engine RPM): 20337.3 Nm
  • Maximum Spindle Torque (Medium at Maximum Engine RPM): 13558.2 Nm
  • Maximum Spindle Torque (High at Maximum Engine RPM): 10168.7 Nm
  • Maximum Spindle Speed (Low at Maximum Engine RPM): 45 rpm
  • Maximum Spindle Speed (Medium at Maximum Engine RPM): 65 rpm
  • Maximum Spindle Speed at Max Engine RPM: 95 rpm
  • Maximum Ground Drive Speed at Maximum Engine RPM: 4 km/h
  • Noise Level at Operator’s Ear: 84.9 dB(A)
  • Guaranteed sound power (CE-rating): 73.7 dB(A)
  • Drill Rack Angle: 20 deg

Fluid Capacities

  • Fuel Tank: 310.4 L
  • Hydraulic Tank: 408.8 L
  • Hydraulic System: 408.8 L

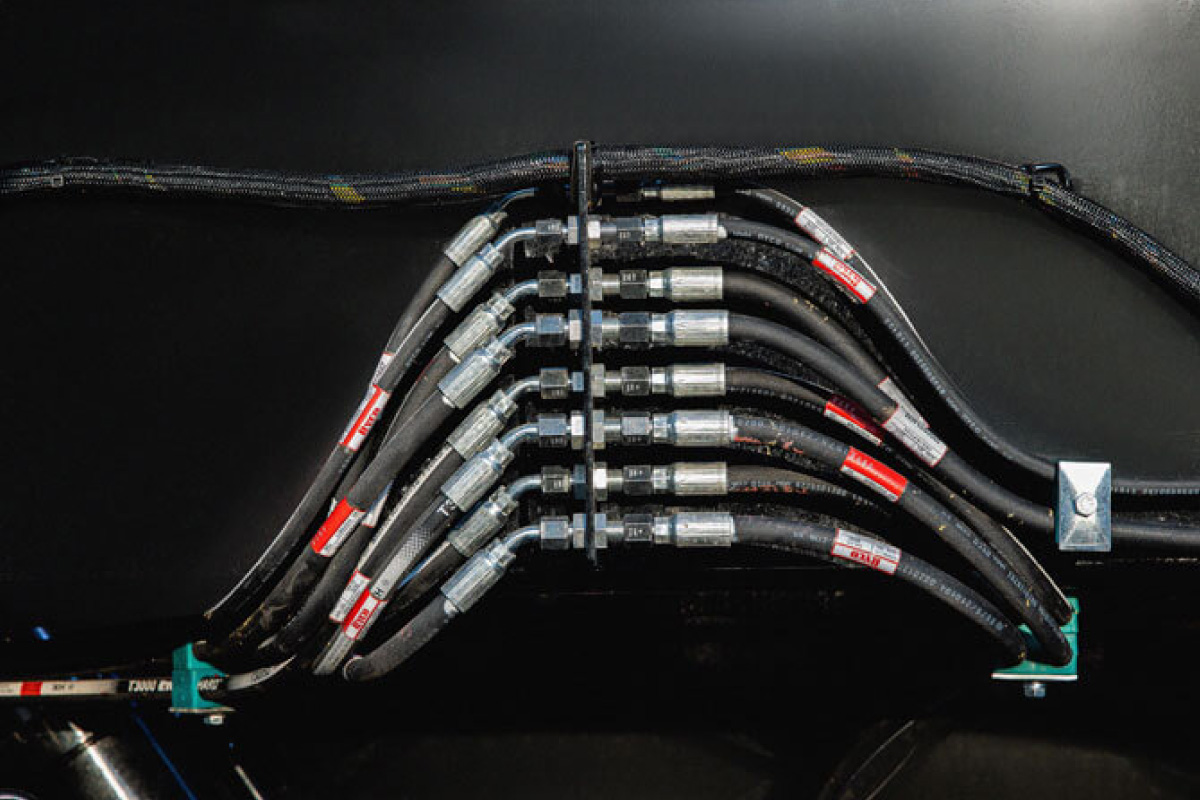

Hydraulic System

  • Auxiliary Pump Flow at Maximum Engine RPM: 21.6 gpm
  • Auxiliary Pump Relief Pressure: 206.8 bar
  • Thrust/Pullback Pump Flow at Max Engine RPM: 215.8 L/min
  • Thrust/Pullback Pump Relief Pressure: 344.7 bar
  • Rotation Pump Flow at Maximum Engine RPM: 215.8 L/min
  • Rotation Pump Relief Pressure: 324.1 bar
  • Hydraulic Supply Filter Rating: 200 mesh
  • Hydraulic Return Filter Rating: 10 mesh

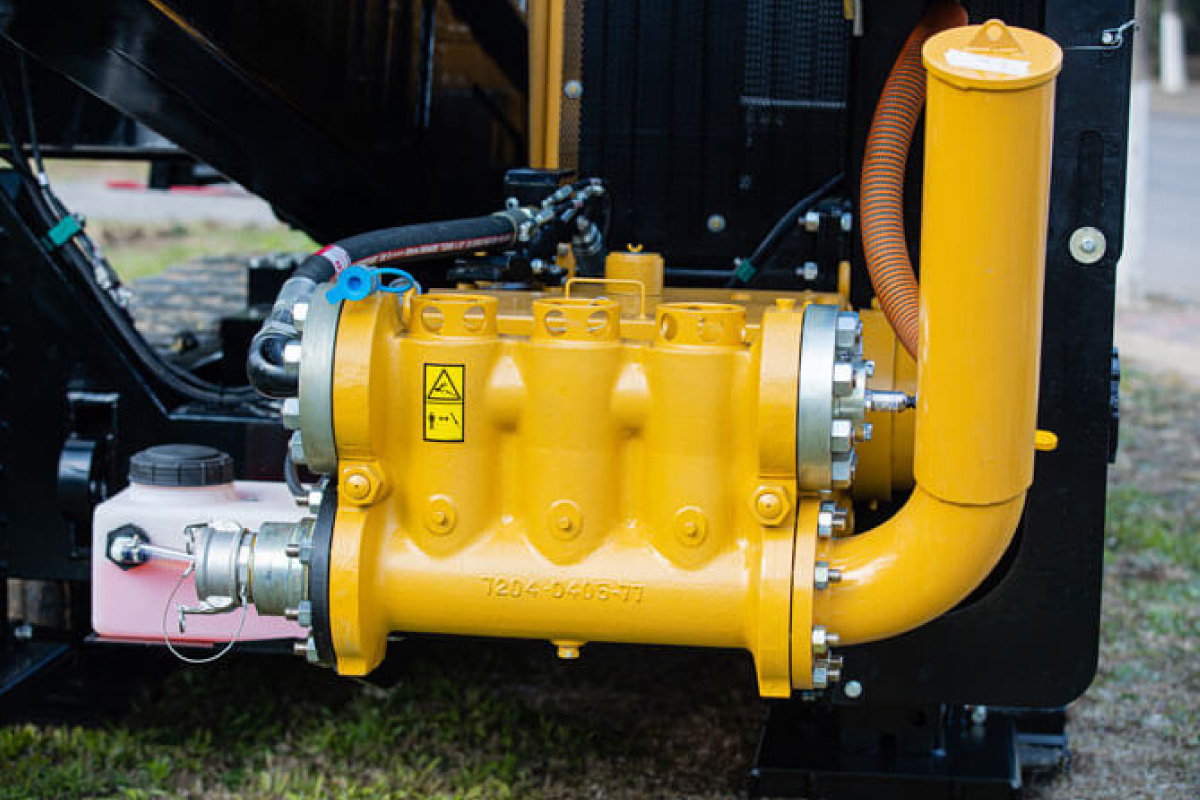

Drilling Fluid System Option One

  • Maximum Flow: 757.1 L/min
  • Maximum Pressure: 83 bar
  • Brand: Aplex

Crane

  • Maximum Lifting Capacity: 3197.8 kg
  • Maximum Lifting Capacity – Boom Extended/Max Reach: 3197.8 kg
  • Rotation: 360 deg
  • Optional Crane: Yes

Features

  • Breakout System: Standard
  • Drilling Lights: Standard
  • Flow Indicator: Standard
  • Stakedown System: Optional
  • Cab: Standard
  • Strike Alert: Standard
  • Remote Lockout: Standard

Drill Pipe

  • Drill Rod Thread: Vermeer Rod
  • Thread Type: 3-1/2FSTI
  • Length: 6.1 m
  • Rod Diameter: 3.5 in (8.8 cm)
  • Weight: 155.1 kg
