MyDealer:Trommel Screen
- Length: 25.7 m (Operational)
- Width: 2.8 m (Operational)
- Weight: 22543.6 kg
- Fuel Type: Diesel
- Power: 125 hp (93.2 kW)
Features

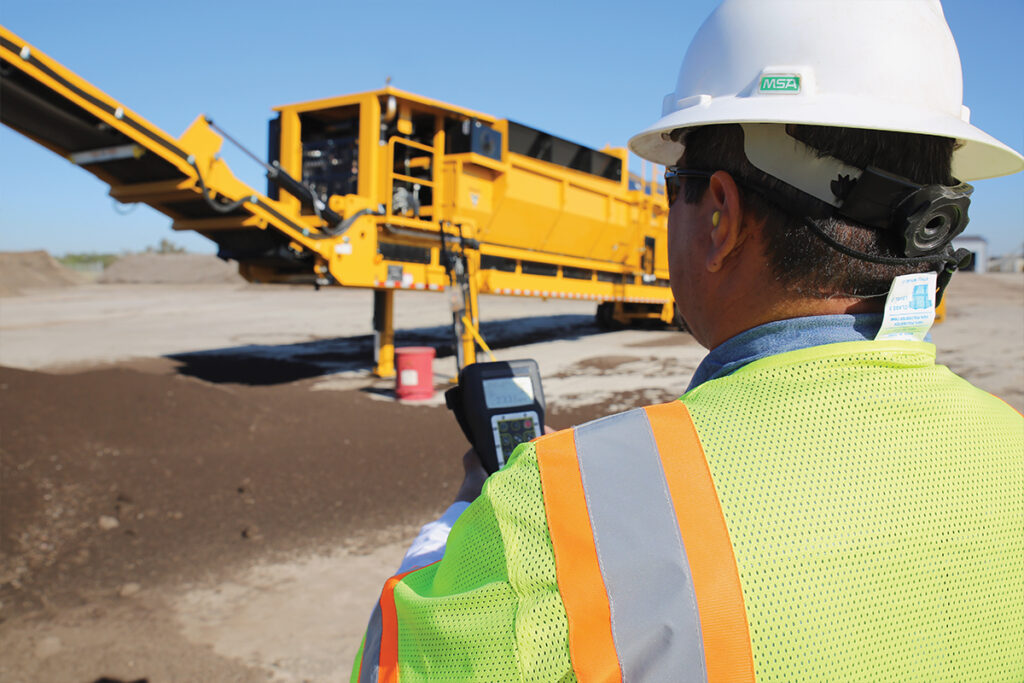

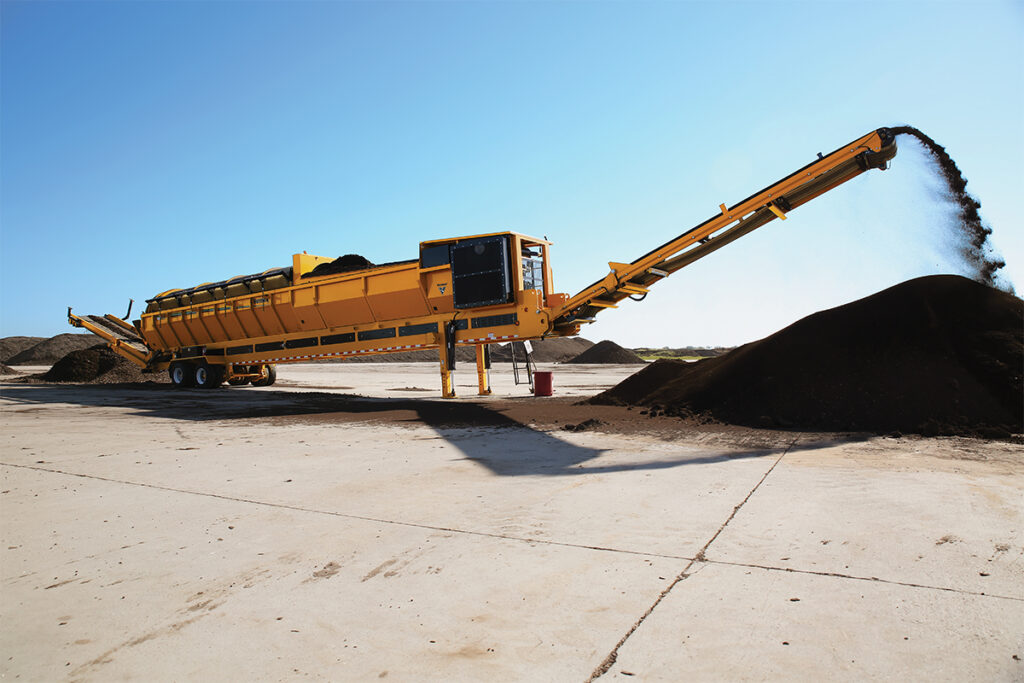

With a 6 ft (1.83 m) drum and a hopper that holds 7.5 cubic yards/5.73 cubic meters, the TR626 makes short work of processing material, plus the impressive 72.5 ft (22.1 m) conveyor features self-cleaning tail pulley and return idlers.
General Dimensions and Weights
- Weight: 49700 lbs / 22543.6 kg
- Hitch Weight: 16680 lbs / 7565.9 kg
- Length (Transport): 54.5 ft / 16.6 m
- Width (Transport): 113 inches / 287 cm
- Height (Transport): 13.4 ft / 4.1 m
- Length (Operation): 84.4 ft / 25.7 m
- Width (Operation): 113 inches / 287 cm
- Height (Operation): 15.9 ft / 4.9 m
- Capacity: 200 cu yd per hour with 0.5″ screens installed and material with moisture less than 40% / 152.9 cu m/hr with 1.3 cm screens installed and material with moisture less than 40%
Engine
- Make and Model: John Deere 4045H Tier 3
- Horsepower: 125 hp / 93.2 kW
- Number of Cylinders: 4
- Engine Rating: 125 hp @ 2400 rpm, 355 ft-lb (481.3 Nm) of torque @ 1500 rpm
- Fuel Tank Capacity: 100 gal / 378.5 L
- Fuel Consumption: 3.5 gph under most operating conditions / 13.3 L/hr
- Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles): 30 deg
- Battery: 950 cold cranking amps
- Oil Filter: Spin-on
- Recommended Oil: Mobil 15/40
- Oil Volume with Filter: 15.5 qt / 14.7 L
- System Voltage: 12 V, 120 amp alternator
- Air Cleaner: Dual element oversized
- Radiator Fan: Pusher type
Hydraulic System
- Operation: 85.8 gpm @ 2500 psi / 324.8 L/min @172.4 bar
- Tank capacity: 200 gal / 757.1 L
Chassis
- Frame Description: 4 independent hydraulic jacklegs
- Axle/Suspension: Leaf spring
- Capacity: 22500 lbs / 10205.8 kg
- Tires – Option One: 235-75R 17.5H qty. 4

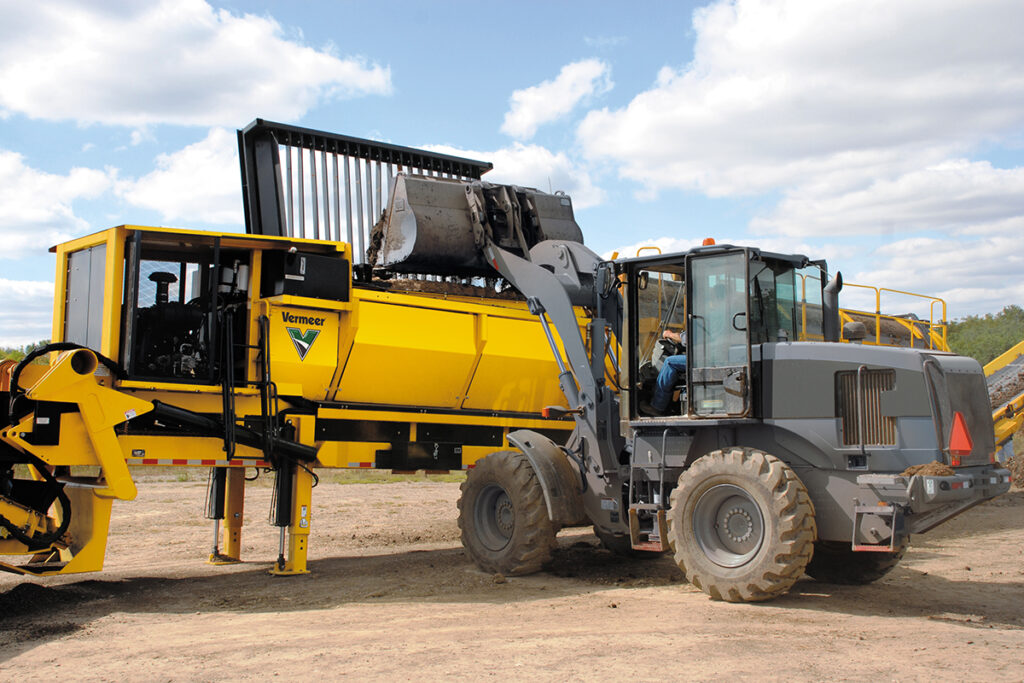

Hopper and Apron Conveyor
- Hopper Capacity: 5 cu yd / 3.8 cu m
- Hopper Bottom Width: 48 inches / 121.9 cm
- Apron Conveyor Speed: 0-205 fpm / 0-62.5 m/min
- Apron Opening Height: 34 inches / 86.4 cm
- Apron Opening Width: 43 inches / 109.2 cm
- Hopper Height: 9.5 ft from ground level at operating incline / 2.9 m
- Hopper Opening: 13.2 ft x 5.3 ft / 4 m x 1.6 m
- Apron Conveyor Length: 16 ft / 4.9 m
- Apron Conveyor Belt Width: 48 inches / 121.9 cm
- Apron Conveyor Rollers: 4 inches diameter qty. 14 / 10.2 cm

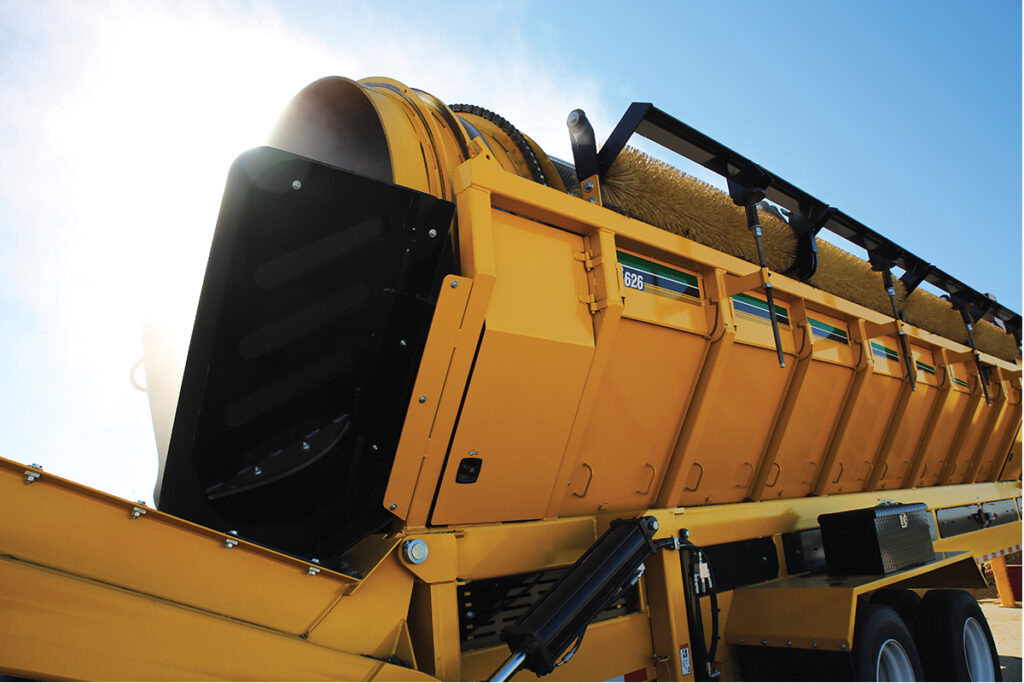

Screen Drum
- Drum Operation: 0-42.6 gpm / 161.3 L/min
- Drum Motor: 45.6 cu in displacement with brake / 747.3 cm3
- Drum Diameter: 6 ft / 1.8 m
- Drum Support Description: Four steel trunnion rollers 8 inch (diameter) & 4 inch (width) / 20.3 cm (diameter) & 10.2 cm (width)
- Thrust Bearing Diameter: 5 inches / 12.7 cm
- Thrust Bearing Face: 2.9 inches / 7.4 cm
- Drum Speed: 0-21.6 rpm
- Drum Drive Chain: 140 WT
- Drum Angle Adjustability: 3-5 degrees
- Maximum Screen Panels: 8

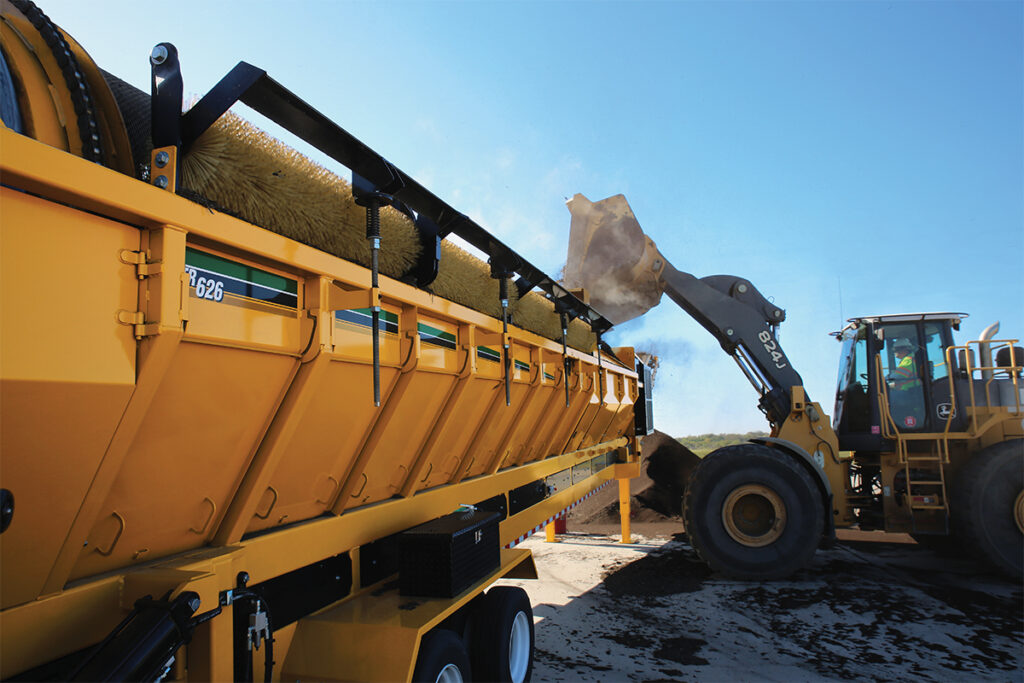

Screen Brushes
- Brush Diameter: 14 inches / 35.6 cm
- Bristle Material: Polyethylene
- Brush Assembly Support: Two 1.25 inches sealed ball bearings / 3.2 cm

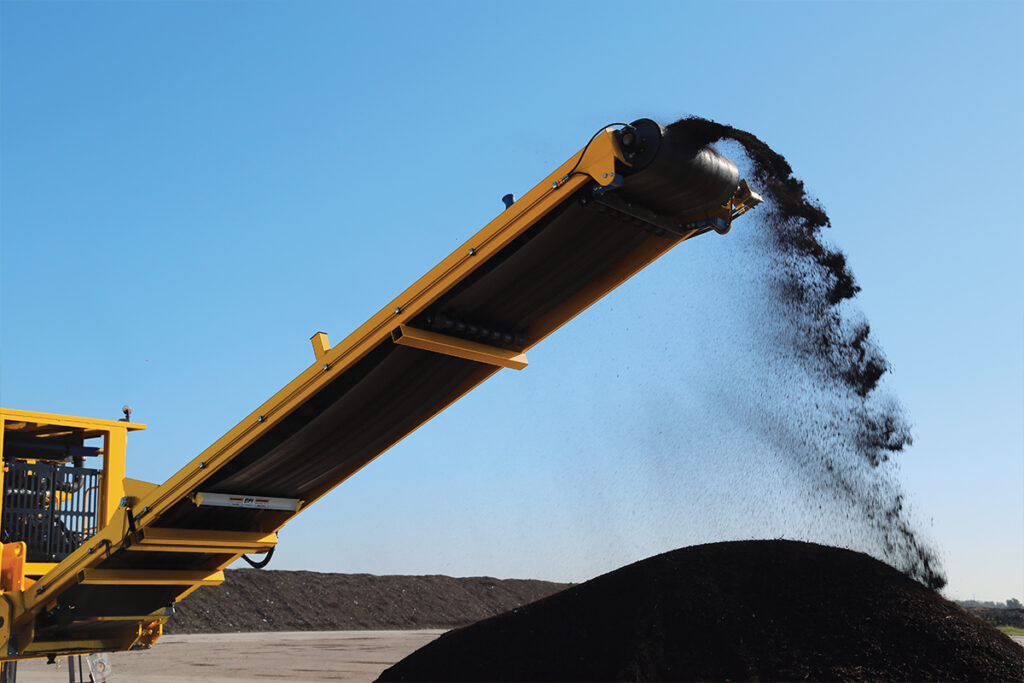

Fines Conveyor
- Conveyor Operation: 15.4 gpm / 58.3 L/min
- Conveyor Motor Displacement: 32.7 cu-in / 535.9 cu-cm
- Fines Conveyor Length: 72.5 ft / 22.1 m
- Fines Belt Speed: 342 ft/min / 104.2 m/min
- Conveyor Belt Width: 36 inches / 91.4 cm
- Conveyor Belt Type: 220 lb, 2 ply, 2/16″ x 1/16″ / 99.8 kg, 2 ply, 4.8 mm x 1.6 mm
- Conveyor Belt Stacking Height: 16.6 ft with drum at 4 degrees / 5.1 m
- Head Pulley Type: Rubber lagged, 12 inch (diameter), 38 inch (wide) / 30.5 cm (diameter) 996.5 cm (wide)
- Head Pulley Bearing: 2.5 inches pillow block / 6.4 cm
- Rubber Flashing: Adjustable, 0.25 inch thick, 4 inch / 0.64 cm thick, 10.16 cm
- Troughing Idler Type: 20 degrees CEMA “B” with permanently sealed bearings spaced at 24″ centers / 60.96 cm
- Self-Cleaning Tail Pulley Dimensions: 10 inch diameter, 38 inch wide with 2.4 inch shaft / 25.4 cm diameter, 96.5 cm wide with 6.1 cm shaft
- Tail Pulley Takeup: 12 inches / 30.5 cm
- Self-Cleaning Return Idlers: 11, each 4 inches diameter / 10.2 cm diameter
- Fines Conveyor Frame: 4 x 8 inches structural steel tubing / 10.2 cm x 20.3 cm
Overs Conveyor
- Overs Conveyor Length: 19 ft / 5.8 m
- Maximum Variable Overs Belt Speed: 144 ft/min / 43.9 m/min
- Conveyor Belt Size: 48″ wide with raised crescent / 121.9 cm
- Conveyor Belt Type: 220 lb, 2 ply, 2/16″ x 1/16″ / 99.8 kg, 2 ply, 4.8 mm x 1.6 mm
- Conveyor Belt Stacking Height: 3 x 10 ft / 0.9 m x 3.1 m
- Head Pulley Type: Rubber lagged, 12″ (30.5 cm) diameter, 38″ (996.5 cm) wide / 30.5 cm (diameter), 996.5 cm (wide)
- Head Pulley Bearing: 2.5 inch pillow block / 6.4 cm
- Self-Cleaning Tail Pulley Dimensions: 10″ diameter, 51″ wide with 2.4″ shaft / 25.4 cm (diameter), 129.5 cm (wide) with 6.1 cm shaft
- Tail Pulley Takeup: 12 inches / 30.5 cm
- Solid Return Idler Size: 4″ x 8″ diameter
- Overs Conveyor Frame: 4″ x 8″ structural steel tubing / 10.2 cm x 20.3 cm
