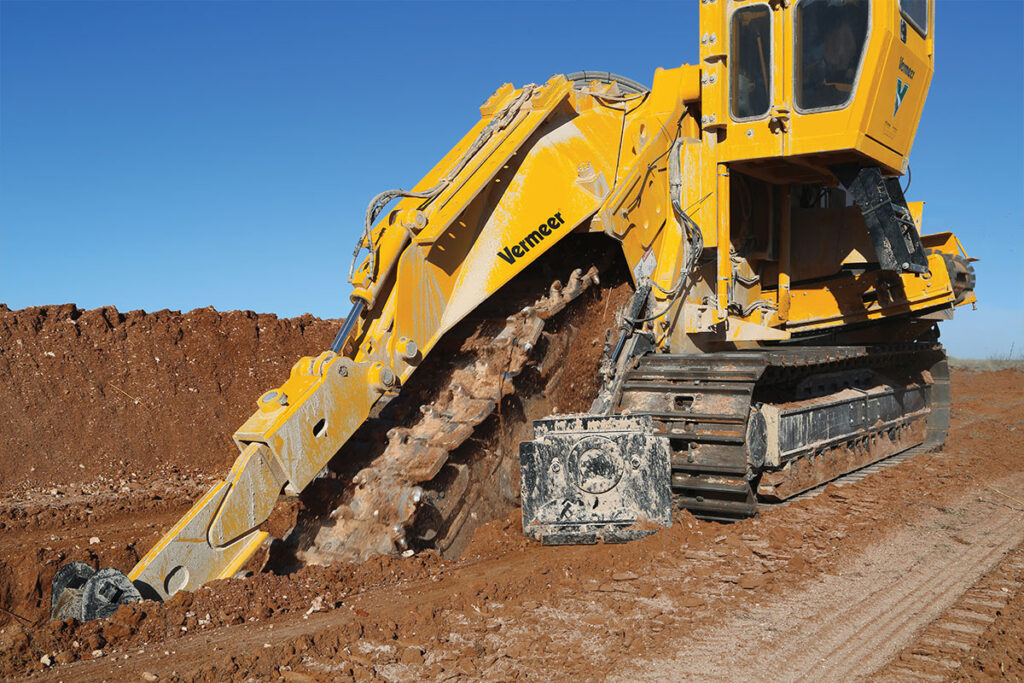

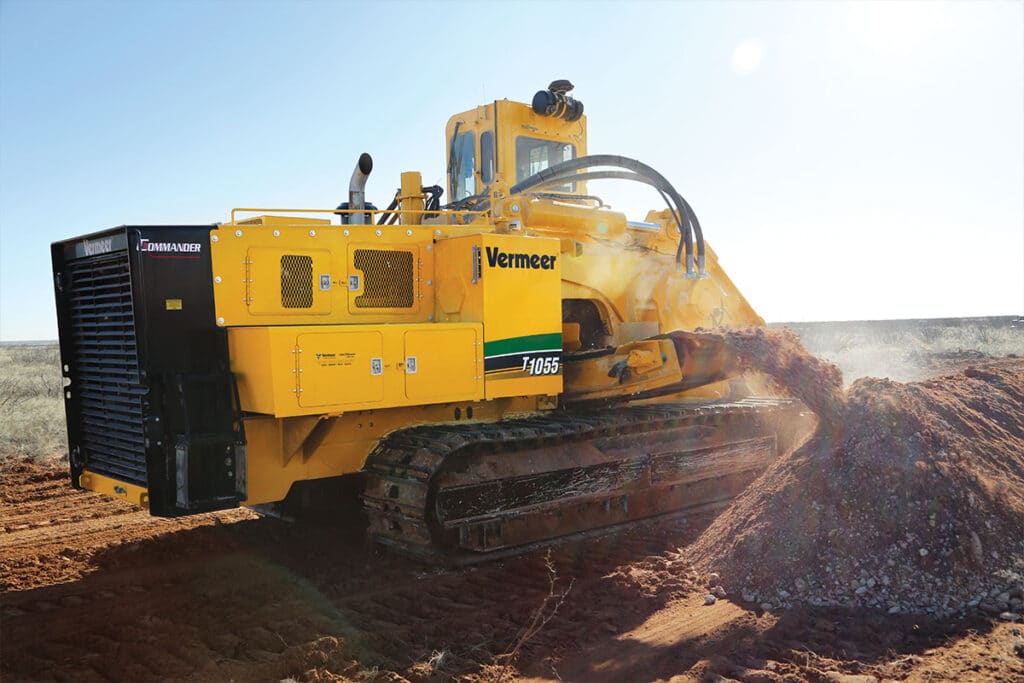

Track Trencher

  • Weight: 39,463.5 kg – 56,245.5 kg
  • Fuel Type: Diesel
  • Power: 415 hp (301 kW)

Features

This trencher houses a powerful Caterpillar C13 ACERT Tier 3 electronic engine with 415 hp (301 kW) and equipped with the TEC Plus electronic control system.

Transport Dimensions

  • Approach Angle: 16 deg
  • Height Range: 135 inches / 342.9 cm
  • Length with 40 inches (101.6 cm) End Idler and 6 ft (1.83 m) Boom: 32.2 ft / 9.8 m
  • Length with 40 inches (101.6 cm) End Idler and 8 ft (2.44 m) Boom: 34.7 ft / 10.6 m
  • Length with 40 inches (101.6 cm) End Idler and 10 ft (3.05 m) Boom: 37.2 ft / 11.3 m
  • Length with 40 inches (101.6 cm) End Idler and 12 ft (3.66 m) Boom: 39.7 ft / 12.1 m
  • Length with 40 inches (101.6 cm) End Idler and 14 ft (4.27 m) Boom (with Restraint Bar): 41 ft / 12.5 m
  • Length with 50 inches (127 cm) End Idler and 8 ft (2.44 m) Boom: 35.8 ft / 10.9 m
  • Length with 50 inches (127 cm) End Idler and 10 ft (3.05 m) Boom: 38.3 ft / 11.7 m
  • Length with 50 inches (127 cm) End Idler and 12 ft (3.66 m) Boom: 40.8 ft / 12.4 m
  • Weight Range: 87,000 lb – 124,000 lb / 39,463.5 kg – 56,245.5 kg
  • Width Ranges: 116 inches – 122 inches / 294.6 cm – 309.9 cm

Engine Option One

  • Make and Model: Caterpillar C13 ACERT Tier 3
  • Gross Horsepower: 415 hp / 309.5 kw
  • Rated Engine RPM: 2100
  • Number of Cylinders: 6
  • Fuel Tank Capacity: 184 gal / 696.5 L
  • Operating Range: 8.8 hours
  • Fuel Consumption at Full Load: 20.9 gph / 79.1 lph
  • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles): 35 deg
  • Air Cleaner: Dry-type exhaust aspirated
  • Aspiration: Turbocharged and air-to-air aftercooled
  • Cooling Medium: Liquid
  • Electrical System: 24 Volt DC
  • Oil Filter: Full flow

Engine Option Two

  • Make and Model: Caterpillar C13 ACERT Tier 4 Final
  • Gross Horsepower: 415 hp / 309.5 kw
  • Rated Engine RPM: 2100
  • Number of Cylinders: 6
  • Fuel Tank Capacity: 184 gal / 696.5 L
  • Operating Range: 8.6 hours
  • Fuel Consumption at Full Load: 21.3 gph / 80.6 lph
  • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles): 35 deg
  • Air Cleaner: Dry-type with precleaner
  • Aspiration: Turbocharged and air-to-air aftercooled
  • Cooling Medium: Liquid
  • Electrical System: 24 Volt DC
  • Oil Filter: Full flow

Tracks

  • Auto Self Level: No
  • Ground Pressure Minimum: 9.4 psi / 64.8 kPa
  • Ground Pressure Maximum: 13.9 psi / 95.8 kPa
  • Tilt Track Available: No
  • Tilt Track Max Angle: 0
  • Track Drive Type: Dual path hydrostatic with planetary transmission
  • Track Length: 176 inches / 447 cm
  • Track Pad Type: Single or double grouser
  • Track Pad Width Ranges: 24 inches or 30 inches / 61 cm or 76.2 cm
  • Track Size: D7G
  • Maximum Ground Speed – Low: 57.1 ft/min / 17.4 m/min
  • Maximum Ground Speed – High: 114 ft/min / 34.7 m/min
  • Parking and Emergency Brake: spring-applied, hydraulic release, wet disc brake
  • Service Brakes: Hydrostatic

Conveyor

  • Belt Width: 30 inches / 76.2 cm
  • Conveyor Belt Speed Range: 0-1070 fpm / 0-326 m/min
  • Conveyor Belt Style: Cleat or finger type
  • Conveyor Length: 108 inches or 168 inches / 274.3 cm or 426.7 cm
  • Conveyor Shift Available: Yes
  • Conveyor Shift Distance Range: 5 inches and 65 inches / 12.7 and 165.1 cm
  • Conveyor Style: Curved
  • Discharge Direction: Right or left
  • Discharge Height Range: 64 inches – 78 inches / 162.6 cm – 198.1 cm

Attachments

  • Trencher: Yes
  • Terrain Leveler: Yes
  • Rockwheel: No
  • Bucket Wheel: No

Cab

  • Cab: Yes
  • Control System: TEC Plus with SmartTEC
  • Air Conditioner/Heater: Yes
  • Air Suspension Seat: No
  • AM/FM Stereo with Weather Band: Yes
  • Elevating: Yes
  • Pressurized/Filtered Air: Yes
  • Roll Over Module (ROM): Yes

Hydraulic System

  • Oil Tank Capacity: 152 gal / 575.4 L
  • Oil Type: Vermeer HyPower 68 or Vermeer HyPower 100
  • Pressure Setting: 2500 psi / 172.4 bar
  • Pump Flow at Maximum RPM: 27.9 gpm / 105.6 L/min
  • Pump Type: pressure-and-flow-compensated (load-sensing)
