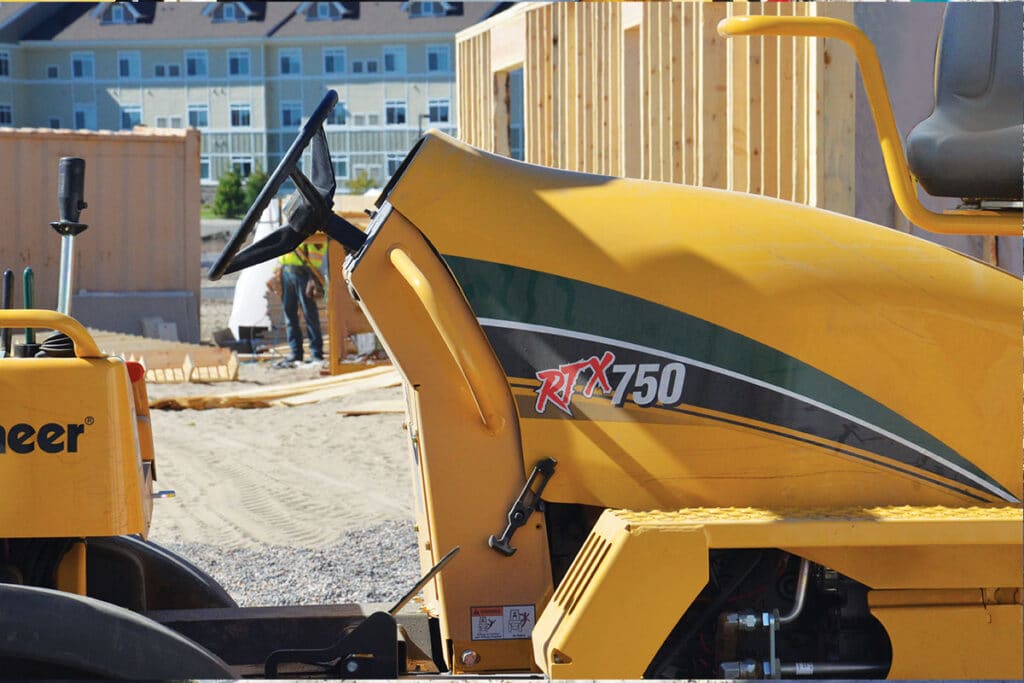

Ride-on Trencher

  • Length: 338.3 cm (Basic tractor, tracks)
  • Width: 199.4 cm (Basic tractor, tracks)
  • Height: 254.8 cm
  • Weight: 4232 kg (Basic tractor, tracks)
  • Fuel Type: Diesel
  • Power: 74 hp (55 kW)

Features

The RTX750 has an arsenal of attachments to match many applications including rockwheels, plows, combos and trenchers.

Key Features

  • With a 10.5’ (3.2 m) length and a 72” (182.9 cm) width (rubber tire), the maneuverable RTX750 has a compact footprint, making it well-suited to work in tight job site confines and congested residential areas.
  • An integrated system display allows the operator to easily monitor important machine functions, while the capability to monitor the percentage of hydrostatic capacity use is especially useful when training new operators.
  • The TrenchSense™ electronic control system can react faster than the operator to prevent engine stall/stop when difficult digging conditions are encountered. By eliminating the need to return controls to neutral and restart, productivity can be increased, and the whole sequence occurs within seconds.
  • The specialized undercarriage offers customers the flexibility to go with 38 inch (97 cm) tires, depending on their job application.

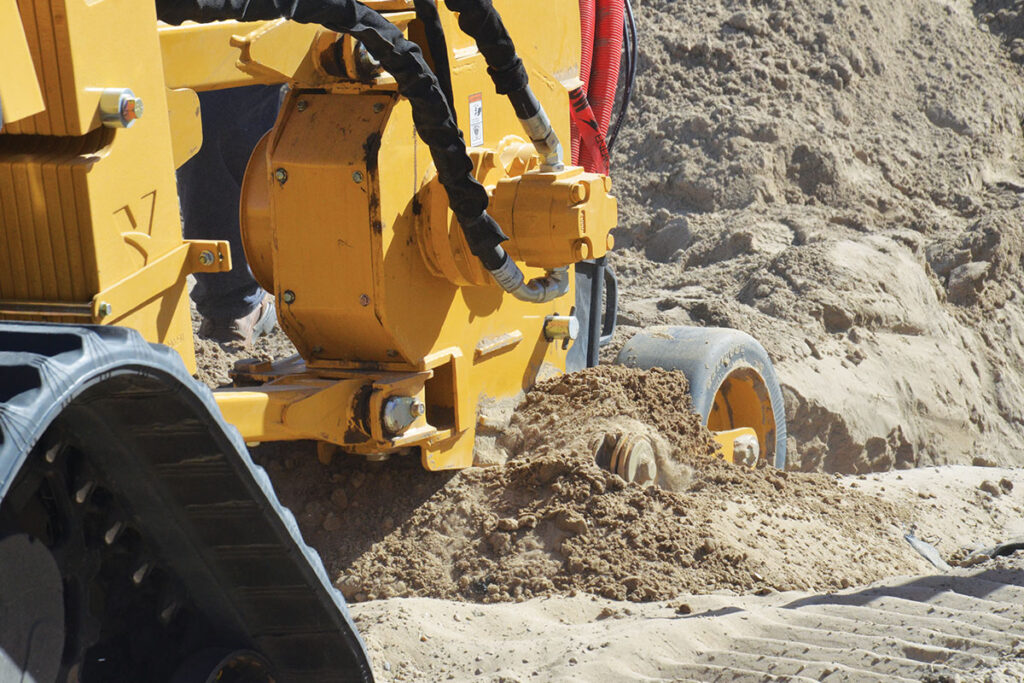

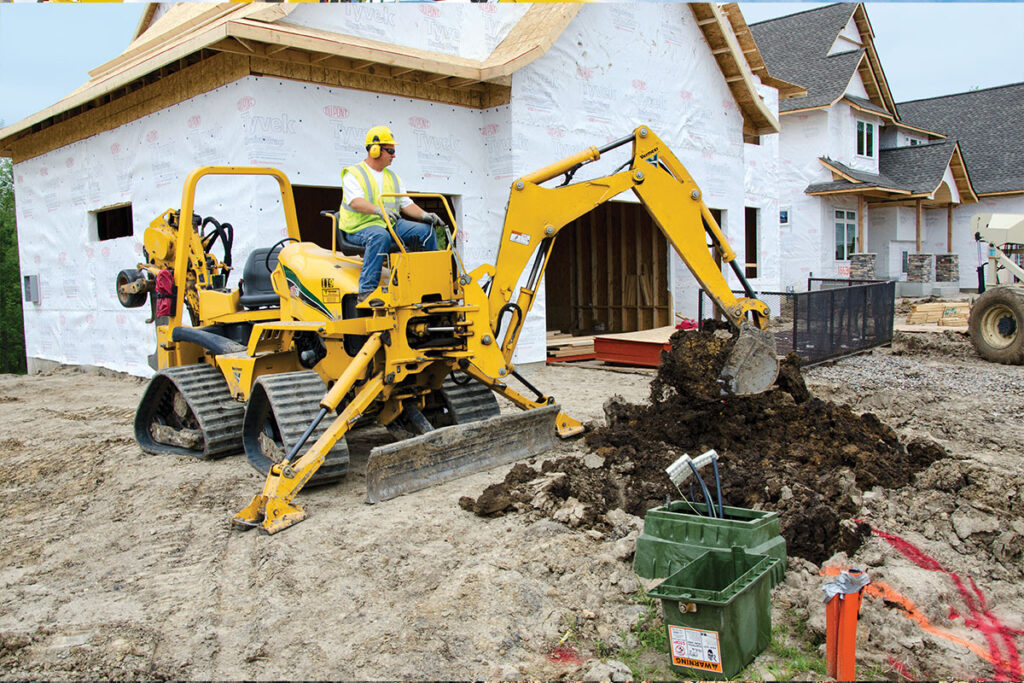

  • Attachment options include a vibratory plow, combo vibratory plow/trencher, centre-mount trencher, sliding offset trencher, backfill blade, backhoe, and reel carrier.

General Dimensions and Weights

  • Weight (Basic tractor, rubber tires): 5900 lbs / 2676.2 kg
  • Weight (Basic tractor, tracks): 9330 lbs / 4232 kg
  • Length (Basic tractor, rubber tires): 126 inches / 320 cm
  • Length (Basic tractor, tracks): 133.2 inches / 338.3 cm
  • Width (Basic tractor, rubber tires): 72 inches / 182.9 cm
  • Width (Basic tractor, tracks): 78.5 inches / 199.4 cm
  • Height (Basic tractor, rubber tires): 100.3 inches / 254.8 cm

Engine

  • Make and Model: Cummins B3.3T
  • Maximum Torque: 181 ft-lb / 245.4 Nm
  • Cooling Medium: Water
  • Fuel Type: Diesel
  • Emissions rating: Tier 4i (EU Stage IIIB)
  • Noise Level at Operator’s Ear: 95 d(B)a

Hydraulic System

  • Ground drive pump capacity: 35 gpm / 132.5 L/min
  • Ground drive pump relief: 4350 psi / 299.9 bar
  • Attachment pump capacity: 35 gpm / 132.5 L/min
  • Attachment pump relief: 5500 psi / 379.2 bar
  • Auxiliary pump capacity: 19.4 gpm / 73.4 L/min
  • Auxiliary pump relief: 2500 psi / 172.4 bar

Capacities

  • Fuel Tank: 27 gal / 102.2 L
  • Hydraulic Tank: 23 gal / 87.1 L
  • Hydraulic System: 25 gal / 94.6 L
  • Coolant: 3 gal / 11.4 L

Ground Drive - Rubber Tire

  • Maximum forward transport speed (high): 5 mph / 8 km/h
  • Maximum reverse transport speed (high): 5 mph / 8 km/h
  • Tire size: 38 x 14 inches / 96.5 cm x 35.6 cm

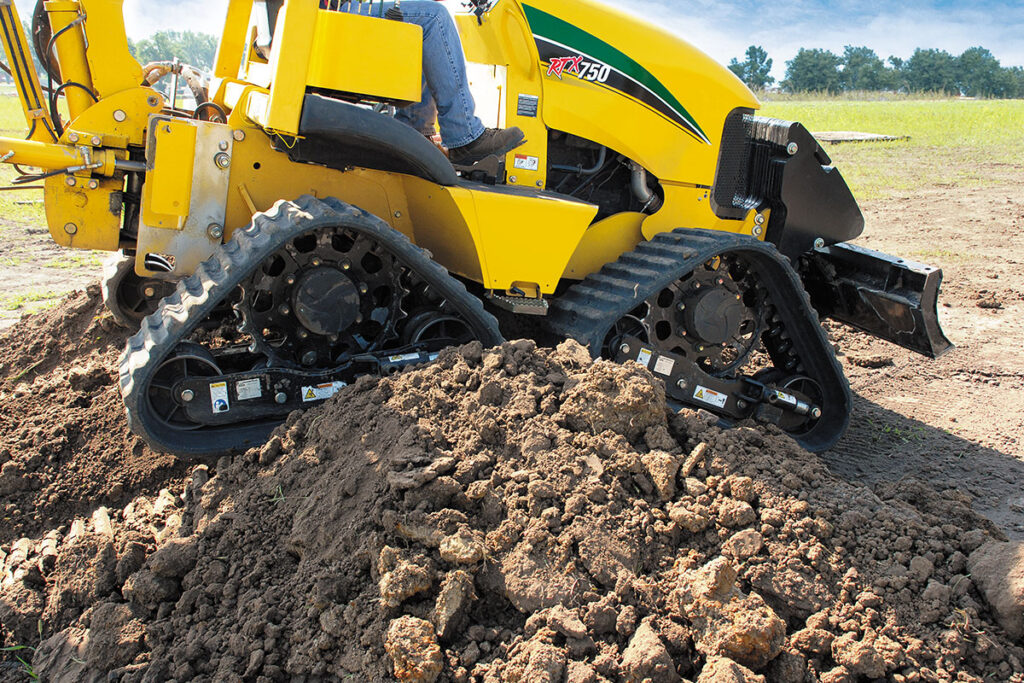

Ground Drive - Tracks

  • Maximum forward transport speed (high): 4 mph / 6.4 km/h
  • Maximum reverse transport speed (high): 4 mph / 6.4 km/h

Axle Options

  • Front Axle Type: Steerable planetary with hydraulic differential lock
  • Rear Axle Type: Steerable planetary with hydraulic differential lock
  • Axle load rating (Static, per axle): 11250 lbs / 5102.9 kg
  • Outside Turning Diameter (Rubber Tires, Front Steer Only): 33 ft / 10.1 m
  • Outside turning Diameter (Tracks, front steer only): 39.5 ft
  • Outside Turning Diameter (Rubber Tires, Front and Rear Steer): 16.8 ft / 5.1 m
  • Outside turning Diameter (Tracks, front and rear steer): 23 ft
  • Service Brake Type: Hydrostatic
  • Parking Brake Type: Spring-applied, hydraulic release
