Compost Turner

  • Width: 5.9 m
  • Height: 2.4 m
  • Weight: 3982.5 kg
  • Fuel Type: N/A
  • Power: 217 hp (161 kW)

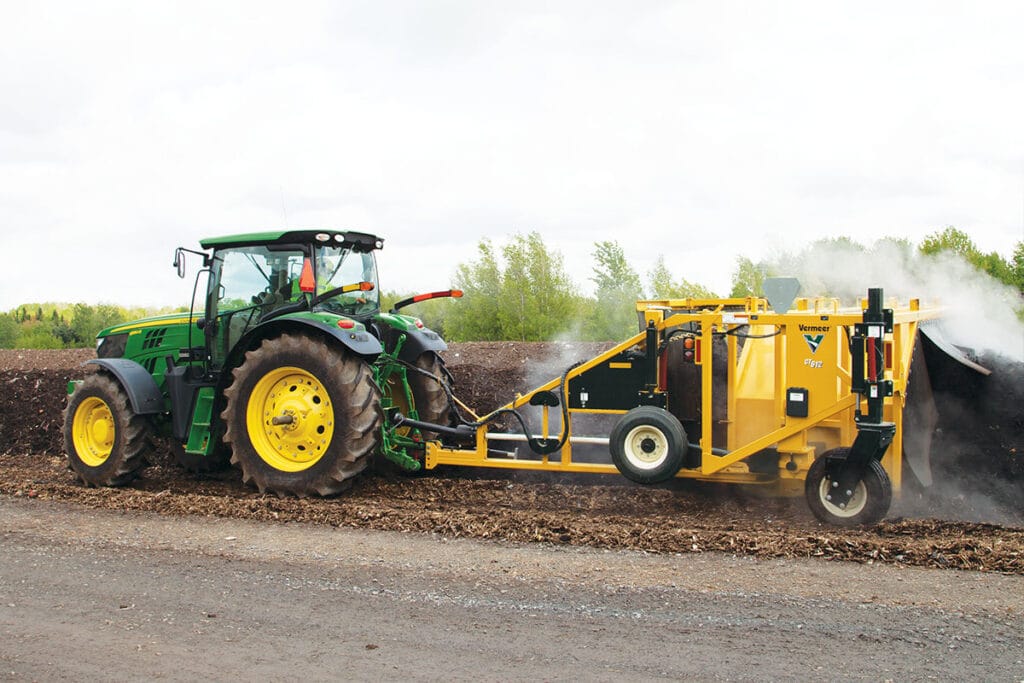

Vermeer CT612 Compost Turner - Vermeer Australia

Features

Built with a heavy-duty frame, the CT612 features a large-diameter drum that aerates compost to help you work more efficiently and effectively.

General Dimensions and Weights

  • Maximum Width (Operation): 19.4 foot / 5.9 m
  • Maximum Height (Operations): 7.7 foot / 2.4 m
  • Weight: 8780 lbs / 3982.5 kg
  • Tongue Weight: 3360 lbs / 1524.1 kg
  • Capacity: 1,500 tons per hour / 1360 metric tons per hours dependent upon tractor hp

Frame

  • Mainframe: Four cross frames constructed of 4  x 3  x 3/16 inch tubing / 10.2 cm x 7.6 cm x 0.5 cm
  • Hitch Frame: 6 x 3  x 0.25 inch tube / 15.2 cm x 7.6 cm x 0.6 cm
  • Sheet Metal: 7 gauge

Ground Drive

  • Tire size: 12.5 L – 16 14 Ply tubeless
  • Rim Size: 10 ” x 16 ” – 8 bolt / 25.4 cm x 40.6 cm
  • Wheel Lift Cylinders: 2 – 3.5 ” (8.9 cm) Bore x 16 ” (40.6 cm) Stroke; 1-3 0.5 ” (8.9 cm) Bore x 20 ” (50.8 cm) Stroke
  • Maximum Speed: 20 mph / 32.2 km/h

Processing Tunnel

  • Windrow Height: 6 foot / 1.8 m
  • Windrow Width: 12 foot / 3.7 m

Drum

  • Drum Diameter (including flails): 35 inch / 88.9 cm
  • Length of Drum: 142.8 inch / 362.7 cm
  • Number of Flails: 68
  • Flail Dimensions: 0.5 x 4 x 12 inch / 1.3 cm x 10.2 cm x 30.5 cm

Drive Line

  • PTO Shaft: Weasler-rated 217 hp (157.3 kW) at 1000 RPM
  • Right Angle Gearbox: 1000 RPM [175 hp (130.5 kW) maximum]
  • Shaft Coupler: 80 – 2 roller chain coupler
  • Drive Line Bearings: 1 15/16 inch ball bearing / 1.9 cm
