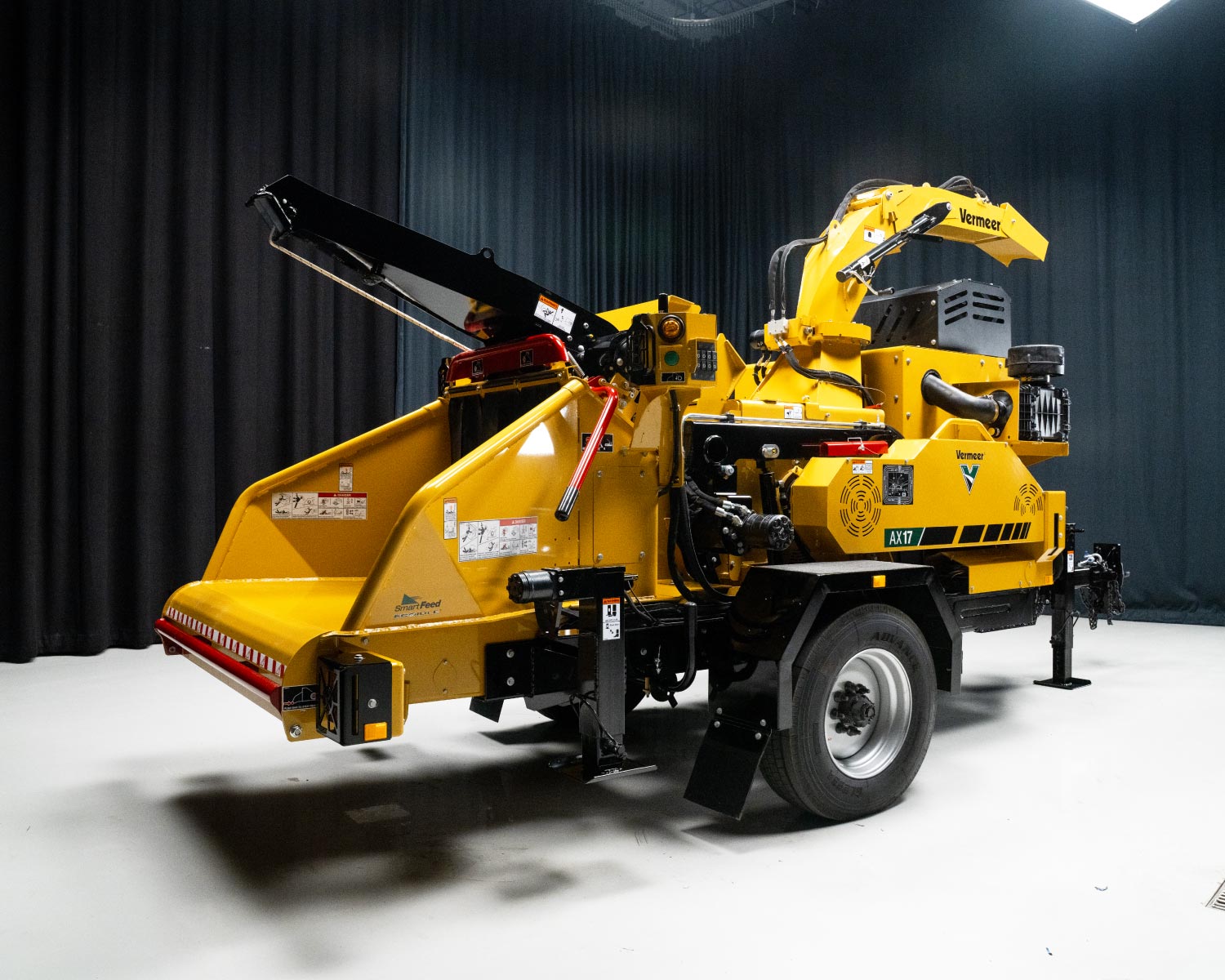

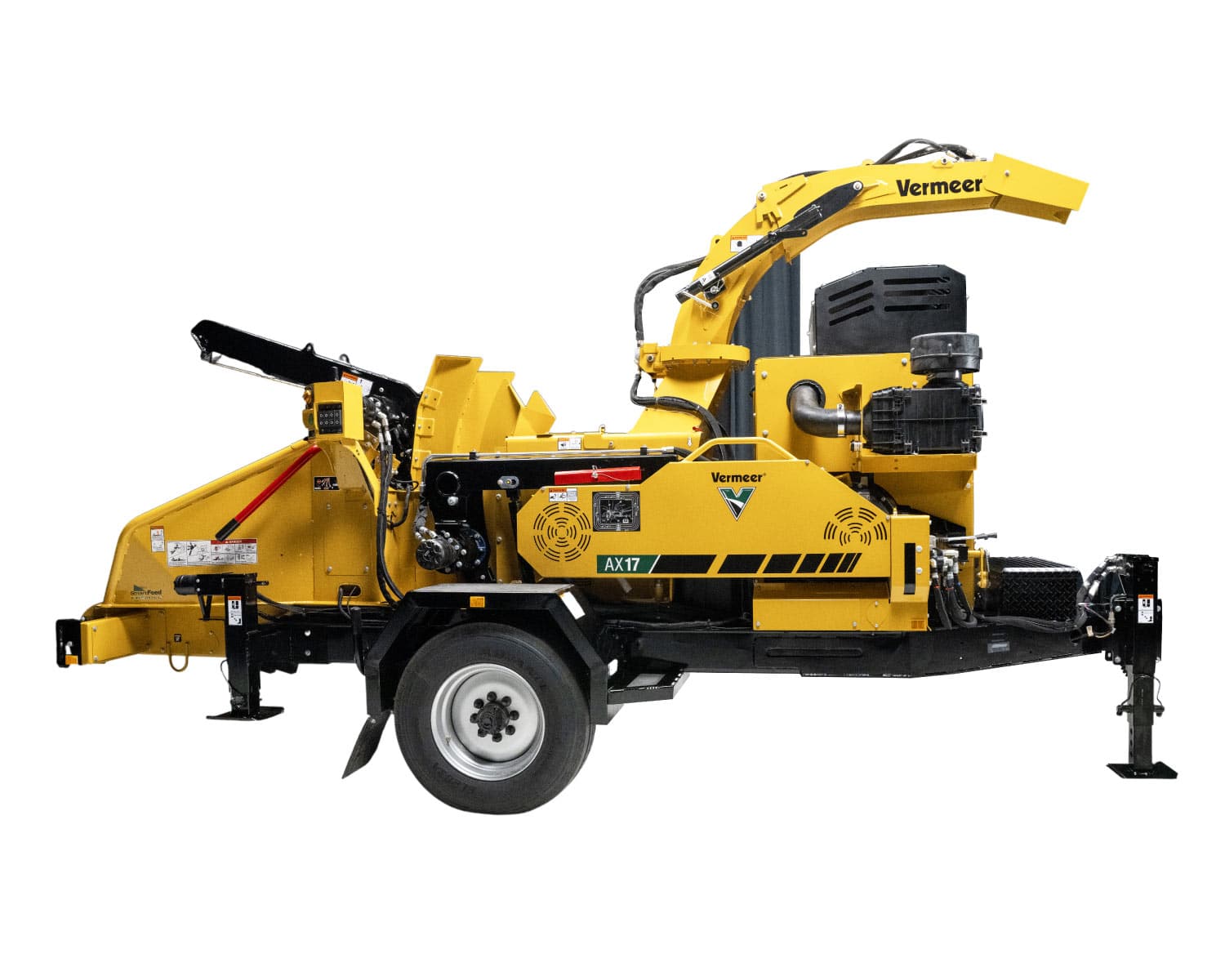

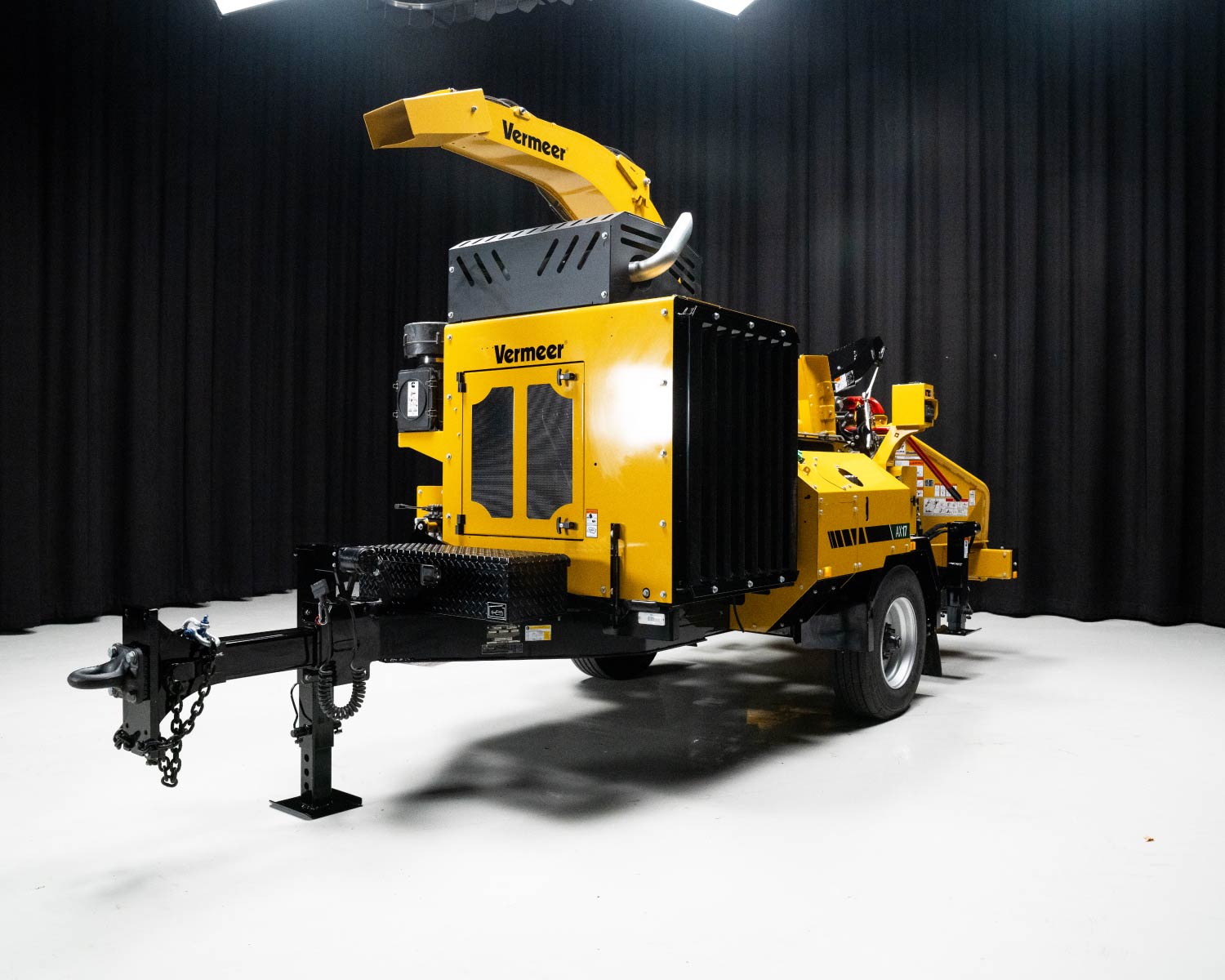

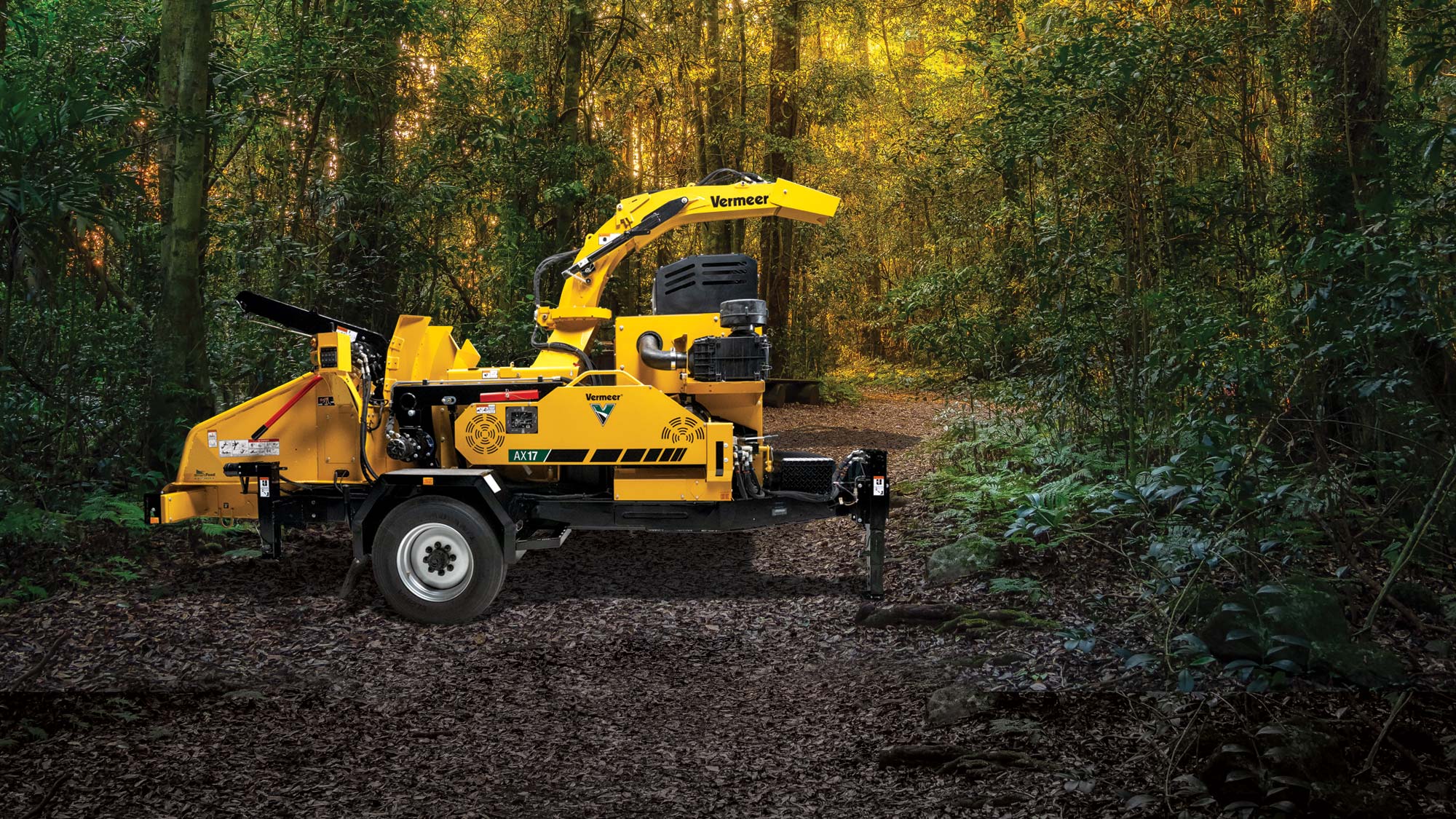

AX17 Wood Chipper

Powered by a Tier 3 Cummins engine, the AX17 brush chipper can handle tough materials with ease.

Providing over 6,500 lb (2,948 kg) of pull-in power, the AX17 uses Smartcrush and Smartfeed control system that reduces the need for operator interaction when feeding difficult material.

The AX17 chassis is compliant with Australian Design Rules (ADR), thus facilitating ease of transportation around congested urban areas and minimizing the need for additional license requirements.

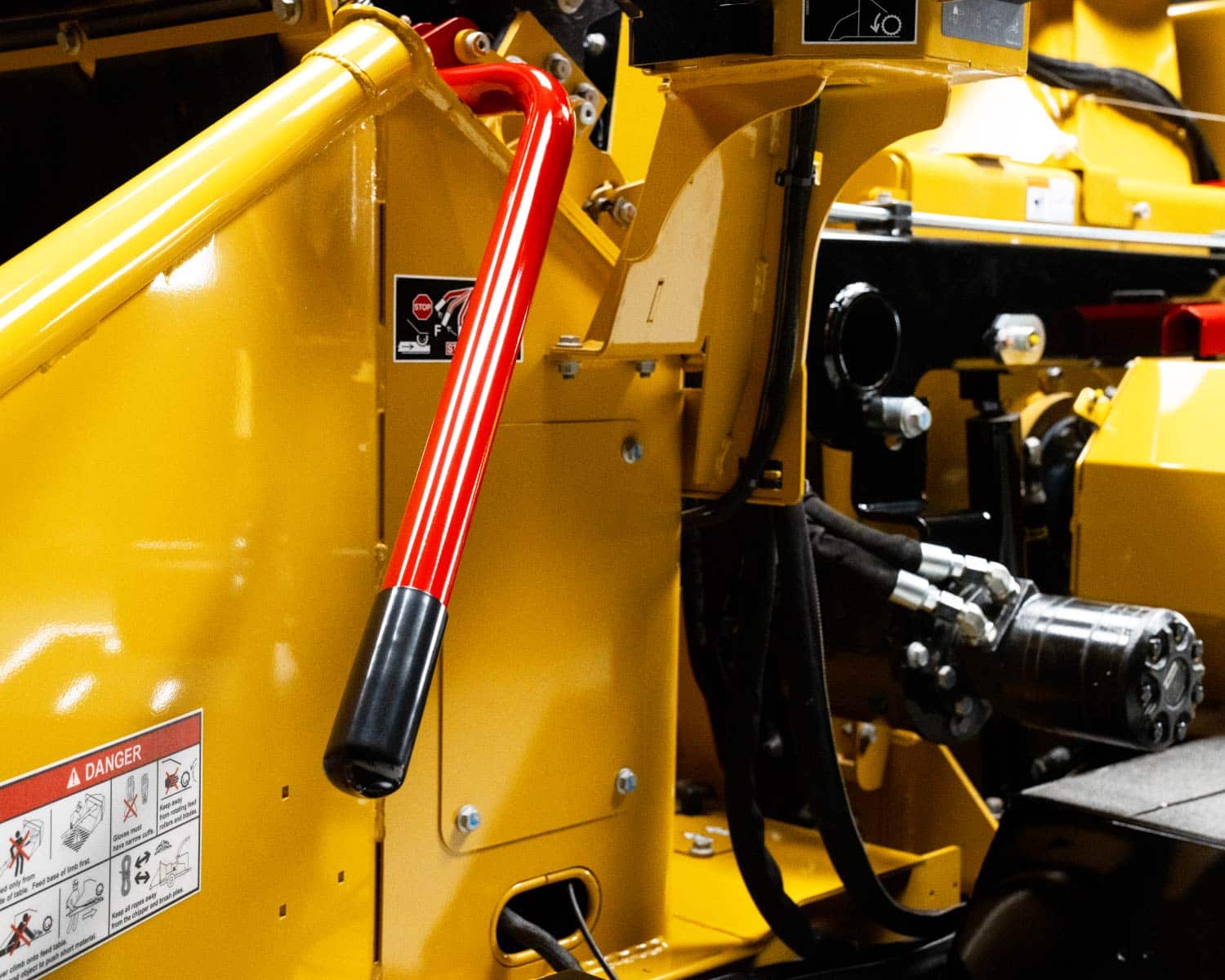

The AX17 is equipped with a side lever that provides convenient access when opening and closing the clean-out door.

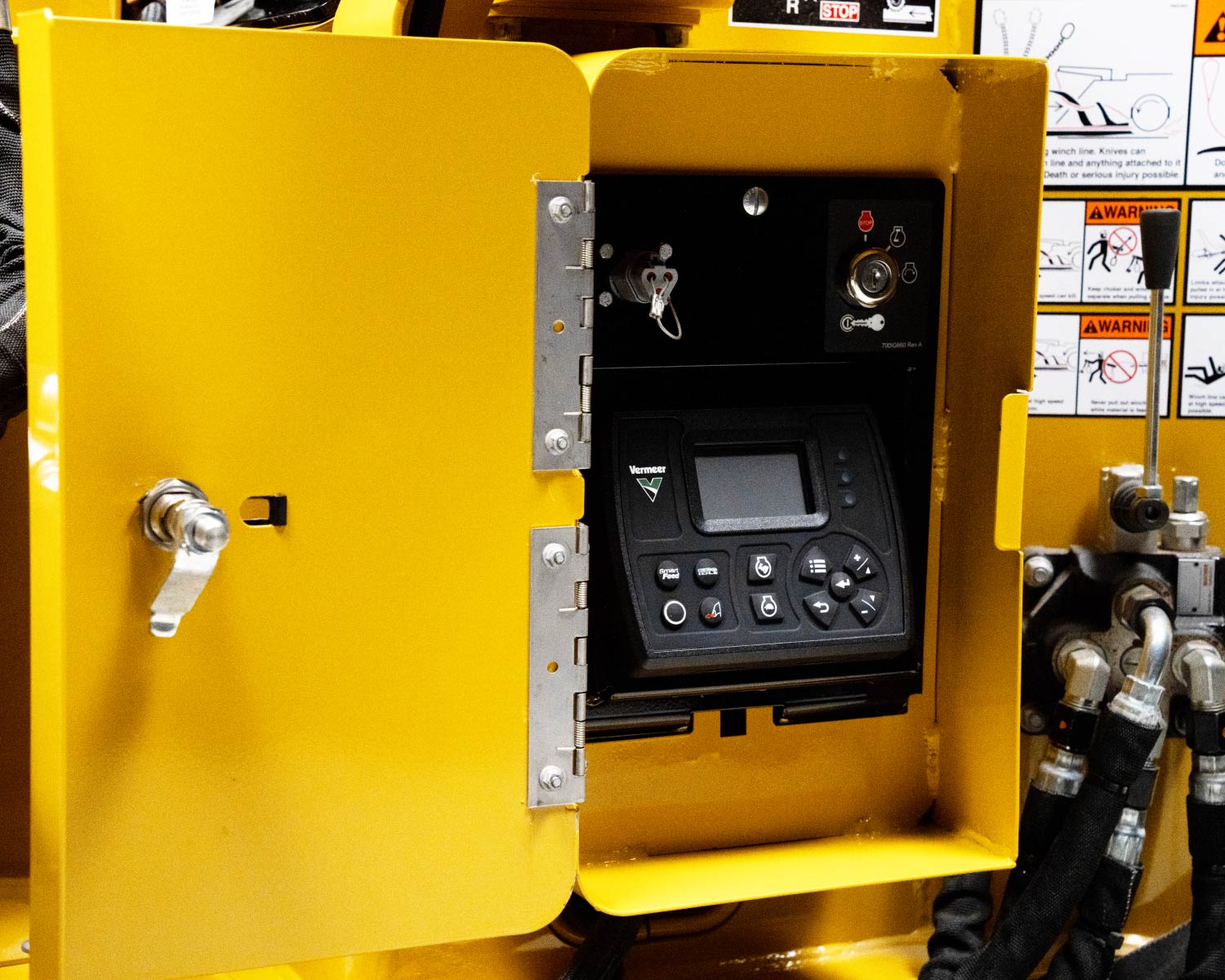

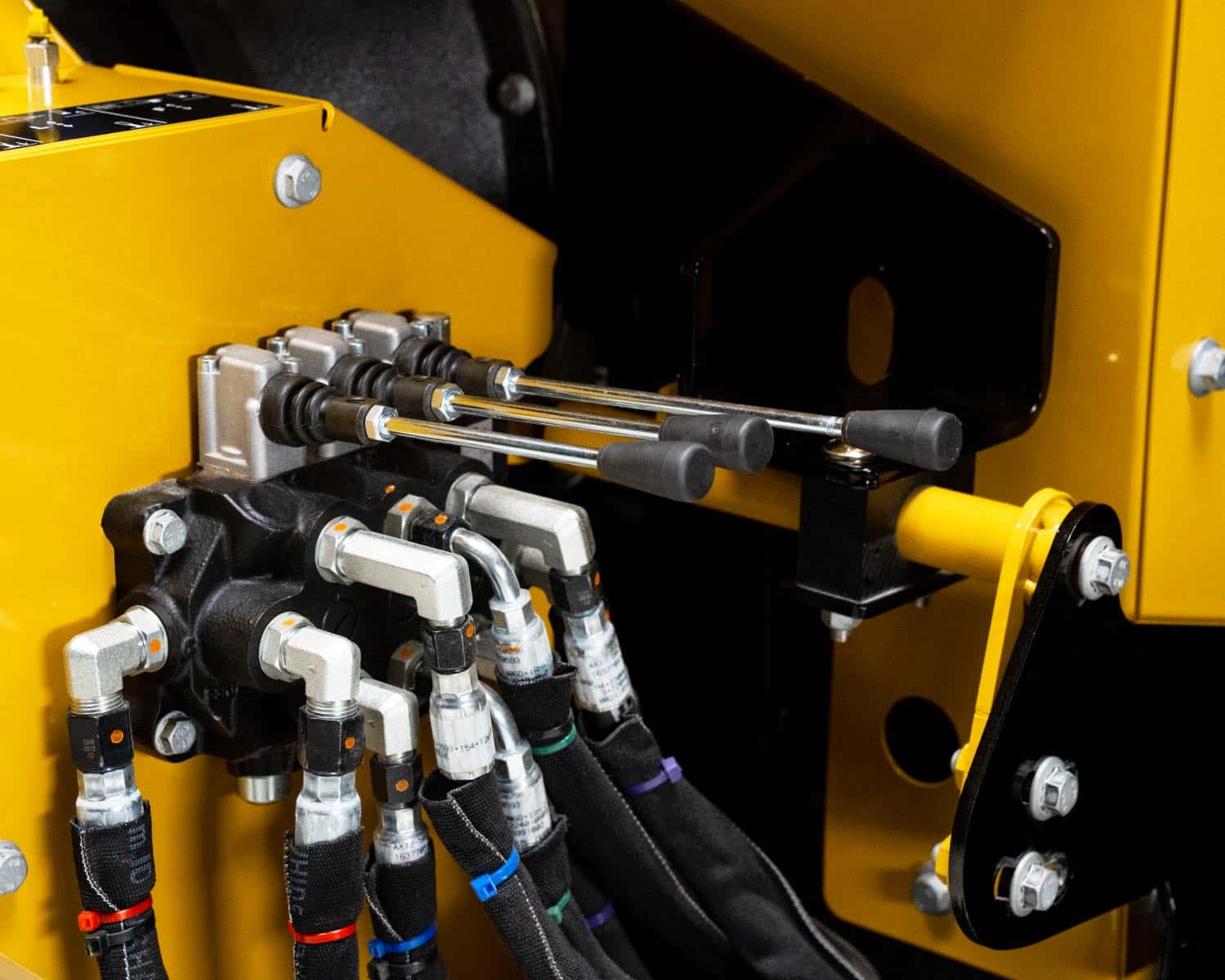

Offers a common control system design with Australia controls such as a left-hand control panel, left-hand winch, left-hand chute and right-hand jack, allowing for straightfoward functionality and ease of use.

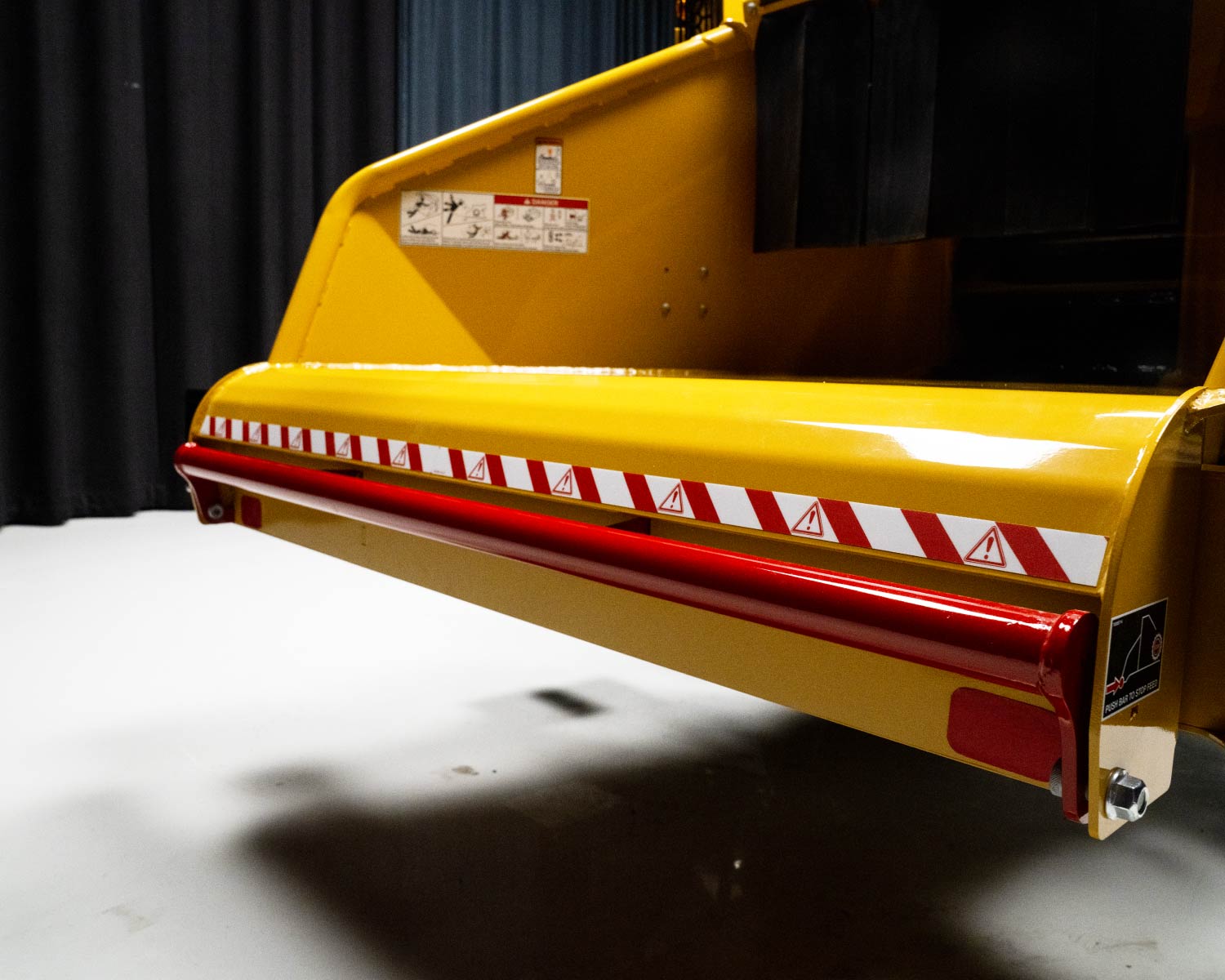

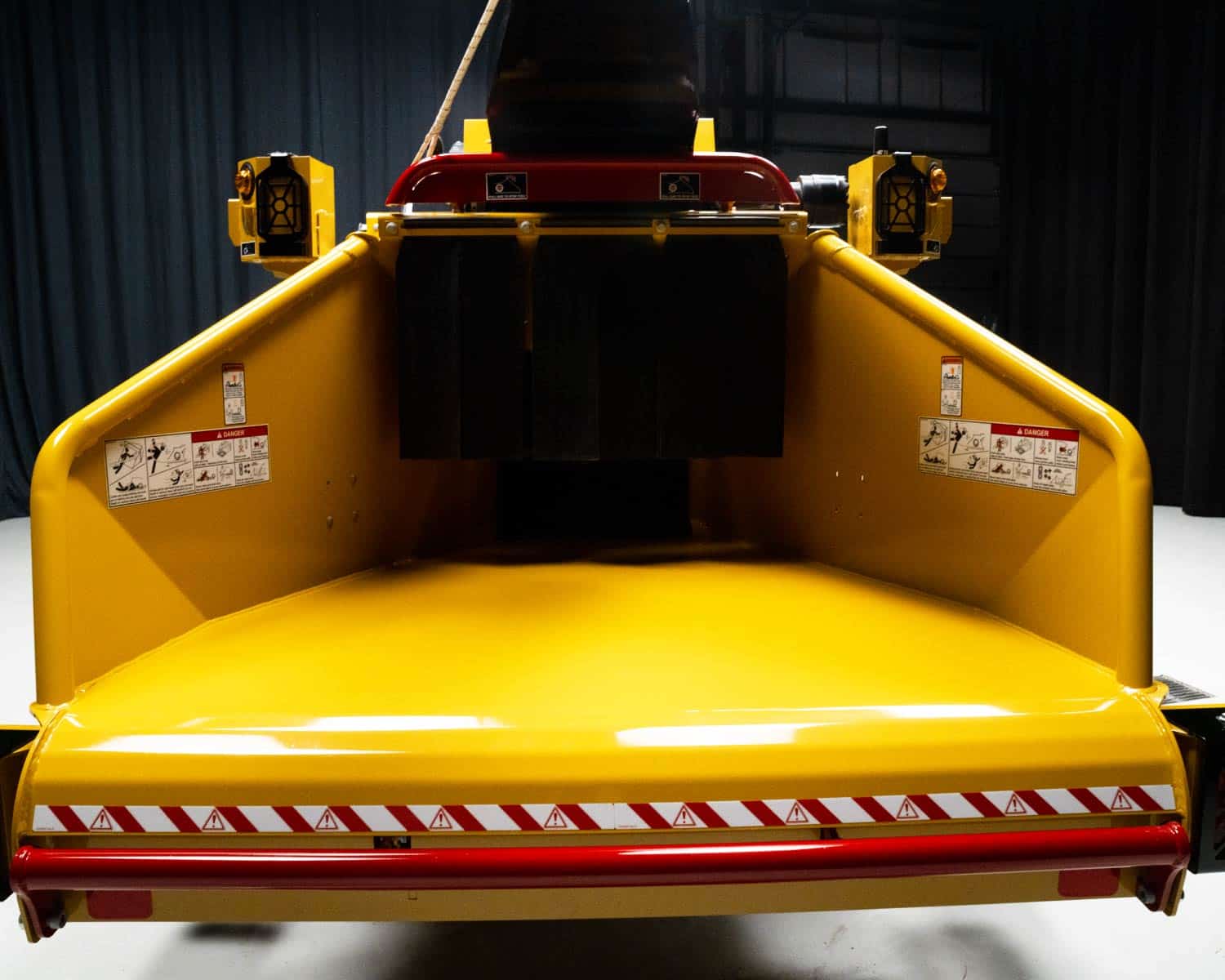

Mechanized feeding made effective with a wide feed roller opening and durable, fixed infeed table design.

• Length (table down, tongue extended): 249.5 in (633.7 cm)
• Width: 78.5 in (199.4 cm)
• Height: 110.5 in (280.7 cm)
• Weight: 8,640 lb (3,919 kg)

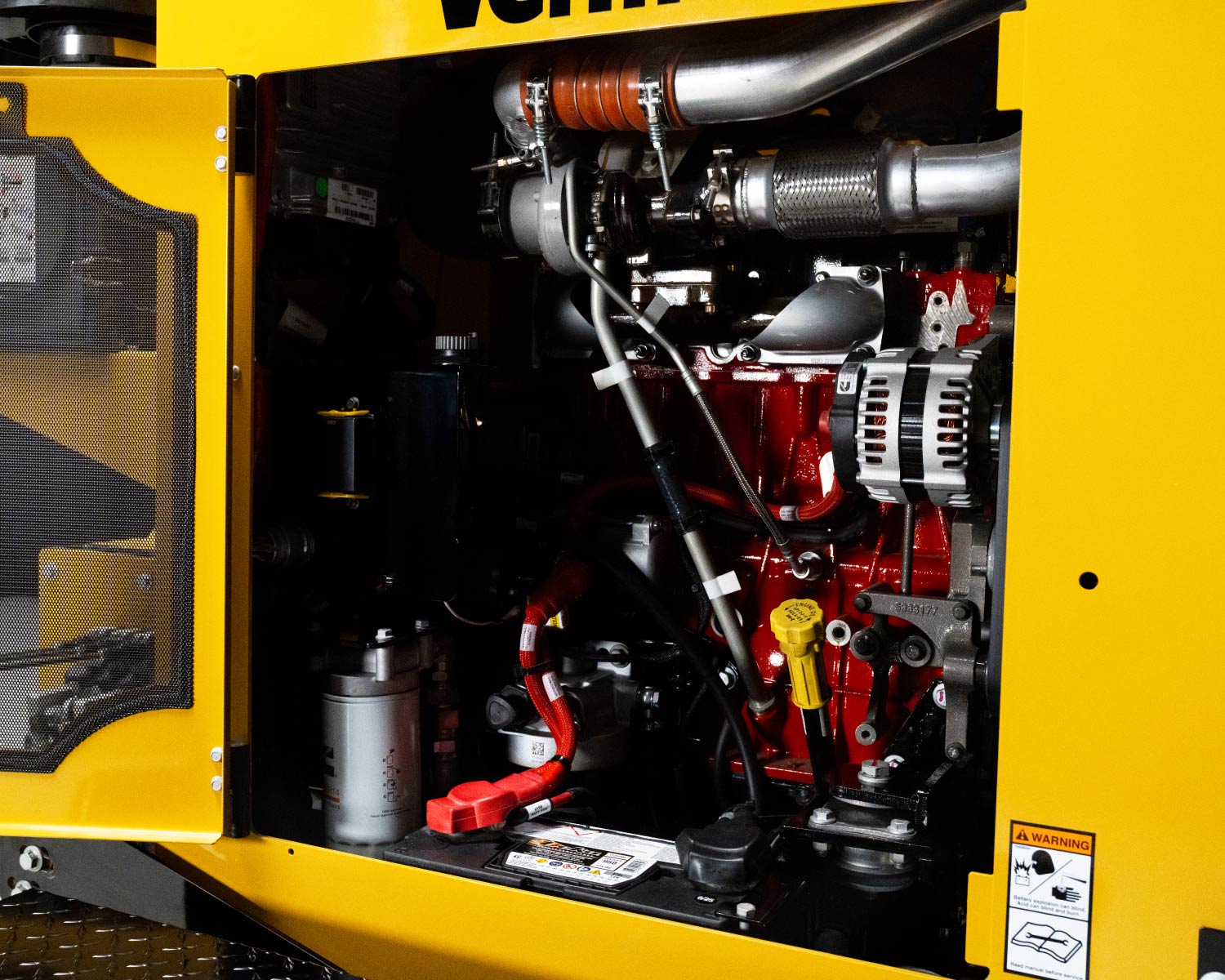

• Make and model: Cummins 3.8 L T3
• Number of cylinders: 4
• Gross horsepower (max): 130 hp (96.9 kW)
• Fuel type: Diesel
• Cooling system: Liquid
• Maximum torque: 488.1 Nm

• Chipping capacity: 11.8 in (30 cm)
• Infeed opening height: 29 in (73.7 cm)
• Infeed opening width: 59.5 in (151.1 cm)
• Feed roller orientation: Horizontal
• Feed table height: 30 in (76.2 cm)
• Feed speed (max): 95 fpm (29 m/min)
• Upper feed roller dimension: 15 in x 20 in (38.1 cm x 50.8 cm)
• Lower feed roller dimension: 11 in x 20 in (27.9 cm x 50.8 cm)

• Drum speed: 1,800 rpm
• Drum dimensions: 26 in x 20 in (66 cm x 50.8 cm)
• Drum thickness: 0.5 in (1.3 in)
• Number of knives: 2 – 5 in x 10 in x 0.6 in (12.7 cm x 25.4 cm x 1.6 cm)
• Engagement system: Manual, automotive-style, self-adjusting clutch
• Shear bar: 4-sided – 3 in x 20.3 in x 1.3 in (7.6 cm x 51.4 cm x 3.2 cm)

• Fuel tank capacity: 40 gal (151.4 L)
• Hydraulic tank: 3 gal (11.4 L)
• Max hydraulic flow: 6 gpm (22.7 L/min)
• Lights: LED front, rear, side, brake and taillights

• Frame: Z channel, 0.3 in (0.6 cm) thick

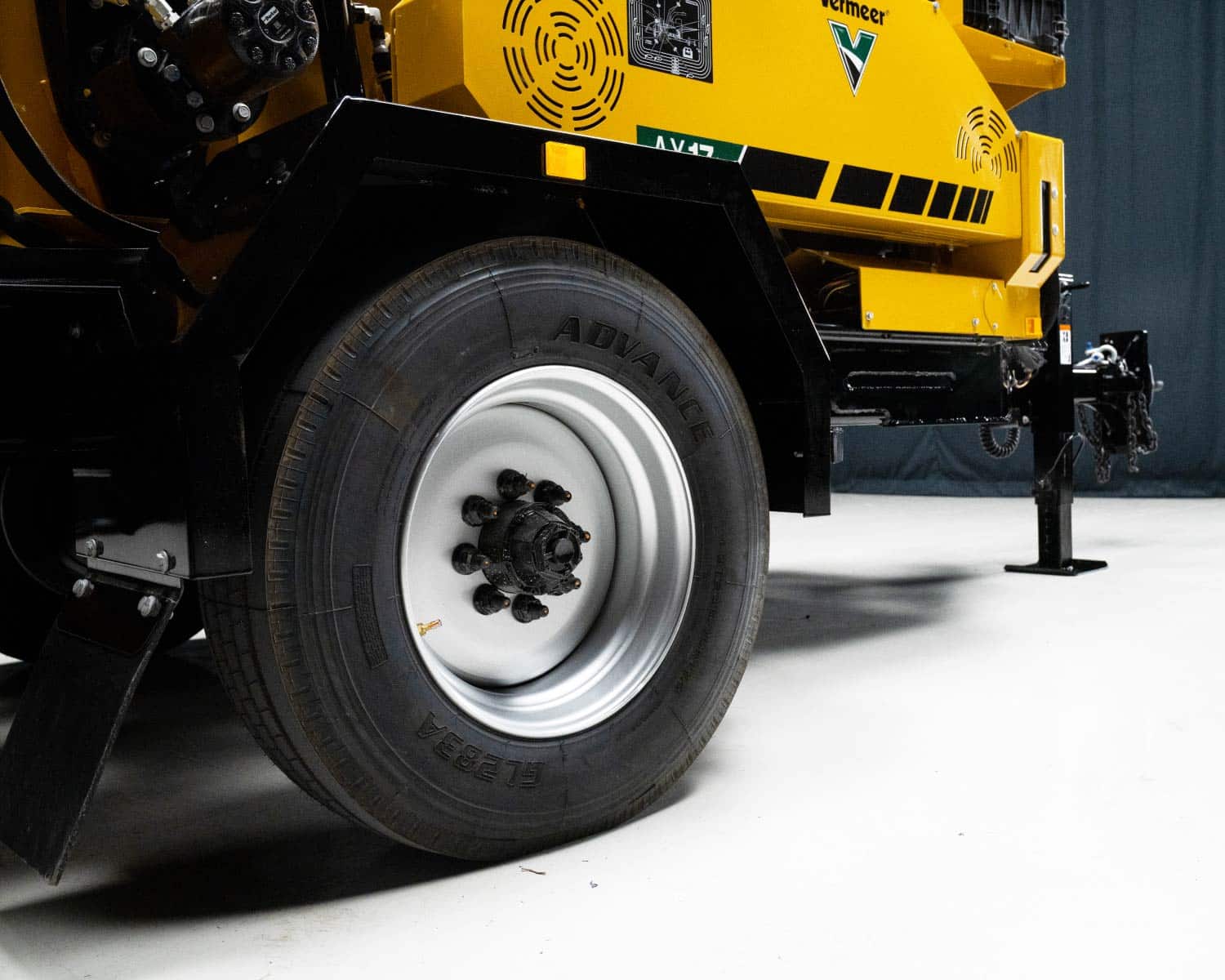

• Tires: 235/75R17.6
• Axle/suspension: 10,000 lb (4,536 kg) torsion
• Hitch: 3 in (7.6 cm) ID pintle
• Tongue extension: 12 in (30.5 cm)

• Discharge height: 110.5 in (280.67 cm)
• Degree of rotation: 270˚

• Winch length: 151 ft (46 m)
• Winch input speed: 48 rpm
• Winch line pull: 2,000 lb (907.18 kg)

• Special paint
• Extended warranty
• Preventative maintenance

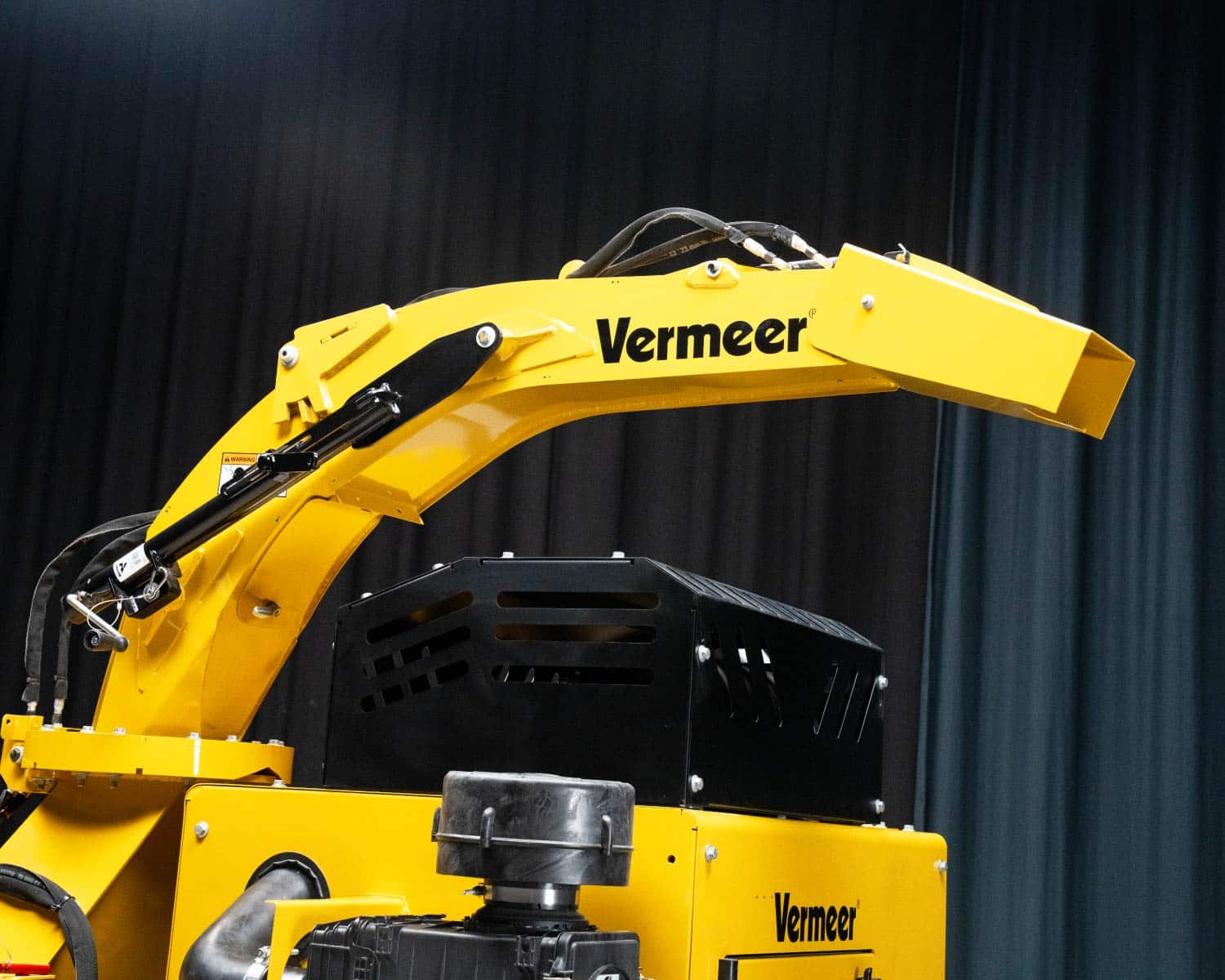

• Adjustable height discharge chute

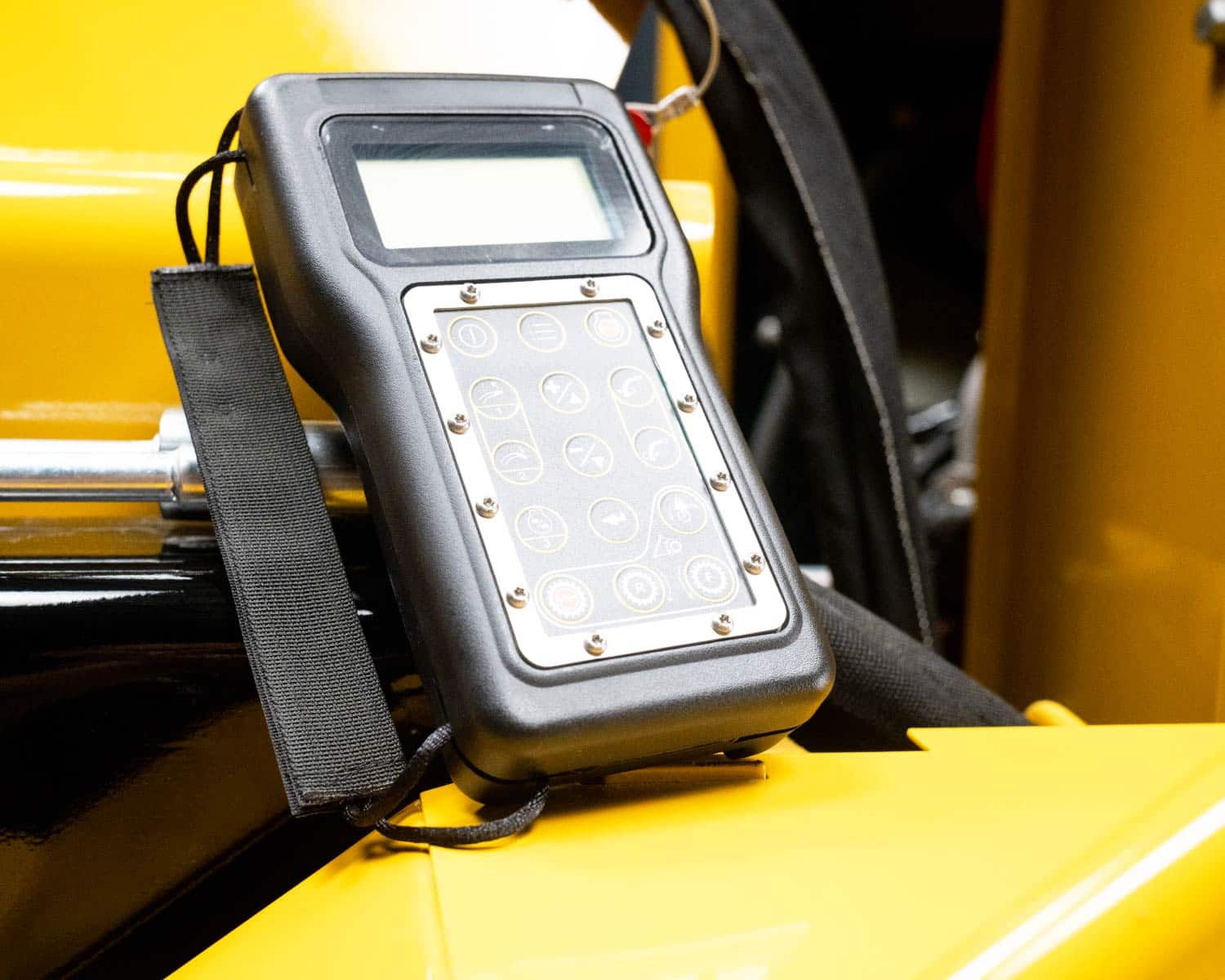

• Remote control
• Hydraulic chute controls
• Hydraulic jack
• Hydraulic outriggers
