Truck-mounted Vacuum Excavators

  • Fuel Type: Diesel
  • Power: 67 hp (50 kW)
  • Capacity: 500-3000 gal spoil tank configurations
  • Blower Output: 1025 CFM blower output
  • Max. Vacuum: 15 in’Hg


The Vermeer VX70 range of skid-mounted vacuum excavation units offer a multitude of unique features that enable vac truck use by both teams and individuals across a wide variety of medium-volume excavation and spoil removal applications.

Key Features

  • The high-quality one-piece skid can be easily mounted to a wide range of truck chassis— permanently, or via container locks for greater versatility.
  • Reduces the risk of material entering the blower – in turn, adding greater longevity to your system.
  • Integrated silencing system for quieter operation on noise-sensitive job sites.
  • Quality blower with dual oil bath lubrication for maximum longevity.  Optional Reverse Flow improves productivity with the ability to offload spoil faster and clear blockages quickly.
  • Exclusive optional telescoping boom maintains hose length during extension and incorporates a remote-controlled hydraulic valve for vacuum shut-off. Available with manual or hydraulic rotation.
  • Saves your cleanup time and makes it easier to remove difficult debris as it delivers a high-pressure water spray to the tank interior while simultaneously dumping material.

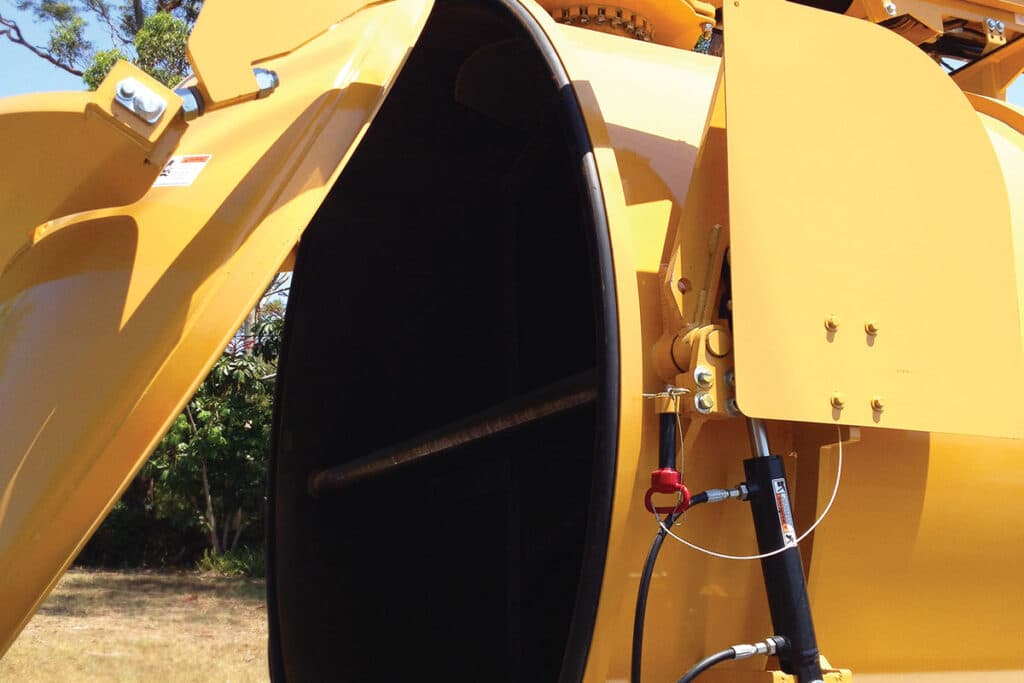

  • Cam-Over auto-locking design provides a positive door seal, even under reverse pressure without additional clamping requirements.

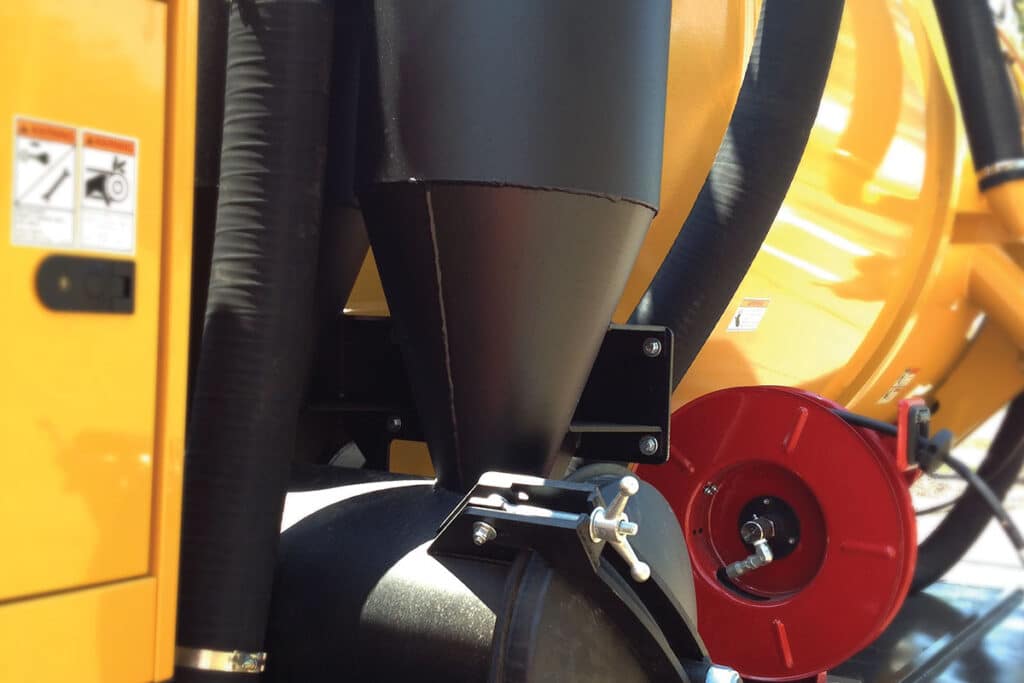

  • Superior three-stage cyclonic filtration over a baghouse arrangement, and located at chest height for easy removal for cleaning if required.

Common features of the VSK70 range

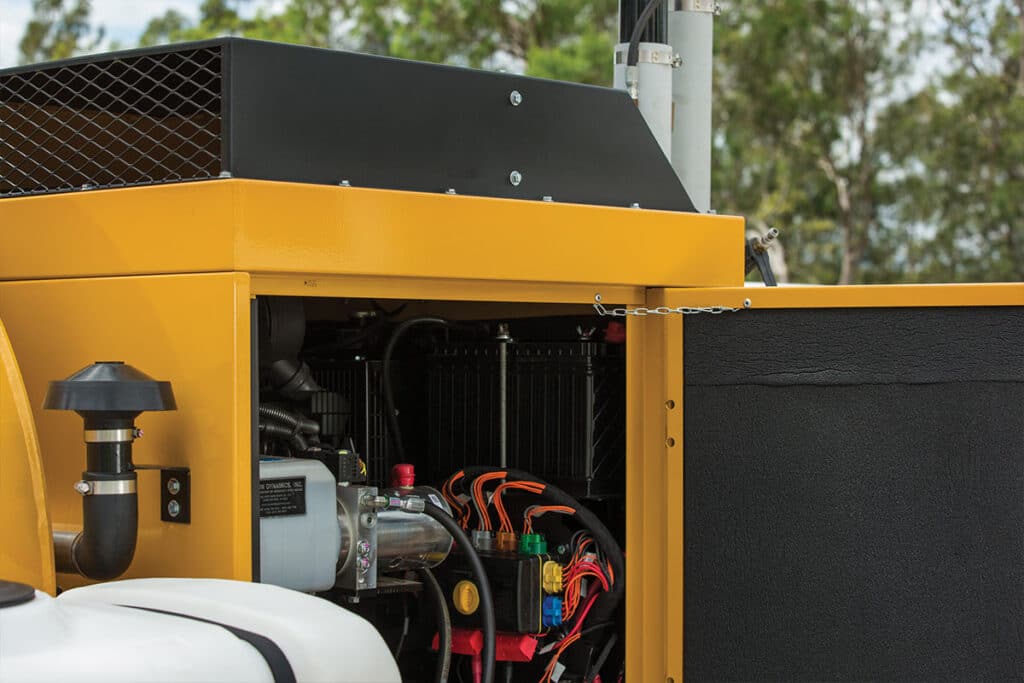

  • Power pack: 67 hp Kubota Diesel / 50 kW
  • Fuel Tank Capacity: 83.3 L
  • Water Pump: 5.6 gpm @ 3000 psi / 21.2 L/min @ 206.8 bar
  • High Pressure Hose Length: 50 foot /  15.2 m
  • Low Water Shut-off: Electric
  • Full Tank Shut-off: Mechanical/Electric
  • Tank Lift Type: Dual Cylinder
  • Blower: 1025 cfm
  • Vacuum: 15 inHg
  • Type of Filters: 2 Micron, Washable
  • Hose Width: 4 inches / 10.2 cm
  • Hose Length:  Three 3m lengths (9m total)
  • Spoil Tank Shut-off: Dual – Electric & Manual
  • 3-Stage cyclonic filtration system: Standard
