Truck-mounted Vacuum Excavators

  • Fuel Type: Diesel
  • Power: 200 hp (149.1 kw)
  • Capacity: 1200-2000 gal spoil tank configurations
  • Blower Output: 3200 CFM blower output
  • Max. Vacuum: 18 in’Hg

Features

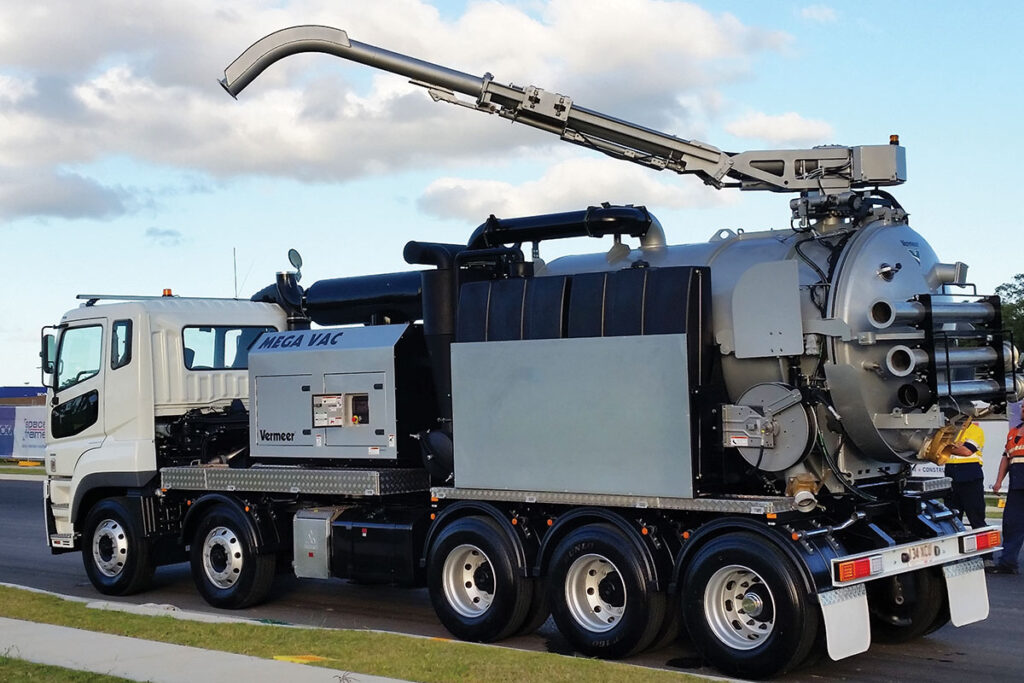

The VX200 truck-mounted vacuum excavators feature a 200hp powerpack, 1200 to 2000 gallon spoil tanks, 6-inch hose and 3,200-cfm @ 18 inches of mercury.

Key Features

  • The VX200 truck-mounted vacuum excavator range has spoil tank capacities ranging from 1,200 to 2,000 gallons, and a standard option of 800 gallons of fresh water.
  • It has a 6-inch hose diameter with a 3,200-cfm blower at 18 inches of mercury.
  • The tank, power pack, and water system all have a modular design, allowing contractors to mount the unit on either a new or a repurposed truck chassis.
  • The Mega VX200 is powered by a 200-horsepower John Deere Tier 3 engine and features the McLaughlin three-stage cyclonic filtration system that allows both wet and dry vacuum excavation and, says the company, prolongs filter life and helps keep maintenance costs low.
  • The machine also uses the patented McLaughlin cam-over-hydraulic rear door that is designed to provide a positive 360-degree seal without additional clamping requirements, keeping fluids securely in the debris tank.

Dimensions

  •  Length:  214.9 inches / 545.8 cm
  •  Height w/boom:  109.7 inches / 278.6 cm
  •  Empty Weight:  14,500 lbs / 6,577.1 kg
  •  Width:  97.9 inches / 248.7 cm
  •  Spoil Tank Capacity:  2,000 gal / 7,570.8 L

Engine

  •  Horsepower:  200 hp John Deere Diesel / 149.1 kw
  •  Enclosure:  Enclosed/Lockable
  •  Fuel Tank Capacity:  Plumb to Truck Fuel Tanks

Water Tanks

  •  Water Tank Capacity:  800 gal / 3,028.3 L
  •  Number of Tanks:  (2) 400 gal / 1,514.2 L
  •  Water Pump:  10 gpm @ 3,000 psi / 37.9 L/min @ 206.8 bar
  •  High Pressure Hose Length:  50 foot / 15.2m
  •  Low Water Shutoff:  Electronic

Spoil Tank

  •  Spoil Tank Capacity:  1200, 1600, or 2000 gal / 4543, 6057, or 7571 L
  •  Door Type:  Hydraulic
  •  In Tank Washdown:  Standard
  •  Mechanical Full Tank Shutoff:  Standard
  •  Electric Full Tank Shutoff:  Standard
  •  Tank Lift Type:  Dual Cyl

Vacuum

  •  Type of Filters:  2 Washable Micron Poly
  •  Cyclonic Filtration System:  Custom Dual 17″ x 55″ Cyclones / 43.2 cm x 139.7 cm
  •  Boom Tool Length:  3-5 foot / 0.9 m – 1.5 m
  •  Hose Diameter:  6 inches / 15.2 cm
  •  Vacuum Mercury:  18 in’Hg / 0.6 bar
  •  Blower Silencer:  18 x 6 inches  Critical Grade Silencer / 45.7 cm x 1.8 m
  •  Suction Hose Storage:  N/A /min

Control Panel

  •  Gauges:  Electronic Display with 7 inch LCD Screen / 17.8 cm LCD Screen

Boom

  •  Reach:  14 foot / 4.3 m
  •  Movement:  270 Degree Rotation
  •  Remote Control:  Wireless

Available Options

  •  Hydraulic Rotation Boom:  Standard
  •  Hot Box Water Heater:  Yes
  •  Air Compressor:  Yes
