Truck-mounted Vacuum Excavators

  • Fuel Type: Diesel
  • Power: 99 hp (74 kW)

Features

The Vermeer VX100 range of skid-mounted vacuum excavation units offer a multitude of unique features that enable vac truck use by both teams and individuals across a wide variety of medium-volume excavation and spoil removal applications.

Key features

  • The high quality one-piece skid can be easily mounted to a wide range of truck chassis — permanently, or via container-locks for greater versatility.
  • The dual tank shut-off system reduces the risk of material entering the blower – in turn, adding greater longevity to your system.
  • Integrated silencing system for quieter operation on noise-sensitive job sites.

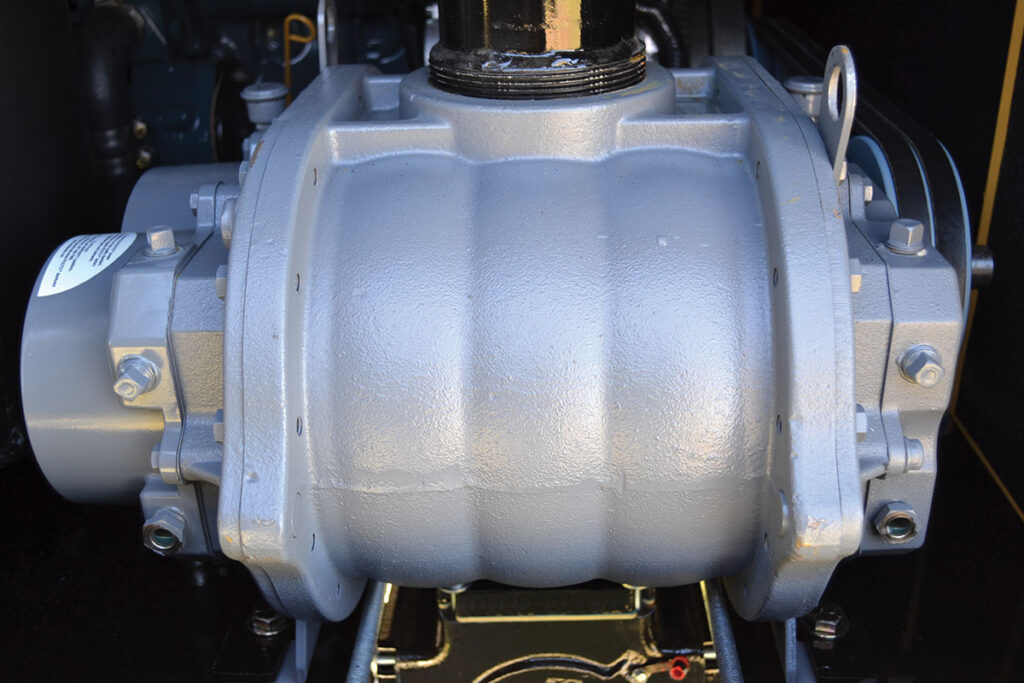

  • Quality blower with dual oil bath lubrication for maximum longevity.  Optional Reverse Flow improves productivity with the ability to offload spoil faster and clear blockages quickly.
  • Exclusive optional telescoping hydraulic boom maintains hose length during extension and incorporates a remote controlled hydraulic valve for vacuum shut off. Available with manual or hydraulic rotation.
  • The in-tank washdown system saves you cleanup time and makes it easier to remove difficult debris as it delivers a high-pressure water spray to the tank interior while simultaneously dumping material.

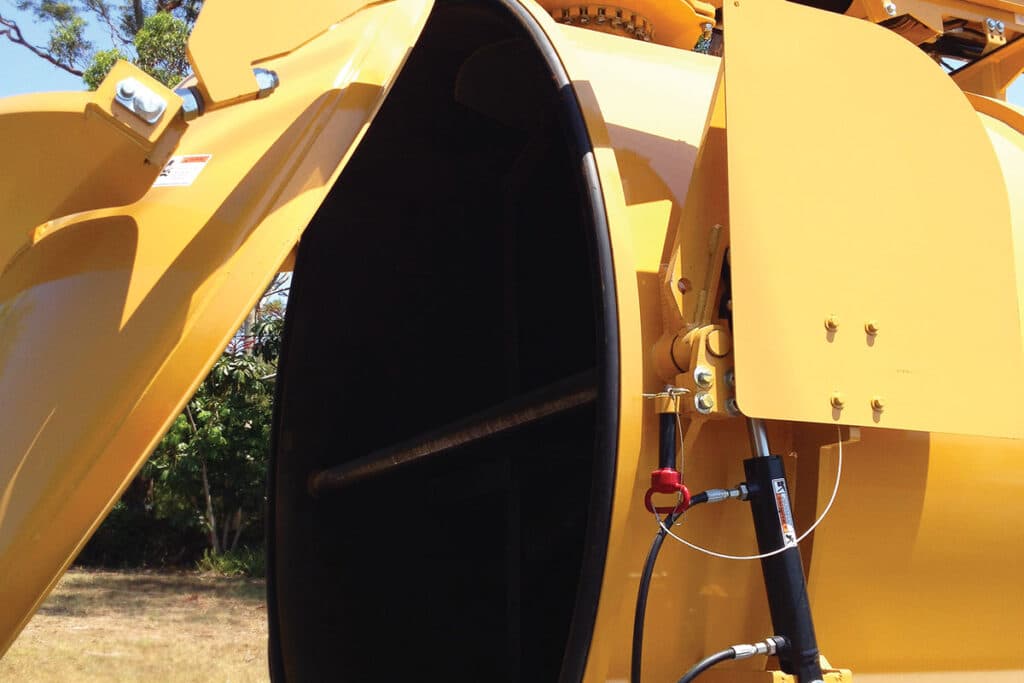

  • Cam-Over auto-locking design provides a positive door seal, even under reverse pressure without additional clamping requirements.

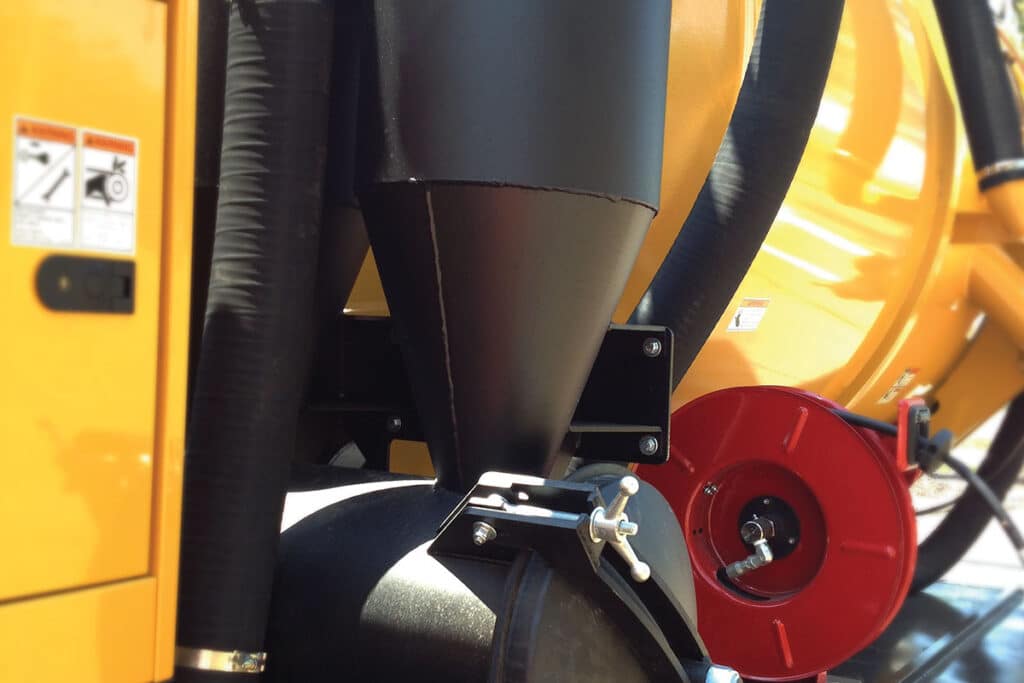

  • Superior three-stage cyclonic filtration over a baghouse arrangement, and located at chest height for easy removal for cleaning if required.

Common features of the VSK100XT range

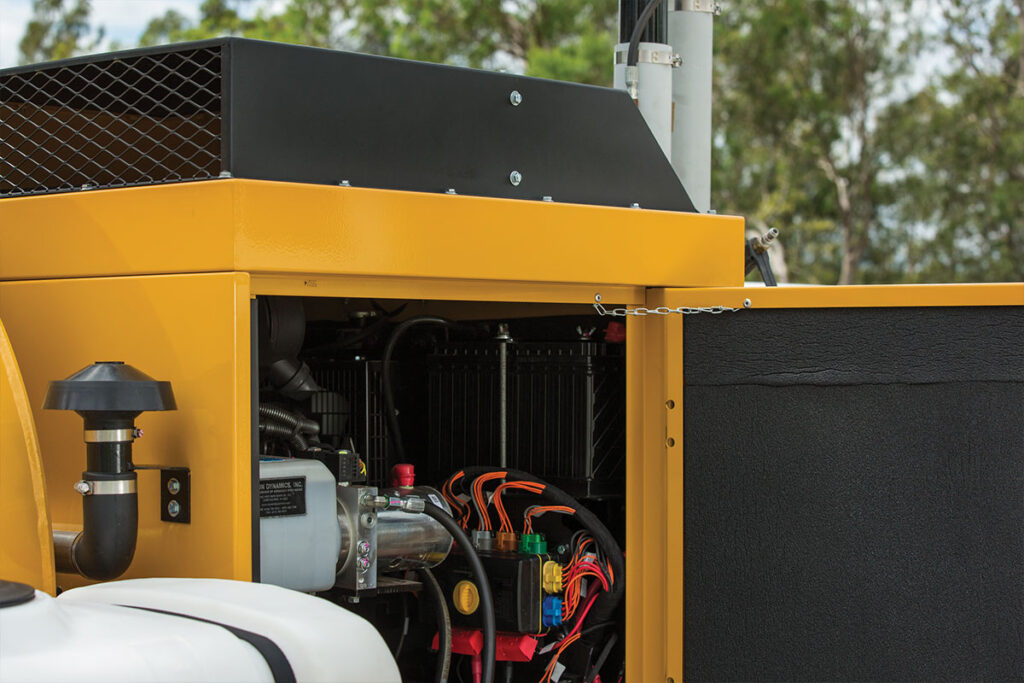

  • Power pack: 99 hp Kubota Diesel / 74 kW
  • Fuel Tank Capacity: 83.3 L
  • Water Pump: 5.6 gpm @ 3000 psi / 21.2 L/min @ 206.8 bar
  • High Pressure Hose Length: 50 foot / 15.2 m
  • Low Water Shut-off: Electric
  • Tank Lift Type: Dual Cylinder
  • Door: Hydraulic cam-over
  • Blower: 1200 cfm
  • Vacuum: 15 inHg
  • Hose Width: 4 inches / 10.2 cm
  • Hose Length: Three 3 m lengths (9 m total)
  • Spoil Tank Shut-off: Dual – Electric and Manual
  • Type of Filters: 2 Micron, Washable

Available Options

  • Water Pump: 5.6 gpm @ 5000 psi / 21.2 L/min @ 344.7 bar
  • Deep Vacuum blower: 99 hp Kubota Diesel, 1200 cfm, 23 inHg / 74 kW
  • Reverse Flow: YES
  • Sewer Jetter: YES
  • Hydraulic Boom 4”: YES
  • Hydraulic Boom 5”: YES
