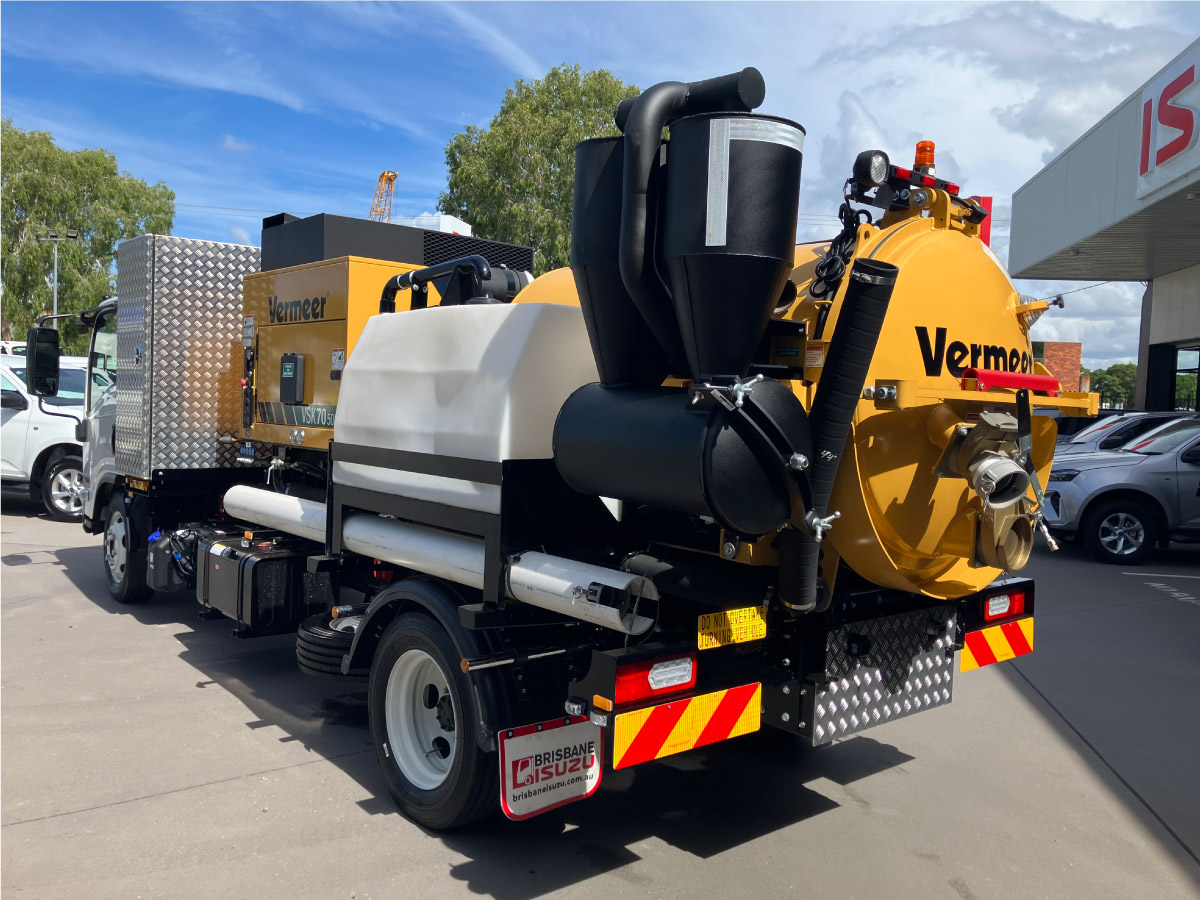

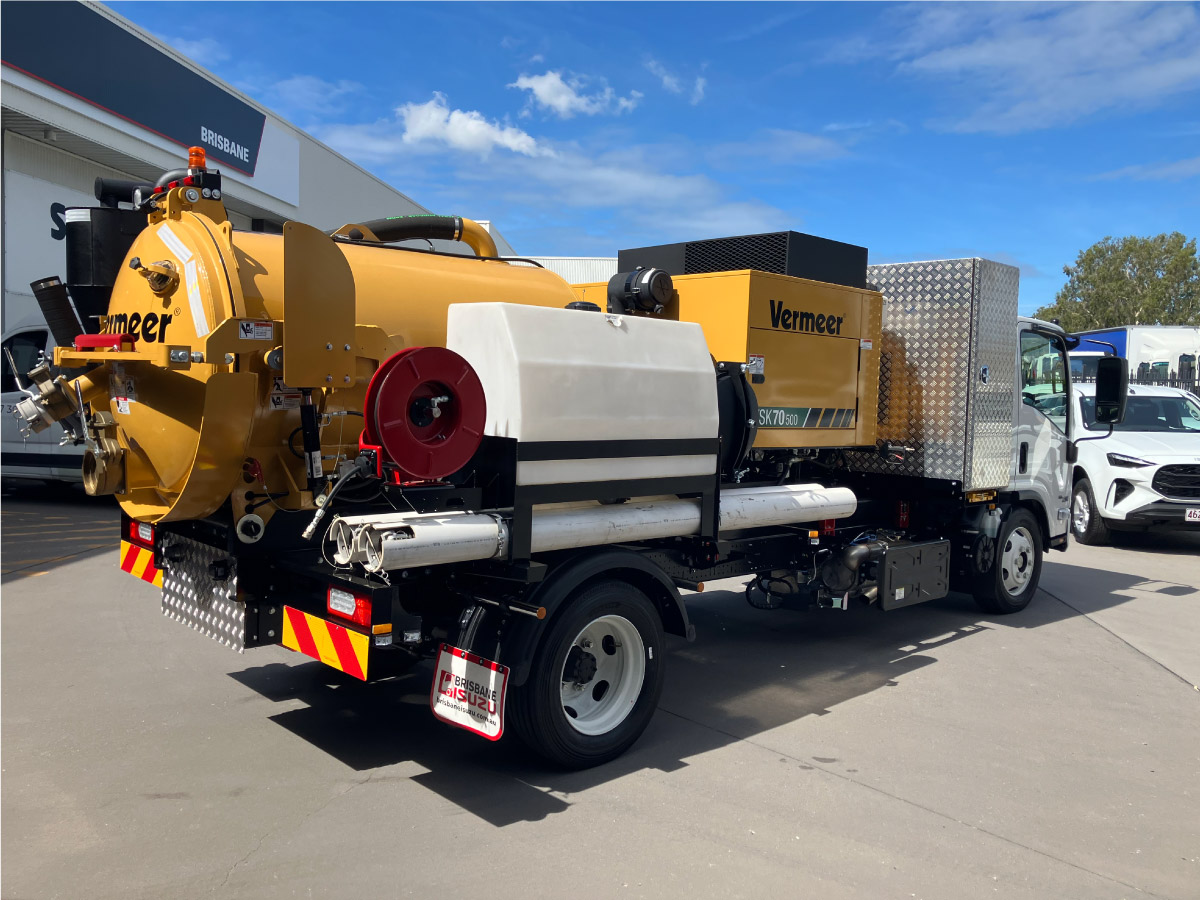

MyDealer:Skid-Mounted Vacuum Excavator
- Fuel Type: Diesel
- Power: 67 hp (50 kW)
- Capacity: 500 – 3000 gal spoil tank configurations
- Blower Output: 1200 CFM blower output
- Max. Vacuum: 15 in’Hg
Features
VSK70 Specification Chart
Model | VSK70-500 | VSK70-800 | VSK70-1200 |
Empty Weight | 2400 kg | 3220 kg | 3684 kg |
Skid Dimensions (L x H x W) | 4001, 1673, 2339 cm | 4496, 1768, 2481 cm | 5050, 1930, 2460 cm |
Water Tank Capacity | 250 gal (946.4 L) | 410 gal (1552 L) | 410 gal (1552 L) |
Number of Tanks | 2-125 gal (473.2 L) | 2-205 gal (776 L) | 2-205 gal (776 L) |
Spoil Tank Capacity* | 500 gal (1892.7 L) | 800 gal (3028.3 L) | 1200 gal (4542.5 L) |
*Also available in 1600 gal (6056.7 L), 2000 gal (7570.8 L), 2200 gal (8327.9 L), 2600 gal (9842.1 L), and 3000 gal (11356.2 L) spoil tank configuration

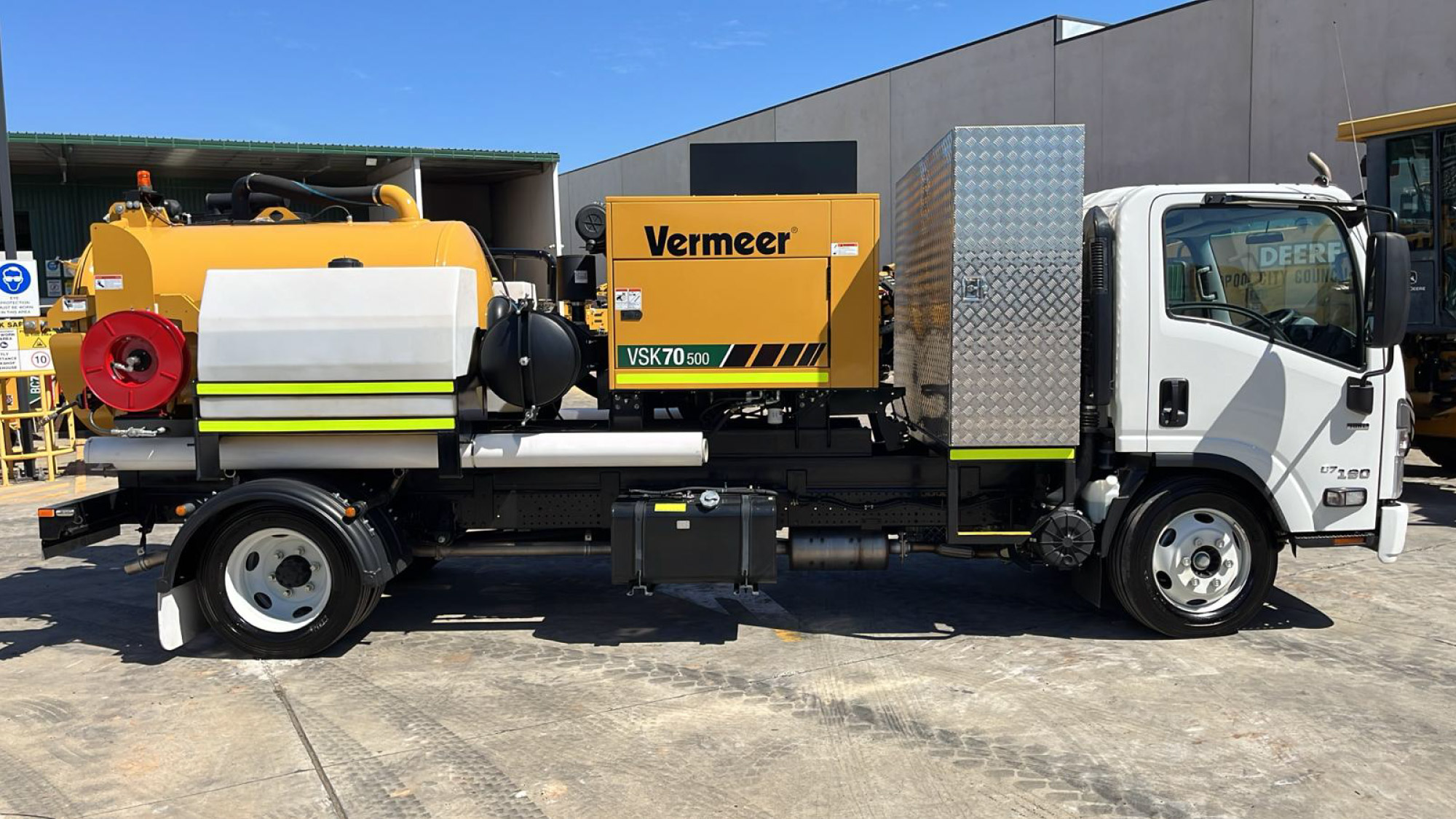

Compact one-piece skid design
The high quality one-piece skid can be easily mounted to a wide range of chassis— permanently, or via container-locks for greater versatility.
Dual tank-shut off system
Reduces the risk of material entering the blower – in turn, adding greater longevity to your system.
Quieter operation
Integrated silencing system for quieter operation on noise-sensitive job sites.
Dual oil bath roots™ blower
Quality blower with dual oil bath lubrication for maximum longevity. Optional Reverse Flowimproves productivity with the ability to offload spoil faster and clear blockages quickly.
Optional hydraulic boom
Exclusive optional telescoping boom maintains hose length during extension and incorporates a remote controlled hydraulic valve for vacuum shut off. Available with manual or hydraulic rotation.
In-tank washdown system
Saves you cleanup time and makes it easier to remove difficult debris as it delivers a high-pressure water spray to the tank interior while simultaneously dumping material.

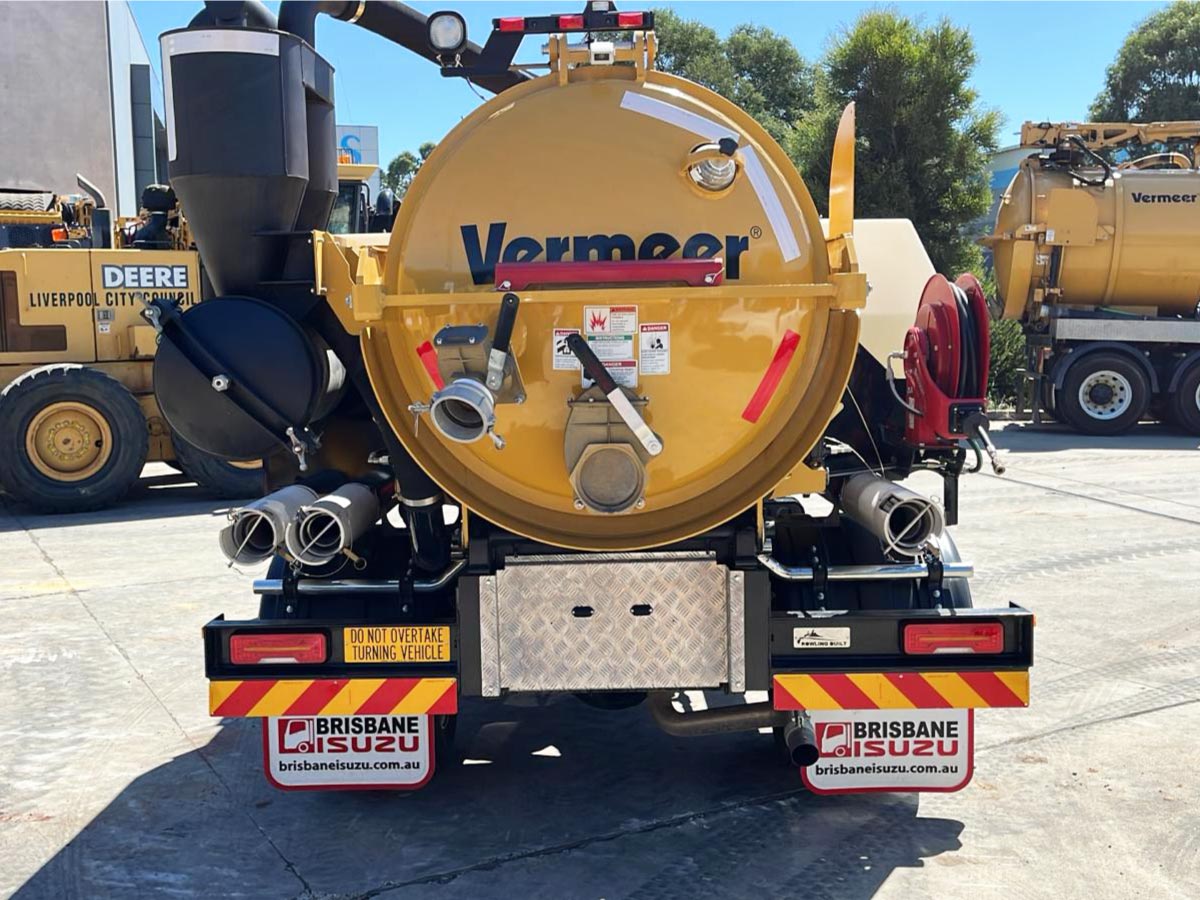

Cam-over hydraulic rear door
Cam-over auto-locking design provides a positive door seal, even under reverse pressure without additional clamping requirements.
Three-stage cyclonic filtration
Superior filtration over a baghouse arrangement, and located at chest height for easy removal for cleaning if required.
Common Features of the VSK70 range
- Power pack 67 hp (50 kW) Kubota Diesel
- Fuel Tank Capacity 83.3 L
- Water Pump 5.6 gpm @ 3000 psi (21.2 L/min @ 206.8 bar)
- High Pressure Hose Length 50’ (15.2 m)
- Low Water Shut-off Electric
- Full Tank Shut-off Mechanical/Electric
- Tank Lift Type Dual Cylinder
- Vacuum 1025 cfm
- Vacuum 15 inHg
- Type of Filters 2 Micron, Washable
- 3-Stage cyclonic filtration system Standard
- Spoil Tank Shut-off Dual – Electric and Manual
- Hose Length 3 x 3 m lengths (9 m total)
- Hose Width 4” (10.2 cm
Available options
- XT Powerpack: 99 hp (74 kW) Kubota Diesel, 1200 cfm, 15 inHg
- 5000 psi Water Pump 5.6 gpm @ 5000 psi (21.2 L/min @ 344.7 bar)
- Deep Vacuum blower 99 hp (74 kW) Kubota Diesel, 1200 cfm, 23 inHg
- Reverse Flow: Yes
- Sewer Jetter: Yes
