MyDealer:Vacuum Excavator
- Fuel Type: Petrol
- Power: 24 hp (17.9 kW)
- Capacity: 100 gal spoil, 50 gal water
- Blower Output: 575 CFM blower output
- Max. Vacuum: 10 in’Hg
Features
The VSK100G Vacuum Excavator is designed for potholing, soil excavation, and other wet or dry vacuum applications in construction and landscaping jobs.
Ideal for smaller jobs
The VSK25-100G is ideal for small hydro excavation jobs, such as ‘last mile’ Fibre To The Premises (FTTP) construction and valve box cleanout.
Engine capabilities
The VSK25-100G is powered by a 24 hp (17.9 kW) Honda petrol powerpack.
Maximum system protection
The VSK25 100G features a three-stage filtration process includes a cyclone separator and a 2-micron poly filter.
Powerful, versatile and portable

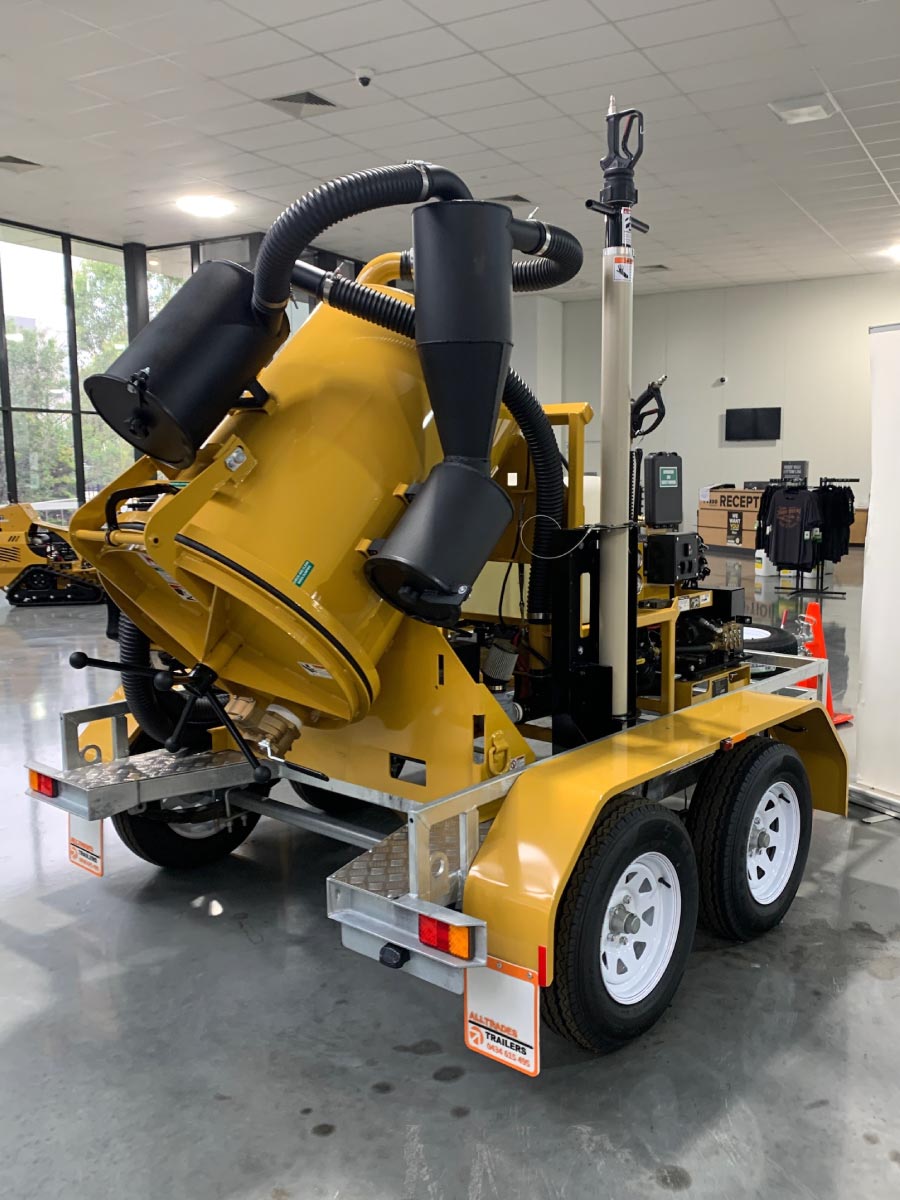

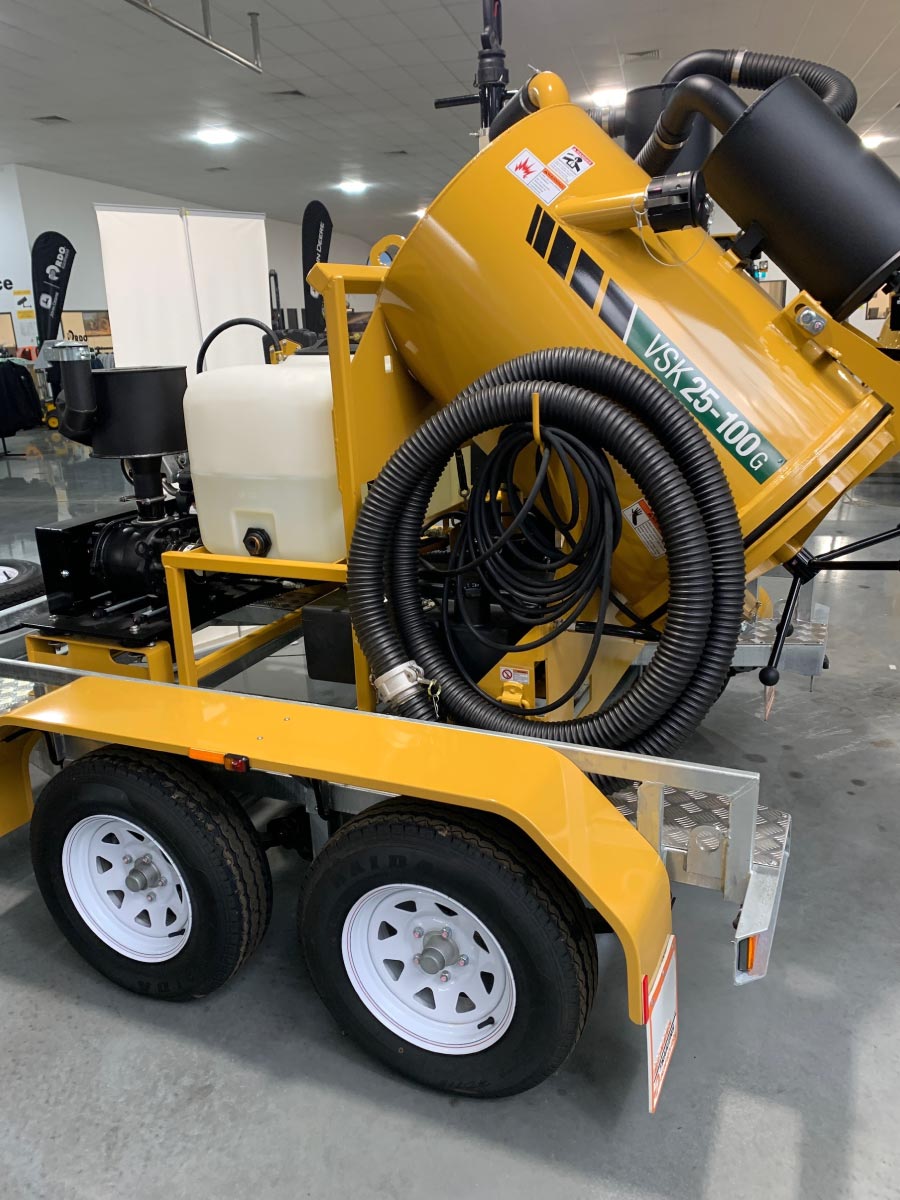

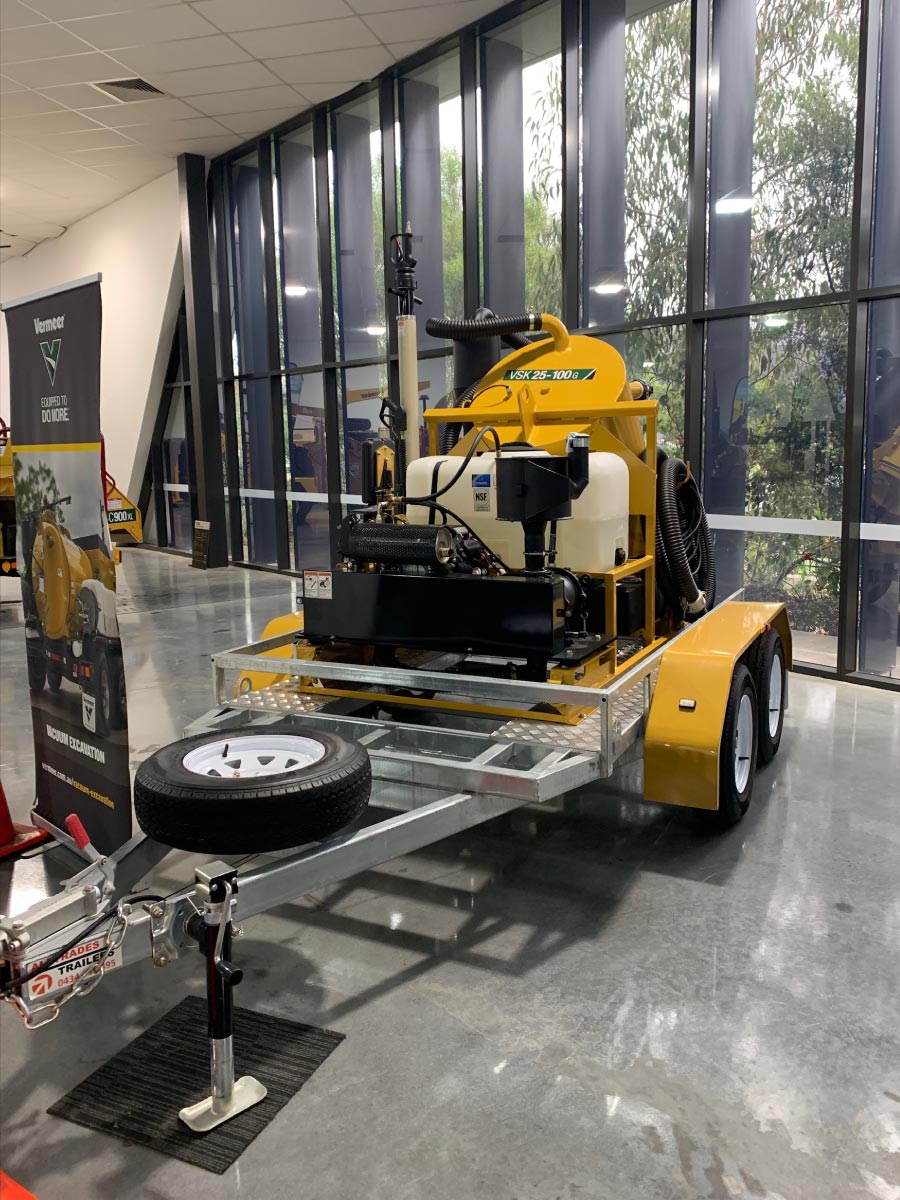

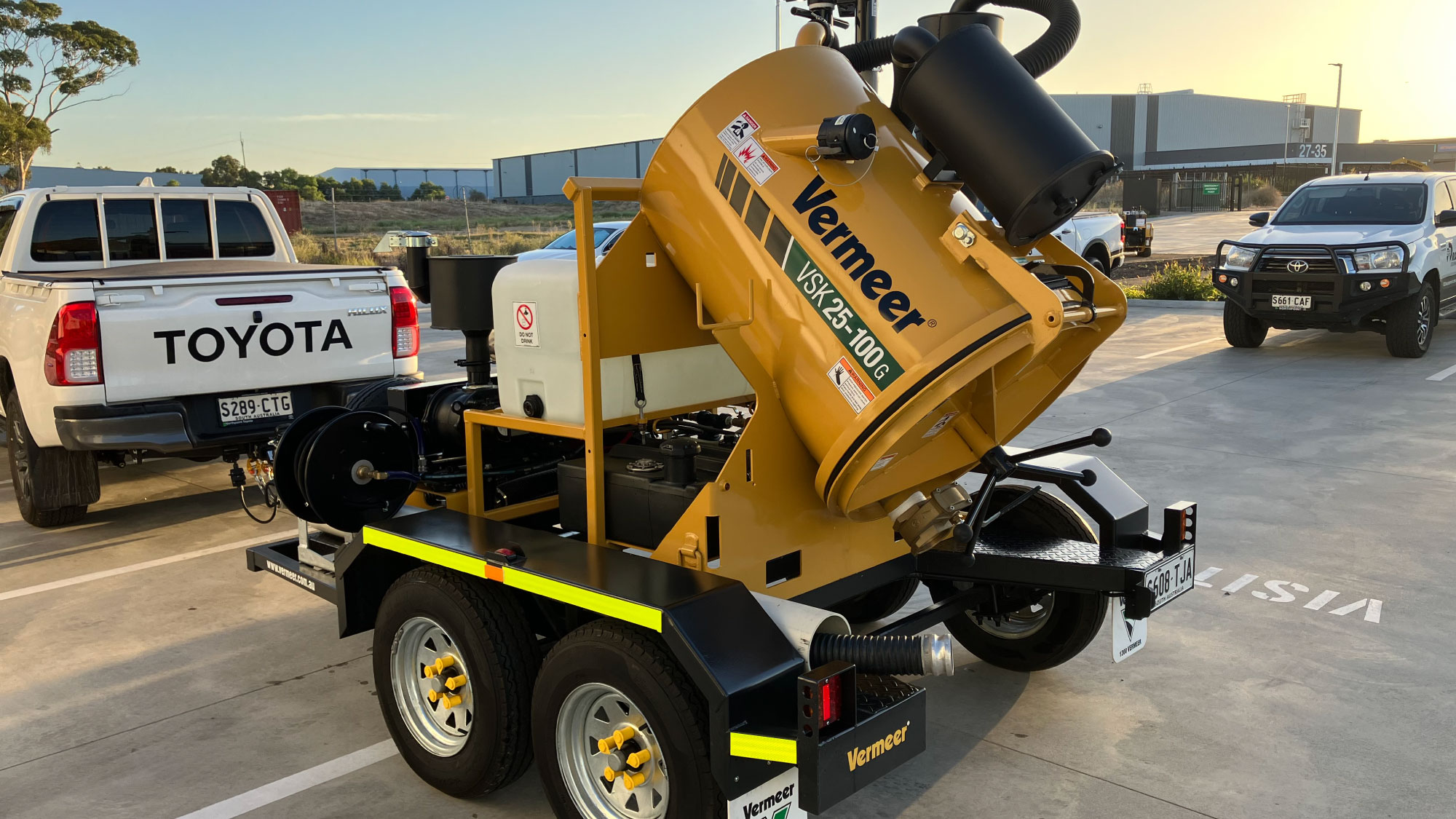

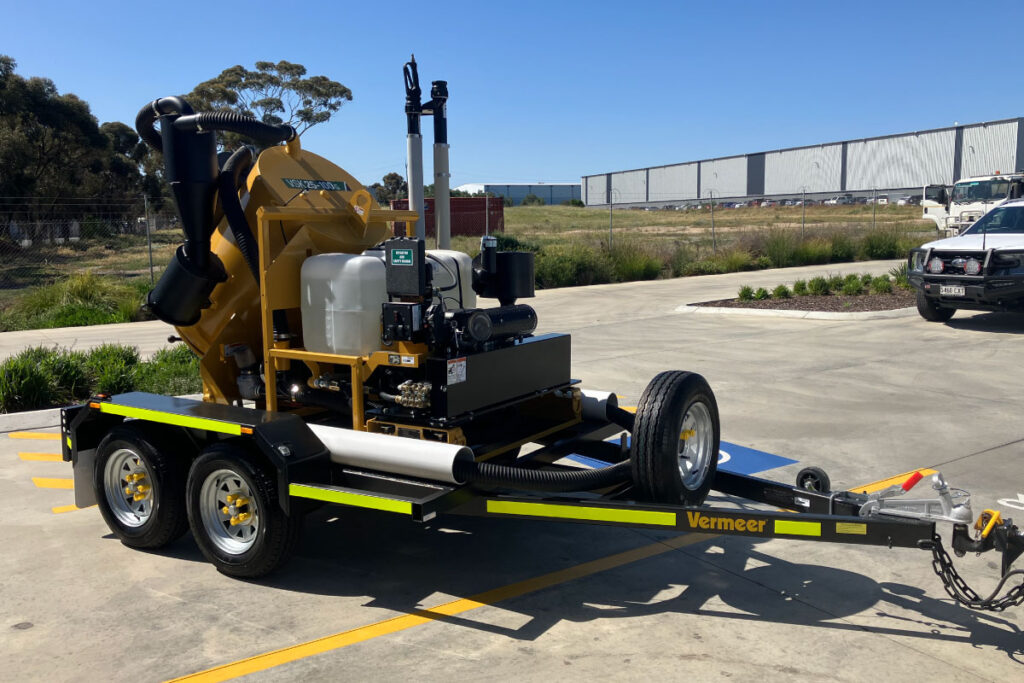

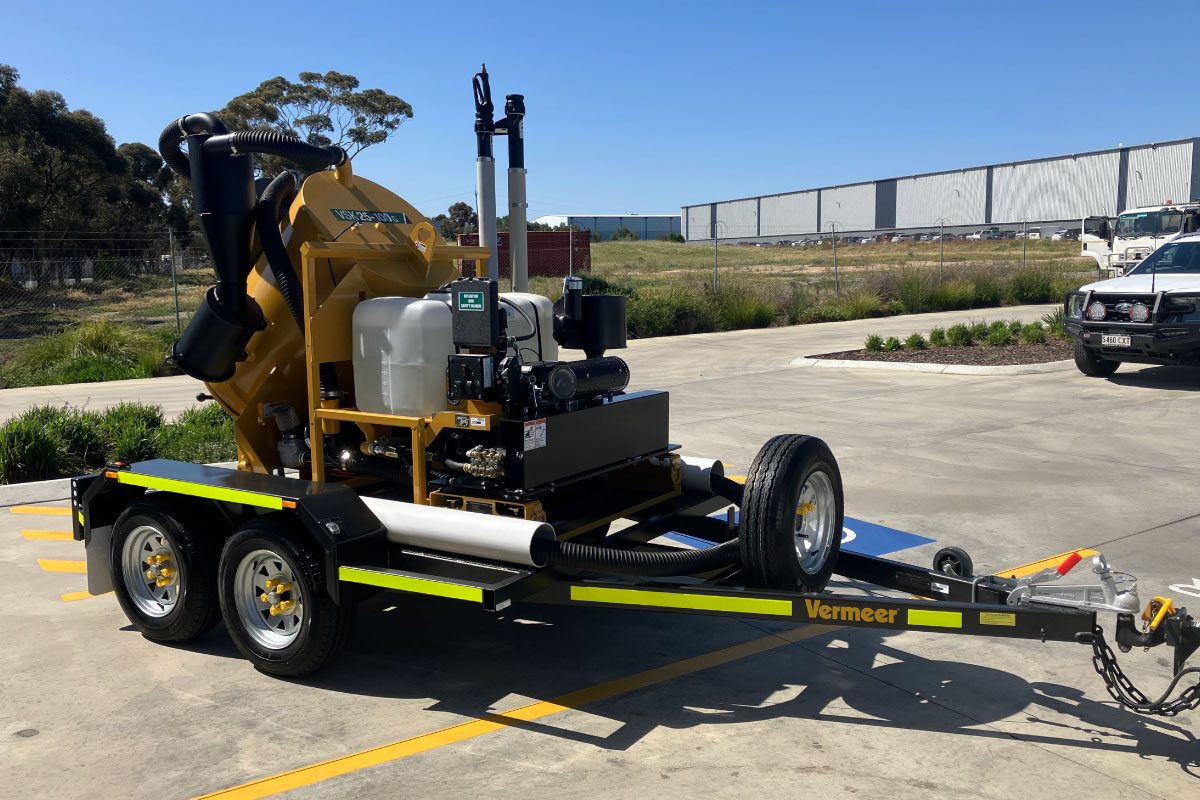

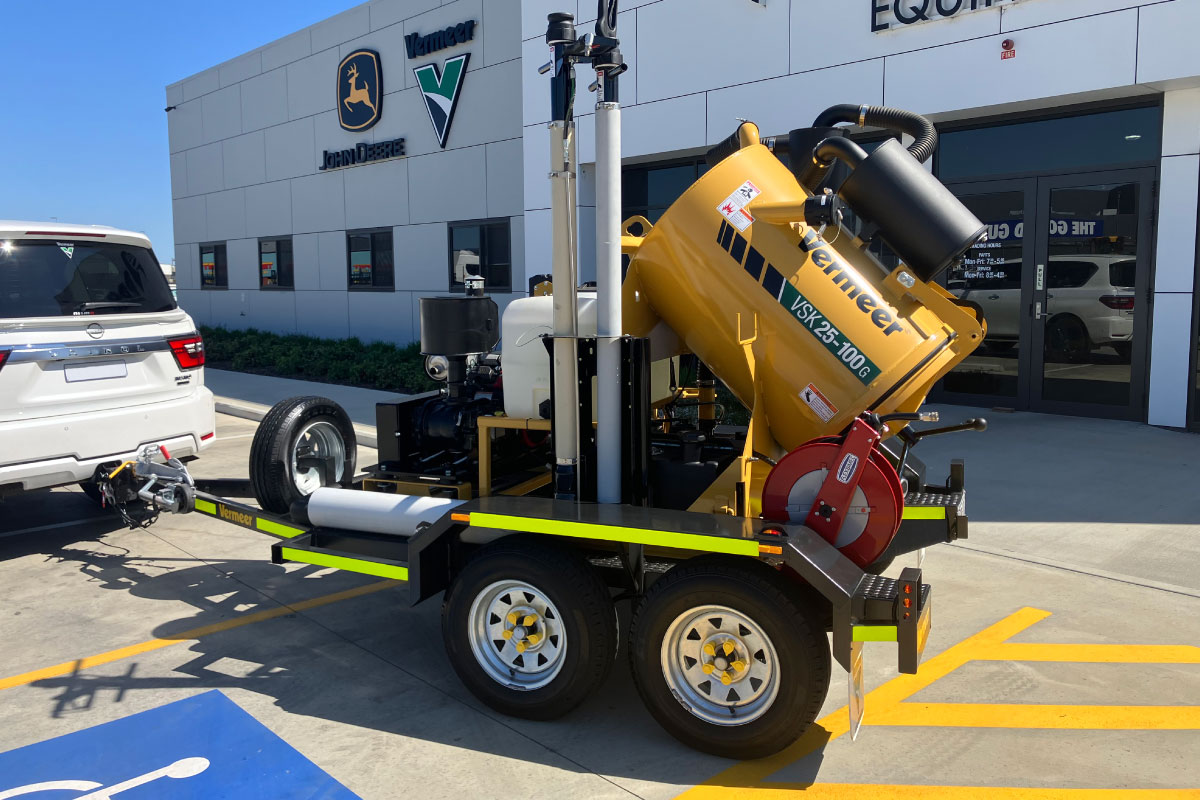

The VSK25-100G is mounted on a compact skid that can be easily mounted in trailers, suitable utes and truck trays.
Maximum longevity
The positive displacement roots blower comes standard on all models and features dual oil bath lubrication.
Partner for productivity
Paired with the Vermeer Verifier G3 Locator by McLaughlin, the VSK25-100G can remain productive by locating underground utilities and assets before excavating.
Weights & dimensions
- Skid Length: 121 inches (307.3 cm)
- Skid Height: 63 inches (160 cm)
- Skid Width: 48 inches (122 cm)
- Skid Dry Weight: 1400 lb (635 kg)
- Skid Max Weight: 2800 lb (1270 kg)
General
- Full tank shut off: Electric
- Engine: 24 hp (17.9 kW) Honda petrol powerpack
- Door type: Full Open
- Low water shut off: Electric
- Spoil tank shut off: Electric
- Controls: Electric start, manual throttle, full spoil tank override, water pump clutch
- Gauges: Fuel level, vacuum, hour meter, water pressure
Operational
- Spoil tank capacity: 100 gal (379 L)
- Maximum Vacuum: 10 inHg (254 mm Hg)
- Fuel tank: 6 gal (22.7 L)
- Water pump: 4.0 gpm @ 3000 psi (15.1 L/min at 207 bar)
- Tank lift type: Fixed 45-degree angle
- Hose: 16 feet (4.8 m) of 3 inches (7.6 cm)
- Water tank capacity: 50 gal (189 L)
- Filtration: 3-stage with cyclone separator & 2-micro poly filter
- Blower: 575 cfm (16.3 m3/min) Lobe type with dual-splash oil lubrication.
