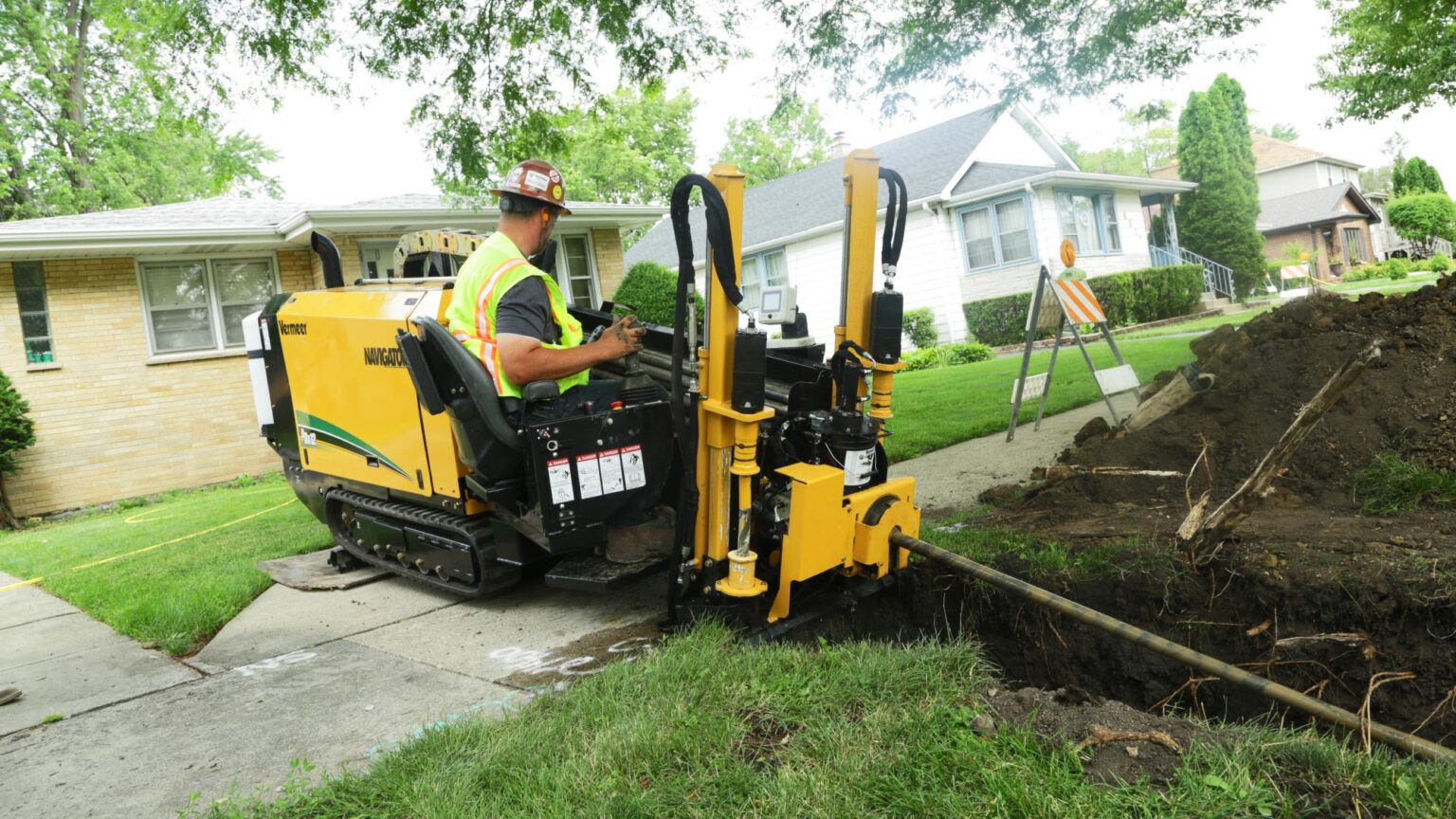

D8x12 Navigator® Horizontal Directional Drill

  • Weight: 2993.7 kg
  • Fuel Type: Diesel
  • Power: 48 hp (35.8 kw)
  • Rotational Torque: 1200 ft-lb
  • Thrust Pullback: 7850 lbs

Small-sized drill perfect for tight spaces and tough jobs!

The D8x12 Navigator® horizontal directional drill offers innovation and brawn of a large drill with a compact body and enhanced performance of a small drill. This drill offers two rod options, straightforward controls, a narrow footprint and enhanced power with less sound disruption. It is ideal for small service installation, such as gas distribution, power, water and telecommunication networks.


Straightforward controls

Controls with minimal electrical components, bringing you back to the basics with modern technology.

Narrow footprint

This drill is 8.5 in (21.6 cm) narrower in width than the next sized drill in the lineup and can get through a 36-in (91.4-cm) gate or fit on a narrow trailer with other jobsite essentials.

Low sound levels

Low noise emission levels at the operator’s ear of 85 dBa and a guaranteed sound power of 104 dBa makes this drill perfect for installing small utilities in an urban environment with minimal disruption.

More power

Equipped with a 48-hp (35.8-kW) Kohler engine, this drill offers 1200 ft-lb (1627 Nm) of spindle torque and 7850 lb (34.9 kN) of thrust/pullback.


Tracks offer ideal traction for operation while providing minimal ground disturbance. This track system design allows a forward ground drive speed of 2.8 mph (4.5 km/h), which is 45% faster than the leading competitor.

Multiple rod options

Equip your drill with either a 6-ft (1.8-m), 1.66 in or 1.31 in (4.2 cm or 3.3 cm) Firestick® drill rod and save time on the job with 180 ft (54.9 m) of on-machine rod carrying capacity.
