Track Trencher

  • Weight: 22,226 kg – 34,019.4 kg
  • Fuel Type: Diesel
  • Power: 275 hp (205 kW)

Features

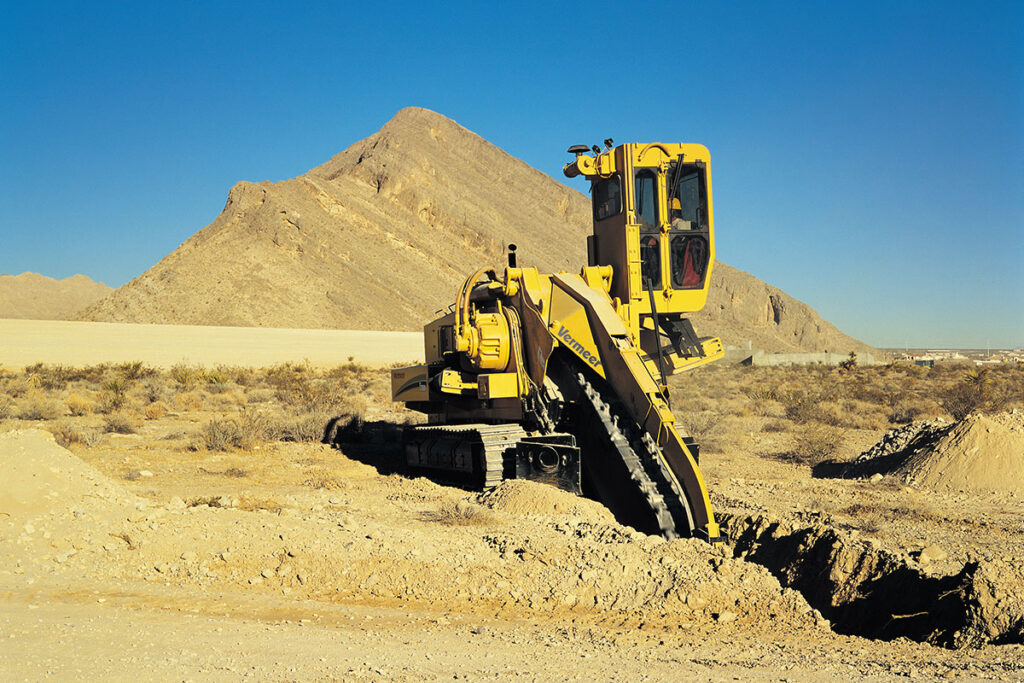

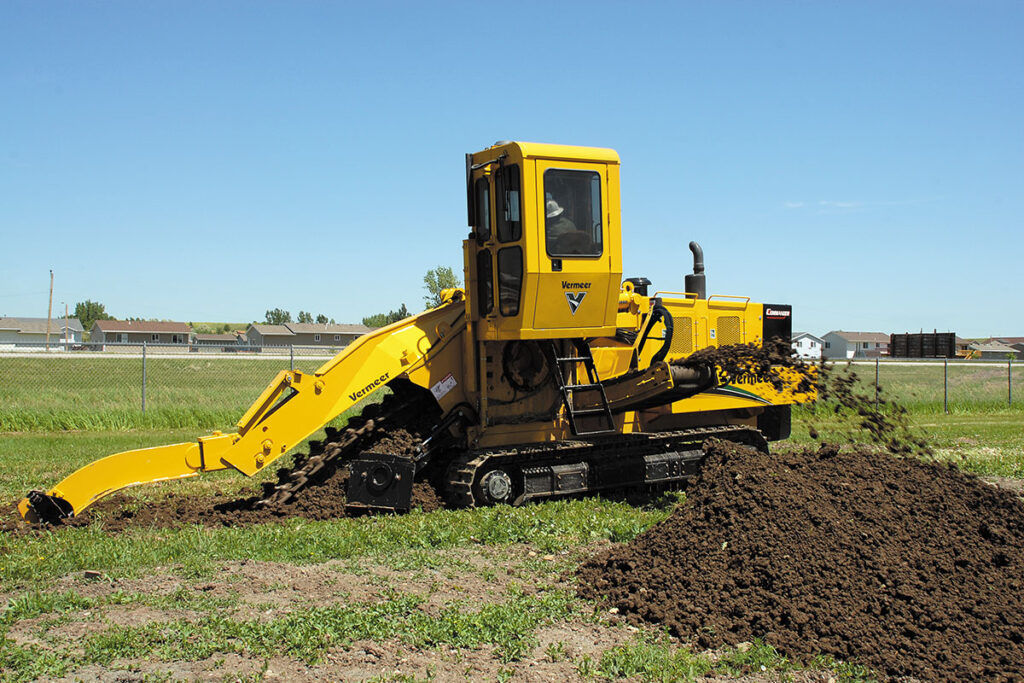

When you’re digging in heavy rock conditions, the T755 COMMANDER® 3 trencher will stand firm with up to 60,000 lbs (27,215 kg) of tractive force on the ground. Match the optional sectionalized boom to the job for better results, less tooth wear and reduced vibrations.

Transport Dimensions

  • Approach Angle: 22 deg
  • Height Range: 120 inches / 304.8 cm
  • Length with 40 inches (101.6 cm) End Idler and 5 ft (1.52 m) Boom: 28 ft / 8.5 m
  • Length with 40 inches (101.6 cm) End Idler and 6 ft (1.83 m) Boom: 29.1 ft / 8.9 m
  • Length with 40 inches (101.6 cm) End Idler and 8 ft (2.44 m) Boom: 31.3 ft / 9.5 m
  • Length with 40 inches (101.6 cm) End Idler and 10 ft (3.05 m) Boom: 33.6 ft / 10.2 m
  • Weight Range: 49,000 lb – 75,000 lb / 22,226 kg – 34,019.4 kg
  • Width Ranges: 98 inches – 102 inches / 249.4 cm – 259.1 cm

Engine Option One

  • Make and Model: Caterpillar C9 ACERT Tier 3
  • Gross Horsepower: 275 hp / 205.1 kw
  • Rated Engine RPM: 2200
  • Number of Cylinders: 6
  • Fuel Tank Capacity: 145 gal / 548.9 L
  • Operating Range: 9.9
  • Fuel Consumption at Full Load: 14.7 gph / 55.6 lph
  • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles): 40 deg
  • Air Cleaner: Dry-type exhaust aspirated
  • Aspiration: Turbocharged and air-to-air aftercooled
  • Cooling Medium: Liquid
  • Electrical System: 24 Volt DC
  • Oil Filter: Full flow

Engine Option Two

  • Make and Model: John Deere 6090H
  • Gross Horsepower: 275 hp / 205.1 kw
  • Rated Engine RPM: 2200
  • Number of Cylinders: 6
  • Fuel Tank Capacity: 145 gal / 548.9 L
  • Operating Range: 11.0
  • Fuel Consumption at Full Load: 13.2 gph / 50 lph
  • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles): 30 deg
  • Air Cleaner: Dry-type with precleaner
  • Aspiration: Turbocharged and air-to-air aftercooled
  • Cooling Medium: Liquid
  • Electrical System: 24 Volt DC
  • Oil Filter: Full flow

Tracks

  • Auto Self Level: Yes
  • Ground Pressure Minimum: 8.9 psi / 61.4 kPa
  • Ground Pressure Maximum: 12.5 psi / 86.2 kPa
  • Tilt Track Available: Yes
  • Tilt Track Max Angle: 12 degrees
  • Track Drive Type: Dual path hydrostatic with planetary transmission
  • Track Length: 142 inches / 360.7 cm
  • Track Pad Type: Single, double, triple and polyurethane grouser
  • Track Pad Width Ranges: 20 inches or 24 inches / 50.8 cm or 61 cm
  • Track Size: D5
  • Maximum Ground Speed – Low: 85.2 ft/min / 26 m/min
  • Maximum Ground Speed – High: 170 ft/min / 51.8 m/min
  • Parking and Emergency Brake: spring-applied, hydraulic release, wet disc brake
  • Service Brakes: Hydrostatic

Conveyor

  • Belt Width: 24 inches / 61 cm
  • Conveyor Belt Speed Range: 0-1118 fpm / 0-340.76 m/min
  • Conveyor Belt Style: Cleated or finger type
  • Conveyor Length: 96 inches or 144 inches / 243.8 cm or 365.8 cm
  • Conveyor Shift Available: Yes
  • Conveyor Shift Distance Range: 14 inches and 66 inches / 35.6 cm and 167.6 cm
  • Conveyor Style: Curved
  • Discharge Direction: Right or left
  • Discharge Height Range: 55 inches and 68 inches / 139.7 cm and 172.7 cm

Attachments

  • Trencher: Yes
  • Terrain Leveler: No
  • Rockwheel: No
  • Bucket Wheel: No

Cab

  • Cab: Yes
  • Control System: TEC Plus with SmartTEC
  • Air Conditioner/Heater: Yes
  • Air Suspension Seat: No
  • AM/FM Stereo with Weather Band: Yes
  • Elevating: Yes
  • Pressurized/Filtered Air: Yes
  • Roll Over Module (ROM): Yes

Hydraulic System

  • Oil Tank Capacity: 114 gal / 431.5 L
  • Oil Type: Vermeer HyPower 68 or Vermeer HyPower 100
  • Pressure Setting: 2500 psi / 172.4 bar
  • Pump Flow at Maximum RPM: 25.1 gpm / 95 L/min
  • Pump Type: pressure-and-flow-compensated (load-sensing)
