Track Trencher

  • Weight: 18,143.7 kg – 26988.7 kg
  • Fuel Type: Diesel
  • Power: 250 hp (186 kW)

Features

The Tier 3 or Tier 4 Final John Deere 6090 HF 250 hp (186 kW) diesel engine provides the power to dig up to 8’ (2.4 m) deep. Low-speed, high-torque splined headshaft motor improves cutting performance and minimizes chain wear, while the exclusive Vermeer SmartTEC electronic control system monitors real-time machine performance.

Key Features

  • Improve job monitoring with the exclusive Vermeer SmartTEC electronic control system.

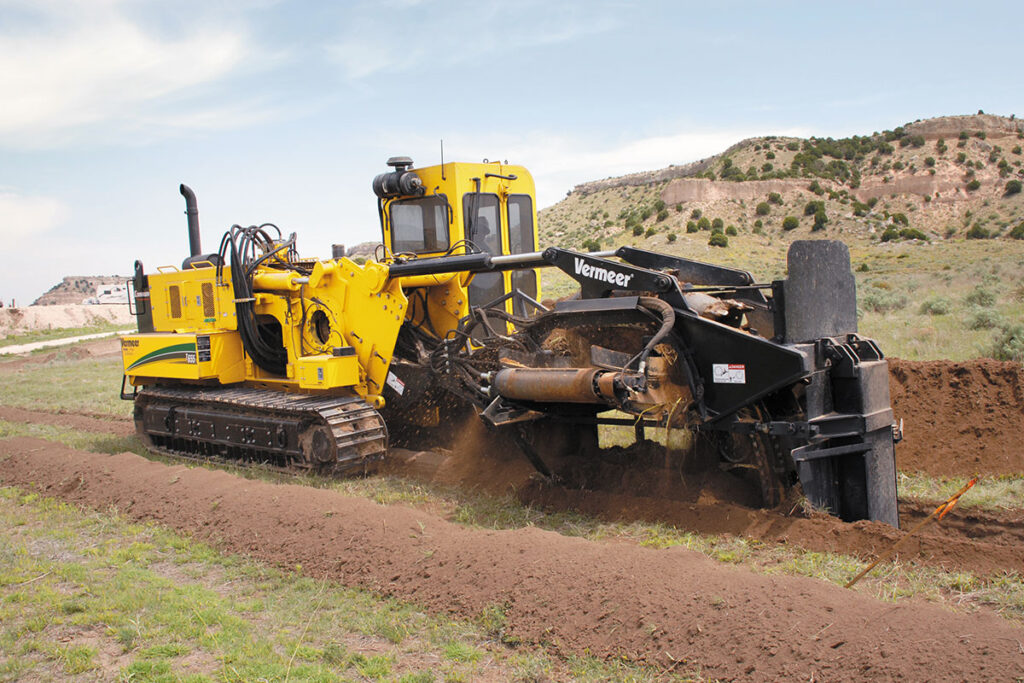

  • Dig trenches for cross-country pipelines using the optional bucket wheel or rock wheel attachment.
  • Help increase operator safety with the Rollover Protective Structure (ROPS).
  • Put the spoils where you want them with optional longer, wider conveyors that place soil farther from the machine.

Transport Dimensions

  • Approach Angle: 16 deg
  • Height Range: 119 inches / 302.3 cm
  • Length with 20 inches (50.8 cm) End Idler and 4 ft (1.22 m) Boom: 25.6 ft / 7.8 m
  • Length with 20 inches (50.8 cm) End Idler and 6 ft (1.83 m) Boom: 27.8 ft / 8.5 m
  • Length with 20 inches (50.8 cm) End Idler and 8 ft (2.44 m) Boom: 30.1 ft / 9.2 m
  • Length with 40 inches (101.6 cm) End Idler and 4 ft (1.22 m) Boom: 23.6 ft / 7.2 m
  • Length with 40 inches (101.6 cm) End Idler and 5 ft (1.52 m) Boom: 25.3 ft / 7.7 m
  • Length with 40 inches (101.6 cm) End Idler and 6 ft (1.83 m) Boom: 26.3 ft / 8 m
  • Length with 40 inches (101.6 cm) End Idler and 8 ft (2.44 m) Boom: 28.5 ft / 8.7 m
  • Weight Range: 40,000 lb – 59,500 lb / 18,143.7 kg – 26988.7 kg
  • Width Ranges: 97 inches / 246.4 cm

Engine Option One

  • Make and Model: John Deere 6090 HF Tier 3
  • Gross Horsepower: 250 hp / 186.4 kw
  • Rated Engine RPM: 2200
  • Number of Cylinders: 6
  • Fuel Tank Capacity: 135 gal / 511 L
  • Operating Range: 11 hours
  • Fuel Consumption at Full Load: 12.3 gph / 46.6 lph
  • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles): 30 deg
  • Air Cleaner: Dry-type with precleaner
  • Aspiration: Turbocharged and air-to-air aftercooled
  • Cooling Medium: Liquid
  • Electrical System: 24 Volt DC
  • Oil Filter: Full flow

Engine Option Two

  • Make and Model: John Deere 6090HFC09 Tier 4 Final
  • Gross Horsepower: 250 hp / 186.4 kw
  • Rated Engine RPM: 2200
  • Number of Cylinders: 6
  • Fuel Tank Capacity: 135 gal / 511 L
  • Operating Range: 11 hrs
  • Fuel Consumption at Full Load: 12.1 gph / 45.8 lph
  • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles): 30 deg
  • Air Cleaner: Dry-type with precleaner
  • Aspiration: Turbocharged and air-to-air aftercooled
  • Cooling Medium: Liquid
  • Electrical System: 24 Volt DC
  • Oil Filter: Full flow

Tracks

  • Auto Self Level: Yes
  • Ground Pressure Minimum: 7.8 psi / 53.8 kPa
  • Ground Pressure Maximum: 9.7 psi / 66.9 kPa
  • Tilt Track Available: Yes
  • Tilt Track Max Angle: 10.5 degrees
  • Track Drive Type: Dual path hydrostatic with planetary transmission
  • Track Length: 136.5 inches / 346.7 cm
  • Track Pad Type: Single, double or triple grouser
  • Track Pad Width Ranges: 20 inches / 50.8 cm
  • Track Size: D4
  • Maximum Ground Speed – Low: 114 ft/min / 34.7 m/min
  • Maximum Ground Speed – High: 227 ft/min / 69.2 m/min
  • Parking and Emergency Brake: spring-applied, hydraulic release, wet disc brake
  • Service Brakes: Hydrostatic

Conveyor

  • Belt Width: 24 inches / 61 cm
  • Conveyor Belt Speed Range: 0-758 fpm / 231 m/min
  • Conveyor Belt Style: Cleated
  • Conveyor Length: 96 inches and 144 inches / 243.8 cm and 365.8 cm
  • Conveyor Shift Available: Yes
  • Conveyor Shift Distance Range: 12 inches and 48 inches / 30.5 cm and 121.9 cm
  • Conveyor Style: Flat or curved
  • Discharge Direction: Right or left
  • Discharge Height Range: 48 inches and 56 inches / 121.9 and 142.2 cm

Attachments

  • Trencher: Yes
  • Terrain Leveler: No
  • Rockwheel: Yes
  • Bucket Wheel: Yes

Cab

  • Cab: Yes
  • Control System: TEC Plus with SmartTEC
  • Air Conditioner/Heater: Yes
  • Air Suspension Seat: No
  • AM/FM Stereo with Weather Band: Yes
  • Elevating: No
  • Pressurized/Filtered Air: Yes
  • Roll Over Module (ROM): No
  • ROPS: Standard

Hydraulic System

  • Oil Tank Capacity: 85 gal / 321.8 L
  • Oil Type: Vermeer HyPower 68 or Vermeer HyPower 100
  • Pressure Setting: 2500 psi / 172.4 bar
  • Pump Flow at Maximum RPM: 25 gpm / 94.6 L/min
  • Pump Type: pressure-and-flow-compensated (load-sensing)
