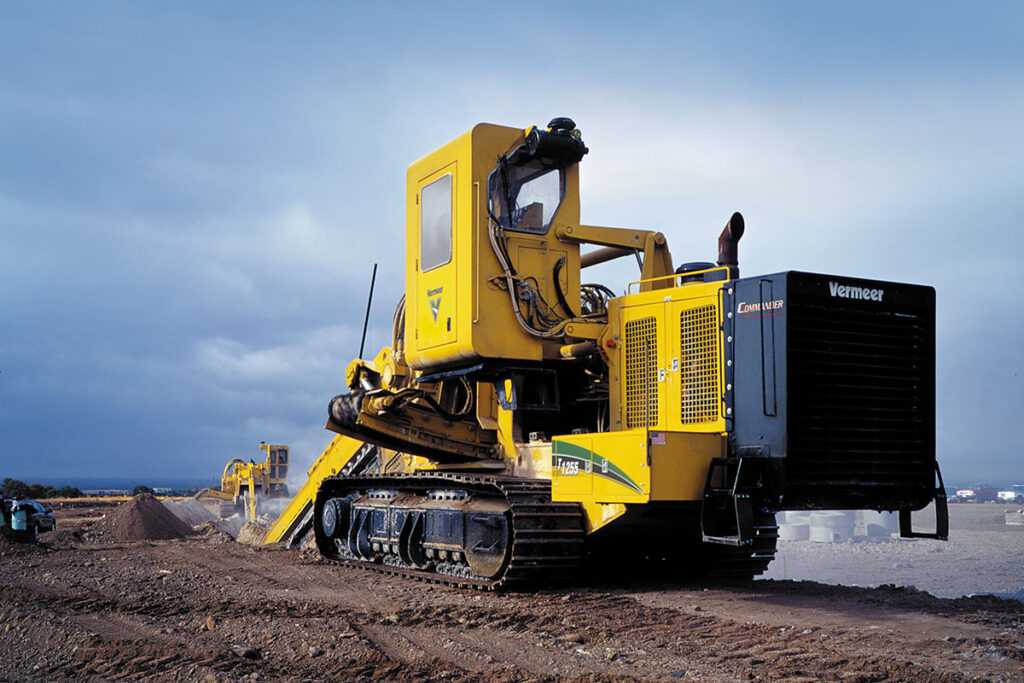

Track Trencher

  • Weight: 68,039 kg – 92,986 kg
  • Fuel Type: Diesel
  • Power: 600 hp (447 kW)

Features

Featuring a Caterpillar C18 ACERT Tier 3 engine with 600 hp (447 kW) this heavy-duty trencher can handle cross-country digs.

Transport Dimensions

  • Approach Angle: 15 deg
  • Height Range: 146 inches / 370.8 cm
  • Length with 50 inches(127 cm) End Idler and 8 ft (2.44 m) Boom: 43 ft / 13.1 m
  • Length with 50 inches (127 cm) End Idler and 10 ft (3.05 m) Boom: 45.5 ft / 13.9 m
  • Length with 50 inches (127 cm) End Idler and 12 ft (3.66 m) Boom: 48 ft / 14.6 m
  • Length with 50 inches (127 cm) End Idler and 14 ft (4.27 m) Boom (with Restraint Bar): 48.8 ft / 14.9 m
  • Length with 50 inches (127 cm) End Idler and 16 ft (4.88 m) Boom (with Restraint Bar): 51.3 ft / 15.6 m
  • Length with 50 inches (127 cm) End Idler and 18 ft (5.49 m) Boom (with Restraint Bar): 53.8 ft / 16.4 m
  • Weight Range: 150,000 lbs – 205,000 lbs / 68,039 kg – 92,986 kg
  • Width Ranges: 134 inches / 340.4 cm

Engine Option One

  • Make and Model: Caterpillar C18 ACERT Tier 3
  • Gross Horsepower: 600 hp / 447.4 kw
  • Rated Engine RPM: 2100
  • Number of Cylinders: 6
  • Fuel Tank Capacity: 370 gal / 1400.6 L
  • Operating Range: 11.6 hours
  • Fuel Consumption at Full Load: 31.8 gph / 120.4 lph
  • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles): 35 deg
  • Air Cleaner: Dry-type with precleaner
  • Aspiration: Turbocharged and air-to-air aftercooled
  • Cooling Medium: Liquid
  • Electrical System: 24 Volt DC
  • Oil Filter: Full flow

Engine Option Two

  • Make and Model: Caterpillar C18 ACERT Tier 4 Final
  • Gross Horsepower: 600 hp / 447.4 kw
  • Rated Engine RPM: 2000
  • Number of Cylinders: 6
  • Fuel Tank Capacity: 370 gal / 1400.6 L
  • Operating Range: 12.1 hours
  • Fuel Consumption at Full Load: 30.5 gph / 115.5 lph
  • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles): 35 deg
  • Air Cleaner: Dry-type with precleaner
  • Aspiration: Turbocharged and air-to-air aftercooled
  • Cooling Medium: Liquid
  • Electrical System: 24 Volt DC
  • Oil Filter: Full flow

Tracks

  • Auto Self Level: No
  • Ground Pressure Minimum: 15.5 psi / 106.9 kPa
  • Ground Pressure Maximum: 21.1 psi / 145.5 kPa
  • Tilt Track Available: No
  • Track Drive Type: Dual path hydrostatic with planetary transmission
  • Track Length: 181.5 inches / 461 cm
  • Track Pad Type: Double grouser
  • Track Pad Width Ranges: 30 inches / 76.2 cm
  • Track Size: Cat 375 Excavator
  • Maximum Ground Speed – Low: 44.2 ft/min / 13.5 m/min
  • Maximum Ground Speed – High: 118 ft/min / 36 m/min
  • Parking and Emergency Brake: Spring applied, hydraulic release, wet disc brake
  • Service Brakes: Hydrostatic

Conveyor

  • Belt Width: 36 inches / 91.4 cm
  • Conveyor Belt Speed Range: 0 – 814 fpm / 0 – 248 m/min
  • Conveyor Belt Style: Finger type
  • Conveyor Length: 180 inches or 240 inches / 457.2 cm or 609.6 cm
  • Conveyor Shift Available: Standard
  • Conveyor Shift Distance Range: 60 inches or 125 inches / 152.4 cm or 317.5 cm
  • Conveyor Style: Curved
  • Discharge Direction: Right or left
  • Discharge Height Range: 74 inches – 103 inches / 188 cm – 261.6 cm

Attachments

  • Trencher: Yes
  • Terrain Leveler: Yes
  • Rockwheel: No
  • Bucket Wheel: No

Cab

  • Cab: Yes
  • Control System: TEC Plus
  • Air Conditioner/Heater: Yes
  • Air Suspension Seat: Yes
  • AM/FM Stereo with Weather Band: Yes
  • Elevating: Yes
  • Pressurized/Filtered Air: Yes
  • Roll Over Module (ROM): Yes

Hydraulic System

  • Oil Tank Capacity: 210 gal / 794.9 L
  • Oil Type: Vermeer HyPower 68 or Vermeer HyPower 100
  • Pressure Setting: 2500 psi / 172.4 bar
  • Pump Flow at Maximum RPM: 27.9 gpm / 105.6 L/min
  • Pump Type: Pressure and flow compensated (load sensing)
