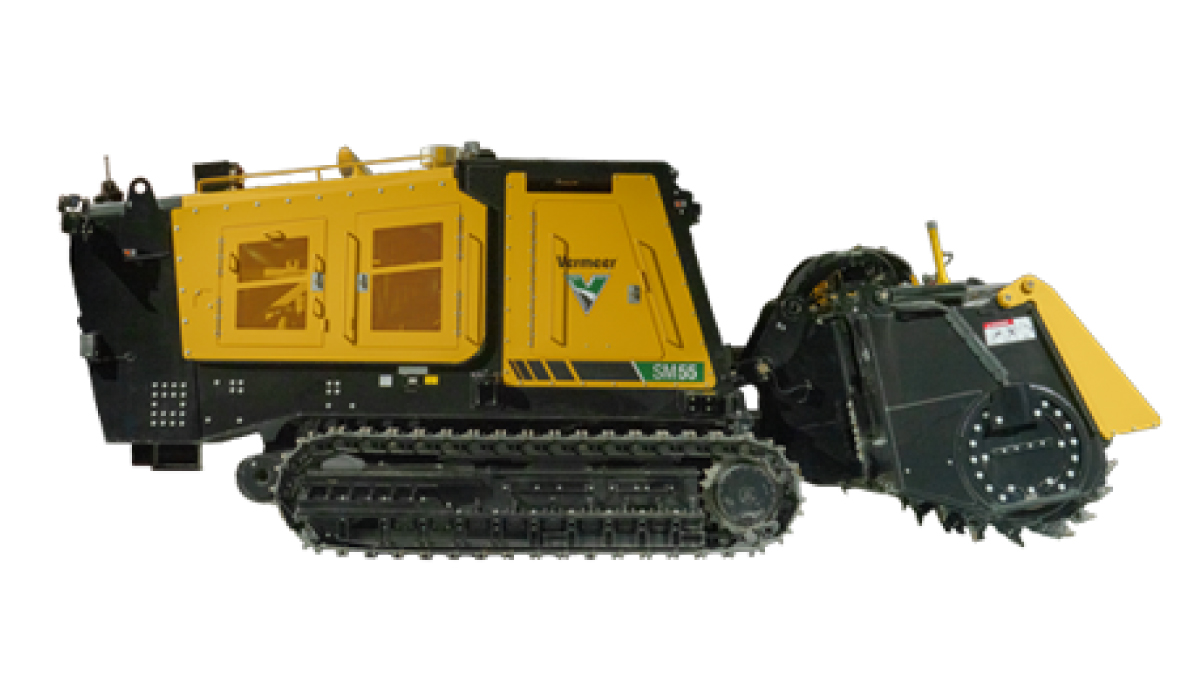

SM55 Surface Miner

Surface Miner

Compact design for ease of transport
Operator comfort and safety
Cutting edge cutting technology
Highly maneuverable on tight jobsites

Request a Quote

Find Nearest Branch Download Brochure

Not just a new machine, it's a new way of thinking

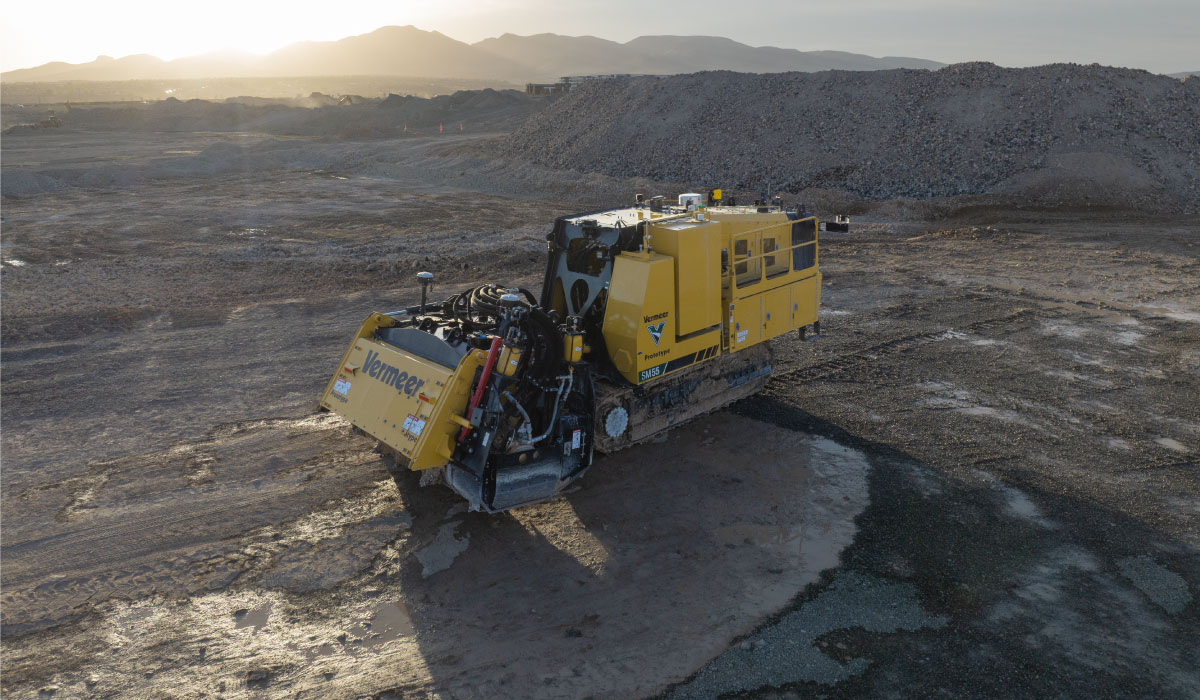

Compact, powerful surface miner with drive-on, drive-off transportability enables quarry operators to move efficiently between sites.

With a 415‑hp engine, wireless remote control and the ability to cut safely on highwalls up to 75 degrees, it’s designed for real‑world productivity.

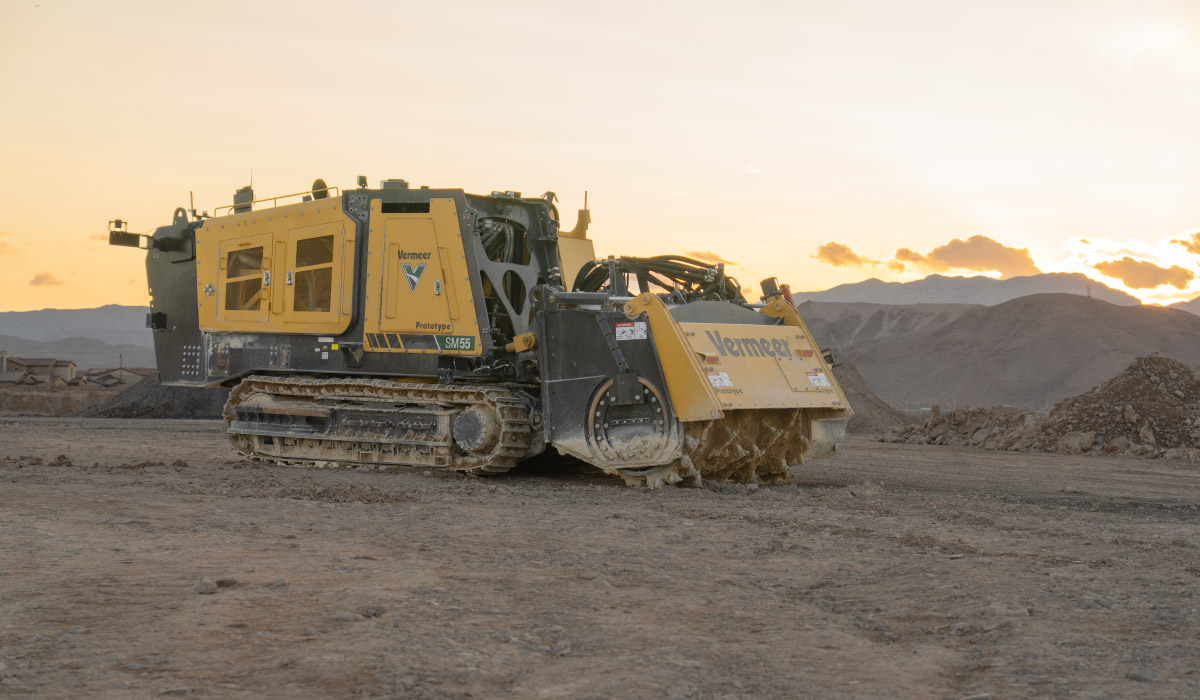

Vermeer introduces the SM55 surface miner, engineered to deliver production-level performance in a compact and easily transportable package. Weighing in at 54,431 kg, the SM55 features true drive‑on, drive‑off capability, allowing it to be moved on a single-load transportation with minimal permitting — ideal for Australian quarrying and civil operations where site‑to‑site mobility matters. Powered by a 415‑hp (310‑kW) Caterpillar® C13 ACERT Tier 4 Final engine, the SM55 offers a maximum cutting depth of 351 mm and a cutting width of 2,438 mm. With advanced features such as full‑function wireless remote control and GPS‑ready technology, the SM55 gives quarries and contractors the flexibility to take on a wide range of projects across multiple locations with confidence and efficiency.

Features

Tight turns? No problem

A low center of gravity, a stable parallel track design and a zero-turn radius helping you turn on a dime.

Compact design for ease of transport

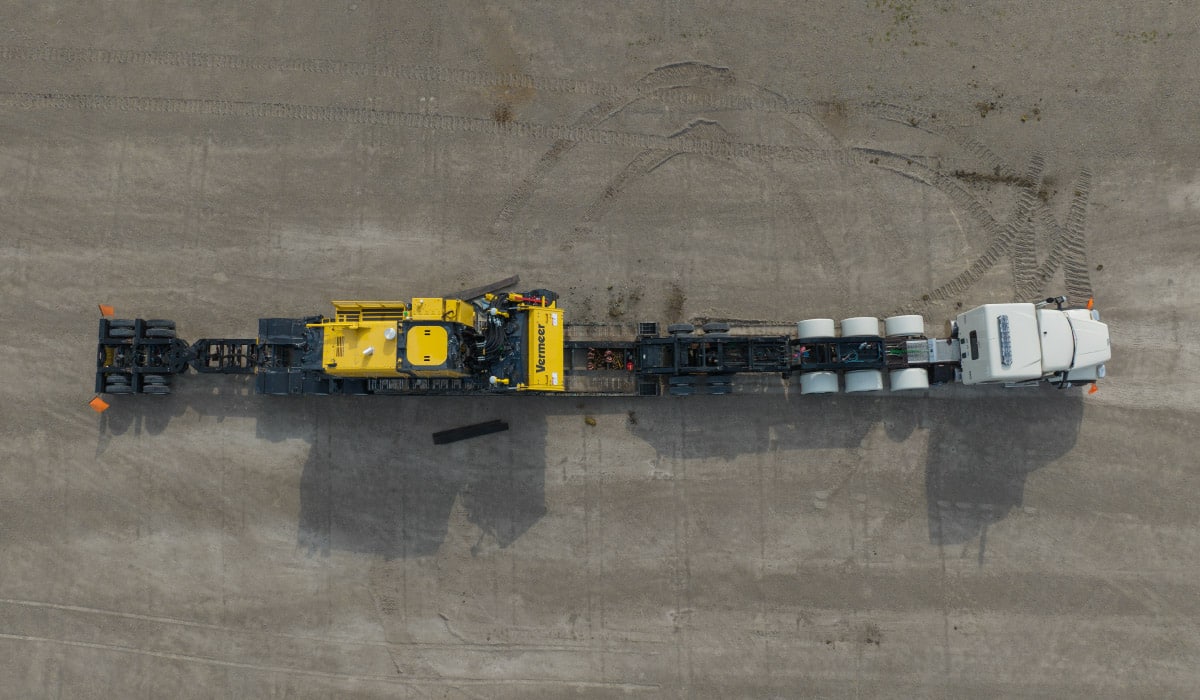

A drive-on, drive-off transportation method using common industry equipment, minimal permitting and eliminates the need for a crane all in a compact design.

Cutting edge cutting technology

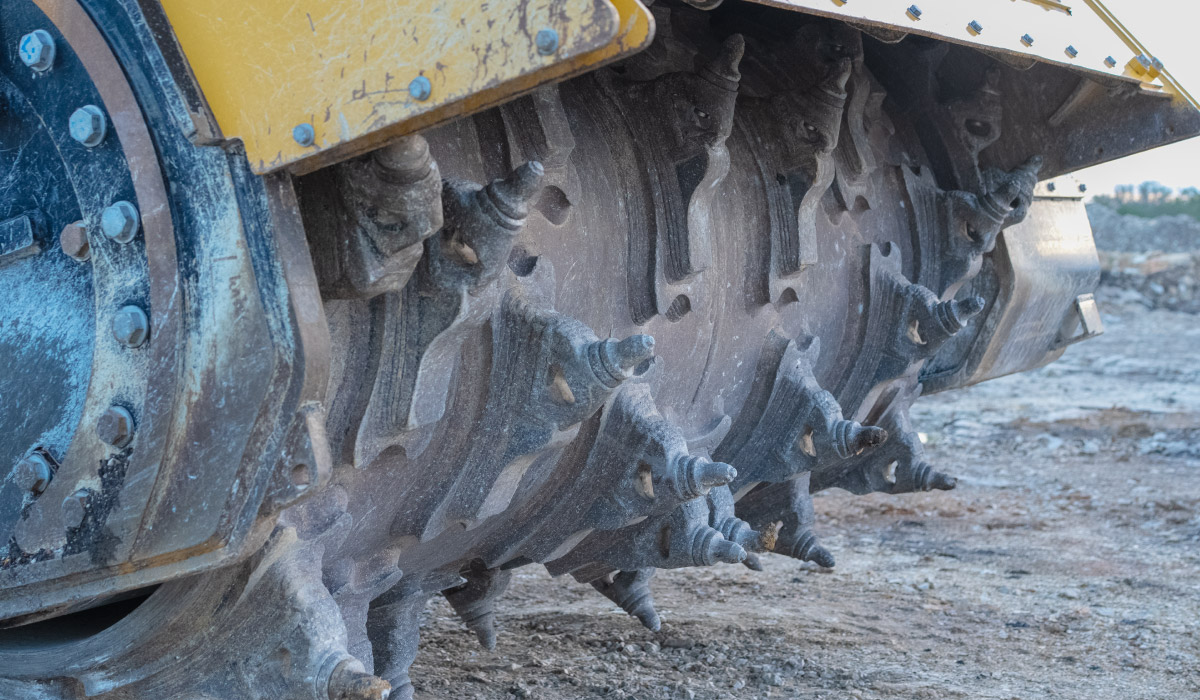

Engineered to achieve a higher tooth tip force, giving you the ability to cut in hard rock with more cutting capabilities.

Remote operation for comfort and safety

Operate with ease from your vehicle — enjoy quiet, minimal disruption and a clear view of the entire work zone

Innovative technology for improved machine efficiency

The GPS technology on this machine allows for a detailed line-by-line plan to be uploaded to the system, allowing the machine to automatically follow a predetermined plan.

Transport dimensions

Approach Angle: 15 deg
Height Range: 136 in (345 cm)
Length: 889 cm
Weight Range: 120,000 lb (54,431.08)
Width Ranges: 136 in (345.4 cm)

Engine

Make and Model: Caterpillar C13 ACERT Tier 4 Final
Gross Horsepower: 309.5 kw
Rated Engine RPM: 2100
Number of Cylinders: 6
Fuel Tank Capacity: 870.6 L
Operating Range: 11 hours
Fuel Consumption at Full Load: 79.5 lph
Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles): 35 deg
Air Cleaner: Dry-type, exhaust-aspirated
Aspiration: Turbocharged and air-to-air after cooled
Cooling Medium: Liquid
Electrical System: 24-volt DC
Oil Filter: Full flow
Horsepower at Maximum RPM (Gross): 309.5 kw
