Stump Cutter

  • Width: 129.5 cm (minimum transport)
  • Weight: 1769 kg
  • Fuel Type: Diesel
  • Power: 67 hp (50 kW)

Features

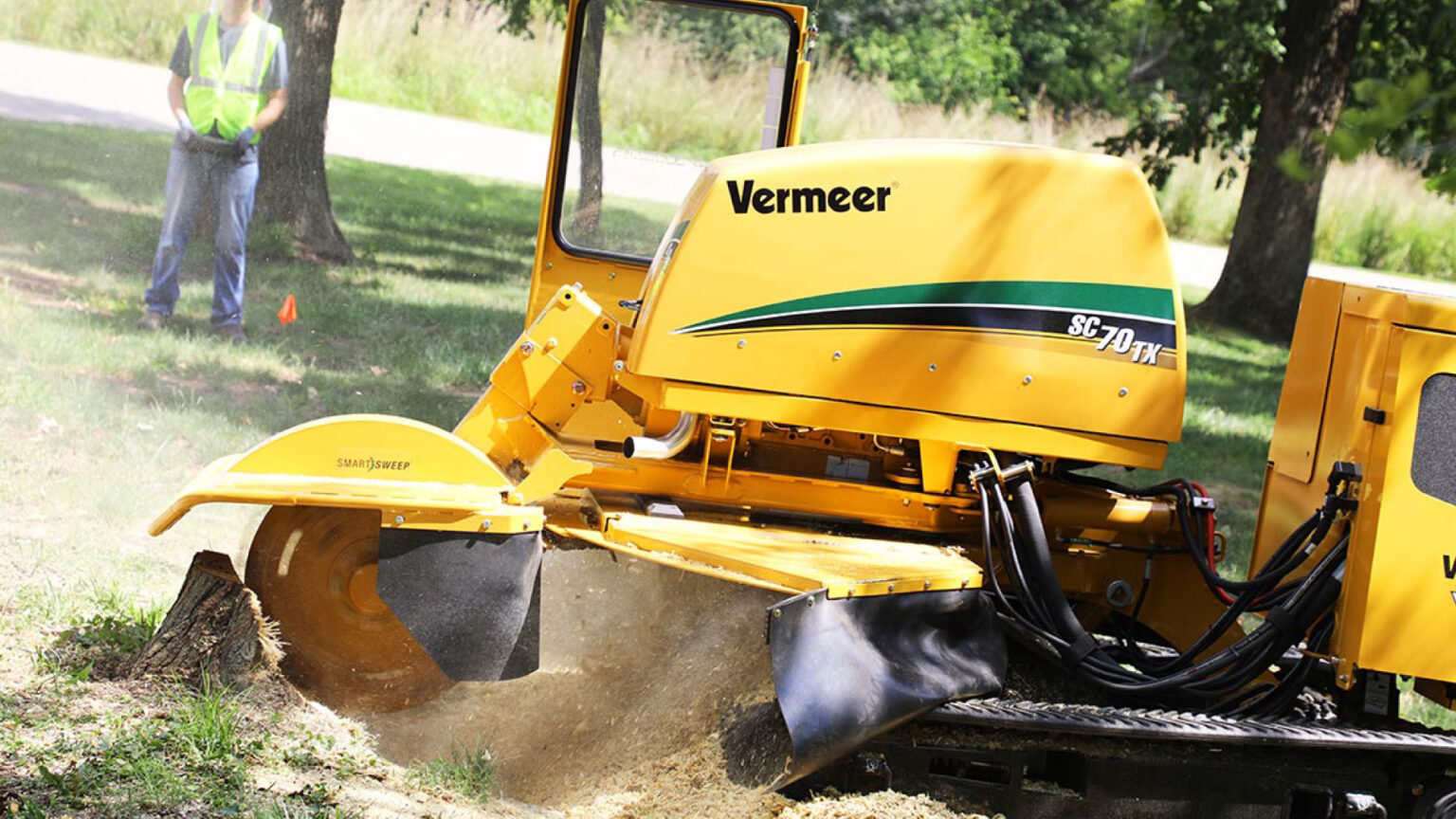

The SC70TX is tough enough to withstand large stumps on a commercial jobsite and can fit into tight spaces in a residential area.

General Dimensions and Weights

  • Length: 141.6 inches / 359.7 cm
  • Height: 72 inches / 182.9 cm
  • Width: 51 inches / 129.5 cm
  • Weight: 3900 lbs / 1769 kg

Engine

  • Make and Model: CAT C2.2 Turbocharged Tier 4 Final
  • Fuel Type: Ultra-low sulfur Diesel
  • Horsepower: 67 hp / 50 kW
  • Max Fuel Consumption: 3.6 gph / 13.6 lph
  • Torque (Max): 153 ft-lb / 207.4 Nm

Cutterwheel System

  • Cutterwheel Diameter (Without Teeth): 23 inches / 58.4 cm
  • Cutterwheel Thickness: 1.1 inches / 2.8 cm
  • Cutterwheel Speed: 880 rpm
  • Number of Teeth: 30

Capacities

  • Fuel Tank Capacity: 12 gal / 45.4 L
  • Hydraulic Tank Capacity: 9.6 gal / 36.3 L
