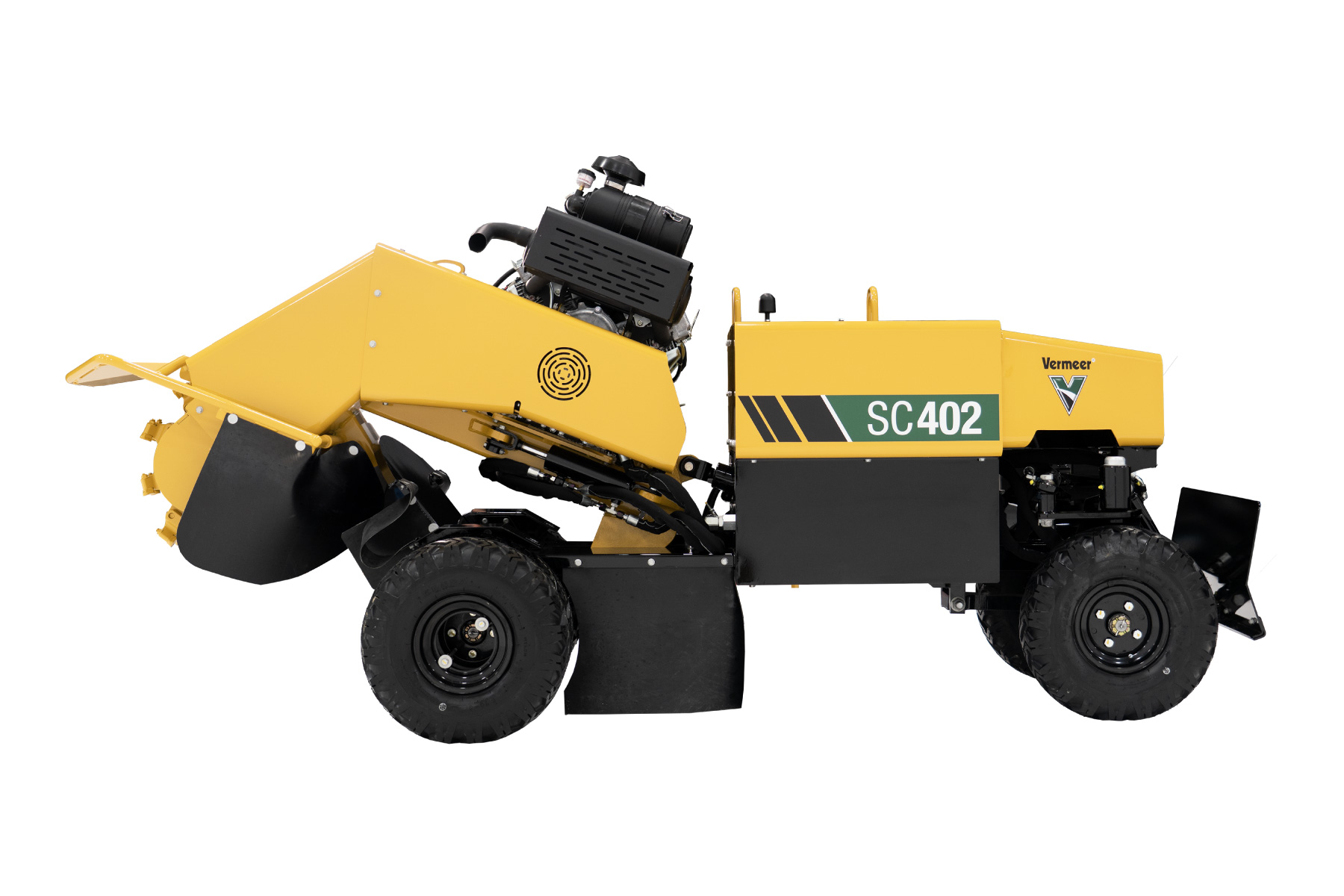

SC402 Stump Cutter

Width: 90.2 cm (minimum transport)
Weight: 884.5 kg
Fuel Type: Petrol
Power: 40 hp (29.8 kw)
Capacity: 20″ cutter wheel

Request a Quote

Find Nearest Branch Download Brochure

More torque with the Vermeer SC402 stump cutter

Efficient Operation

The SC402 is equipped with a 40-hp (29.8-kW) Briggs & Stratton® Vanguard® engine with high torque output to help operators grind more stumps in less time and tackle more jobs each day.

With standard four-wheel drive, the SC402 was built to help prevent ground disturbance and minimize slipping – getting operators to the stump and back efficiently.

The SmartSweep™ control system monitors engine load while providing continuous feedback, resulting in a smooth and consistent cutter wheel sweep rate that helps improve efficiency and minimizes wear.

Jobsite Flexibility

With options of either the Vermeer cutting system (VCS) or Yellow Jacket™ cutter system, operators can select the cutter wheel that is best suited to their operation and ground conditions.

Without the dual wheels installed, the SC402 is only 35.5 in (90.2 cm) wide, allowing it to enter narrow backyard gates and access tight jobsites.

An optional backfill blade helps reduce the time and labor needed for chip clean up.

Ease of Maintenance

Designed for ease of maintenance, the SC402 is all about access and
convenience – helping you spend less time in the shop and more time in the field grinding.

Operator Safety

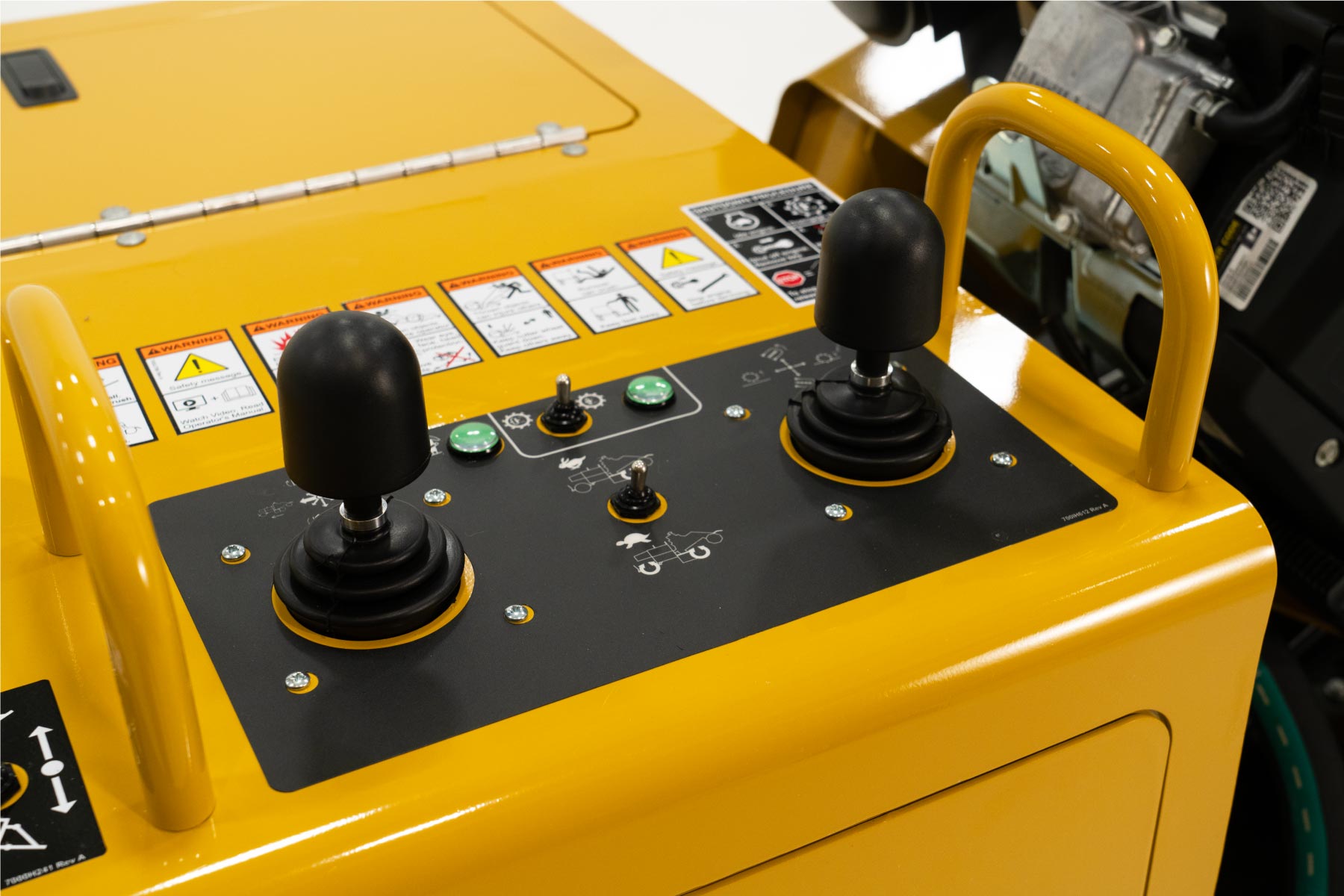

The SC402 features the safety innovations you’ve come to expect from Vermeer – like the capacitive-sensing operator presence system that disengages the wheel when your hands leave the controls.

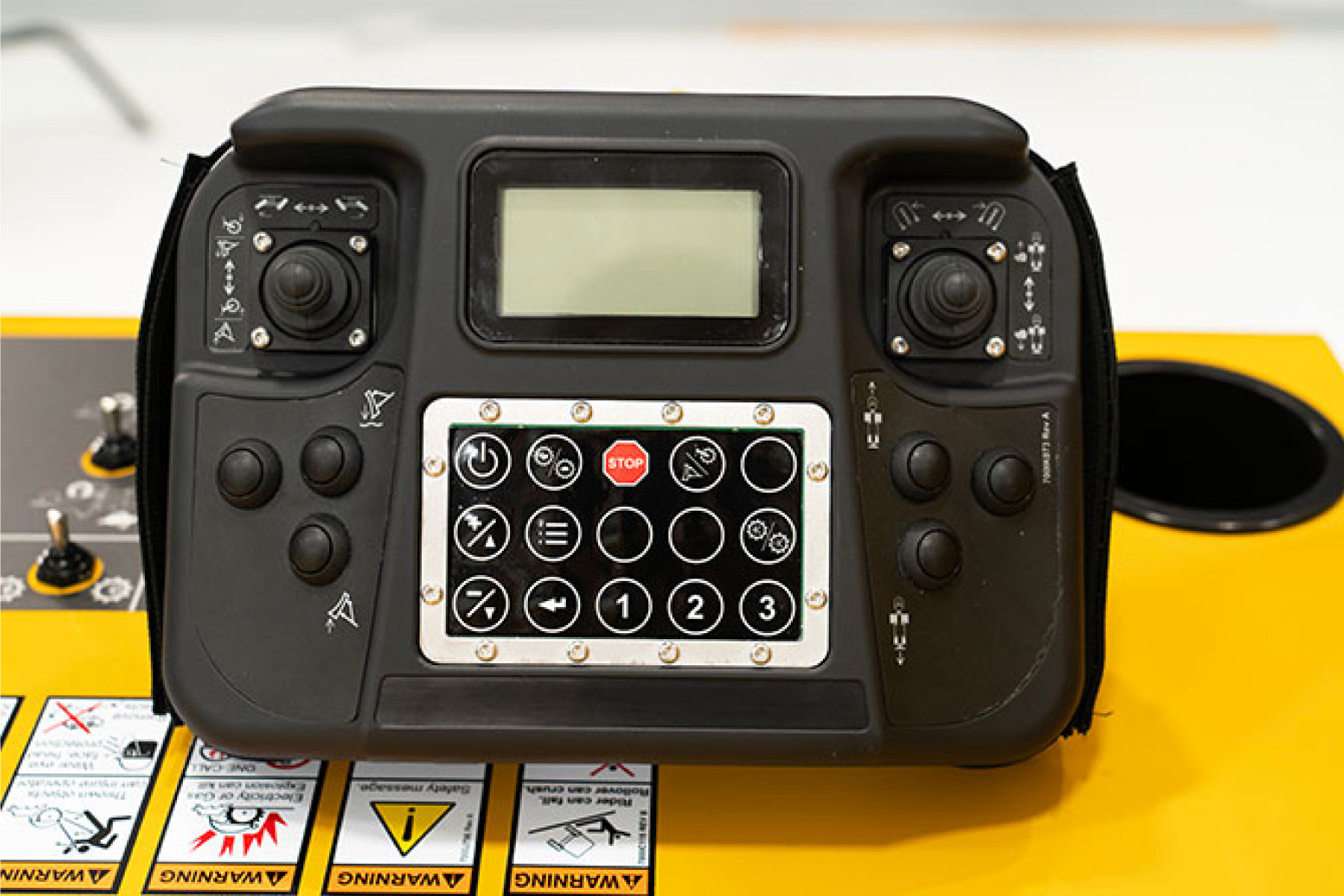

Optional Remote Control

The SC402 is remote-ready – putting control back in your hands. This provides operators with the flexibility to manoeuvre the machine and grind stumps comfortably on diverse jobsites.

Features

General Dimensions and Weights

Length: 299.7 cm
Width: 127.3 cm
Height: 134.6 cm
Overall Width Transport (without duals): 90.2 cm
Overall Width Transport (with duals): 127.3 cm
Overall Height Transport: 134.6 cm
Weight – Engine Option One: 884.5 kg
Weight With Chip Blade Option (Additional): 38.6 kg
Sound Power: 107.6 dB(A)

Engine - Option one

Make and Model: Briggs & Stratton Vanguard® EFI/ETC
Number of Cylinders: 2
Gross Horsepower (Maximum): 29.8 kw
Torque (Max): 75.9 Nm
Fuel Tank Capacity: 37.9 L
Max Fuel Consumption: 8.3 lph
Fuel Type: Petrol
Air Cleaner: Dry-type safety element and restriction indicator
Oil Filter: Spin-on
Recommended Oil: 10W30 (see engine manual)
Oil Volume with Filter: 2.4 L
Maximum Angle of Continuous Operation: 25 deg
Cooling Medium: Air
Alternator: 20/50 Amp (rpm-based)
Clutch Type: Electric clutch with brake

Cutterwheel System

Cutterwheel Diameter without Teeth: 50.8 cm
Cutterwheel Thickness: 1.3 cm
Cutterwheel Speed: 1525 rpm
Cutterwheel Straight Line Dimension: 119.4 cm
Cutterwheel Cut Above Ground: 61 cm
Cutterwheel Cut Below Ground: 38.1 cm
Tooth Description: Vermeer cutting system (VCS)
Number of Teeth: 18
Reversible Pockets/Teeth: 16
Cutterwheel Guard: Standard
Chip Containment: .2 cu m

Cutterwheel system - Two

Cutterwheel Diameter without Teeth: 43.2 cm
Cutterwheel Thickness: 1.3 cm
Cutterwheel Speed: 1525 rpm
Cutterwheel Straight Line Dimension: 119.4 cm
Cutterwheel Cut Above Ground: 61 cm
Cutterwheel Cut Below Ground: 38.1 cm
Tooth Description: Yellow Jacket™ cutter system
Number of Teeth: 20
Cutterwheel Guard: Standard
Number of Indexes: 2
Number of Pockets: 20
Reversible Pockets/Teeth: 20
Chip Containment: .2 cu m

Cutterwheel Drive Components

Belt Type: V-belt
Number of Primary Belts: 2 individual (matched pair)
Jackshaft Dimension: 1.3
Jackshaft Bearing Type: Sealed ball
Bearing Dimensions: 1.3 bore
Number of Secondary Belts: 6 banded
Cutterwheel Shaft: 1.8
Bearing Dimensions – Secondary Belt: 1.8

Hydraulic System

Tank capacity: 24.6 L
Recommended Oil Type: Vermeer HyPower 68
System Type: Open-loop series system
Filtration Method: 10-micron fill strainer and 6-micron return filter
Pump Flow at Maximum RPM: 23.5 L/min
System relief pressure: 170.3 bar
Flow Control: SmarSweep
Directional Control: Electric over hydraulic

Electrical System

System Voltage: 12 V
Battery: 550 CCA
Warning Lights: Oil pressure, engine fault, operator presence status, clutch engage/disengage status
Switches: Two-speed 2×4 and 4×4 ground drive, cutterwheel engage/disengage, blade (if equipped)
Controller: Danfoss®
Shutdown System: Engine low oil pressure will derate engine

Chassis

Frame Description: Welded tube and plate steel
Control Station Description: Fixed side
Toolbox Description: Standard
Steerable Axle Type: Hydraulic steering oscillating axle
Degree of Oscillation: 12 deg
Tires – Option One: 5.7 in x 8 in (14.5 cm x 20.3 cm) dual standard
Fender Description: Yes
Axle/Suspension: Rigid/fixed (rear)
Brake Type: Spring-applied, hydraulic release at rear motors
