Stump Cutter

  • Width: 127.3 cm (minimum transport)
  • Weight: 884.5 kg
  • Fuel Type: Petrol
  • Power: 37 hp (27.6 kW)

Features

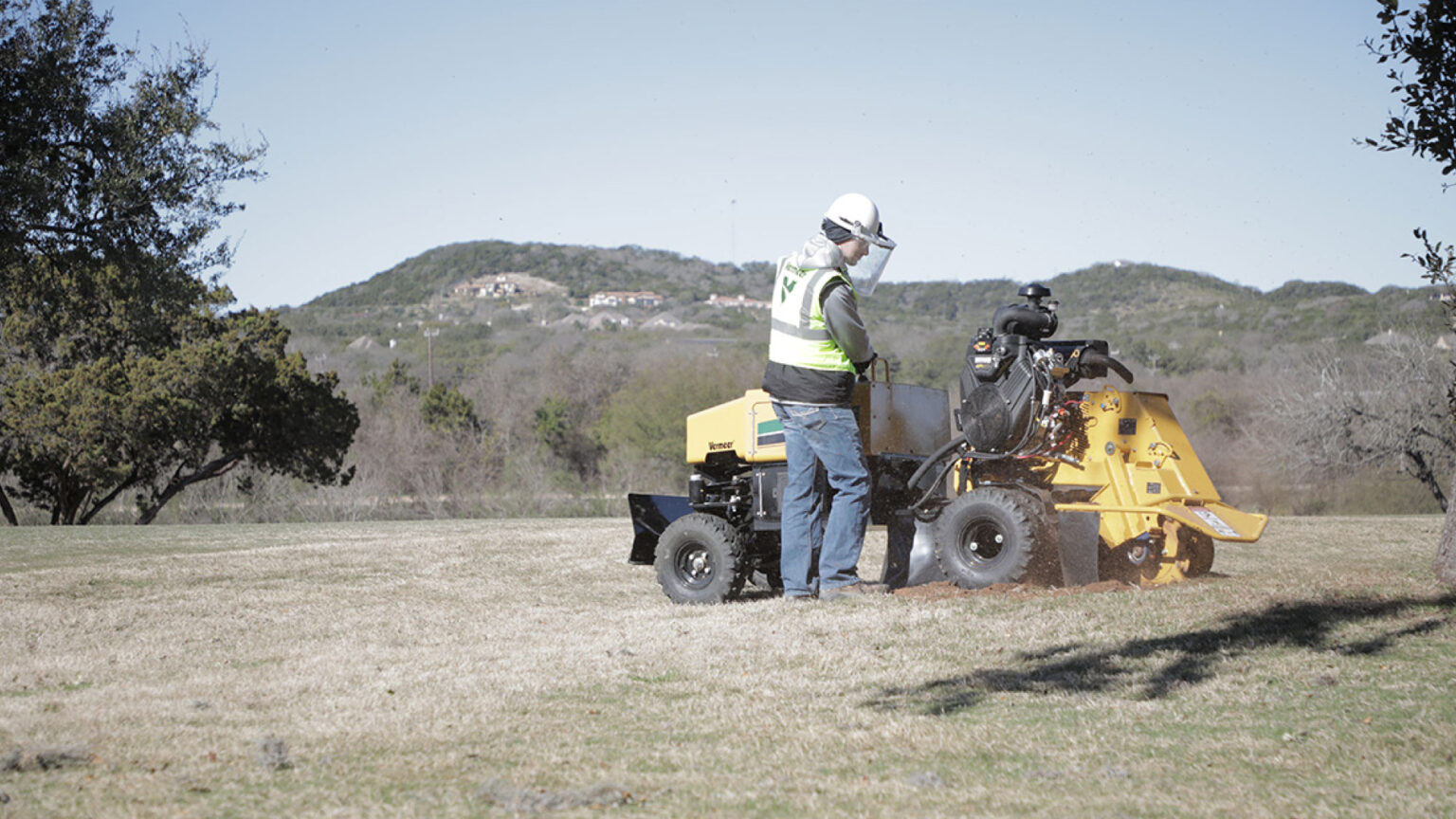

The SC382 stump cutter was made for the tough stumps on your jobsite with a 37hp EFI Briggs and Stratton Vanguard engine and optimized cutting wheel.

General Dimensions and Weights

  • Length: 118 inches / 299.7 cm
  • Width: 50.1 inches / 127.3 cm
  • Overall Width Transport (without duals): 35.5 inches / 90.2 cm
  • Height: 53 inches / 134.6 cm
  • Weight – Engine Option One: 1950 lbs / 884.5 kg

Engine

  • Make and Model: Briggs & Stratton Vanguard EFI
  • Number of Cylinders:  2
  • Gross Horsepower (Maximum): 37 hp / 27.6 kw
  • Torque (Max): 49 ft-lb / 66.4 Nm
  • Fuel Tank Capacity: 10 gal / 37.9 L
  • Max Fuel Consumption: 3.2 gph / 12.1 lph
  • Fuel Type: Petrol
  • Air Cleaner:  Dry-type safety element and restriction indicator
  • Oil Filter:  Spin-on
  • Recommended Oil:  10W30 (See engine manual)
  • Oil Volume with Filter: 2.5 qt / 2.4 L
  • Maximum Angle of Continuous Operation: 25 deg
  • Cooling Medium: Air
  • Alternator:  20/50 amp (rpm-based)
  • Clutch Type: Electric clutch with brake

Cutterwheel System

  • Cutterwheel Diameter without Teeth: 17 inches / 43.2 cm
  • Cutterwheel Thickness: 0.5 inches / 1.3 cm
  • Cutterwheel Speed:  1560 rpm
  • Cutterwheel Straight Line Dimension: 47 inches / 119.4 cm
  • Cutterwheel Cut Above Ground: 24 inches / 61 cm
  • Cutterwheel Cut Below Ground: 15 inches / 38.1 cm
  • Tooth Description: Yellow Jacket™ cutter system
  • Number of Teeth: 20
  • Number of Indexes: 2
  • Number of Pockets: 20
  • Reversible Pockets: 20
  • Cutterwheel Guard: Standard
  • Chip Containment:  7.5 cu ft / 0.2 cu m

Cutterwheel Drive Components

  • Belt Type: V-Belt
  • Number of Primary Belts: 2 individual (matched pair)
  • Jackshaft Dimension: 1.3
  • Jackshaft Bearing Type: Sealed ball
  • Bearing Dimensions: 1.3 bore
  • Number of Secondary Belts: 6 banded
  • Cutterwheel Shaft: 1.8 inches / 4.8 cm
  • Bearing Dimensions – Secondary Belt: 1.8 inches double spherical roller pillow block / 4.8 cm

Hydraulic System

  • Tank capacity: 6.5 gal / 24.6 L
  • Recommended Oil Type: Vermeer HyPower 68
  • System Type: Open-loop series system
  • Filtration Method: 10 micron fill strainer and 6 micron return filter
  • Pump Flow at Maximum RPM: 6.4 gpm / 24.2 L/min
  • System relief pressure: 2470 psi / 170.3 bar
  • Flow Control: SmartSweep
  • Directional Control: Electric over hydraulic

Electrical System

  • System Voltage: 12 V
  • Battery: 400 CCA
  • Warning Lights: Oil pressure, engine fault, operator presence status, clutch engage/disengage status
  • Switches: Two-speed 2×4 and 4×4 ground drive, cutter wheel engage/disengage, creep, blade (if applicable)
  • Controller: Danfoss
  • Shutdown System: Engine low oil pressure

Chassis

  • Frame Description: Welded tube and plate steel
  • Control Station Description: Fixed side location
  • Toolbox Description: Standard
  • Steerable Axle Type: Hydraulic steering, oscillating axle
  • Tires – Option One: 5.7″x 8″ dual standard / 14.5 x 20.3 cm
  • Fender Description: Yes
  • Axle/Suspension: Rigid/Fixed (Rear)

Ground Drive

  • Low Speed Travel: 65 ft/min / 19.8 m/min
  • High Speed Travel: 130 ft/min / 39.6 m/min
