Stump Cutter

  • Width: 88.9 cm (minimum transport)
  • Weight: 582.9 kg
  • Fuel Type: Petrol
  • Power: 26.5 hp (19.8 kW)

Features

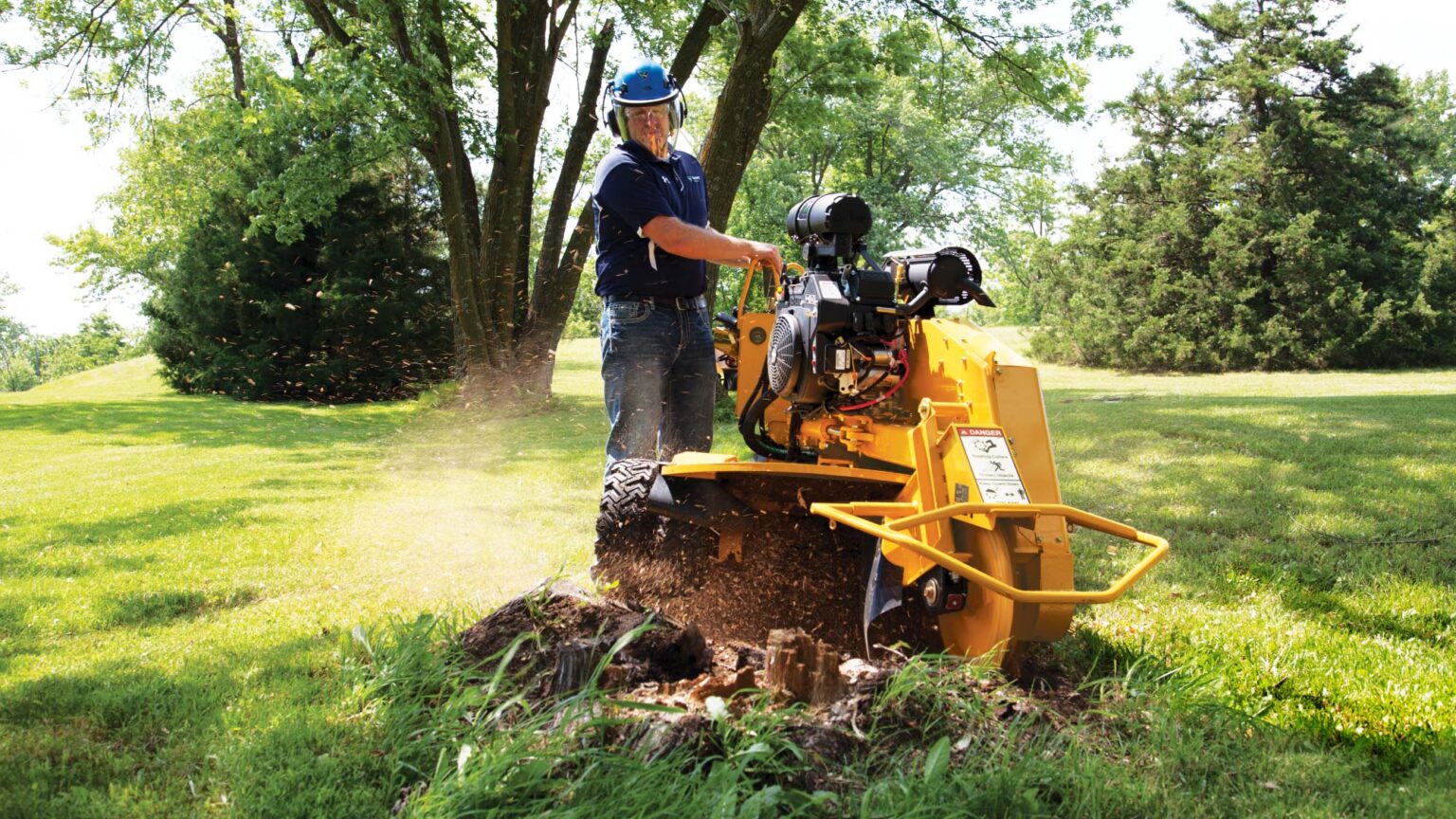

The SC292 stump grinder is equipped with a 26.5 hp (19.8 kW) EFI Kohler engine providing full-sized power in a compact unit.

General Dimensions and Weights

  • Length: 110 inches / 279.4 cm
  • Height: 52 inches / 132.1 cm
  • Transport Width (Without duals): 35 inches / 88.9 cm
  • Transport Width (With duals): 49.8 inches / 126.5 cm
  • Weight: 1285 lbs / 582.9 kg
  • Sound Power: 105.4

Engine

  • Make and Model: Kohler Command Pro EFI
  • Number of Cylinders: 2
  • Gross Horsepower (Maximum): 26.5 hp / 19.8 kw
  • Torque (Max): 44.3 ft-lb / 60.1 Nm
  • Fuel Tank Capacity: 6 gal / 22.7 L
  • Max Fuel Consumption: 2.7 gph / 10.2 lph
  • Fuel Type: Petrol
  • Air Cleaner: Dry-type safety element and restriction indicator
  • Oil Filter: Spin on
  • Recommended Oil: 10W30 Kohler
  • Oil Volume with Filter: 2 qt / 1.9 L
  • Cooling Medium: Air
  • Alternator: 20 amp
  • Clutch Type: Electric clutch with brake

Cutterwheel System

  • Cutterwheel Diameter without Teeth: 17 inches / 43.2 cm
  • Cutterwheel Thickness: 0.5 inch / 1.3 cm
  • Cutterwheel Speed: 1400 rpm
  • Cutterwheel Straight Line Dimension: 47 inches / 119.4 cm
  • Cutterwheel Cut Above Ground: 24 inches / 61 cm
  • Cutterwheel Cut Below Ground: 15 inches / 38.1 cm
  • Tooth Description: Yellow Jacket cutter system
  • Number of Teeth: 16
  • Number of Indexes: 2
  • Number of Pockets: 16
  • Reversible Pockets: 16
  • Cutterwheel Guard: Standard
  • Chip Containment: 7.7 cu ft / .2 cu m

Cutterwheel Drive Components

  • Belt Type: V-Belt
  • Number of Primary Belts: 2 individual (matched pair)
  • Jackshaft Dimension: 1.3
  • Jackshaft Bearing Type: Sealed ball
  • Bearing Dimensions: 1.3 bore
  • Number of Secondary Belts: 6 Banded
  • Cutterwheel Shaft: 1.8 inches (4.8 cm)
  • Bearing Dimensions – Secondary Belt: 1.8 inches (4.8 cm) double spherical roller pillow block

Hydraulic System

  • Tank capacity: 4 gal / 15.1 L
  • Recommended Oil Type: Vermeer HyPower 68
  • System Type: Open-loop series system
  • Filtration Method: Pump suction strainer (100 mesh) and 6 micron return filter
  • Pump Flow at Maximum RPM: 3.7 gpm / 14 L/min
  • System relief pressure: 2030 psi / 140 bar
  • Flow Control: AutoSweep (option) or 2 speed ground drive
  • Directional Control: Manual hydraulic valve

Electrical System

  • System Voltage: 12 V
  • Battery: 400 CCA
  • Standard Gauges: Hourmeter
  • Warning Lights: Oil pressure, engine fault, operator presence status, clutch engage/disengagement status
  • Switches: Two-speed ground drive, clutch engage/disengage, operator presence handles
  • Controller: Vermeer ACS
  • Shutdown System: Oil pressure shutdown

Chassis

  • Frame Description: Welded tube and plate steel
  • Control Station Description: Fixed side locations
  • Toolbox Description: Standard
  • Hitch Type: Adapter for TLR25 trailer
  • Steerable Axle Type: Manual single wheel or dual hydraulic steering axle
  • Tires – Option One: 5.7 inches x 8 inches (14.5 x 20.3 cm) with rear wheels – duals standard
  • Fender Description: Yes
  • Axle/Suspension: Rigid/Fixed

Ground Drive

  • Low Speed Travel: 66 ft/min / 20.1 m/min
  • High Speed Travel: 133 ft/min / 40.5 m/min
