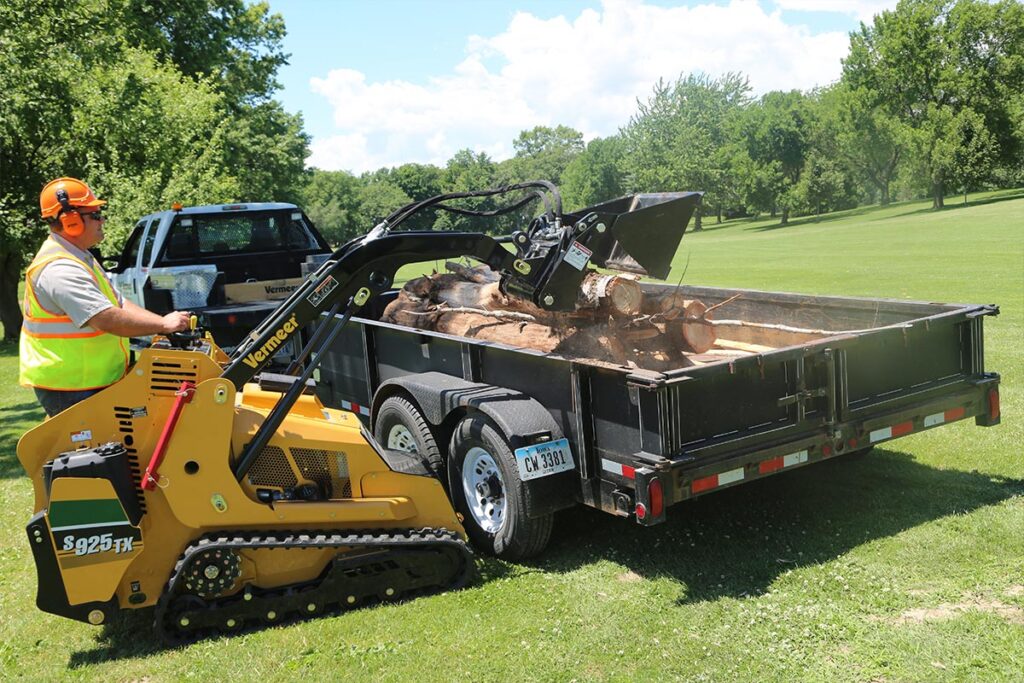

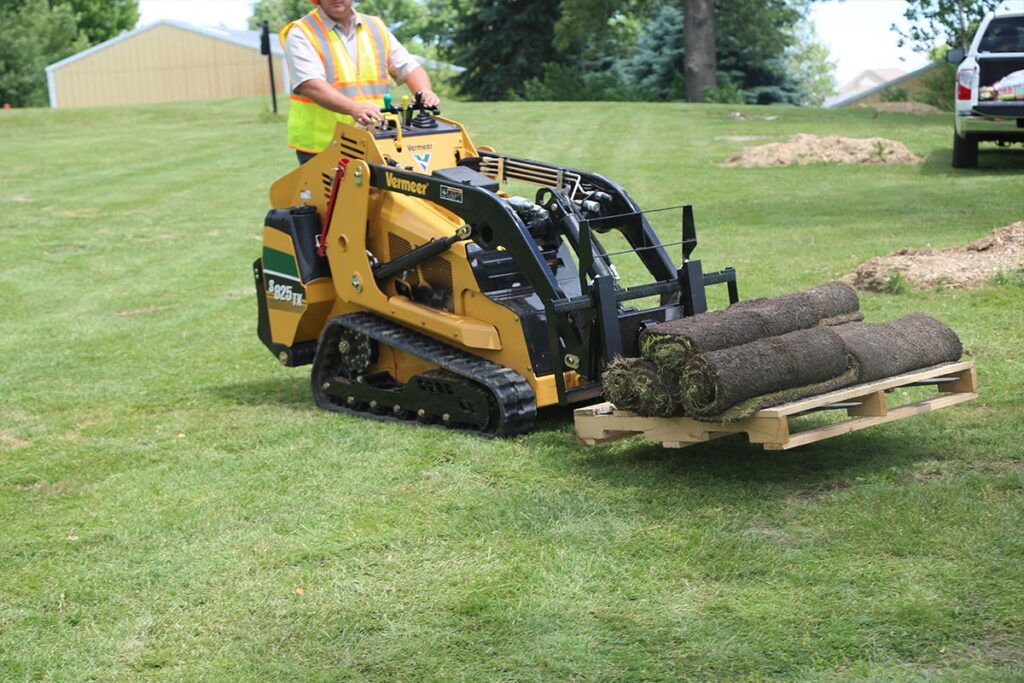

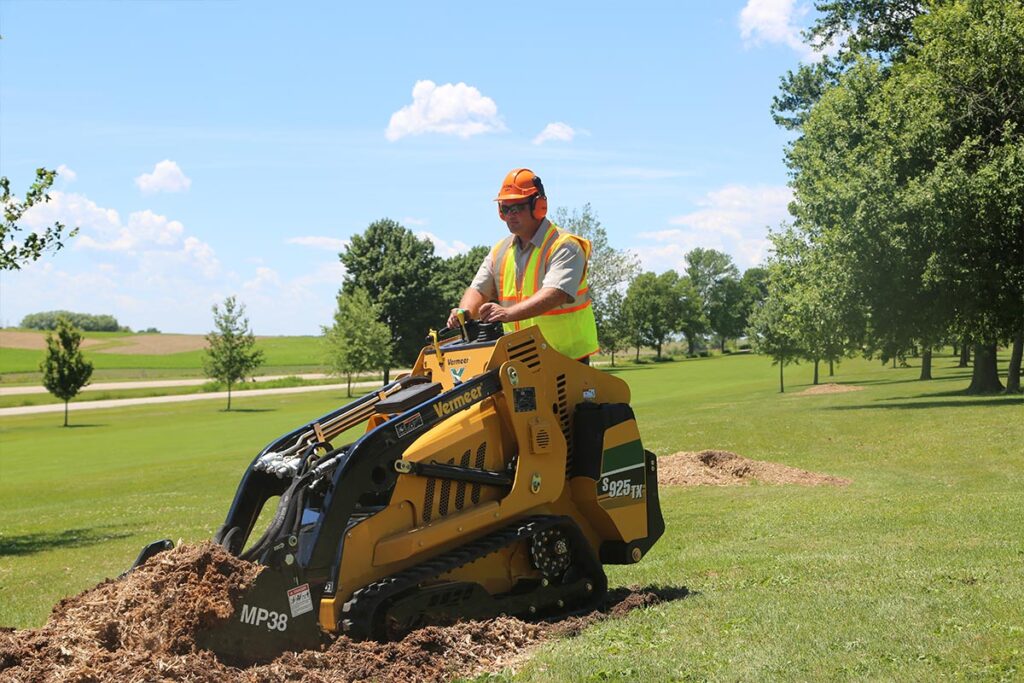

Mini Skid Steer Loader

  • Width: 91.4 cm (No Bucket)
  • Weight: 1519.5 kg (No Bucket)
  • Fuel Type: Diesel
  • Power: 25hp (18.6kW) or 35hp (26.1kw)
  • Capacity: 419.6 kg Rated Operating (SAE), 1198.9 kg Tipping

Features

With it’s dual hydraulic auxiliary system, the S925TX mini skid steer loader can handle any job site from a landscaping project to a tree care site.

Key Features

  • The S925TX comes standard with a dual hydraulic auxiliary system with high flow to power the most demanding attachments and a low flow to give the operator maximum control.
  • Get more out of each day with a tipping capacity of 1198.8 kg and rated operating capacity of 419.6 kg while reaching to maximum hinge pin height at 214.6 cm.
  • Single joystick ground drive control offers a smooth range of motion without balancing the engagement of two separate controls. The handgrip enables the operator to maintain a secure grip while providing good joystick control.
  • Protective steel wings with cushioning increase operator comfort and support, providing a surface to brace against while working in uneven terrain.
  • The dedicated spring-cushioned operator platform keeps the operator out of the mud and debris

General Dimensions and Weights

  • Design: Ride-on/track-drive
  • Length (With Standard Bucket): 106 inches / 269.2 cm
  • Length (Without Standard Bucket): 84 inches / 213.4 cm
  • Width (With Standard Bucket): 42 inches / 106.7 cm
  • Width (Without Standard Bucket): 36 inches / 91.4 cm
  • Height: 58 inches / 147.3 cm
  • Height (to Hinge Pin): 84.5 inches / 214.6 cm
  • Ground Clearance: 6 inches / 15.2 cm
  • Weight (Standard Bucket, Diesel Engine): 3465 lbs / 1571.7 kg
  • Weight (No Bucket, Diesel Engine): 3350 lbs / 1519.5 kg

Engine Option One

  • Make and Model: Kubota V1505
  • Fuel Type: Diesel
  • Fuel Tank Capacity: 13 gal / 49.2 L
  • Gross Horsepower: 25 hp / 18.6 kw
  • Cooling System: Liquid
  • Maximum Angle of Inclination: 30 deg

Engine Option Two

  • Make and Model: Kubota V1505
  • Fuel Type: Diesel
  • Fuel Tank Capacity: 13 gal / 49.2 L
  • Gross Horsepower: 35 hp / 26.1 kw
  • Cooling System: Liquid
  • Maximum Angle of Inclination: 30 deg

Track Performance

  • Rated Operating Capacity (SAE): 925 lbs / 419.6 kg
  • Tipping Capacity (With 74.84 kg operator): 2643 lbs / 1198.9 kg
  • Travel Speed: 4.5 mph / 7.3 km/h
  • Ground Pressure (7″ Narrow Tracks): 5 psi / 34.5 kPa

Operational

  • Steering: Dual axis, pilot-operated joystick
  • Lift: Dual axis, common bucket lever
  • Curl: Dual axis, common bucket lever

Hydraulic System

  • Hydraulic System Flow: 15.5 gpm / 58.7 L/min
  • Hydraulic System Pressure: 3045 psi / 209.9 bar
  • Tank capacity: 10.5 gal / 39.7 L
