Ride-on Trencher

  • Front loadout conveyor attachment
  • Adjustable height for convenient transportation
  • Work in narrow jobsites
  • Optimal operator comfort
  • Facilitates operator training
  • Minimise premature engine wear
Vermeer RTX750 SOC Ride-on Tractor
Vermeer RTX750 SOC Ride-on Tractor
Vermeer RTX750 SOC Ride-on Tractor
Vermeer RTX750 SOC Ride-on Tractor

Road trenching with minimal disruptions

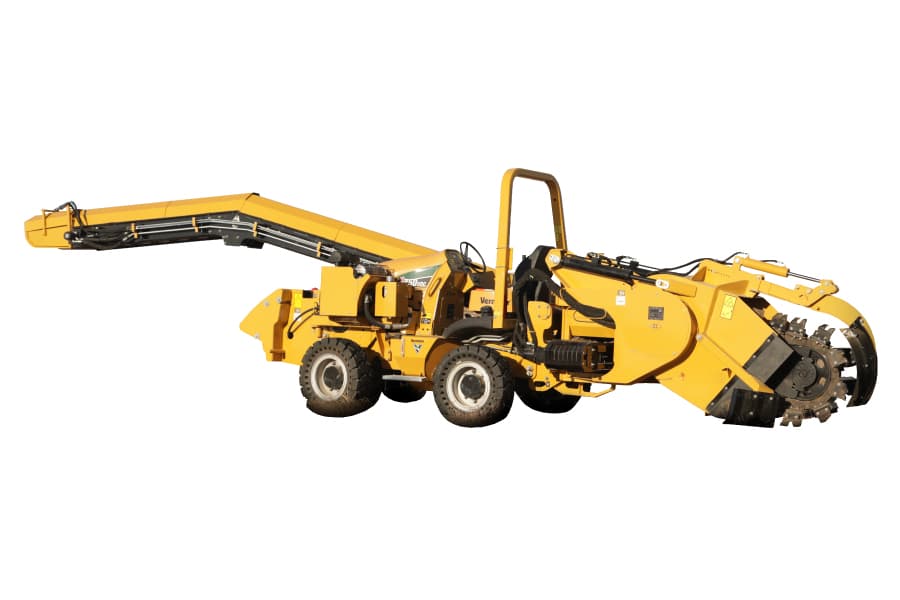

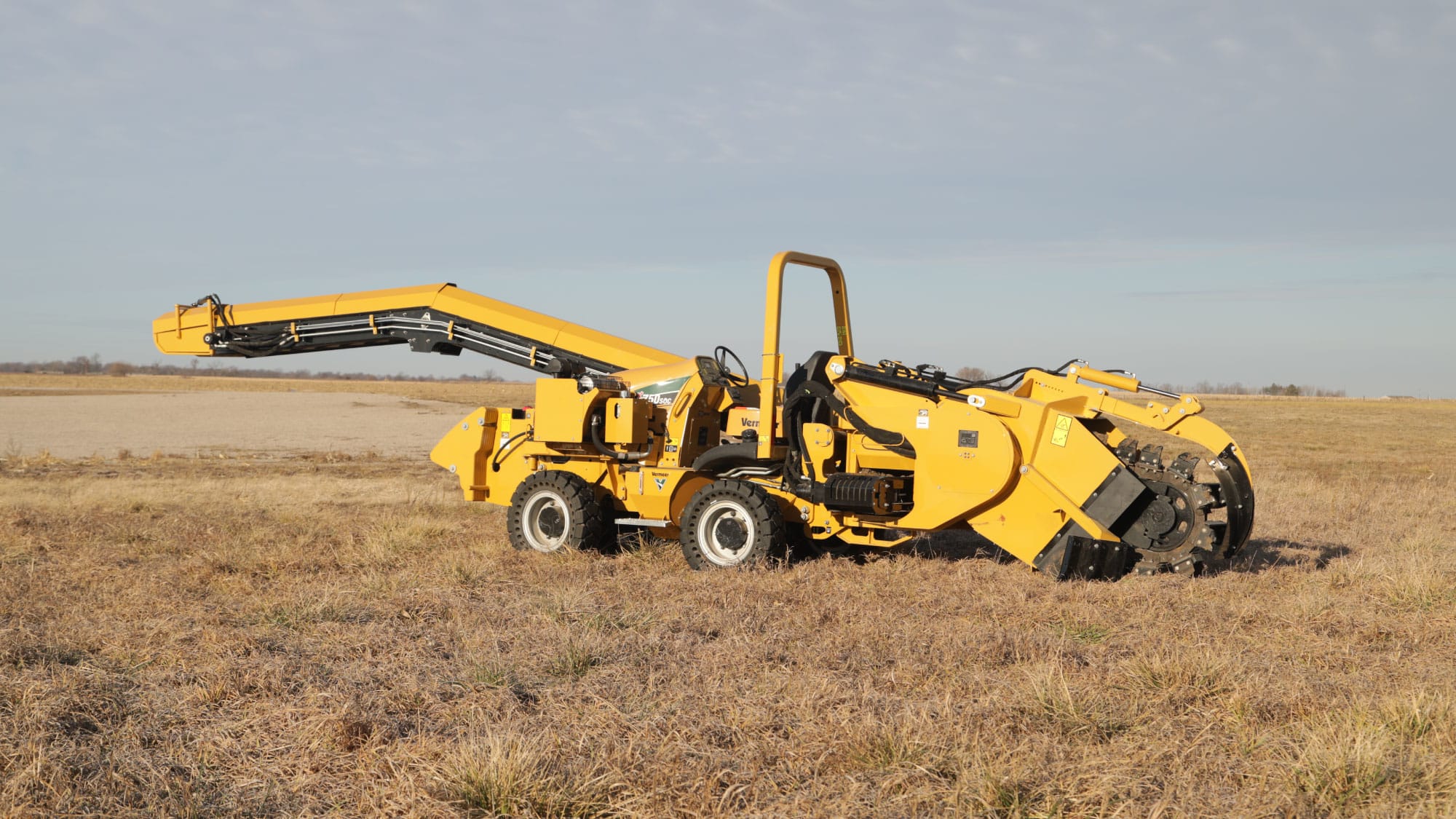

The RTX750 SOC ride-on trencher features a unique front loadout conveyor attachment which allows the dump truck to operate directly ahead of the machine. This setup enables road trenching to be done in tight urban areas with just a single lane closure, minimising traffic disruption.

Features

Efficient utility installations

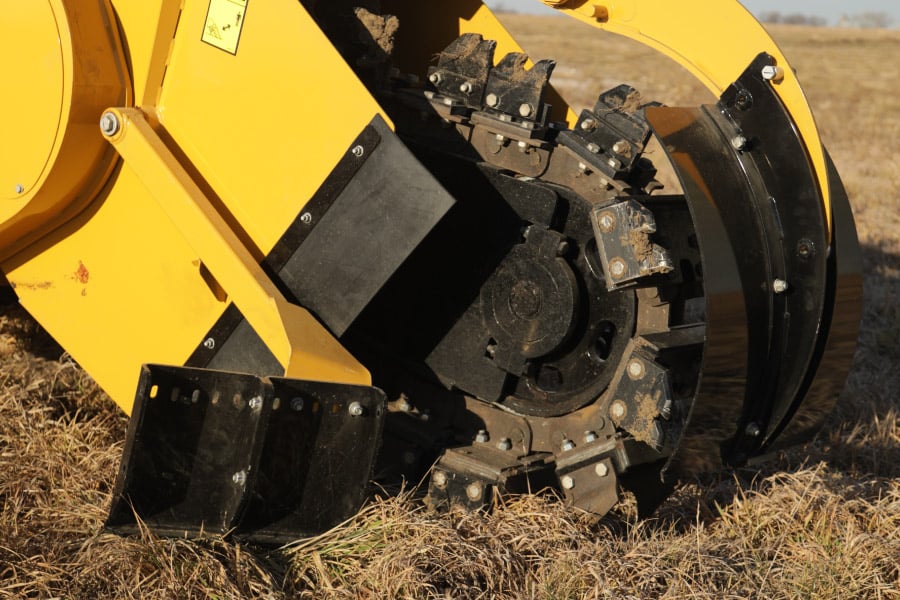

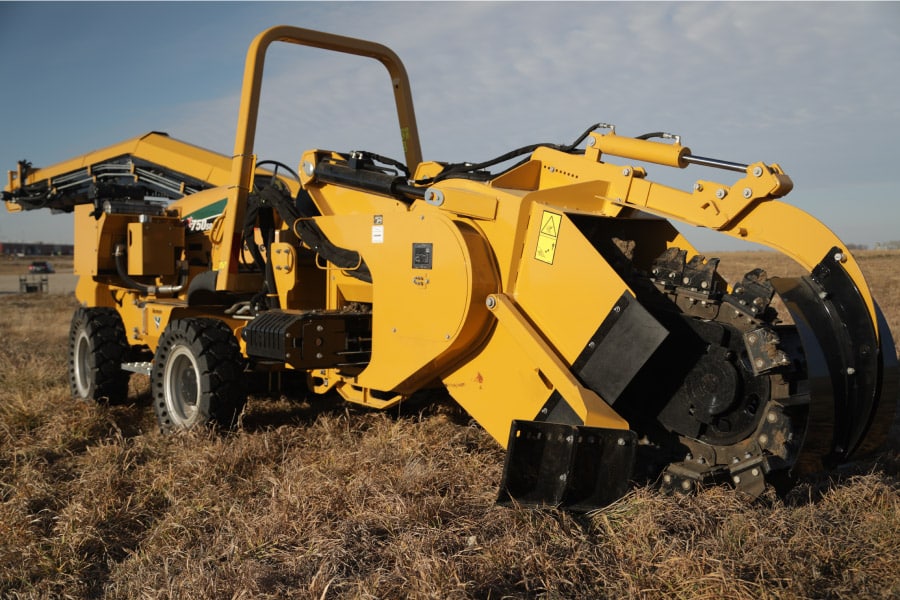

Sliding offset trencher attachment can cut a 61-cm (24-in) wide by 91-cm (36-in) deep trench. The sliding trencher moves from the center to 41-cm (16-in) to the left. It facilitates the digging of clean, straight ditch walls for efficient utility installations.

Increased jobsite flexibility

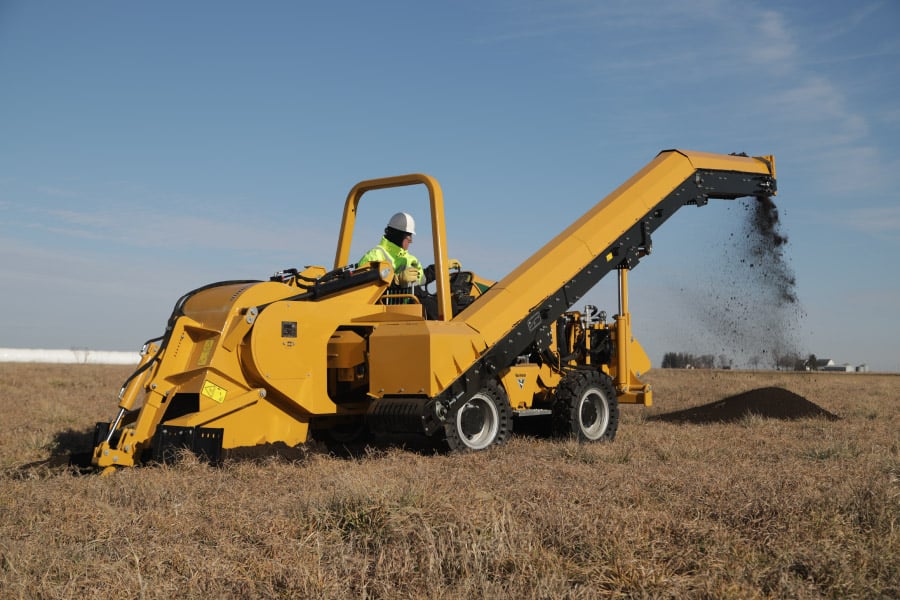

The loadout conveyor attachment can work with up to 10-tonnes (9.07-tons) dump truck. It enables operators to work in tight, urban areas with the spoil feeding directly into the dump truck.

Enhanced operator visibility

The operator’s station and all attachment controls manually rotate 90 degrees. The swiveling operator’s station is designed to optimise operator visibility of the rear attachment and maximise operator comfort.

Ease of monitoring machine functions

Integrated system display toggles through machine diagnostics including engine rpm, fuel, alternator voltage, engine water temperature and engine hours. When in either ground drive or using a rear attachment, the display indicates the percentage of the hydrostatic capacity being utilised. This allows the operator to monitor important machine functions.

Maximise productivity

While trenching in auto creep mode, the TrenchSense™ electronic control system actively monitors engine rpm. If difficult ground conditions are encountered, the tractor automatically pauses forward creep and slightly backs up. The trencher chain also slightly reverses to dislodge any material.

General dimensions and weights

  • Weight (basic tractor, rubber tires): 2812.3 kg
  • Length (basic tractor, rubber tires): 247.1 cm
  • Width (basic tractor, rubber tires): 186.4 cm
  • Height (basic tractor, rubber tires): 245.9 cm
  • Wheel Base (Centerline of Axles): 154.9 cm
  • Tread Width with Rubber Tires (Centerline to Centerline): 161 cm
  • Ground Clearance (rubber tires): 22.4 cm
  • Angle of approach (basic tractor, rubber tires): 25 deg
  • Roll Over Protection Structure (Open Cab): 7711.1 kg

Engine - option one

  • Make and Model: Deutz TD2.9L4
  • Gross Horsepower (Maximum): 55.2 kw
  • Horsepower at Maximum RPM (Gross): 49.7 kw
  • Maximum Torque: 260.3 Nm
  • Number of Cylinders: 4
  • Maximum Operating Angle (Fore/Aft)*: 25 deg
  • Maximum Operating Angle (Left/Right)*: 25 deg
  • Fuel Type: Diesel
  • Emissions rating: Tier 4 Final
  • CE approved: Yes
  • Guaranteed sound power (CE-rating): 110 dB(A)
  • Noise Level at Operator’s Ear: 94 dB(A)
  • Cooling Method: Liquid
  • Aspiration: Turbo
  • Max Fuel Consumption: 14.8 lph
  • Maximum Engine RPM: 2600 rpm
  • Idle Speed: 1000 rpm
  • Rated RPM: 2600 rpm

Engine - option two

  • Make and Model: Kohler ECH749
  • Gross Horsepower: 19.8 kw
  • Maximum Torque: 54.2 Nm
  • Number of Cylinders: 2
  • Cooling Medium: Air
  • Maximum Operating Angle (Fore/Aft)*: 25 deg
  • Maximum Operating Angle (Left/Right)*: 25 deg
  • Fuel Type: Gasoline
  • Emissions rating: China, EPA, ARB, EU Stage 5
  • CE approved: Yes
  • Guaranteed sound power (CE-rating): 110 dB(A)
  • Noise Level at Operator’s Ear: 94 dB(A)
  • Maximum Engine RPM: 3500 rpm
  • Idle Speed: 1800 rpm
  • Rated RPM: 3400 rpm
  • Net Horsepower: 19 kw
  • Displacement: .7 L
  • Cooling Method: Air
  • Aspiration: Natural
  • Max Fuel Consumption: 7.2 lph
  • Air Cleaner: Dry 2-stage with safety
  • Run Time at Full Load (hours): 4.7 hr

Ground drive - Rubber tire

  • Maximum forward transport speed (high): 6.4 km/h
  • Maximum reverse transport speed (high): 6.4 km/h
  • Maximum forward creep speed (low): 2.6 km/h
  • Maximum reverse creep speed (low): 2.4 km/h
  • Tire size: 30 in x 10 in (76.2 cm x 25.4 cm) – 16 in (40.6 cm)

Axle options

  • Front Axle Type: Steerable planetary with hydraulic differential lock
  • Rear Axle Type: Steerable planetary with hydraulic differential lock
  • Axle load rating (static, per axle): 5102.9 kg
  • Outside Turning Diameter (Rubber Tires, Front Steer Only): 10.1 m
  • Outside Turning Diameter (Rubber Tires, Front and Rear Steer): 5.1 m
  • Service Brake Type: Hydrostatic
  • Parking Brake Type: Spring-applied, hydraulic release

Hydraulic system

  • Auxiliary pump capacity: 73.4 L/min
  • Auxiliary pump relief: 172.4 bar
  • Attachment pump capacity: 132.5 L/min
  • Attachment pump relief: 379.2 bar
  • Ground drive pump capacity: 132.5 L/min
  • Ground drive pump relief: 299.9 bar

Electrical system

  • System Voltage: 12 volt
  • Battery CCA Rating: 950
  • Battery Group Class: Group 31

Capacities

  • Fuel Tank: 102.2 L
  • Hydraulic Tank: 68.1 L
  • Hydraulic System: 94.6 L
  • Coolant: 11.4 L
