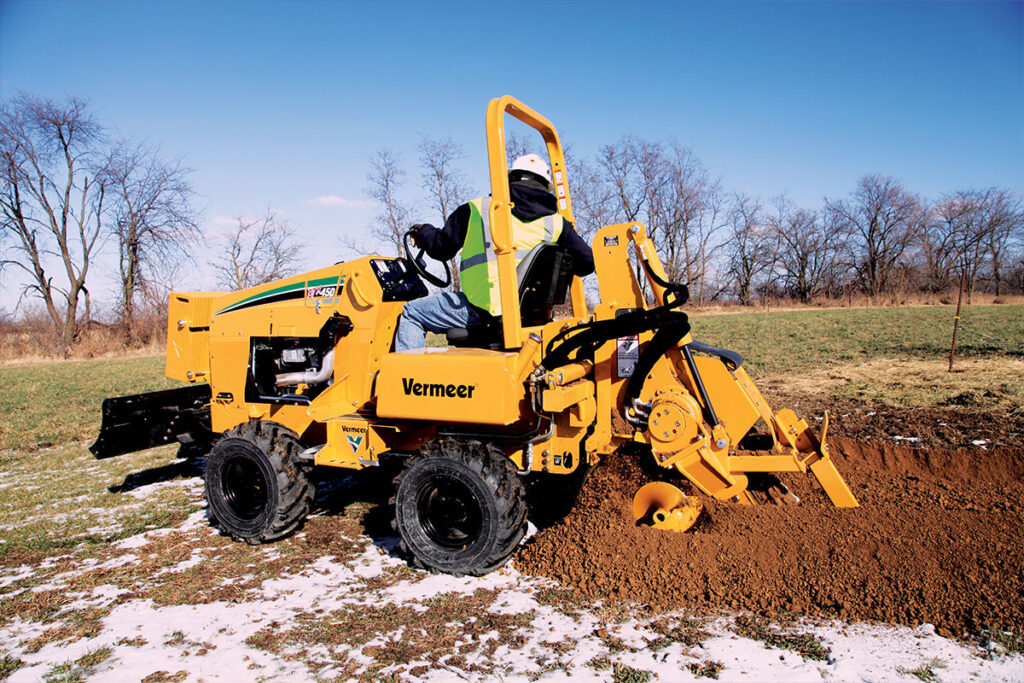

Ride-on Trencher

  • Length: 289.6 cm (basic tractor, tracks)
  • Weight: 2814.5 kg (basic tractor, tracks)
  • Fuel Type: Diesel
  • Power: 49 hp (36.5 kW)

Features

The RTX450 is offered in three configurations: the standard duty axle outfitted with a 26” (66 cm) tire option or the heavy duty axle 29” (73.7 cm) tire and quad track options.

Key Features

  • The RTX450 provides a 14% increase in horsepower (as compared to the RT450) in Tier 4 Final engine option.
  • A class-leading compact turning diameter allows the RTX450 to perform in narrow job sites – especially in residential areas.
  • The Vermeer-exclusive TrenchSense™ electronic control system helps you keep control, even in the toughest ground conditions.
  • An electronically controlled H1 Sauer hydraulic pump offers precise control and ample power to the ground drive.

General Dimensions and Weights

  • Weight (basic tractor, rubber tires): 4507 lbs / 2044.3 kg
  • Weight (basic tractor, tracks): 6205 lbs / 2814.5 kg
  • Length (basic tractor, rubber tires): 109 inches / 276.9 cm
  • Length (basic tractor, tracks): 114 inches / 289.6 cm
  • Width (basic tractor, rubber tires): 60 inches / 152.4 cm
  • Width (basic tractor, tracks): 64 inches / 162.6 cm
  • Height (basic tractor, rubber tires): 88.7 inches / 225.3 cm
  • Height (basic tractor, rubber tires, option two): 90.3 inches / 229.4 cm
  • Height (basic tractor, tracks): 92.6 inches / 235.2 cm
  • Ground Clearance (rubber tires): 7.4 inches / 18.8 cm
  • Ground Clearance (rubber tires, option two): 9 inches / 22.9 cm
  • Ground Clearance (tracks): 9.9 inches / 25 cm

Axle Options

  • Front Axle Type: Steerable and oscillating 68/80 series planetary axles
  • Rear Axle Type: Rigid and steerable 68/80 series planetary axles
  • Axle load rating (static, per axle): 14837 lbs / 6730 kg
  • Outside Turning Diameter (Rubber Tires, Front Steer Only): 23.8 feet / 7.3 m
  • Outside Turning Diameter (Rubber Tires Option Two, Front Steer Only): 30.3 feet / 9.2 m
  • Outside turning diameter (tracks, front steer only): 28.5 feet
  • Outside Turning Diameter (Rubber Tires, Front and Rear Steer): 12.9 feet / 3.9 m
  • Outside Turning Diameter (Rubber Tires Option Two, Front and Rear Steer): 16.5 feet / 5 m
  • Outside turning diameter (tracks, front and rear steer): 16.7 feet
  • Service Brake Type: Hydraulic
  • Parking Brake Type: Mechanical hand break

Engine Option One

  • Make and Model: Deutz 2.9L D Tier4F
  • Gross Horsepower (Maximum): 49 hp / 36.5 kw
  • Maximum Torque: 108 ft-lb / 146.4 Nm
  • Cooling Medium: Oil/Coolant fluid
  • Fuel Type: Ultra-low sulfur diesel
  • Emissions rating: Tier 4 Final/Tier 4i (EU Stage IIIB)

Hydraulic System

  • Ground drive pump capacity: 30.1 gpm / 113.9 L/min
  • Ground drive pump relief: 5080 psi / 350.3 bar
  • Attachment pump capacity: 30.1 gpm / 113.9 L/min
  • Attachment pump relief: 3450 psi / 237.9 bar
  • Auxiliary pump capacity: 11.7 gpm / 44.3 L/min
  • Auxiliary pump relief: 2500 psi / 172.4 bar

Capacities

  • Fuel Tank: 17.6 gal / 66.6 L
  • Hydraulic Tank: 13 gal / 49.2 L
  • Hydraulic System: 14.8 gal / 56 L
  • Coolant: 1.7 gal / 6.4 L

Ground Drive - Rubber Tire

  • Maximum forward transport speed (high): 3.5 mph / 5.6 km/h
  • Maximum reverse transport speed (high): 3.5 mph / 5.6 km/h
  • Tire size: 26 inch / 66 cm

Ground Drive - Rubber Tire Option Two

  • Maximum forward transport speed (high): 3.8 mph / 6.1 km/h
  • Maximum reverse transport speed (high): 3.8 mph / 6.1 km/h
  • Tire size: 29 inch / 73.7 cm

Ground Drive - Tracks

  • Maximum forward transport speed (high): 2.9 mph / 4.7 km/h
  • Maximum reverse transport speed (high): 2.9 mph / 4.7 km/h
