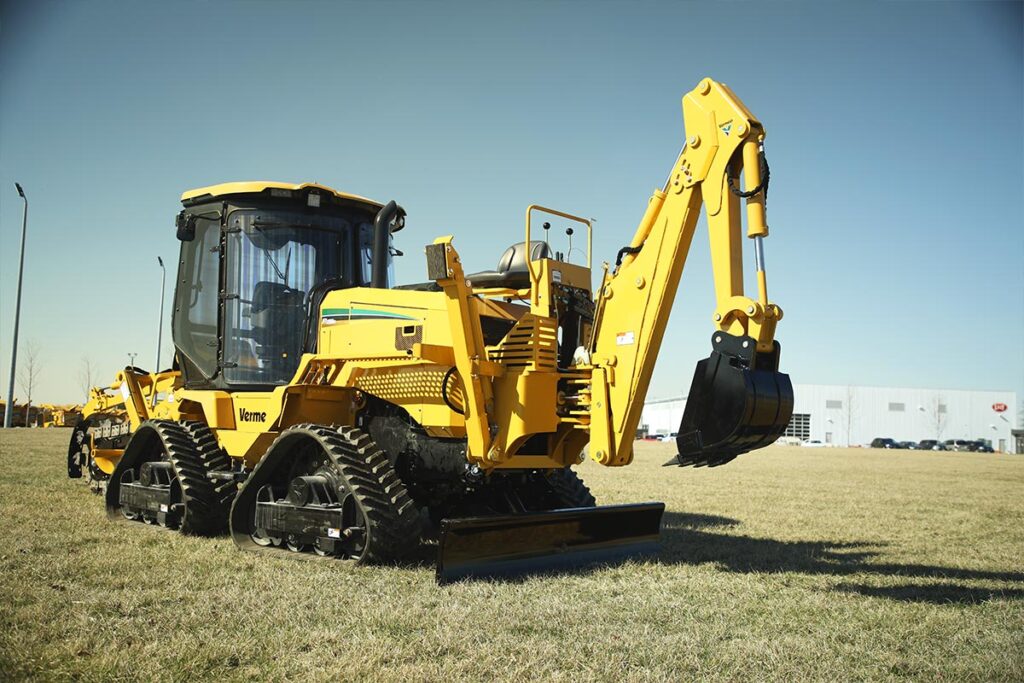

i2 Ride-on Trencher

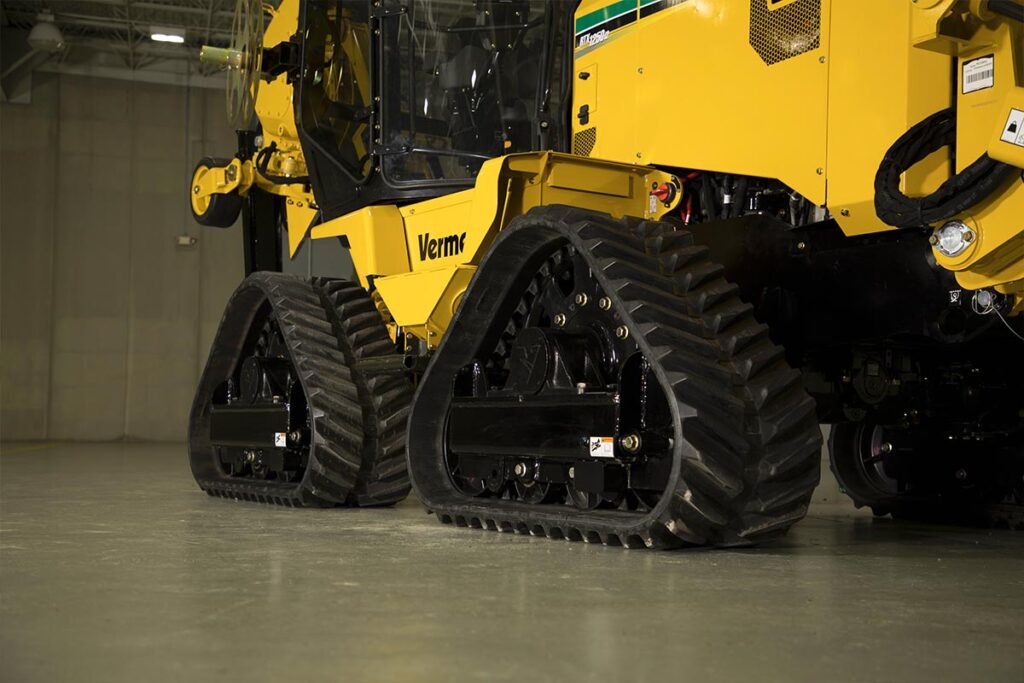

  • Length: 3.8 m (Basic tractor, tracks)
  • Width: 235 cm (Basic tractor, tracks)
  • Height: 292.1 cm
  • Weight: 7330 kg (Basic tractor, tracks)
  • Fuel Type: Diesel
  • Power: 127 hp (95 kW)

Features

The RTX1250i2 offers newly-added technology like TrenchSense™ electronic control system, EcoIdle™ engine control system, Productivity Zone & Auto Plunge.

Key Features

  • The RTX1250i2 offers a productivity advantage with classic and newly-added technology like TrenchSense™ electronic control system, EcoIdle™ engine control system, Productivity Zone and Auto Plunge.
  • Utilize an optional remote control for convenient maintenance and trailer loading and unloading.
  • Stay in sync with and get optimal productivity out of your machine by adding Vermeer Fleet telematics to this tractor.
  • Intelligent i2 attachments offer reduced time switching out attachments and setting operational parameters.

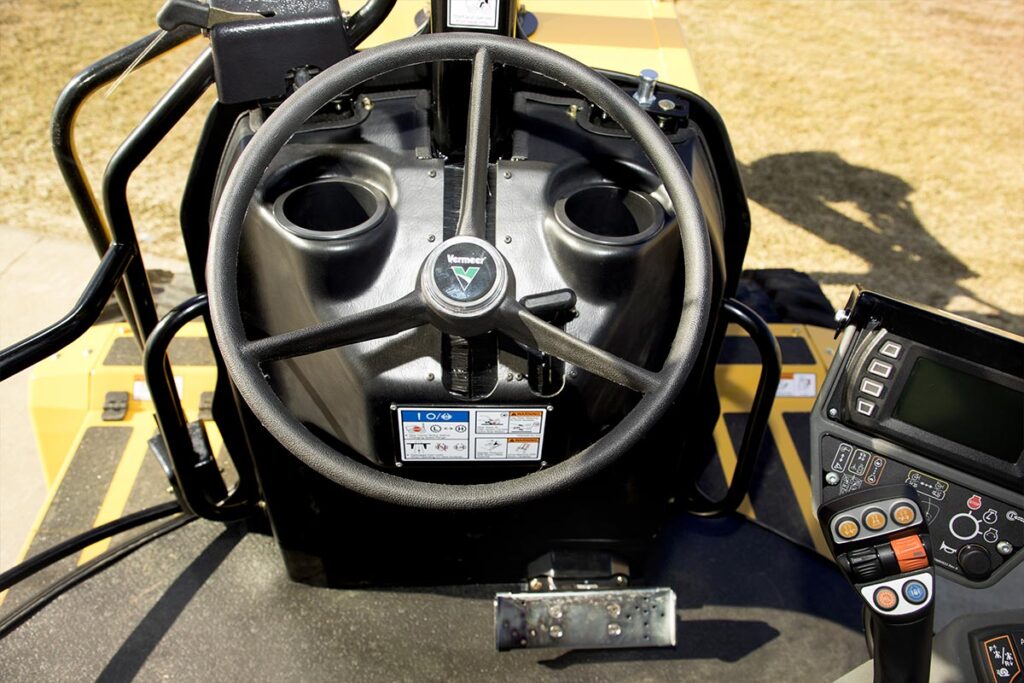

  • The RTX1250i2 boasts a quiet ride, convenient controls and an isolated, cushioned operator’s platform. An optional, all-new climate-controlled cab is also available.
  • The RTX1250i2 is powered by a 127 hp (95 kW) Deutz TCD3.6L diesel engine which offers efficient power for working in difficult ground conditions.

Basic Unit

  • Length (Basic tractor, tracks): 12.4 ft / 3.8 m
  • Length (Basic tractor, tires): 11.6 ft / 3.5 m
  • Width (Basic tractor, tracks): 92.5 inches / 234.9 cm
  • Width (Basic tractor, tires): 87.5 inches / 222.2 cm
  • Height (Transport): 115 inches / 292.1 cm
  • Weight (Basic tractor, tracks & open air ROPS): 15,500 lb / 7030.7 kg
  • Weight (Basic tractor, tracks & enclosed cab ROPS): 16,560 lb / 7511.5 kg
  • Weight (Basic tractor, air-filled tires & open air ROPS): 10,900 lb / 4944.2 kg
  • Weight (Basic tractor, air-filled tires & enclosed cab ROPS): 11,960 lb / 5424.9 kg
  • Ground Clearance: 13.5 inches / 34.3 cm
  • ROPS Rating: 40,000 lb / 18,143.7 kg

Axle Options

  • Front/Rear Axle Type:  Steerable planetary with hydraulic 100% differential lock
  • Axle Load Rating (Static, per axle): 49458 lb / 22433.8 kg
  • Turning Radius (tracks, front steer only): 40 ft / 1219 cm
  • Turning Radius (tracks, front and rear steer): 26 ft / 792 cm
  • Turning Radius (tires, front steer only): 40 ft / 1219 cm
  • Turning Radius (tires, front and rear steer): 23 ft / 701 cm

Engine

  • Make and Model:  TCD3.6L
  • Gross Horsepower: 127 hp / 95 kw
  • Fuel Type: Ultra-low sulfur diesel
  • Maximum Torque: 369 lb-ft / 5000 Nm
  • Max. engine RPM: 2300 rpm
  • Idle speed: 1000 rpm
  • Cooling Method: Liquid
  • Number of Cylinders: 4

Capacities

  • Fuel Tank Capacities: 44 gal / 166.6 L
  • Hydraulic Tank: 31.6 gal / 119.6 L
  • Hydraulic System: 35.6 gal / 134.8 L

Ground Drive

  • Max. Transport Speed (fwd/rev [tracks]): 10.1 mph / 16.3 km/h
  • Max. Transport Speed (fwd/rev [tires]): 10.2 mph / 16.4 km/h
