MyDealer:Mud Pump
- Outrigger controls
- Ease of maintenance
- Quality engineering
- Allison oil field service transmission
- Dependable Caterpillar C15 powerplant
- Zone compliant

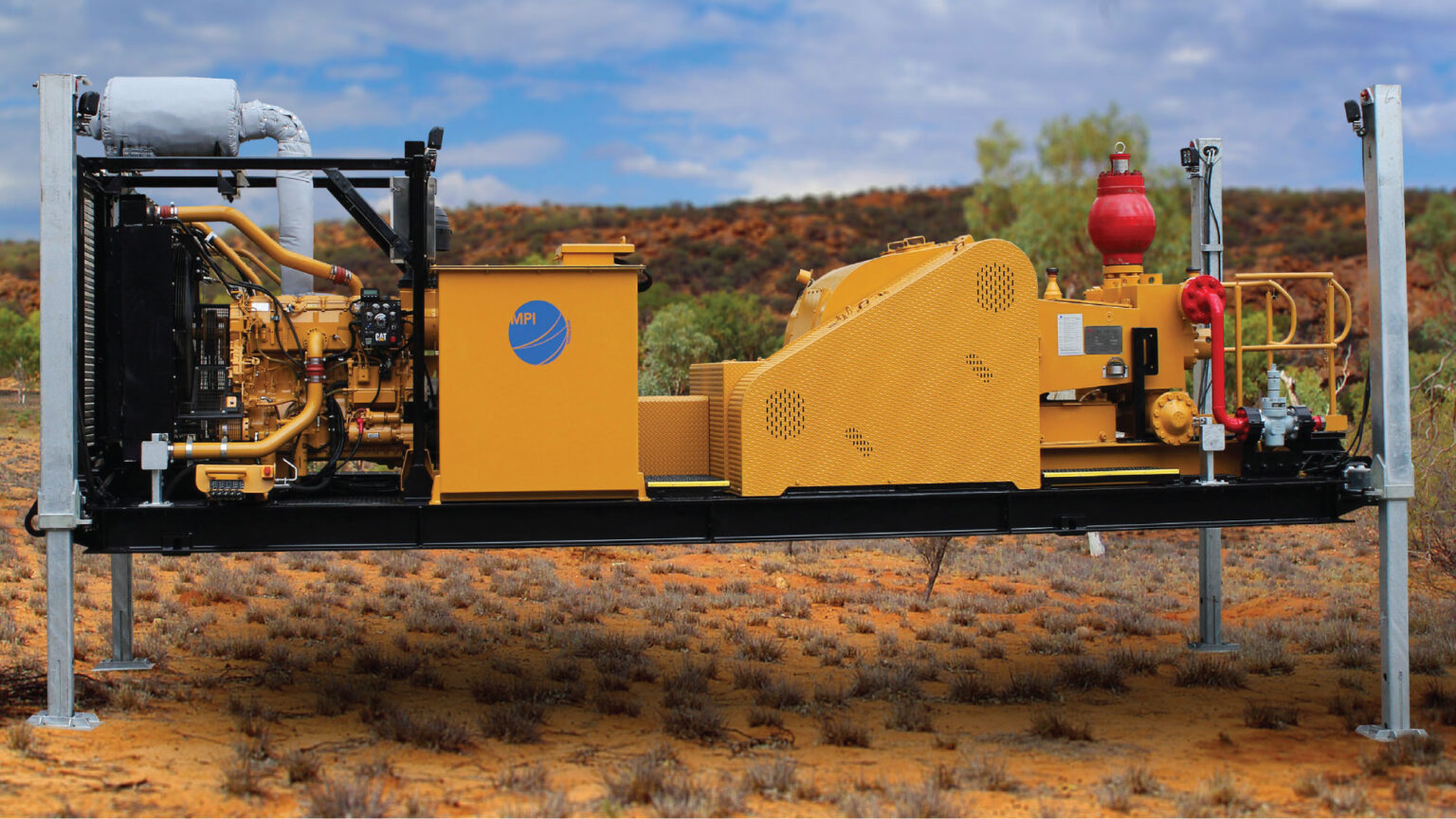

Set up in record time with a mud pump designed for Australian conditions, utilising high quality components and engineered to withstand our harsh work environment. MPI Mud Pumps feature hydraulically controlled outriggers that enable rapid deployment directly from a drop deck trailer to the drilling pad. Drive in, extend outriggers, drive out—you’re ready to connect and drill. Controls via umbilical remote from the drill floor. Maximum flow 535 GPM. Maximum pressure 3945 PSI.
Features
Specifications
- Length of skid: 9.28 meters
- Width of skid: 2.5 meters
- Height of Pump: 2.92 meters
- Weight: 24,600 kgs (approx)
- Jack up height for self loading: 1.65 metres
- Fuel Capacity ( more than 1 shift): 1000 litres
- Engine: Caterpillar C15
- Horsepower: 500hp
- Starting system: Air and Electric available
- Transmission: Allison Automatic Oil Field Service Transmission
- Remote control: Umbillical to drill floor
- Maximum Flow: 535gpm
- Maximum Pressure: 3500PSI
