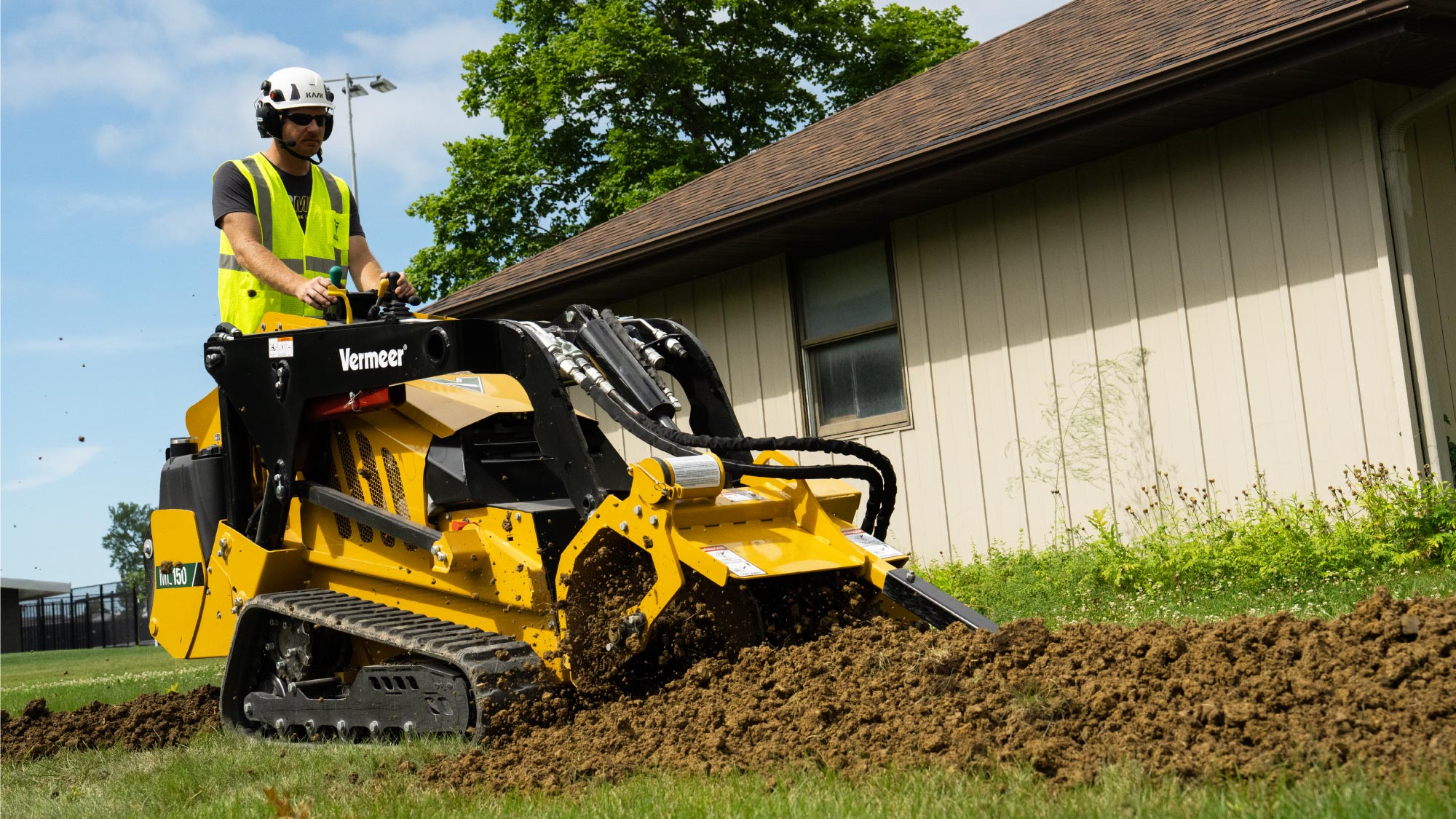

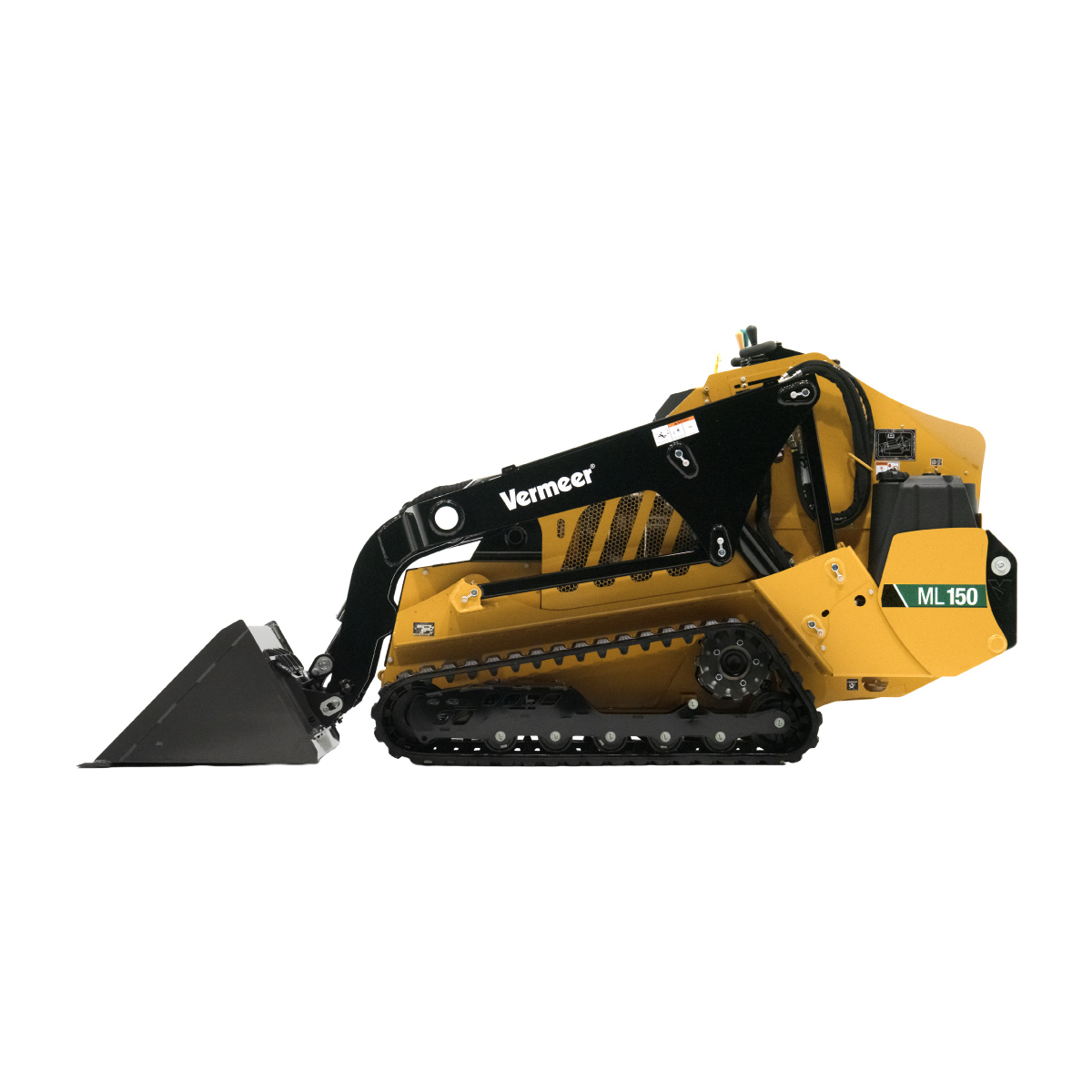

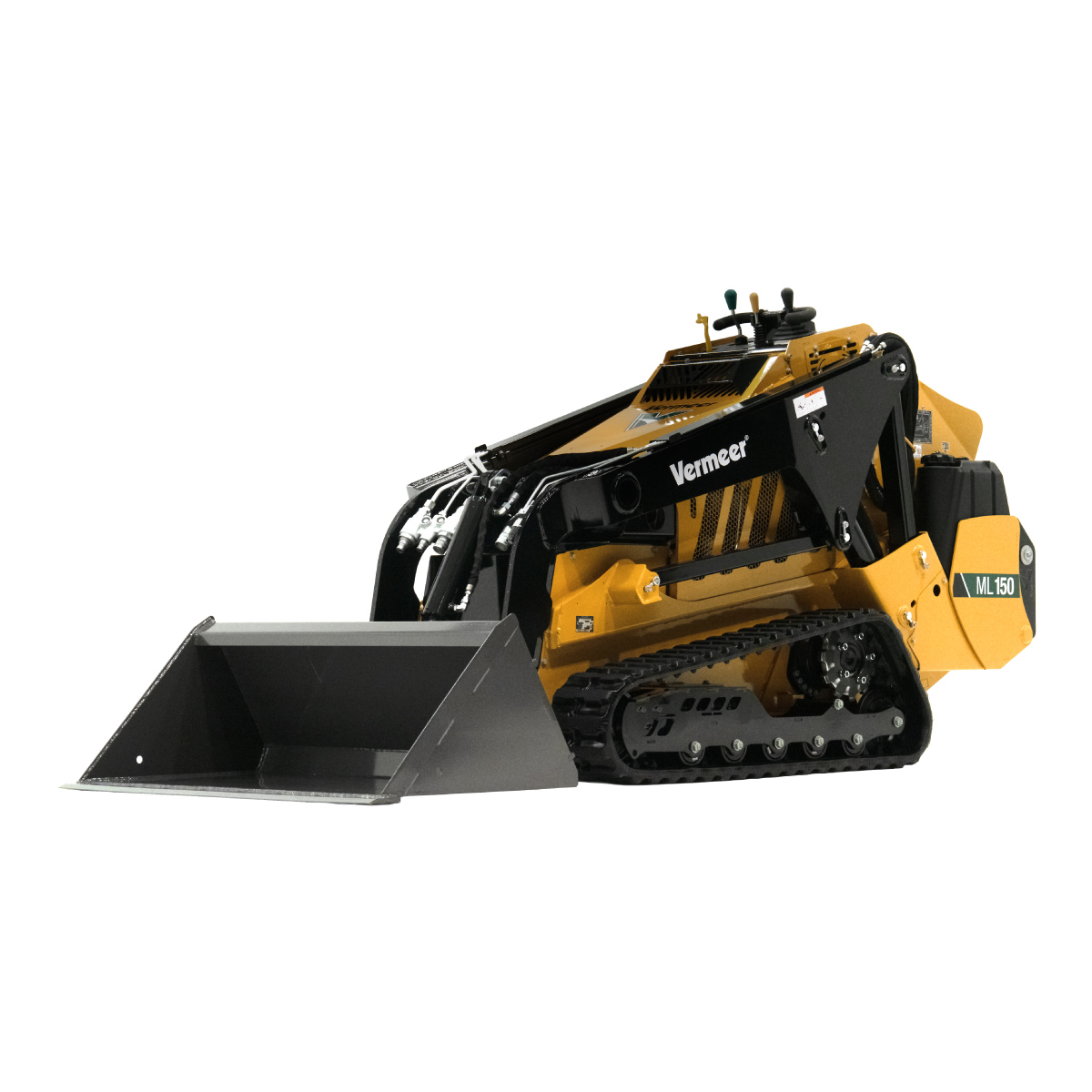

Mini Skid Steer Loader

  • Width: 106.7 cm
  • Fuel Type: Diesel
  • Power: 40 hp (29.8 kW)
  • Capacity: 694 kg rated operating (SAE)

Features

Operator-focused Design

The cushioned chariot-style operator station is designed for protection and fatigue reduction – keeping you comfortable, secure, and focused from first light to last load.

Smarter, Strong Operation

The enhanced hydraulic system helps optimize filtration to minimize oil contamination, improving hydraulic component longevity and maximizing tractive effort. This provides operators with greater confidence to power through tough jobs.

Built-in Confidence

Bring peace of mind to every jobsite. Beyond the standard warranty, Vermeer mini loaders come equipped with additional coverage on the loader arms, mainframe, and Rehlko engine – and support from your local Vermeer dealer.

Maximised Productivity

When you have the right attachments, you can tackle more jobs in less time. Vermeer offers a comprehensive lineup of compatible attachments that are rigorously tested to ensure the best ownership experience.

Get ready for powerful performance and maximum lift capacity. Featuring a 40-hp (29.8 kW) turbocharged diesel engine for big jobs and demanding attachments, the ML150 is ready for whatever the job calls for.

Maintenance Friendly

Spend less time on maintenance and more time getting the work done. With toolless engine access panels, routine maintenance charts and a spring tensioned greaseless track system, upkeep is simple – allowing you to stay focused on the job.

General Dimensions and Weights

  • Length: 235 cm
  • Width: 106.7 cm
  • Height: 149.9 cm
  • Hinge Pin Height: 223.5 cm
  • Ground Clearance: 17.8 cm
  • Weight: 1814.4 kg

Engine

  • Make: Rehlko
  • Model: 1903 KDI-TCR
  • Gross Horsepower: 29.8 kw
  • Fuel Type: Diesel
  • Fuel Tank Capacity: 49.2 L
  • Max Torque: 125.4 ft-lb (170 Nm) at 1,500 rpm
  • Cooling System: Liquid
  • Maximum Angle of Inclination: 30 deg
  • High Idle: 2600 rpm

Track Performance

  • Rated Operating Capacity (SAE): 694 kg
  • Ground Pressure: 33.1 kPa
  • Max Travel Speed: 7.1 km/h
  • Max Travel Speed (Forward): 7.1 km/h
  • Max Travel Speed (Reverse): 5 km/h

Operational

  • Steering: Single pilot-operated joystick
  • Lift/Curl: Single pilot-operated joystick
  • Transmission: Tandem direct-drive pumps

Hydraulic System

  • Auxiliary High Flow: 63.6 L/min
  • Auxiliary Low Flow: 35.6 L/min
  • Hydraulic System Pressure: 209.9 bar
