Tracked Horizontal Grinder

  • Length: 11.4 m (Transport, without dolly)
  • Width: 2.8 m (Transport, without dolly)
  • Height: 3.8 m (Transport, without dolly)
  • Weight: 36,287 kg
  • Fuel Type: Diesel
  • Power: 755 hp (563 kw)

Features

High ground clearance and sealed rollers help keep material from building up in the track system. State-of-the-art wireless remote lets you operate the machine from up to 300 ft / 91.4 m away.

Key Features

  • Increase productivity thanks to the exclusive Vermeer SmartGrind system, which automatically controls grinding speed based on engine rpm levels.
  • Improve cutting performance using the patented series II duplex drum system with reversible hammers and cutter blocks that simplify maintenance and nearly double wear life.
  • Top-loading screens are designed to give operators easy access.
  • Enhance job site safety with a Thrown Object Deflector that reduces the quantity and distance of thrown debris.
  • Diversify your end product by incorporating the Fuel Chip Attachment (FCA) allowing your grinder to be converted to a chipper.

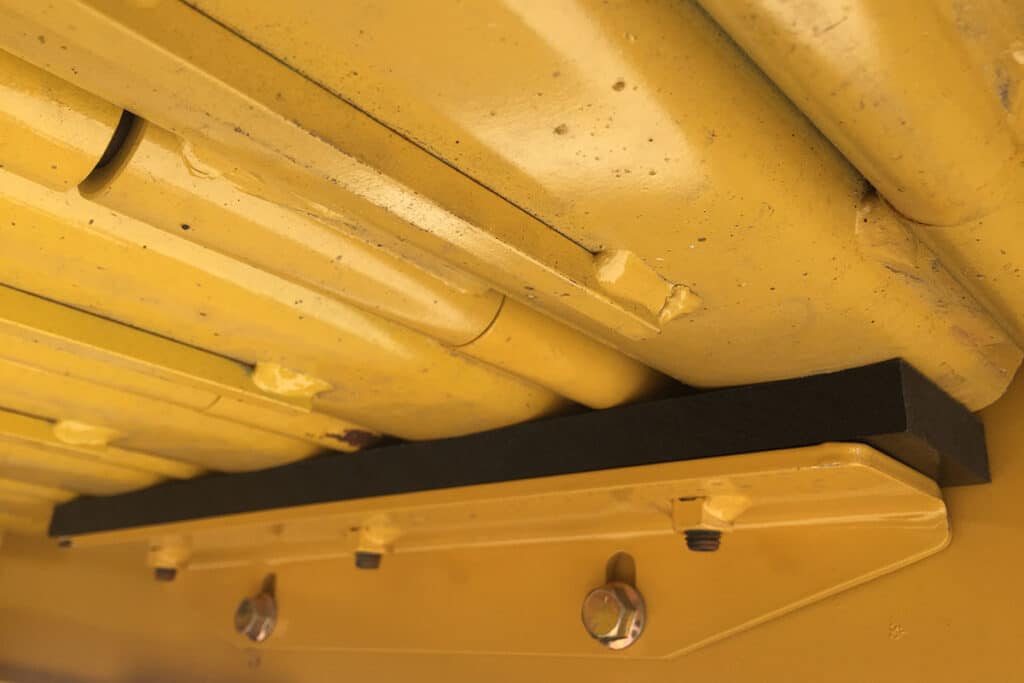

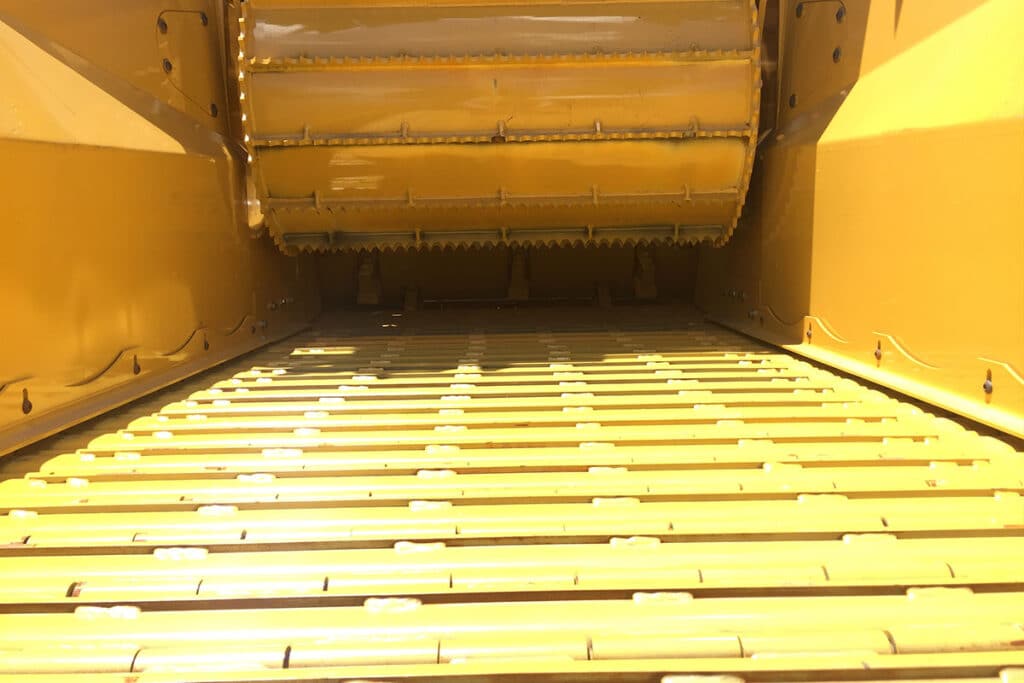

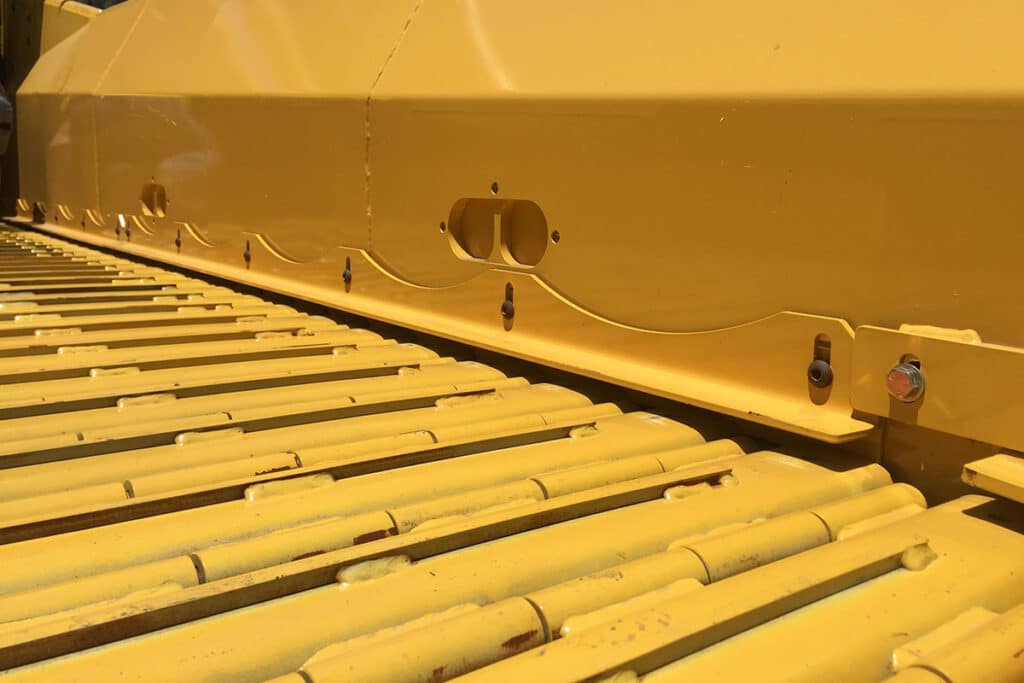

General Dimensions and Lengths - Long Infeed

  • Maximum Length – Transport: 37.3 ft / 11.4 m
  • Maximum Length – Transport with Dolly: 45.8 ft / 14 m
  • Maximum Length (Operation): 54.5 ft / 16.6 m
  • Maximum Width Transport – with Dolly: 9.8 ft / 3 m
  • Maximum Height Transport with Dolly: 12.9 inches / 32.8 cm
  • Weight: 75000 lbs / 34019.4 kg
  • Tongue Weight – Engine Option 1 with Dolly: 37590 lbs / 17050.5 kg
  • Axle Weight – Engine Option 1 with Dolly: 48910 lbs / 22185.2 kg
  • Dolly Weight: 9500 lbs / 4309.1 kg

Engine Option One

  • Make and Model: Caterpillar C18 Tier 4F (Stage IVB)
  • Number of Cylinders: 6
  • Gross Horsepower (Maximum): 755 hp / 563 kw
  • Torque (Max): 2582 ft-lb / 3500.7 Nm
  • Fuel Tank Capacity: 350 gal / 1324.9 L
  • Max Fuel Consumption: 38.3 gph / 145 lph
  • Fuel Type: Ultra-low sulfur diesel (<15 ppm)
  • Air Cleaner: Dry-type with primary and secondary elements and restriction indicator
  • Oil Filter: Full-flow, spin-on
  • Recommended Oil: API CJ-4, 15W-40
  • Oil Volume with Filter: 36 qt / 34.1 L
  • Cooling Medium: Liquid
  • Coolant Capacity (Engine and Radiator): 22.6 gal / 85.6 L
  • Alternator: 24 Volt
  • Fan: (Qty 2) Hydraulically driven, reversible
  • Clutch Type: Hydraulic-operated wet clutch with PTO
  • Clutch Engagement: Push-button
  • Drive Belt Type: Synchronous, carbon fiber

Engine Option Two

  • Make and Model: Caterpillar C18 Tier 4i (Stage IIIB)
  • Number of Cylinders: 6
  • Gross Horsepower (Maximum): 755 hp / 563 kw
  • Torque (Max): 2582 ft-lb / 3500.7 Nm
  • Fuel Tank Capacity: 350 gal / 1324.9 L
  • Max Fuel Consumption: 39.5 gph / 149.5 lph
  • Fuel Type: Ultra-low sulfur diesel (<15 ppm)
  • Air Cleaner: Dry-type with primary and secondary elements and restriction indicator
  • Oil Filter: Full-flow, spin-on
  • Recommended Oil: API CJ-4, 15W-40
  • Oil Volume with Filter: 36 qt / 34.1 L
  • Cooling Medium: Liquid
  • Coolant Capacity (Engine and Radiator): 22.6 gal / 85.6 L
  • Air to Boil Temperature: 118 deg
  • Alternator: 24 Volt
  • Fan: (Qty 2) Hydraulically driven, reversible
  • Clutch Type: Hydraulic operated wet clutch with PTO
  • Clutch Engagement: Push-button
  • Drive Belt Type: Synchronous, carbon fiber
  • Sound Power: 119.8 dB(A) – deluxe exhaust system (Exhaust option 2 move to engine option one

Engine Option Three

  • Make and Model: Caterpillar C18 Tier 3
  • Number of Cylinders: 6
  • Gross Horsepower (Maximum): 630 hp / 469.8 kw
  • Torque (Max): 2041 ft-lb / 2767.2 Nm
  • Fuel Tank Capacity: 350 gal / 1324.9 L
  • Max Fuel Consumption: 34.6 gph / 131 lph
  • Fuel Type: Diesel
  • Air Cleaner: Dry-type with primary and secondary elements and restriction indicator
  • Oil Filter: Full-flow, spin-on
  • Recommended Oil: API CJ-4, Viscosity dependent on startup temperature
  • Oil Volume with Filter: 36 qt / 34.1 L
  • Cooling Medium: Liquid
  • Coolant Capacity (Engine and Radiator): 21.3 gal / 80.6 L
  • Alternator: 24 Volt
  • Fan: (Qty 2) Hydraulically driven, reversible
  • Clutch Type: Hydraulic operated wet clutch with PTO
  • Clutch Engagement: Push button
  • Drive Belt Type: Synchronous, carbon fiber
  • Sound Power: 119.8 dB(A) – Deluxe exhaust system

Safety System

  • Thrown Object Deflector: Standard
  • Deflector Position: Variable

Duplex Drum

  • Millbox Opening: 60 inches W x 32 inches H / 152.4 cm W x 81.3 cm H
  • Drum Diameter: 28 inches / 71.1 cm
  • Tip Diameter: 36.4 inches / 92.5 cm
  • Drum Cutting Width: 62.4 inches / 158.5 cm
  • Drum Skin Thickness: 1.5 inches / 3.8 cm
  • Drum Speed: 1086 rpm
  • Bearing Type: Double row, spherical roller
  • Bearing – Inner Race Diameter: 5.5 inches / 14 cm
  • Number of Hammers: 10
  • Number of Tips: 20
  • Center Retention Pin Dimensions: 2 inches diameter x 75.3 inches L / 5.1 cm diameter x 191.3 cm L

Chipper Drum

  • Millbox Opening: 60
  • Drum Diameter: 34.3 inches / 87.1 cm
  • Drum Cutting Width: 63 inches / 160 cm
  • Drum Skin Thickness: 1.5 inches / 3.8 cm
  • Drum Speed: 683 rpm
  • Bearing Type: Spherical
  • Bearing – Inner Race Diameter: 5.5 inches / 14 cm

Screens

  • Screen Weight: 470 lbs / 213.2 kg
  • Screen Dimensions: 3/4 inch thick / 1.9 cm
  • Screen Type: Fabricated out of abrasion resistant steel
  • Number of Screens: 2
  • Screen Area: 3317 sq in / 21400 sq cm
  • Number of Sides: 1
  • Millbox Lid Liner Dimensions: Abrasion resistant steel
  • Liner Dimensions: 1 inch thick x 5.6 inches W x 65.4 inches L / 2.5 cm thick x 14.2 cm W x 166.1 cm L
  • Anvil Type: Fabricated steel with replaceable wear surfaces
  • Anvil Dimensions: 22.8 inches x 4.1 inches x 80.8 inches / 57.9 cm x 10.4 cm x 205.2 cm

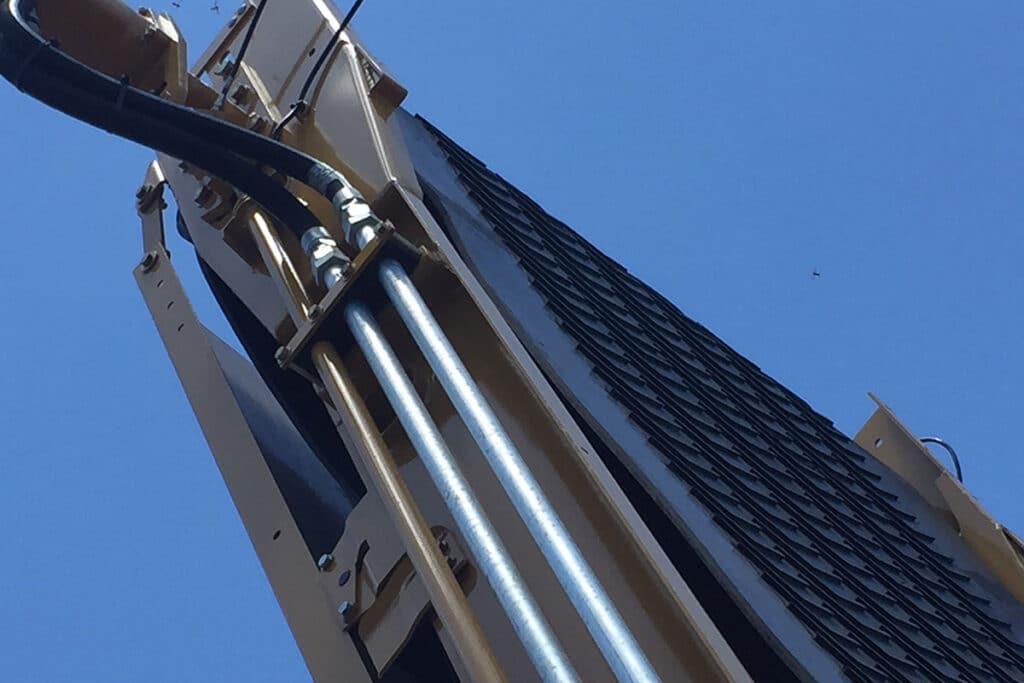

Discharge System - Single Belt Design

  • Length: 81.3 ft / 24.8 m
  • Width: 48 inches / 121.9 cm
  • Belt Design: 3 ply – 330# or straight warp single ply 330# both with V cleat
  • Splice: R2-stainless steel or Super splice
  • Return Roller Quantity: 4
  • Idler Roller Diameter: 12 inches / 30.5 cm
  • Idler Roller Bearing: 1-15/16, 4-bolt flange
  • Standard Drive Roller Diameter: 12.8 inches / 32.5 cm
  • Magnetic Drive Roller Diameter: 12.8 inches / 32.5 cm
  • Drive Motor: Fixed displacement, geroler
  • Drive Motor Bearings: 1-15/16, 4-bolt flange
  • Belt Speed: 780 ft/min / 237.7 m/min
  • Load Height: 14 ft / 4.3 m

Hydraulic System

  • Tank capacity: 100 gal / 378.5 L
  • Recommended Oil: Vermeer HyPower 68
  • Filtration Method: Dual in-tank return filters with suction strainer
  • Number of Coolers: 2 (Implement/Track)

Implement Hydraulics

  • System Type: Open-loop, pressure- and flow-compensated
  • Pump Type: Variable displacement, axial piston
  • Pump Flow at Maximum RPM: 32.4
  • System Relief Pressure: 4500 psi

Discharge Conveyor Hydraulics

  • System Type: Open-loop
  • Pump Type: Fixed displacement, gear pump
  • Pump Flow at Maximum RPM: 25.7 gpm / 97.3 L/min
  • System Relief Pressure: 3000
  • Motor Series: Char-Lyn 6000 Series, geroler

Fan Drive Hydraulics

  • System Type: Open-loop, pressure- and flow-compensated
  • Pump Type: Variable displacement, axial piston
  • Pump Flow at Maximum RPM: 36.2 gpm / 137 L/min
  • Motor Series: Radiator-Permco M197 Series; CAC-Turolla OCG SNM2 Series
  • Fan Series – FWD/REV: Reversible

Clutch

  • Tank capacity: 18 gal / 68.1 L
  • Recommended Oil: VMF Gold
  • Filtration Method: Spin-on, pressure filter, B6 = 1000
  • Number of Coolers: 1
  • System Type: Open-loop
  • Pump Type: Fixed displacement, gear pump
  • Pump Flow at Maximum RPM: 12.4 gpm / 46.9 L/min
  • System relief pressure: 260 psi / 17.9 bar

Electrical System

  • System Voltage: 24 Volt
  • Battery: Group 8-D, 1155 CCA (Qty 2)
  • System Protection: Fused

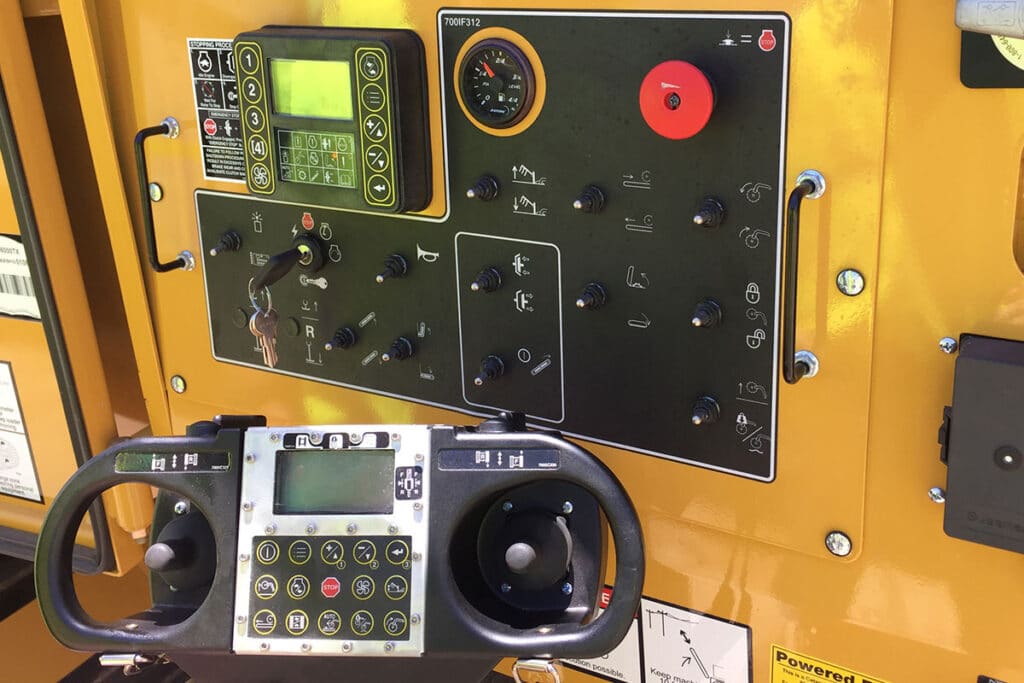

Control Station

  • Display Type: LCD
  • Engine Information: Yes
  • Machine Information: Yes
  • Operational Faults: Yes
  • Gauges: Two, fuel level and hydraulic pressure
  • Switches: Moisture-proof, toggle style

Radio Remote Control

  • Display Type: LCD
  • Engine Information: Yes
  • Machine Information: Yes
  • Operational Faults: Yes
  • Switches: Sealed membrane
  • Operating Range: Up to 300 ft / 91.4 m
  • Battery Type: AA (qty 6)
  • Channel Setting: 50 channels

Chassis

  • Frame Description: Unit body construction
  • Tongue Description: Bolt-on to infeed structure
  • Hitch Type: Fifth wheel
  • Fender Description: Optional bolt-on formed steel
  • Brake Type: Air-actuated with spring-applied parking brake
  • Trailer Light Type: 12-24 V LED

Axle/Suspension

  • Suspension Type: Air-ride
  • Manufacturer – Option One: Hendrickson
  • Capacity per Axle: 20000 lbs / 9071.8 kg
  • Number of Axles: 3
  • Tires – Option One: 255/70R22.5 Duals
  • Wheels – Option One: 22.5 inches x 8.3 inches Hub piloted steel / 57.2 cm x 21 cm
  • Ground Clearance – Option One: 5.3 inches / 13.5 cm

Tracks

  • Track Frame Description: Rigid frame with reinforced box section.
  • Track Type: D5 double grouser
  • Track Drive Pump Type: SauerDanfoss Series H1
  • Track Brake Type: Multidisk parking brake (spring activated)
  • Track Length on Ground: 142 inches / 360.7 cm
  • Track Width – Option One: 26 inches / 66 cm
  • Track Width Option One – Ground Bearing Pressure – Hard Ground: 55.6 psi / 383.3 kPa
  • Track Width Option One – Ground Bearing Pressure – Soft Ground: 10.2 psi / 70.3 kPa
  • Track Width Option Two – Ground Bearing Pressure – Option: 13.2 psi / 91 kPa
  • Track Width Option Two – Ground Bearing Pressure – Option Two: 72.2 psi / 497.8 kPa
  • Type of Idler: D5 excavator rollers
  • Number of Idlers: 20
  • Pump Flow at Maximum RPM: 43 gpm / 162.8 L/min
  • System relief pressure: 5000 psi / 344.7 bar
  • Maximum Speed: 2.6 mph / 4.2 km/h
  • Low Speed Travel in Creep Mode: 1 mph / 1.6 km/h
