MyDealer:Tracked Horizontal Grinder
- Fuel Type: Diesel
- Power: 173 hp (129 kW)
- Millbox Opening: 40.5 cm wide x 63.5 cm high (15.9″ x 25″)

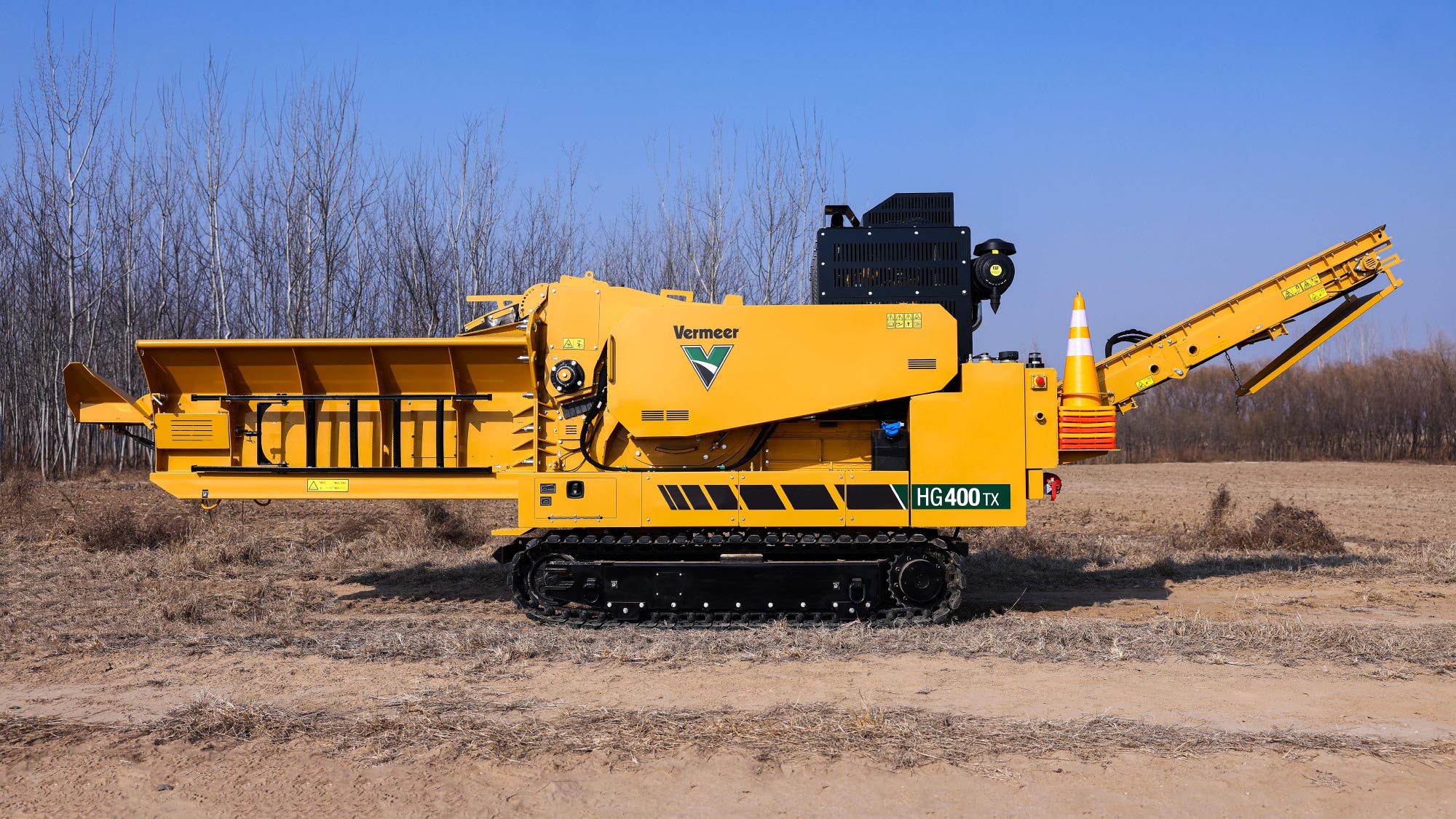

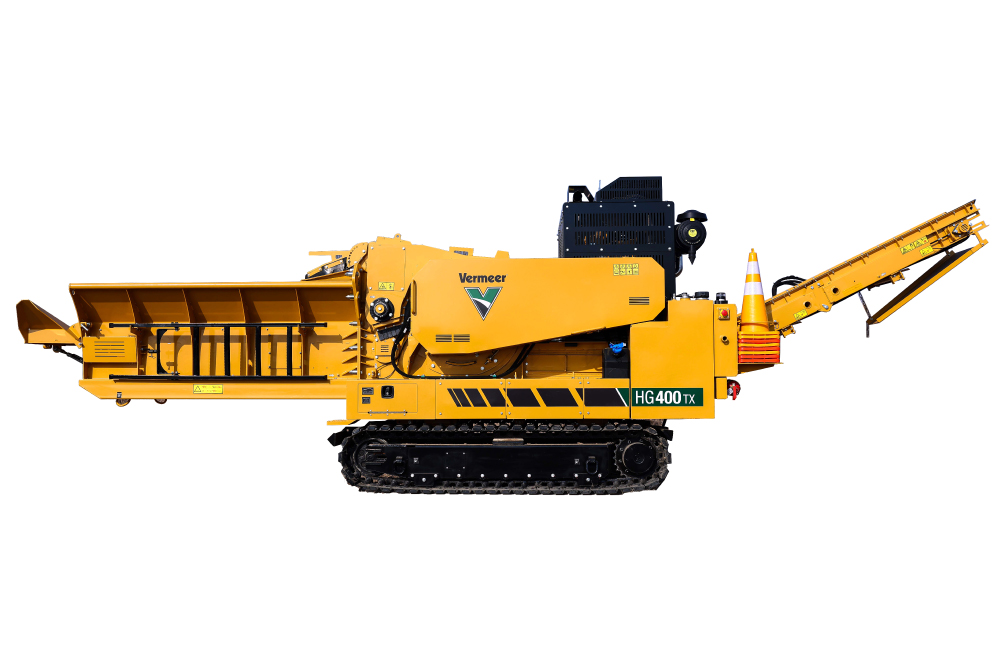

Introducing the Vermeer HG400TX Horizontal Grinder
Compact and versatile grinder for different grinding applications.
Offering the perfect balance of functionality and affordability, the Vermeer HG400TX Stage V/T4F is an entry level grinder for arborists and recycling firms to process green waste, composting or land clearing in small, narrow jobsites. Equipped with steel tracks, the self-propelled HG400TX can be maneuvered around challenging terrains with ease and stability. Its 173-hp (129-kW) CAT engine also enables it to process difficult materials efficiently. Various screen and grinder tip options are also available, making it suitable for a variety of applications including re-grinding rough wood waste and processing construction debris and tree stumps to obtain the desired end products.
Features
Increase in jobsite mobility

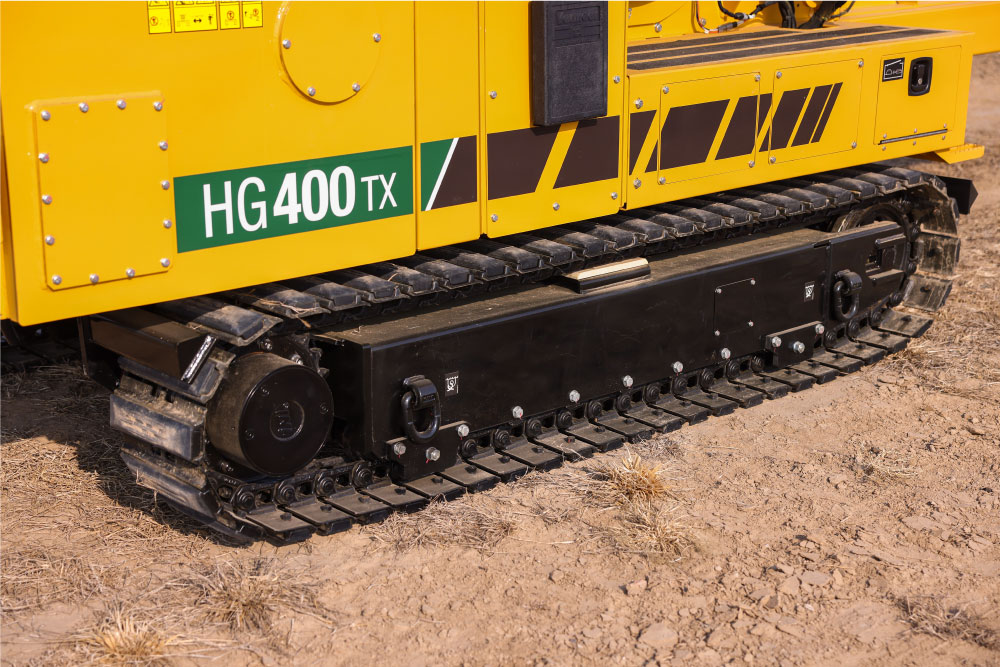

Steel tracks facilitate enhanced jobsite mobility and ease of transportation between sites. Designed with 220 mm of ground clearance, the HG400TX can traverse different terrains with ease.
Thorough grinding of materials

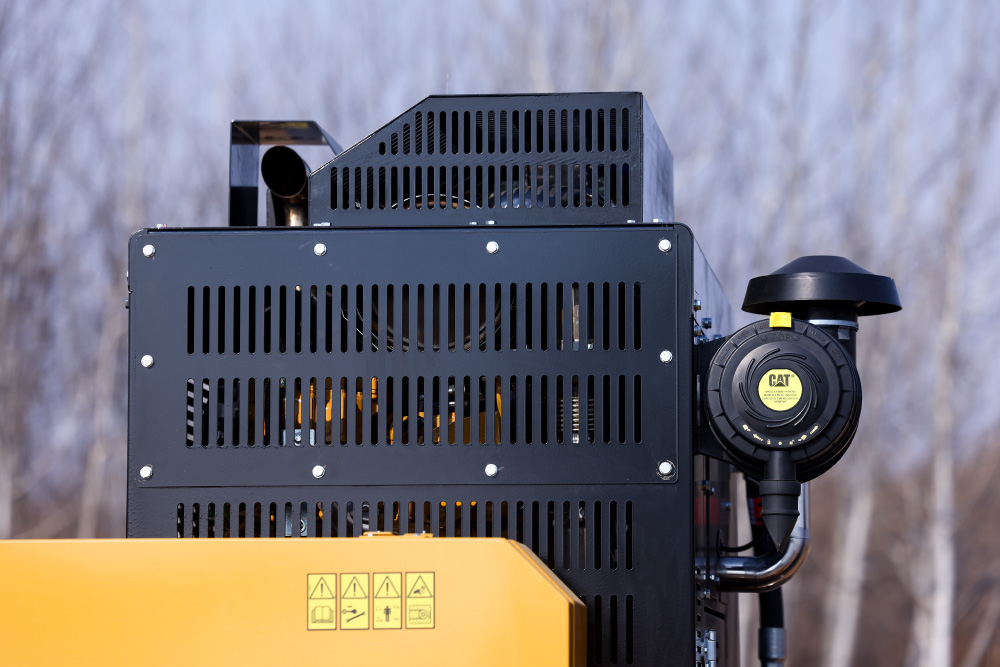

Materials and green waste can be grinded more thoroughly to meet various application needs. 173-hp (129-kW) CAT Stage V/T4F engine that provides high horsepower to process difficult material efficiently.
Enhanced visibility and feedcrush management

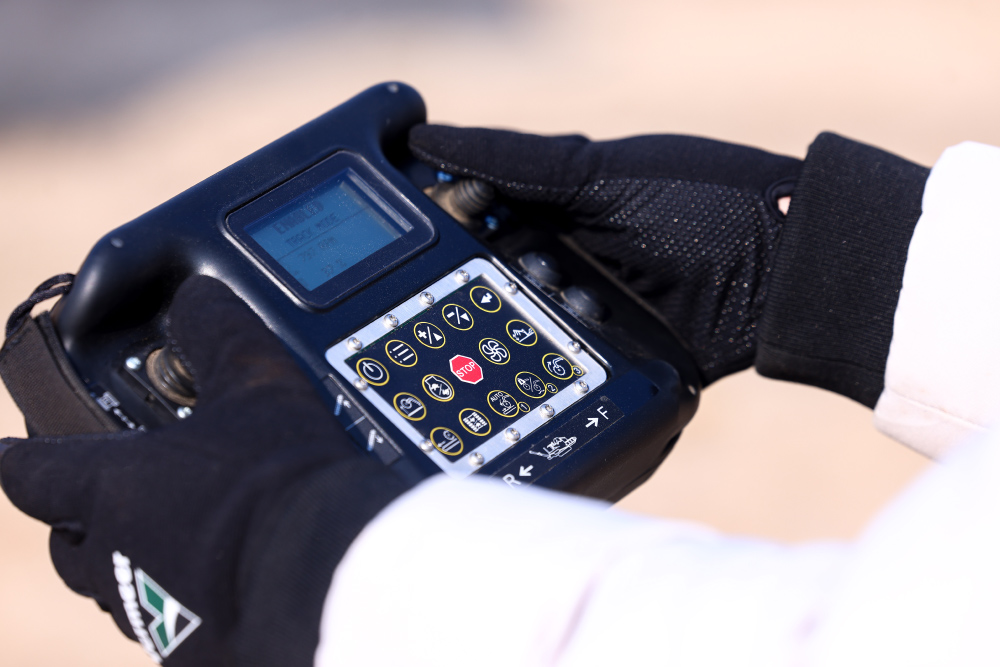

The HG400TX comes with a full function wireless remote control for operator safety, visibility and feedcrush management. The feedcrush function on the remote maximizes efficiency of processing material.
Increased application flexibility
Various screens and grinder tips options are available for different application needs. Different end products of varying sizes can be produced using the diverse range of screens and grinder tips, thus allowing for consistent output and maintaining end product quality.
Ease of changing screens

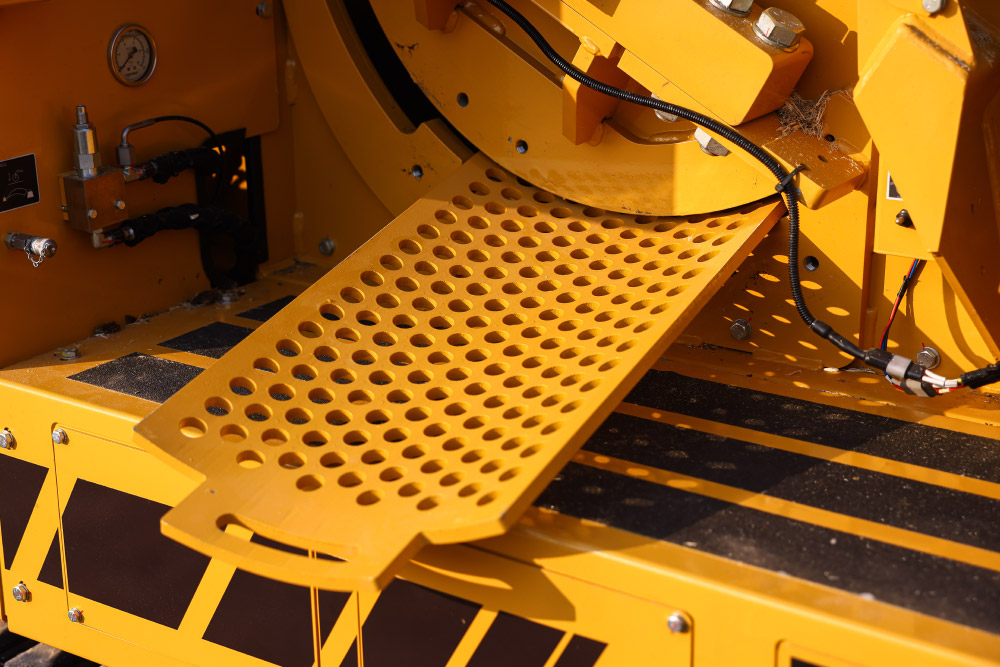

Side load screen design with one screen on top of another and can be loaded in from the side manually. This convenient design results in easier changes, allowing for product sizing adjustments to be made in less time.
General Dimensions and Lengths - Long Infeed
Maximum Length – Transport: 8m
Maximum Width (Transport): 2m
Maximum Height (Transport): 2.6m
Weight: 7983.2 kg
Engine - Option one
Make and Model: Caterpillar C4.4-C173
Number of Cylinders: 4
Gross Horsepower (Maximum): 129 kw
Torque (Max): 750 Nm
Fuel Tank Capacity: 189.3 L
Max Fuel Consumption: 36 lph
Fuel Type: Diesel
Air Cleaner: 1
Oil Filter: 2
Recommended Oil: CAT DEO-ULS SAE 10W-30, CJ-4
Coolant Capacity (Engine and Radiator): 26.1 L
Oil volume with filter: 14 L
Alternator: 12V-150A
Fan: 1
Fan – CAC: 1
Clutch Type: Auto clutch
Clutch Engagement: Hydraulic automatic
Drive Belt Type: SPB3900La
Sound Power: 118 dB(A)
Standard Infeed System
Feed Table Width: 123.4 cm
Feed Table Depth: 44.7 cm
Feed Table Length – Option One: 2.3 m
Feed Table Capacity: 1 cu m
Loading Height: 1.2 m
Feed Conveyor Type: Steel chain
Drive Type: Hydraulic motor
Drive Roller Construction: Steel
Front Idler Roller Construction: Steel
Infeed Floor Construction: Steel
Infeed Roller Length: 156.7 cm
Infeed Roller Width: 96.8 cm
Feed opening: 40.5 cm x 63.5 cm (15.9 in x 25 in)
Infeed Roller Weight: 133.8 kg
Infeed roller weight with arm: 393.7 kg
Infeed Roller Diameter: 38.1 cm
Maximum Feed Height: 40.4 cm
Material Type: Steel
Number of Teeth: 15
Drive Motor: 2
Feed Roller Down Pressure: 10 MPa
Safety System
Thrown Object Deflector: 1
Curtain description: 40.5 cm x 63.5 cm (15.9 in x 25 in)
Duplex Drum
Millbox Opening: 40.5 cm x 63.5 cm (15.9 in x 25 in)
Drum Weight: 410.5 kg
Drum Diameter: 79.5 cm
Drum Cutting Width: 72.4 cm
Drum Skin Thickness: 2.3 cm
Drum Speed: 1100 rpm
Tip speed (Duplex): 2757.8 m/min
Tip Speed: 1100 rpm
Bearing Type: Double row cylindrical bearing
Bearing – Inner Race Diameter: .8 cm
Number of Tips: 15
Tip option 1: Tips
Tip option 2: Bear knife
Tip option 3: Shaper
Screens
Screen Weight: <55 lb (25 kg)
Screen Type: Square
Number of Screens: 2
Number of Sides: 2
Anvil Type: Fix
Anvil Dimensions: 2
Discharge System - Single Belt Design
Length: 10.5 m
Width: 45 cm
Splice: Yes
Return Roller Quantity: 1
Idler Roller Diameter: .6 cm
Idler Roller Bearing: 2
Standard Drive Roller Diameter: 19.8 cm
Magnetic Drive Roller Diameter: 19.8 cm
Drive Motor: 1
Drive Motor Bearings: 2
Belt Speed: 221 m/min
Load Height: 2.1 m
Hydraulic System
Tank capacity: 200.6 L
Recommended Oil: HM68
Filtration Method: Filter
Number of Coolers: 1
Clutch
Tank capacity: 151.4 L
Recommended Oil: HM68
Filtration Method: Filter element
Number of Coolers: 1
Pump Type: Gear pump
System relief pressure: 206.8 bar
Electrical System
System Voltage: 12
Battery: 1
System Protection: Yes
Control Station
Display Type: Liquid crystal display
Radio Remote Control
Radio remote type: Wireless
Engine Information: Yes
Machine Information: Yes
Operational Faults: Yes
Switches: Yes
Operating Range: 98.4 ft (30 m)
Battery Type: Maintenance-free battery
Channel Setting: Yes
Chassis
Frame Description: Undercarriage
Tracks
Track Frame Description: Rigid frame
Track Type: Double grouser
Track Drive Pump Type: Gear pump
Track Drive Motor Type: Planetary motor
Track Brake Type: Normally closed
Track Length on Ground: 2055 mm
Track Width – Option One: 350 mm
Track Width Option One – Ground Bearing Pressure – Hard Ground: 60 kPa
Type of Idler: Spring-applied, hydraulically-released
Number of Idlers: 2
Pump Flow at Maximum RPM: 80 L/min
System relief pressure: 206.8 bar
Maximum Speed: 1 km/h
Other Options
Screens: 6 types
Tips: 5 types
