Tracked Horizontal Grinder

  • Fuel Type: Diesel
  • Power: 440 hp (328.1 kW)

Features

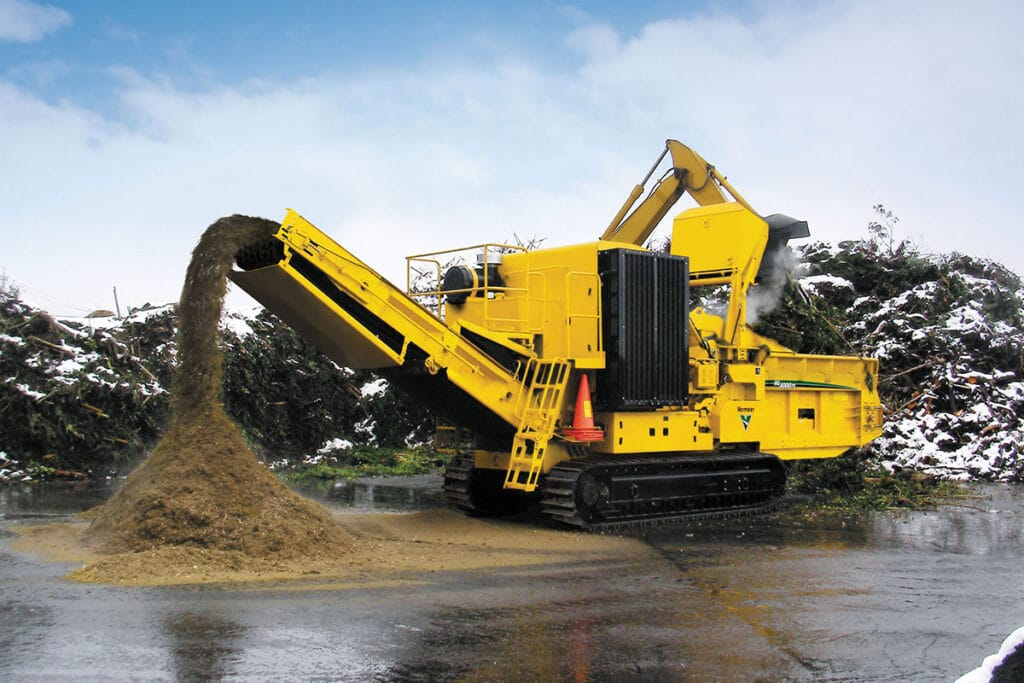

Take the self-propelled HG4000TX horizontal grinder to tough jobsites. Extra-wide, 122 cm (48”) V-cleat discharge conveyor neatly discharges processed material from the machine.

Key Features

  • Increases productivity thanks to the exclusive Vermeer SmartGrind system, which automatically controls grinding speed based on engine rpm levels.
  • Improve cutting performance using the patented duplex drum system with reversible hammers and cutter blocks that simplify maintenance and nearly double wear life.
  • Top-loading screens are designed to give operators easy access.
  • Enhance job site safety with a Thrown Object Deflector that reduces the quantity and distance of thrown debris.

General Dimensions and Lengths - Long Infeed

  • Maximum Length – Transport: 37.2 ft / 11.3 m

Engine Option One

  • Make and Model: Caterpillar C13
  • Number of Cylinders: 6
  • Gross Horsepower (Maximum): 440 hp / 328.1 kw
  • Torque (Max): 1483 ft-lb / 2010.7 Nm
  • Fuel Tank Capacity: 225 gal / 851.7 L
  • Max Fuel Consumption: 22.6 gph / 85.6 lph
  • Fuel Type: Diesel
  • Air Cleaner: 2 stage
  • Oil Filter: Spin on remote
  • Recommended Oil: API CC/CD
  • Oil Volume with Filter: 8 qt / 7.6 L
  • Cooling Medium: Liquid
  • Coolant Capacity (Engine and Radiator): 18.3 gal / 69.3 L
  • Air to Boil Temperature: 133 deg
  • Fan: Standard, reversible flex
  • Clutch Type: PT-Tech electronically controlled dry
  • Clutch Engagement: Engaged dry-clutch
  • Drive Belt Type: V-belt
  • Sound Power: 112.70 dB(a) relPW

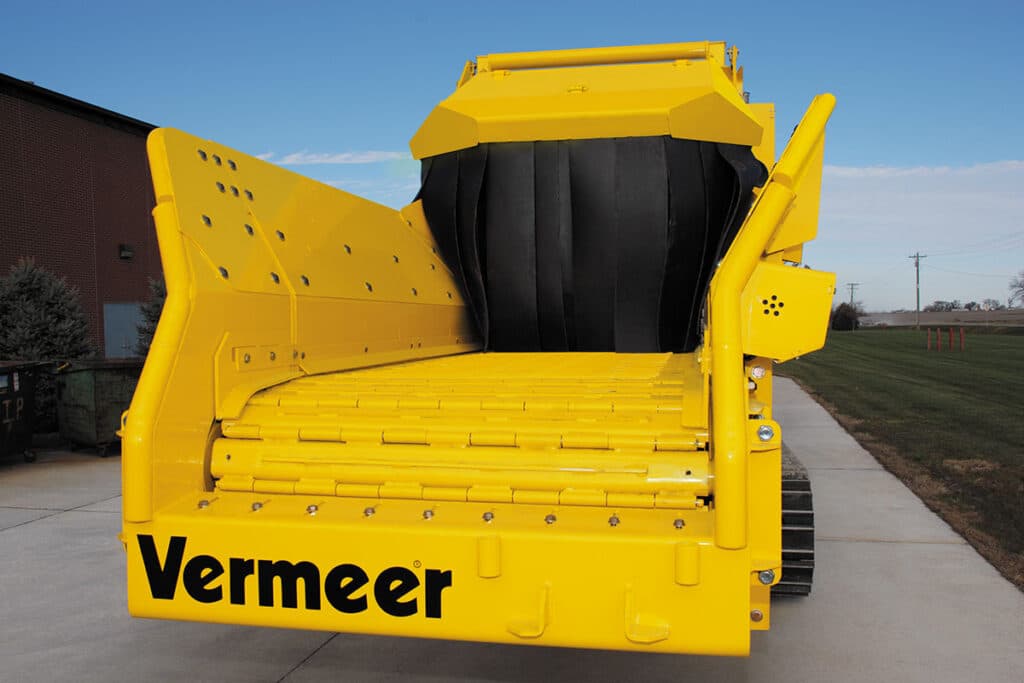

Infeed Roller

  • Feed Table Width: 50 inches / 127 cm
  • Feed Table Depth: 28.2 inches / 71.6 cm
  • Feed Table Length – Option One: 14 ft / 4.3 m
  • Loading Height: 7.8 ft / 2.4 m
  • Feed Conveyor Type: Chain and slat
  • Infeed Roller Length: 47.5 inches / 120.7 cm
  • Infeed Roller Diameter: 28 inches / 71.1 cm
  • Maximum Feed Height: 25.8 inches / 65.4 cm

Safety System

  • Thrown Object Deflector: Standard
  • Deflector Position: Variable

Duplex Drum

  • Drum Diameter: 22.5 inches / 57.2 cm
  • Tip Diameter: 28.6 inches / 72.6 cm
  • Drum Cutting Width: 51.2 inches / 130.1 cm
  • Drum Skin Thickness: 1.5 inches / 3.8 cm
  • Drum Speed: 1050 rpm
  • Tip Speed: 7862 rpm
  • Bearing Type: Double-row, spherical roller
  • Number of Hammers: 8
  • Number of Tips: 16
  • Center Retention Pin Dimensions: 2
  • Number of Wipers: 1 per side

Chipper Drum

  • Drum Diameter: 22.5 inches / 57.2 cm
  • Tip Diameter: 28.6 inches / 72.6 cm
  • Drum Cutting Width: 51.2 inches / 130.1 cm
  • Drum Skin Thickness: 1.5 inches / 3.8 cm
  • Drum Speed: 1050 rpm
  • Tip Speed: 7862 rpm
  • Bearing Type: Double-row, spherical roller
  • Number of Hammers: 8
  • Number of Tips: 16
  • Center Retention Pin Dimensions: 2
  • Number of Wipers: 1 per side

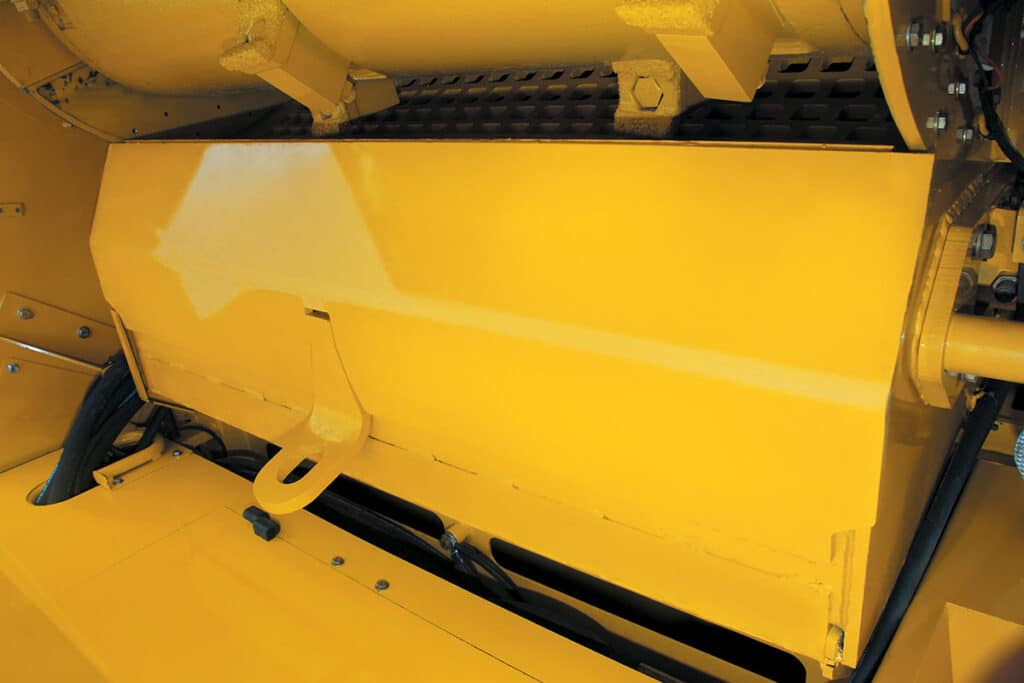

Screens

  • Screen Weight: 398 lbs / 180.5 kg
  • Screen Dimensions: 3/4 inch thick / 1.9 cm
  • Screen Type: Fabricated out of abrasion-resistant steel
  • Number of Screens: 2
  • Screen Area: 1662 sq in / 10722.6 sq cm
  • Number of Sides: 1
  • Anvil Type: Removable weldment

Discharge System - Single Belt Design

  • Length: 52.5 ft / 16 m
  • Width: 48 inches / 121.9 cm
  • Belt Design: 3-ply- 300# V-cleat
  • Splice: FLEXCO R2
  • Return Roller Quantity: 3
  • Idler Roller Diameter: 5 inches / 12.7 cm
  • Standard Drive Roller Diameter: 12.8 inches / 32.5 cm
  • Magnetic Drive Roller Diameter: 12.8 inches / 32.5 cm
  • Belt Speed: 500 ft/min / 152.4 m/min
  • Load Height: 9.9 ft / 3 m

Hydraulic System

  • Tank capacity: 100 gal / 378.5 L
  • Recommended Oil: HyPower 68
  • Number of Coolers: 1

Implement Hydraulics

  • Components: Open-loop
  • System Type: Gear pump

Electrical System

  • System Voltage: 24 Volt
  • System Protection: Battery disconnect, circuit fuses

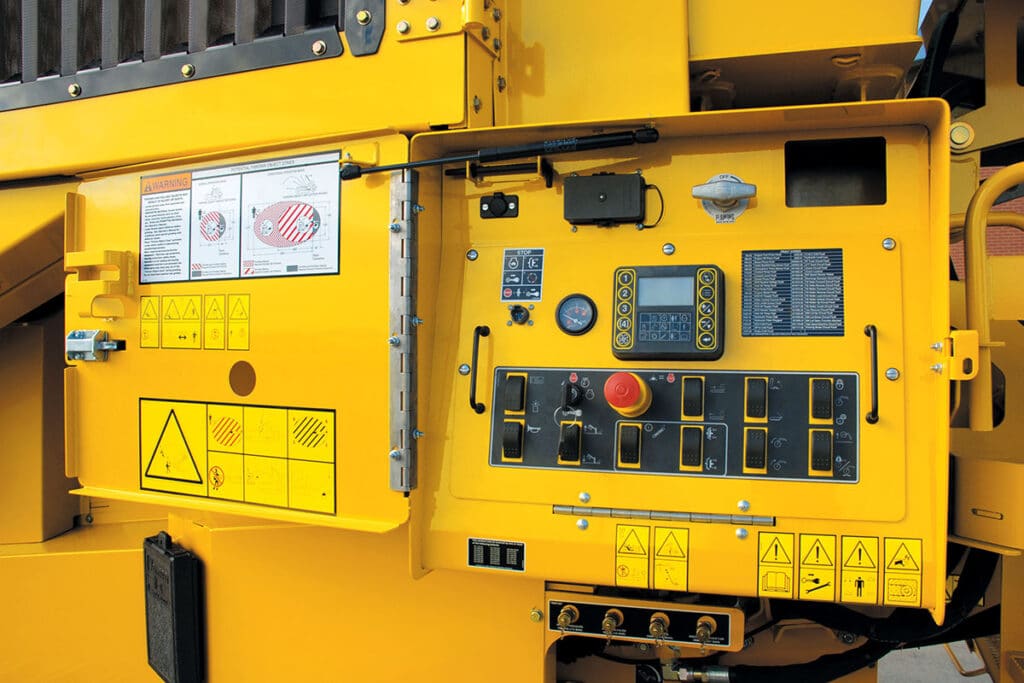

Control Station

  • Display Type: LCD monochromatic 128/64 pixel multi function
  • Engine Information: CAT SAE J1939 CAN parameters
  • Machine Information: Operational, diagnostic, system parameters
  • Operational Faults: SAE J1939 recommended diagnostic codes
  • Gauges: Fuel, diagnostic ports
  • Switches: Rocker, membrane

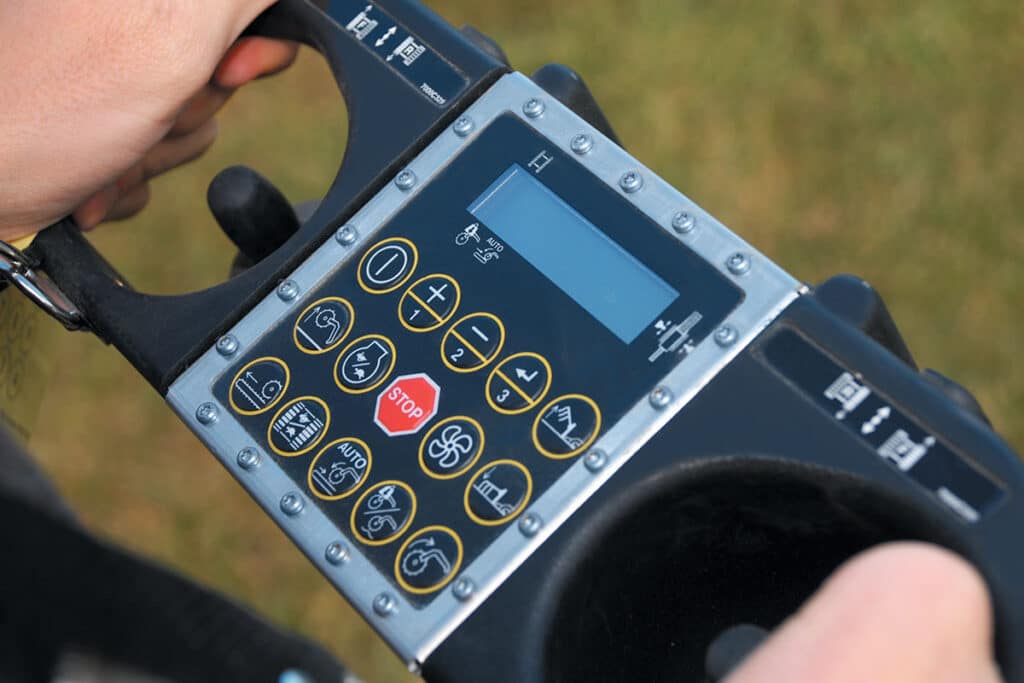

Radio Remote Control

  • Display Type: LCD monochromatic multi-line
  • Engine Information: CAT SAE J1939 CAN parameters
  • Machine Information: Operational, diagnostic, system parameters
  • Operational Faults: SAE J1939 recommended diagnostic codes
  • Switches: Membrane, joystick
  • Operating Range: Up to 300 ft / 91.4 m
  • Battery Type: NiMh
  • Channel Setting: Multi-frequency

Tracks

  • Track Frame Description: Rigid frame
  • Track Type: D4 Double grouser
  • Track Drive Pump Type: Closed loop
  • Track Brake Type: Spring applied hydraulically released
  • Track Length on Ground: 136.7
  • Track Width – Option One: 20
  • Track Width Option One – Ground Bearing Pressure – Soft Ground: 9.5 psi / 65.6 kPa
  • Type of Idler: D4
  • Number of Idlers: 20
  • Maximum Speed: 3 mph / 4.8 km/h
  • Maximum Creep Speed – (Low): 1.5 mph / 2.5 km/h
