Horizontal Grinder

  • Fuel Type: Diesel
  • Power: 500 hp (372.8 kW)

Features

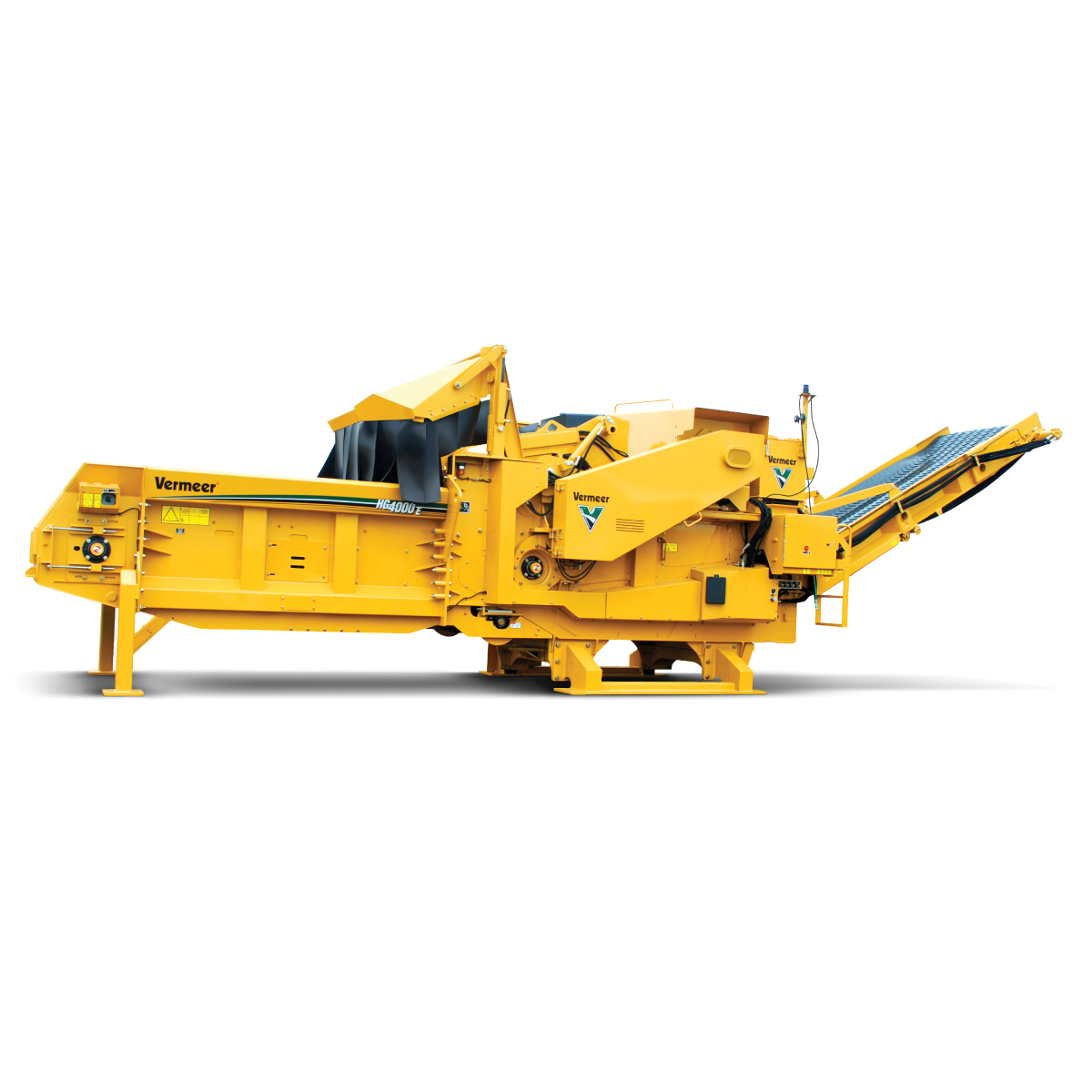

The HG4000E horizontal grinder is equipped with a 500 hp (373 kW) electric motor providing power to the mill. With the option to configure either a soft-start or VFD starter panel – along with Vermeer features like the duplex drum design and or the optional chip drum – the HG4000E has the flexibility and features you need for productive processing on your operation.

General Dimensions and Lengths - Long Infeed

  • Maximum Length – Transport: 31.1 ft / 9.5 m
  • Maximum Length (Operation): 47.1 ft / 14.4 m
  • Maximum Width Transport – with Dolly: 8.4 ft / 2.6 m
  • Maximum Height Transport with Dolly: 11.9 inches / 30.2 cm
  • Weight: 38900 lbs / 17644.7 kg

Electric Fan Motor Option One - 60 Hz

  • Manufacturer: Weg
  • Frame: 145T
  • Horsepower: 2 hp / 1.5 kw
  • Frequency: 60 Hz
  • Phase: 3 Phases
  • Rated Speed: 1750 rpm
  • Enclosure: TEFC
  • Full Load Amps: 2.61
  • Locked Rotor Amps: 19.6
  • Service Factor: 1.25
  • Duty Cycle: S1 – Continuous
  • NEMA Design: B
  • Insulation Class: F
  • Full Load Torque: 5.9 ft-lb / 8 Nm
  • Locked Rotor (%): 240
  • Break Down: 300
  • Ambient Temperature: 40 c / 1352 f
  • Nominal Efficiency: 86.5% (NEMA Premium)
  • Power Factor: 0.84
  • Approximate Weight: 51 lbs / 23.1 kg
  • Added Items: Terminal Block, C-Face
  • Drive Belt Type: Direct

Electric Fan Motor Option Two - 50 Hz

  • Manufacturer: Weg
  • Frame: 90L
  • Horsepower: 2 hp / 1.5 kw
  • Voltage: 380
  • Frequency: 50
  • Phase: 3
  • Rated Speed: 1430 rpm
  • Enclosure: TEFC
  • Full Load Amps: 3.32
  • Locked Rotor Amps: 20.9
  • Service Factor: 1
  • Duty Cycle: S1 – Continuous
  • NEMA Design: N
  • Insulation Class: F
  • Full Load Torque: 7.4 ft-lb / 10 Nm
  • Locked Rotor (%): 180
  • Break Down: 250
  • Ambient Temperature: 40 c / 1352 f
  • Nominal Efficiency: IE2
  • Power Factor: 0.83
  • Approximate Weight: 49 lbs / 22.2 kg
  • Added Items: Terminal Block, C-Face
  • Drive Belt Type: Direct

Electric Hydraulic Motor Option One - 60 Hz

  • Manufacturer: Weg
  • Frame: 326T
  • Horsepower: 50 hp / 37.3 kw
  • Voltage: 460
  • Frequency: 60
  • Phase: 3
  • Rated Speed: 1775 rpm
  • Enclosure: TEFC
  • Full Load Amps: 59.2
  • Locked Rotor Amps: 367
  • Service Factor: 1.25
  • Duty Cycle: S1 – Continuous
  • NEMA Design: B
  • Insulation Class: F
  • Full Load Torque: 146 ft-lb / 197.9 Nm
  • Locked Rotor (%): 230
  • Break Down: 270
  • Ambient Temperature: 40 c / 1352 f
  • Nominal Efficiency: 94.5 (NEMA Premium)
  • Power Factor: 0.83
  • Approximate Weight: 536 lbs / 243.1 kg
  • Added Items: Terminal Block, C-Face
  • Drive Belt Type: Direct

Electric Hydraulic Motor Option Two - 50 Hz

  • Manufacturer: Weg
  • Frame: 225S/M
  • Horsepower: 50 hp / 37.3 kw
  • Voltage: 380
  • Frequency: 50
  • Phase: 3
  • Rated Speed: 1475 rpm
  • Enclosure: TEFC
  • Full Load Amps: 68.5
  • Locked Rotor Amps: 534
  • Service Factor: 1
  • Duty Cycle: S1-Continuous
  • NEMA Design: N
  • Insulation Class: F
  • Full Load Torque: 177 ft-lb / 240 Nm
  • Locked Rotor (%): 250
  • Break Down: 270
  • Ambient Temperature: 40 c / 1352 f
  • Nominal Efficiency: 94.3 (IE3)
  • Power Factor: .87
  • Approximate Weight: 864 lbs / 391.9 kg
  • Added Items: Terminal Block, C-Face
  • Drive Belt Type: Direct

Electric Mill Motor Option One - 60 Hz

  • Manufacturer: Weg
  • Frame: 586/7z
  • Horsepower: 500 hp / 372.8 kw
  • Voltage: 460 Volt
  • Frequency: 60 Hz
  • Phase: 3
  • Rated Speed: 1790 rpm
  • Enclosure: TEFC
  • Full Load Amps: 564
  • Locked Rotor Amps: 3610
  • Service Factor: 1.15
  • Duty Cycle: S1 – Continuous
  • NEMA Design: B
  • Insulation Class: F
  • Full Load Torque: 1447 ft-lb / 1961.9 Nm
  • Locked Rotor (%): 210
  • Break Down: 200
  • Ambient Temperature: 40 c / 1352 f
  • Nominal Efficiency: 95.8 (NEMA High)
  • Power Factor: 0.86
  • Approximate Weight: 3912 lbs / 1774.5 kg
  • Added Items: Terminal Block, Thermostat (155C), Inverter Duty, Crusher Duty, Roller Bearings
  • Drive Belt Type: Belt

Electric Mill Motor Option Two - 50 Hz

  • Manufacturer: Weg
  • Frame: 355 M/L
  • Horsepower: 500 hp / 372.8 kw
  • Voltage: 380
  • Frequency: 50
  • Phase: 3
  • Rated Speed: 1490 rpm
  • Enclosure: TEFC
  • Full Load Amps: 675
  • Locked Rotor Amps: 4730
  • Service Factor: 1
  • Duty Cycle: S1-Continuous
  • NEMA Design: N
  • Insulation Class: F
  • Full Load Torque: 1750 ft-lb / 2372.7 Nm
  • Locked Rotor (%): 210
  • Break Down: 220
  • Ambient Temperature: 40 c / 1352 f
  • Nominal Efficiency: 95.7 (IE2)
  • Power Factor: .87
  • Approximate Weight: 4346 lbs / 1971.3 kg
  • Added Items: Terminal Block, Thermostat (155C), Inverter Duty, Roller Bearings
  • Drive Belt Type: Belt

Electrical Panel

  • Height: 90 inches / 228.6 cm
  • Width: 119 inches / 302.3 cm
  • Depth: 26 inches / 66 cm
  • Weight: 3020 lbs / 1369.8 kg

Infeed Roller

  • Feed Table Width: 60 inches / 152.4 cm
  • Feed Table Depth: 21 inches / 53.3 cm
  • Feed Table Length – Option One: 15 ft / 4.6 m
  • Feed Table Capacity: 4.8 cu yd / 3.7 cu m
  • Loading Height: 6.5 ft / 2 m
  • Flare Construction: Integrated with frame
  • Feed Conveyor Type: Welded slat chain
  • Material Construction: steel
  • Drive Type: Radial piston motor
  • Drive Roller Construction: Welded steel
  • Front Idler Roller Construction: Self-cleaning steel auger
  • Infeed Floor Construction: Welded steel with replaceable UHMW wear plates
  • Infeed Roller Width: 58 inches / 147.3 cm
  • Infeed Roller Weight: 1000 lbs / 453.6 kg
  • Infeed Roller Diameter: 28 inches / 71.1 cm
  • Maximum Feed Height: 26 inches / 66 cm
  • Material Type: Fabricated steel
  • Tooth Design: Serrated bars
  • Number of Teeth: 10 bars
  • Drive Motor: Fixed displacement, Geroler
  • Drive Planetary: 34.2:1
  • Feed Roller Down Pressure: Adjustable

Safety System

  • Thrown Object Deflector: Standard
  • Deflector Position: Variable

Duplex Drum

  • Millbox Opening: 60 inches wide x 26 inches high / 152 cm wide x 66 cm high
  • Drum Diameter: 22.5 inches / 57.2 cm
  • Tip Diameter: 31.3 inches / 79.6 cm
  • Drum Cutting Width: 60.6 inches / 153.9 cm
  • Drum Skin Thickness: 1.5 inches / 3.8 cm
  • Drum Speed: 1125 rpm
  • Bearing Type: Double-row, spherical roller
  • Bearing – Inner Race Diameter: 4.3 inches / 10.9 cm
  • Number of Hammers: 9
  • Number of Tips: 18
  • Center Retention Pin Dimensions: 2 inches diameter x 75.25 inches long / 5 cm diameter x 191 cm long

Chipper Drum

  • Millbox Opening: 60 inches wide x 26 inches high / 152 cm wide x 66 cm high
  • Drum Diameter: 22.5 inches / 57.2 cm
  • Tip Diameter: 31.3 inches / 79.6 cm
  • Drum Cutting Width: 60.6 inches / 153.9 cm
  • Drum Skin Thickness: 1.5 inches / 3.8 cm
  • Drum Speed: 1141 rpm
  • Bearing Type: Double-row, spherical roller
  • Bearing – Inner Race Diameter: 4.3 inches / 10.9 cm
  • Number of Hammers: 9
  • Number of Tips: 18
  • Center Retention Pin Dimensions: 2 inches dia. x 75.25 inches long / 5 cm dia. x 191 cm long

Screens

  • Screen Dimensions: 3/4 inches thick / 1.9 cm
  • Screen Type: Fabricated out of abrasion-resistant steel
  • Number of Screens: 2
  • Screen Area: 3131 sq in / 20200 sq cm
  • Number of Sides: 1
  • Millbox Lid Liner Dimensions: Abrasion-resistant steel
  • Liner Dimensions: 1/2 inches thick x 5 inches wide x 61.6 inches long / 1.3 cm thick x 12.7 cm wide x 156.5 cm long
  • Anvil Type: Fabricated steel with replaceable wear surfaces

Discharge System - Single Belt Design

  • Length: 71.3 ft / 21.7 m
  • Width: 48 inches / 121.9 cm
  • Belt Design: 3-ply – 330# with V-cleat
  • Splice: R2-stainless steel
  • Return Roller Quantity: 3
  • Idler Roller Diameter: 12 inches / 30.5 cm
  • Idler Roller Bearing: 1-15/16, 4-bolt flange
  • Standard Drive Roller Diameter: 12.8 inches / 32.5 cm
  • Magnetic Drive Roller Diameter: 12.8 inches / 32.5 cm
  • Drive Motor: Fixed displacement, Geroler
  • Belt Speed: 529 ft/min / 161.2 m/min
  • Load Height: 14 ft / 4.3 m

Hydraulic System

  • Tank capacity: 60 gal / 227.1 L
  • Recommended Oil: Vermeer HyPower 68
  • Filtration Method: Dual in-tank return filters (B5=200)
  • Number of Coolers: 1

Implement Hydraulics

  • System Type: Open-loop, pressure- and flow-compensated
  • Pump Type: Variable displacement, axial piston
  • Pump Flow at Maximum RPM: 25.9 (60HZ) ; 24.9 (50HZ)
  • System Relief Pressure: 3000

Discharge Conveyor Hydraulics

  • System Type: Open-loop
  • Pump Type: Fixed displacement, gear pump
  • Pump Flow at Maximum RPM: 14.7 gpm / 55.6 L/min
  • System Relief Pressure: 3000
  • Motor Series: Char-Lyn 6000 Series, Geroler

Electrical System

  • System Voltage: 24 Volt
  • Battery: Group 8-D, 1155 CCA (Qty 2)
  • System Protection: Fused

Control Station

  • Display Type: LCD
  • Engine Information: Yes
  • Machine Information: Yes
  • Operational Faults: Yes
  • Gauges: Hydraulic pressure (implement circuit)
  • Switches: Moisture-proof, toggle style

Chassis

  • Frame Description: Unit body construction

Axle/Suspension

  • Suspension Type: Spring
  • Manufacturer – Option One: Hendrickson
  • Capacity per Axle: 20000 lbs / 9071.8 kg
  • Number of Axles: 2
  • Tires – Option One: 425/65R22.5 super singles
  • Wheels – Option One: Aluminum
  • Tires – Option Two: 385/65R22.5 super singles
  • Wheels – Option Two: Aluminum

Other Options

  • Screens: Yes
  • Special Tools Group: Yes
  • Extended Warranty: Yes
  • Preventative Maintenance: Yes
  • Special Paint: Yes
