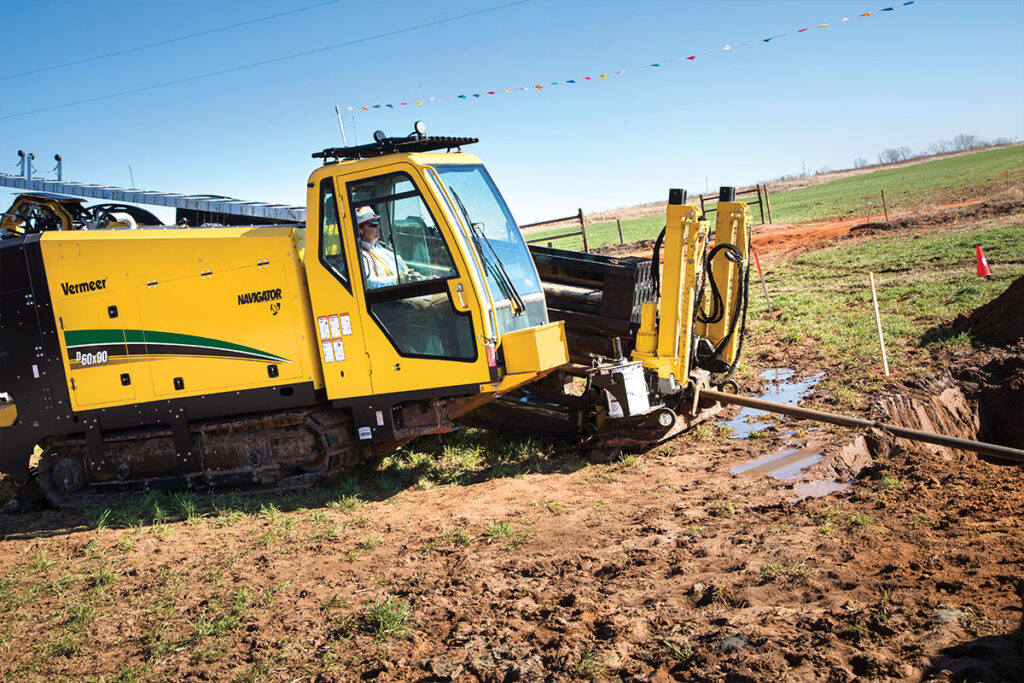

S3 Horizontal Directional Drill

  • Weight: 17690.1 kg
  • Fuel Type: Diesel
  • Power: 202 hp (150.6 kW)
  • Rotational Torque: 9250 ft-lb
  • Thrust Pullback: 60000 lbs

Features

The D60x90 S3 offers the next generation of power and control. Designed with operator ease and comfort in mind, it is significantly more powerful and quieter than its predecessor – with the interactive Aurora™ digital display to help you get the job done faster and more efficiently. The D60x90 S3 packs all these valuable benefits into a modest footprint — making it an ideal fit for large commercial or confined urban job sites.

Key Features

  • A modest footprint of just 100 inches (254 cm) transport width and 26 ft length (7.9 m) makes it right for a range of installation specifications — even in congested urban job sites.
  • Up to 60,000 lb (226.9 kN) of thrust and pullback and 9250 ft-lb (12,202.4 Nm) of rotational torque help you get the job done faster.
  • Guaranteed sound power rating of just 107 dB(A) – 12 dB(A) lower than its predecessor the D60x90 – resulting in reduced noise at the operator’s ear [83 dB(A)], increased operator comfort and less noise disturbance in residential or urban areas.

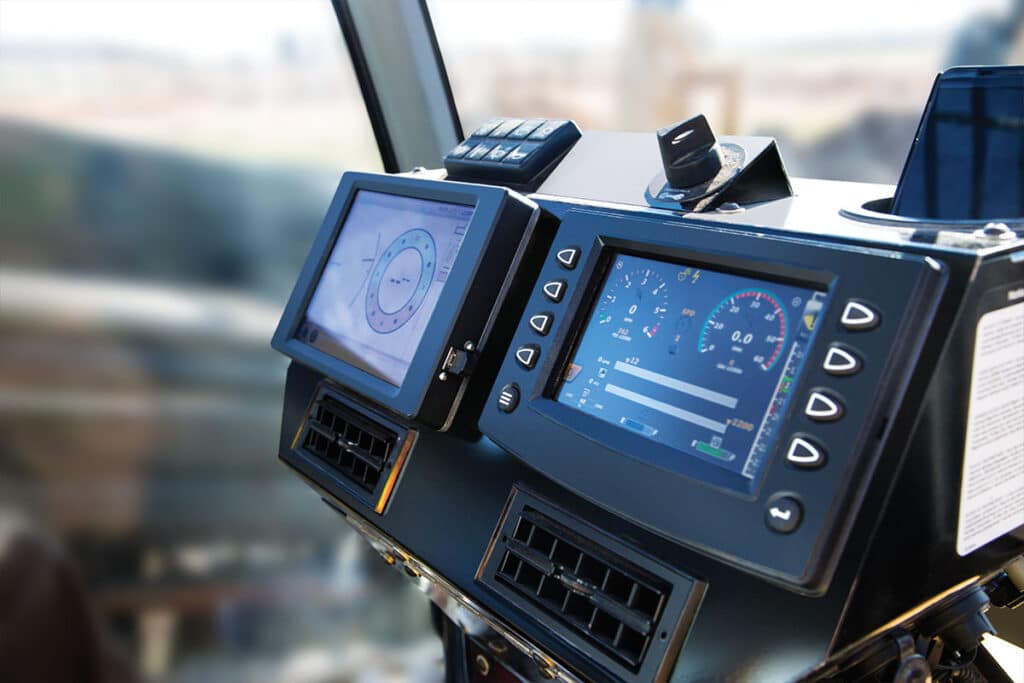

  • The new interactive, full-colour DigiTrak® Aurora™ touchscreen display allows operators to load the bore plan via flash drive and view it on screen — eliminating hard copy plans.

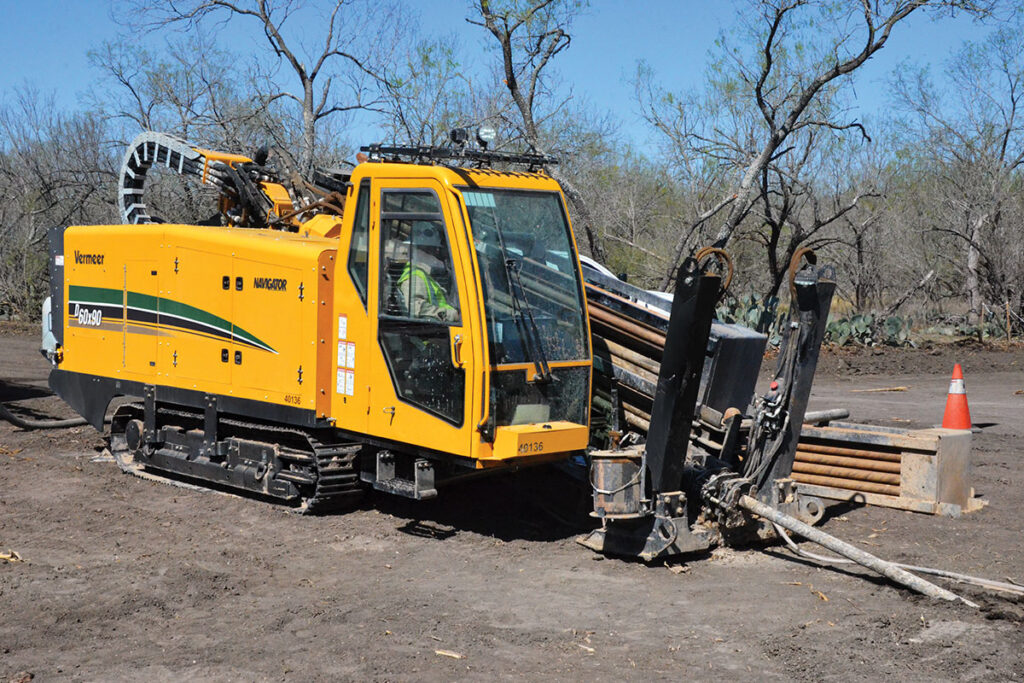

  • Large open-top vise design allows passage of larger tooling for ease of tool removal and installation.
  • Popular and proven rod loader design provides easy and reliable performance.

General Dimensions and Weights

  • Length (Minimum Transport): 354 inches / 899.2 cm
  • Width (Minimum Transport): 90 inches / 228.6 cm
  • Height (Minimum Transport): 104 inches / 264.2 cm
  • Height (With Cab): 104 inches / 264.2 cm
  • Weight: 39000 lbs / 17690.1 kg
  • Angle of Approach: 18 deg

Engine

  • Make and Model: Cat
  • Fuel Type: Ultra Low Sulfur Diesel
  • Maximum Engine RPM: 2200 rpm
  • Gross Horsepower: 202 hp / 150.6 kW
  • Aspiration: Turbo Charged

Operational

  • Thrust: 60000 lbs / 266.9 kN
  • Pullback: 60000 lbs / 266.9 kN
  • Maximum Carriage Speed at Maximum Engine RPM: 175 ft/min / 53.3 m/min
  • Maximum Carriage Speed in Low at Maximum Engine RPM: 55 ft/min / 16.8 m/min
  • Maximum Spindle Torque (Low at Maximum Engine RPM): 9250 ft-lb / 12541.3 Nm
  • Maximum Spindle Torque (Medium at Maximum Engine RPM): 6810 ft-lb / 9233.1 Nm
  • Maximum Spindle Torque (High at Maximum Engine RPM): 3790 ft-lb / 5138.6 Nm
  • Maximum Spindle Speed at Max Engine RPM: 200 rpm
  • Minimum Bore Diameter: 6 inches / 15.2 cm
  • Maximum Ground Drive Speed at Maximum Engine RPM: 3.7 mph / 6 km/h
  • Automated Rod Loader: Yes
  • Noise Level at Operator’s Ear: 83 dB(A)

Fluid Capacities

  • Fuel Tank: 90 gal / 340.7 L
  • Hydraulic Tank: 75 gal / 283.9 L
  • Hydraulic System: 100 gal / 378.5 L

Drilling Fluid System

  • Maximum Flow: 150 gpm / 567.8 L/min
  • Maximum Pressure: 900 psi / 62.1 bar
  • Brand: Aplex

Features

  • Breakout System: Open top Vise
  • Drilling Lights: Standard
  • Flow Indicator: Standard
  • Stakedown System: Two Options
  • Cab: Standard
  • Strike Alert: Standard
  • Remote Lockout: Standard
  • Operator Presence: Standard
