- Weight: 9389.4 kg (No Cab)
- Fuel Type: Diesel
- Power: 125 hp (93.2 kW)
- Rotational Torque: 4200 ft-lb
- Thrust Pullback: 28000 lbs
Features

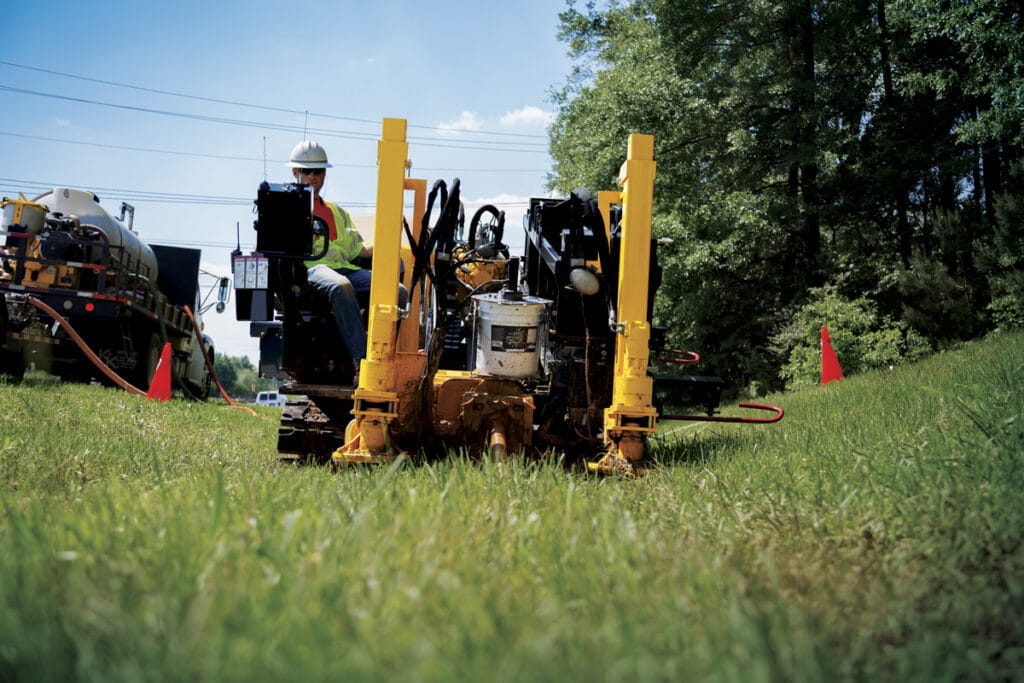

The D24x40 S3 features 28,000 lb (124.6 kN) of thrust and pullback and 4200 ft-lb (5694.4 Nm) of rotational torque — an increase over its predecessor (D24x40 Series II) — the D24x40 S3 helps maximize machine and job site productivity, while class-leading cycle times help get the job done faster.
Key Features
- With a class-leading carriage speed of 240 ft/min (73.1 m/min) — more than 20% faster than its closest competitor — the D24x40 S3 helps contractors install more linear feet per day.
- The D24x40 S3 features a 270 rpm rotational speed that rivals larger drills and outpaces competitive models by 18% — helping contractors complete jobs faster.
- With a 104 dB(A) guaranteed sound power level and an operator ear rating of 82.9 dB(A), as well as an in-cab operator ear rating of 75.7 dB(A), the D24x40 S3 contributes to a quieter working environment, creating less neighbourhood disturbance and enabling easier communication among the crew.

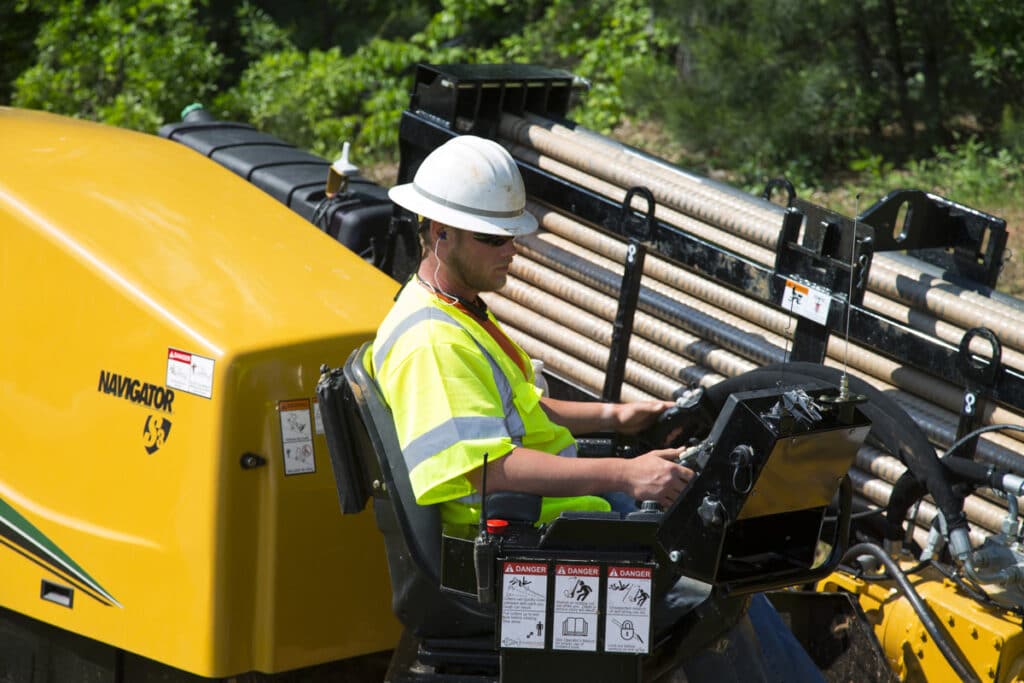

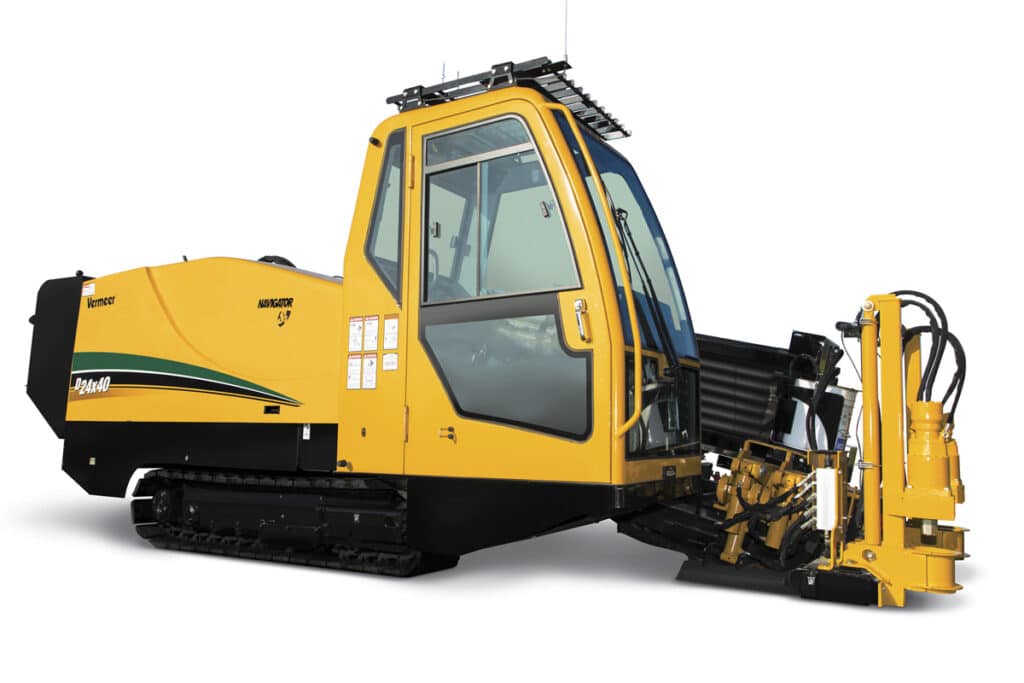

- The excavator-style cab offers operators more legroom and greater comfort.

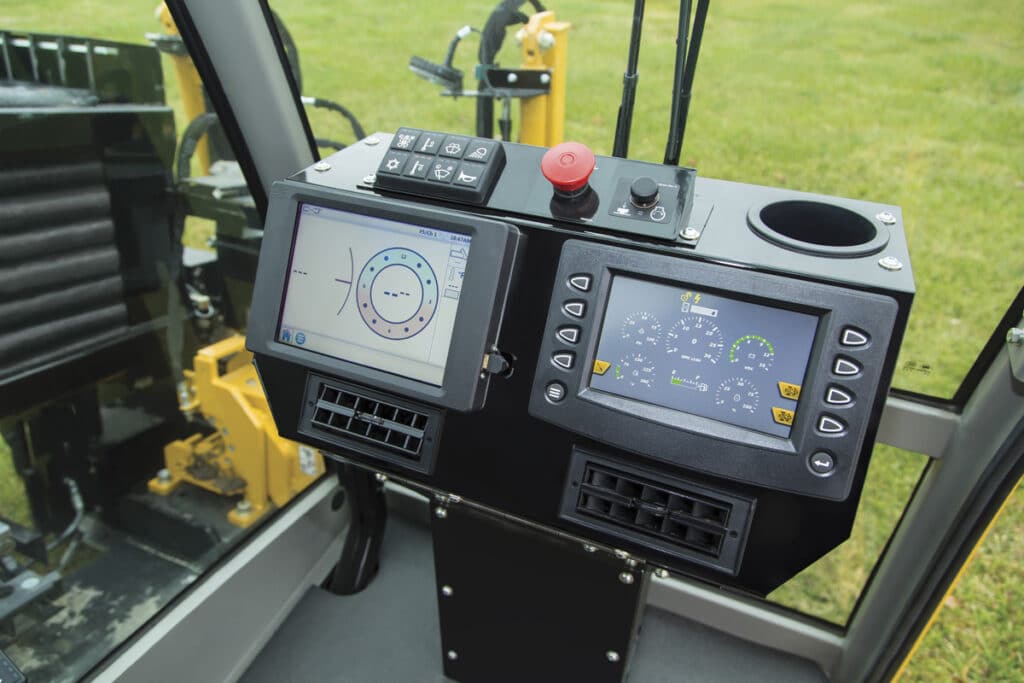

- Interactive full-colour touchscreen display delivers real-time, easy-to-view locate information, bore plans and more that can help increase productivity.

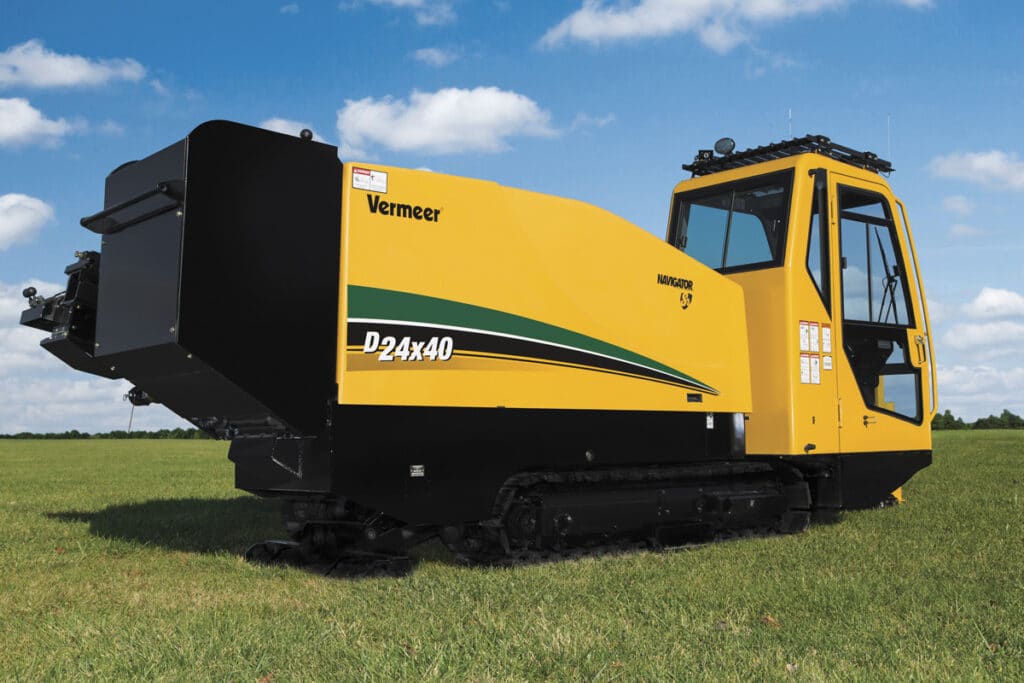

General Dimensions and Weights
- Length (Minimum Transport): 241 inches / 612.1 cm
- Width (Minimum Transport): 89 inches / 226.1cm
- Width (With Cab, Minimum Transport): 89 inches / 226.1 cm
- Height (Minimum Transport): 76 inches / 193 cm
- Height (With Cab): 117 inches / 297.2 cm
- Weight: 20700 lbs / 9389.4 kg
- Weight (With Cab): 22250 lbs / 10092.4 kg
- Angle of Approach: 19 deg
- Angle of Departure: 20 deg
Engine
- Make & Model: John Deere 4045
- Fuel Type: Ultra-low sulfur diesel
- Maximum Engine RPM: 2400 rpm
- Idle Speed: 1150 rpm
- Rated RPM: 2400 rpm
- Gross Horsepower: 124 hp / 93.2 kW
- Displacement: 275 cu-in / 4.5 L
- Number of Cylinders: 4
- Cooling Method: Liquid
- Aspiration: Turbo
- Max Fuel Consumption: 6.8 gph / 25.7 lph
- Air Cleaner: Donaldson
- EPA Certification Family: Tier 4 Final (EU Stage IV)
- Maximum Operating Angle (Fore/Aft)*: 30
- Maximum Operating Angle (Left/Right)*: 25/25
Operational
- Thrust: 28000 lbs / 124.6 kN
- Pullback: 28000 lbs / 124.6 kN
- Maximum Carriage Speed at Maximum Engine RPM: 240 ft/min / 73.2 m/min
- Maximum Carriage Speed in Low at Maximum Engine RPM: 101 ft/min / 30.8 m/min
- Maximum Spindle Torque (Low at Maximum Engine RPM): 4200 ft-lb / 5694.4 Nm
- Maximum Spindle Torque (Medium at Maximum Engine RPM): 3500 ft-lb / 4745.4 Nm
- Maximum Spindle Torque (High at Maximum Engine RPM): 2000 ft-lb / 2711.6 Nm
- Maximum Spindle Speed at Max Engine RPM: 270 rpm
- Minimum Bore Diameter: 4 inches / 10.2 cm
- Maximum Ground Drive Speed at Maximum engine RPM: 3.3 mph / 5.3 km/h
- Automated Rod Loader: Yes
- Guaranteed sound power (CE-rating): 104 dB(A)
- Noise Level at Operator’s Ear: 82.9 dB(A)
Fluid Capacities
- Fuel Tank: 44 gal / 166.6 L
- Engine Crankcase with Filter: 15.5 qt / 14.7 L
- Hydraulic Tank: 55 gal / 208.2 L
- Hydraulic System: 65 gal / 236.1 L
- Engine Cooling System: 20 qt / 18.9 L
- Antifreeze Tank Capacity: 1.6 gal / 6.1 L
Drilling Fluid System
- Maximum Flow: 50 gpm / 189.3 L/min
- Maximum Pressure: 1050 psi / 72.4 bar
- Brand: Aplex
- On Board Tank Capacity: 6 gal / 22,7 L
Features
- Breakout System: Standard hydraulic vise
- Drilling Lights: Standard
- Flow Indicator: Standard
- Stakedown System: Standard
- Cab: Optional
- Strike Alert: Standard
- Remote Lockout: Standard
