MyDealer:Horizontal Directional Drill
- Weight: 7429.8 kg
- Fuel Type: Diesel
- Power: 100 hp (74.6 kW)
- Rotational Torque: 3080 ft-lb
- Thrust Pullback: 24700 lb

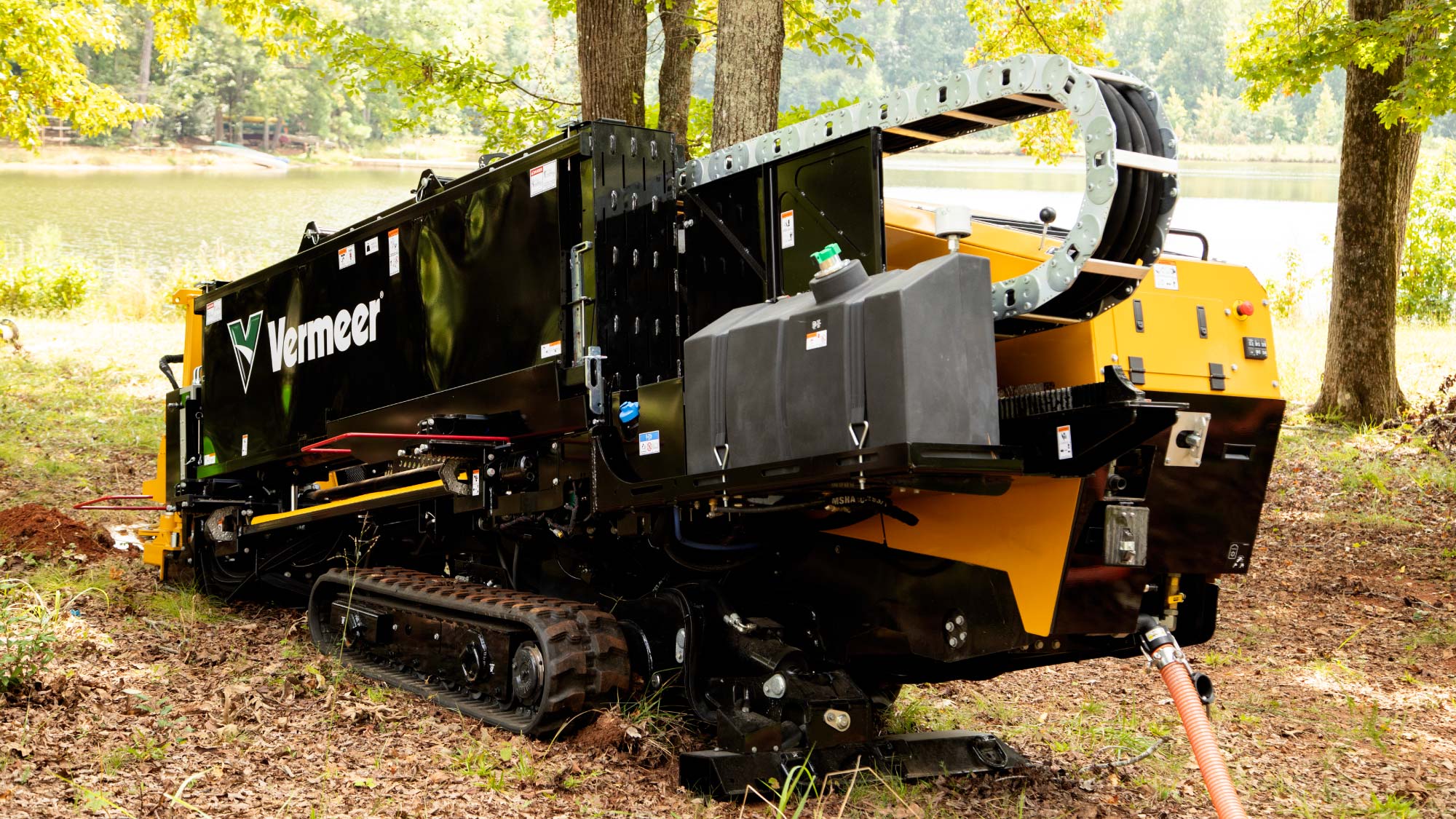

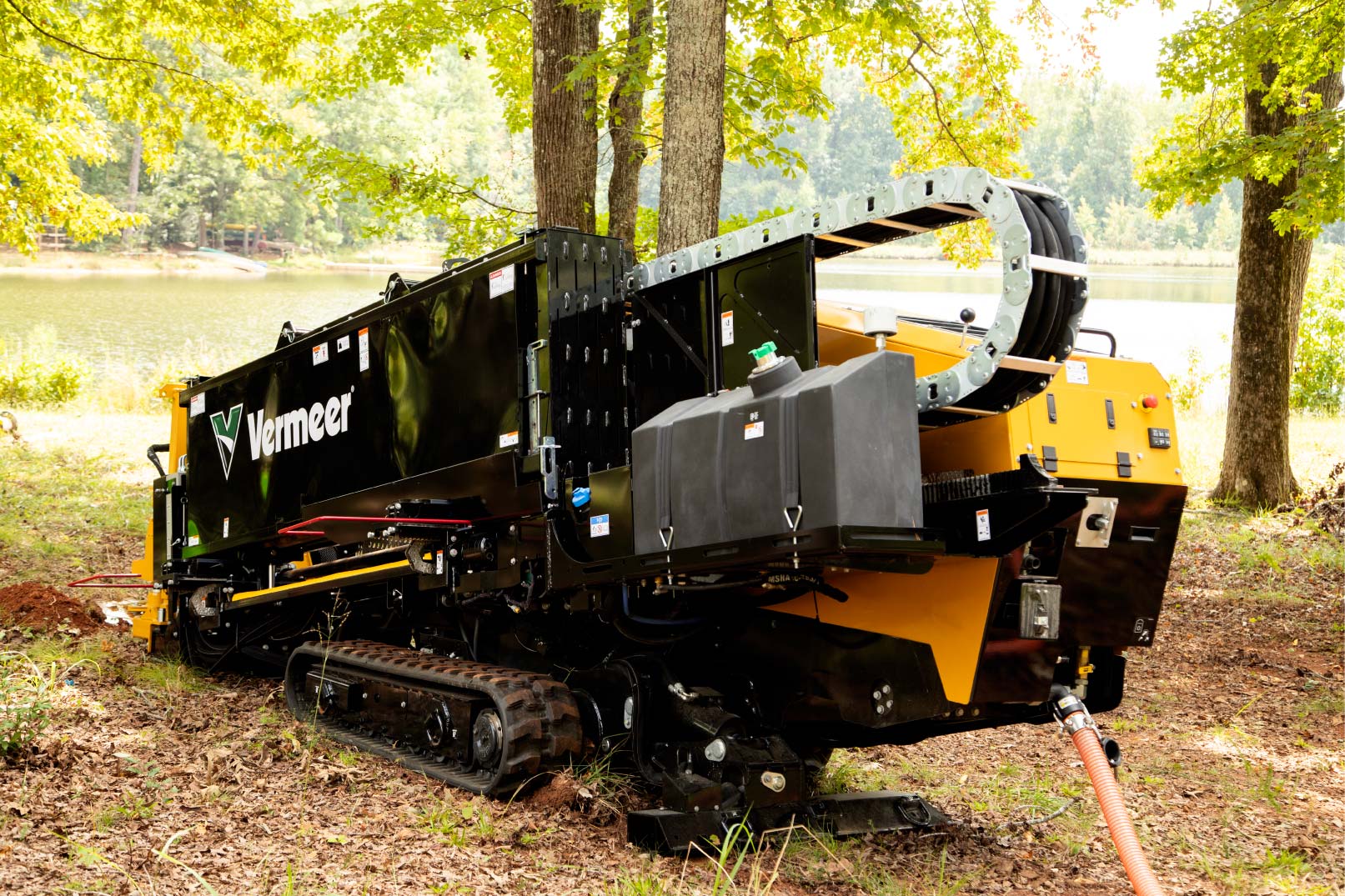

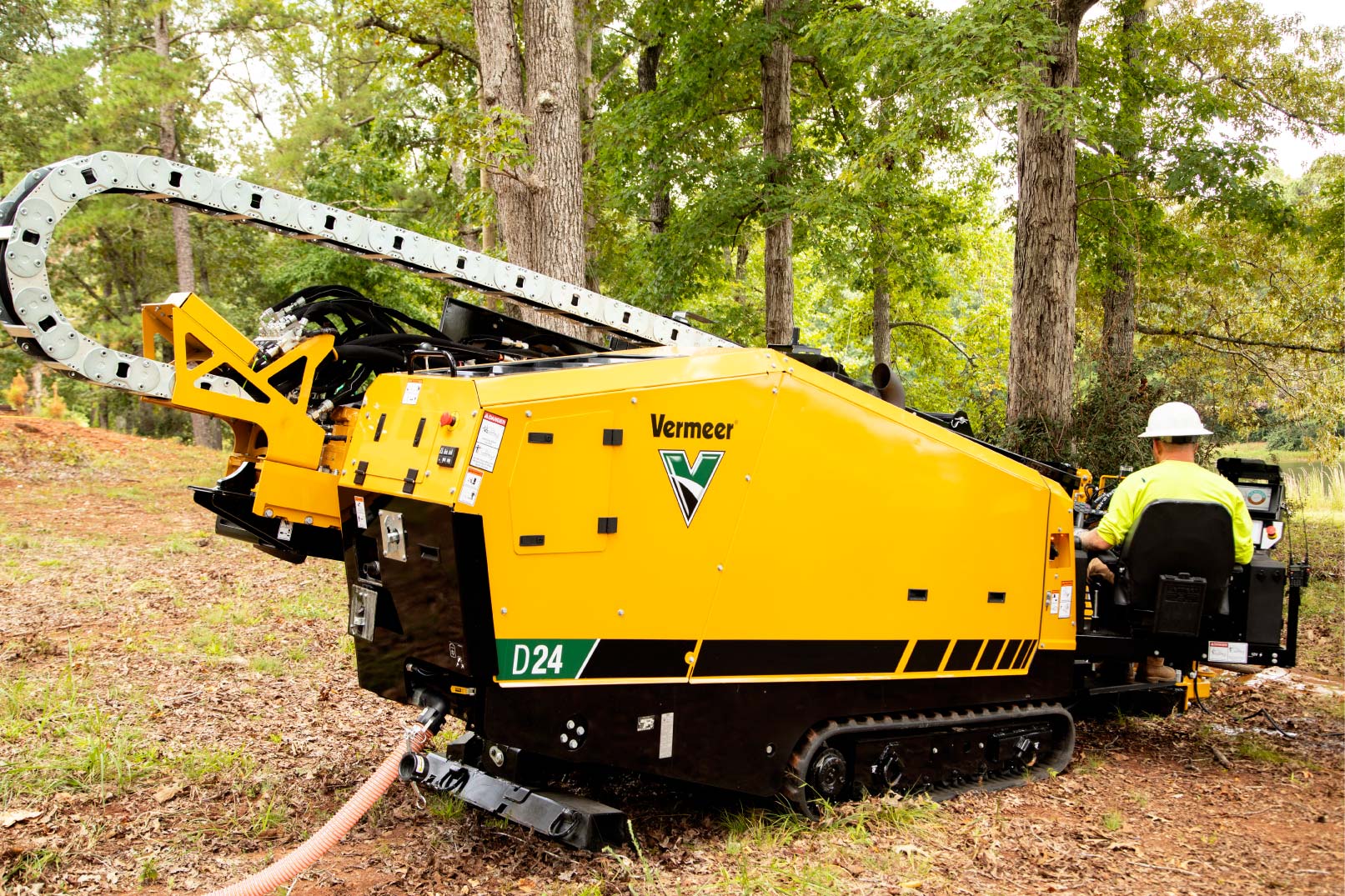

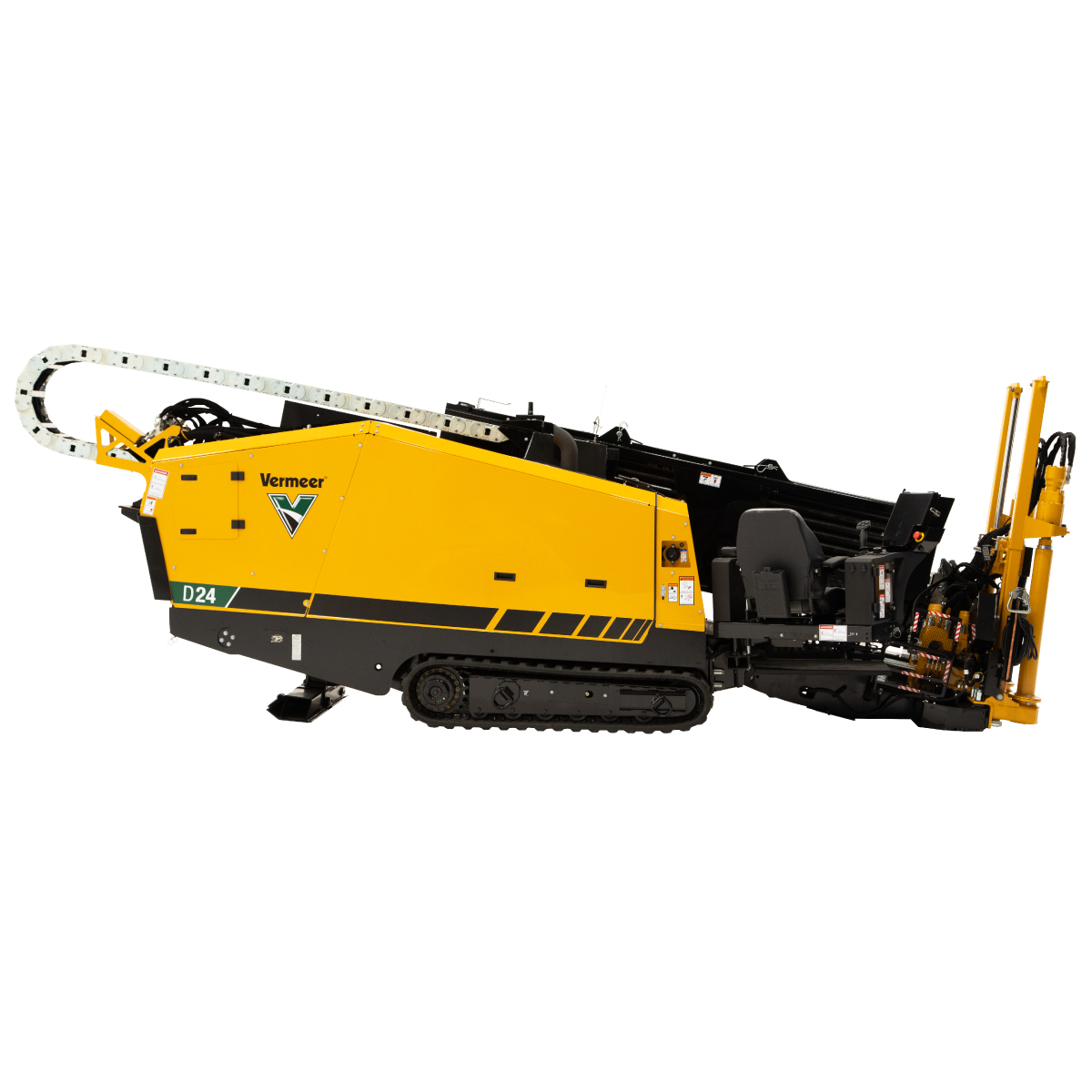

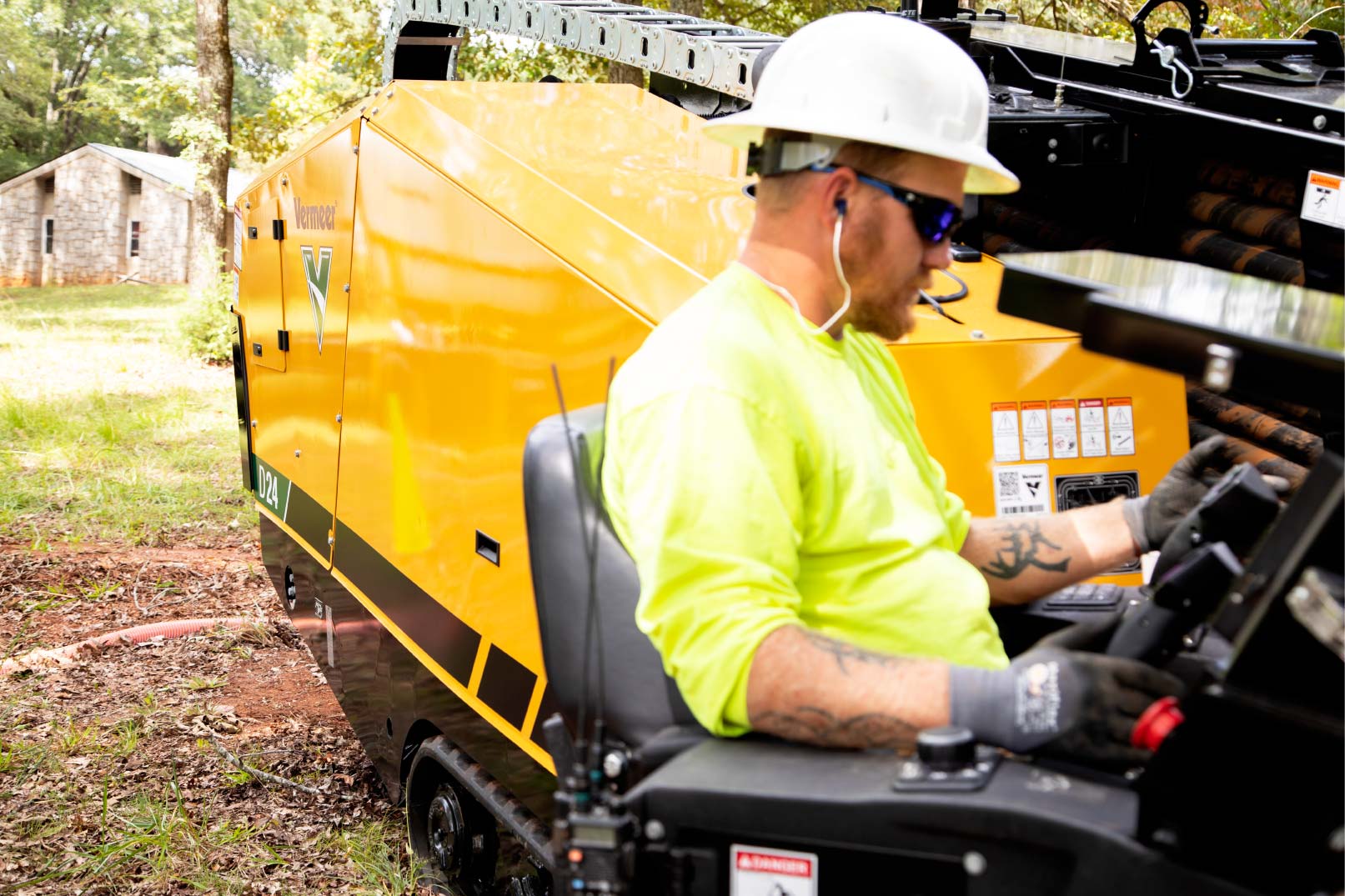

Introducing the Vermeer D24 Horizontal Directional Drill
Engineered for urban utility installation
The D24 horizontal directional drill (HDD) is engineered to tackle the unique challenges of urban utility installation. Its compact design allows for efficient operation in confined city spaces while delivering the power and precision needed to handle diverse soil conditions. This balance of size and capability makes the D24 an ideal choice for contractors working in densely populated areas.
- Easier drilling for crews of various skill levels with an automated rod exchange and open-side vise.
- Help increase uptime with on-rig diagnostics and bolstered reliability from redesigned components.
- Go further and bore more than its predecessor, the D23x30 S3, with an optional 480 ft (150 m) of rod and components designed to drill in tough ground conditions.
Features
Fit in congested jobsites
The D24 is 56 in (142 cm) wide and 16,380 lb (7,430 kg), making it the narrowest footprint machine in its class size while maintaining stability for various ground conditions.
Intelligent on-rig diagnostics
Get ahead of the game with technology that helps deliver more uptime with specific diagnostic explanation and prescriptive troubleshooting steps right to the operator’s fingertips.
Easy and automated rod exchange
A single button push completes the entire rod changeout sequence, eliminating up to 19 steps, giving operators from various skill levels more time for more rod in the ground.
Drill longer in harder ground conditions
Optional class-leading rod capacity to bore further with 480 ft (150 m) of rod on board without having to get off the machine. A 45-gpm (170-L/min) mud pump increases fluid flow rate, helping you ream quickly and pull large product faster.

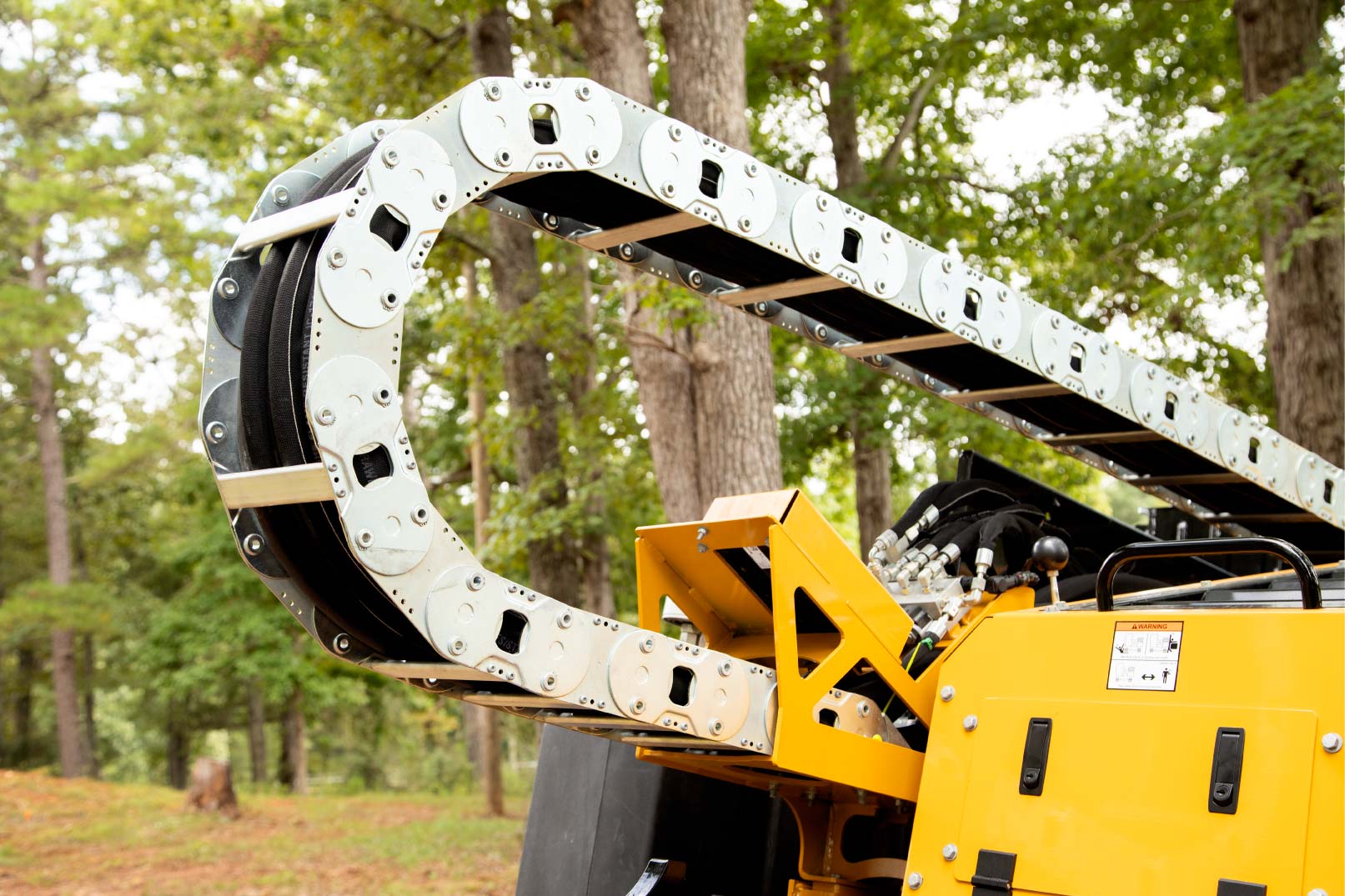

Reliable components
Taking a new standard, the D24 boasts enhanced hydraulics, electrical design and power train system designed for maximum reliability, all backed with an industry leading 3-year, 3,000-hour OEM extended warranty program.
100hp CAT® engine
The drill is equipped with 100-hp (75-kW) CAT® 3.6L Stage V engine. Two 800 CCA batteries improve cold start capability.
Patented, sliding, open-side vise
Minimize the number of steps to change out a rod with this patented vise design. The vise utilizes sliding, openside functionality, which allows you to see the rod joint.
General Dimensions and Weights
Length (Minimum Transport): 569 cm
Width (Minimum Transport): 142.2 cm
Height (Minimum Transport): 226.1 cm
Weight: 7429.8 kg
Angle of Approach: 18 degrees
Engine
Make and Model: CAT C3.6
Fuel Type: Ultra low sulfur diesel
Maximum Engine RPM: 2000 rpm
Idle Speed: 1000 rpm
Gross Horsepower: 74.6 kw
Displacement: 3.6 L
Aspiration: Turbo
Cooling Method: Liquid
Max Fuel Consumption: 18.7 lph
Emissions rating: T4F/SV
Maximum Operating Angle (Fore/Aft)*: 35 degrees
Maximum Operating Angle (Left/Right)*: 35 degrees
Operational
Thrust: 109.9 kN
Max peak thrust: 109.9 kN
Continuous thrust: 97.9 kN
Pullback: 109.9 kN
Max peak pullback: 109.9 kN
Continuous pullback: 97.9 kN
Maximum Carriage Speed at Maximum Engine RPM: 55.2 m/min
Maximum Carriage Speed in Low at Maximum Engine RPM: 27.4 m/min
Maximum Spindle Torque (Low at Maximum Engine RPM): 4175.9 Nm
Maximum Spindle Torque (Medium at Maximum Engine RPM): 3077.7 Nm
Maximum Spindle Torque (High at Maximum Engine RPM): 1979.5 Nm
Maximum Spindle Speed (Low at Maximum Engine RPM): 99 rpm
Maximum Spindle Speed (Medium at Maximum Engine RPM): 132 rpm
Maximum Spindle Speed at Max Engine RPM: 198 rpm
Minimum Bore Diameter: 10.2 cm
Maximum Ground Drive Speed at Maximum Engine RPM: 5.3 km/h
Automated Rod Loader: Yes, now with Automated Rod Exchange
Noise Level at Operator’s Ear: 88 dB(A)
Guaranteed sound power (CE-rating): 100 dB(A)
Fluid Capacities
Fuel Tank: 132.5 L
Hydraulic Tank: 94.6 L
Hydraulic System
Auxiliary Pump Flow at Maximum Engine RPM: 8 gpm
Auxiliary Pump Relief Pressure: 189.6 bar
Thrust/Pullback Pump Flow at Max Engine RPM: 102.2 L/min
Thrust/Pullback Pump Relief Pressure: 344.7 bar
Rotation Pump Flow at Maximum Engine RPM: 102.2 L/min
Rotation Pump Relief Pressure: 344.7 bar
Hydraulic Supply Filter Rating: B1000 = 6 micron
Hydraulic Return Filter Rating: B1000 = 11 micron
Drilling Fluid System Option One
Maximum Flow: 170.3 L/min
Maximum Pressure: 62.1 bar
Brand: FMC
On Board Tank Capacity: 18.9 L
Features
Breakout System: Sliding, open side
Drilling Lights: Standard
Flow Indicator: Standard
Stakedown System; Standard
Strike Alert: Standard
Remote Lockout: Standard
Operator Presence: Standard
Drill Pipe
Drill Rod Thread: #600
Thread Type: Firestick
Length: 3 m
Rod Diameter: 2.375 in (6.03 cm)
Joint Inside Diameter: 2.2 cm
Joint Outside Diameter: 2.625 in (6.67 cm)
Weight: 34 kg
Minimum Bend Radius: 32.9 cm
Rodbox capacity: 121.9 cm
Drill Pipe Option Two
Drill Rod Thread: #600
Thread Type: Firestick
Length: 3 m
Rod Diameter: 2.375 in (6.03 cm)
Joint Inside Diameter: 2.2 cm
Joint Outside Diameter: 2.625 in (6.67 cm)
Weight: 34 kg
Bend Radius: 108 ft (33 m)
Rodbox capacity: 146.3 m
