The next entrant in the S3 generation of drills – the D20x22 S3 – features more power, increased speed, versatility and precise control. The right-powered and right-priced D20x22 S3 makes significant gains in power and speed compared to both competitors and its predecessor – the D16x20 Series II.
- The class-leading 167 feet-per-minute (50.9 m/min) carriage speed and rotational speeds of 257 rpm help you install more linear feet per day.
- A newly designed hydraulic circuit offers additional power for drilling and maneuvering around the job site, helping operators power up curbs and slopes to work more efficiently.
- The 5.3 km/hr per hour tracking speed gets you from one setup to the next sooner.

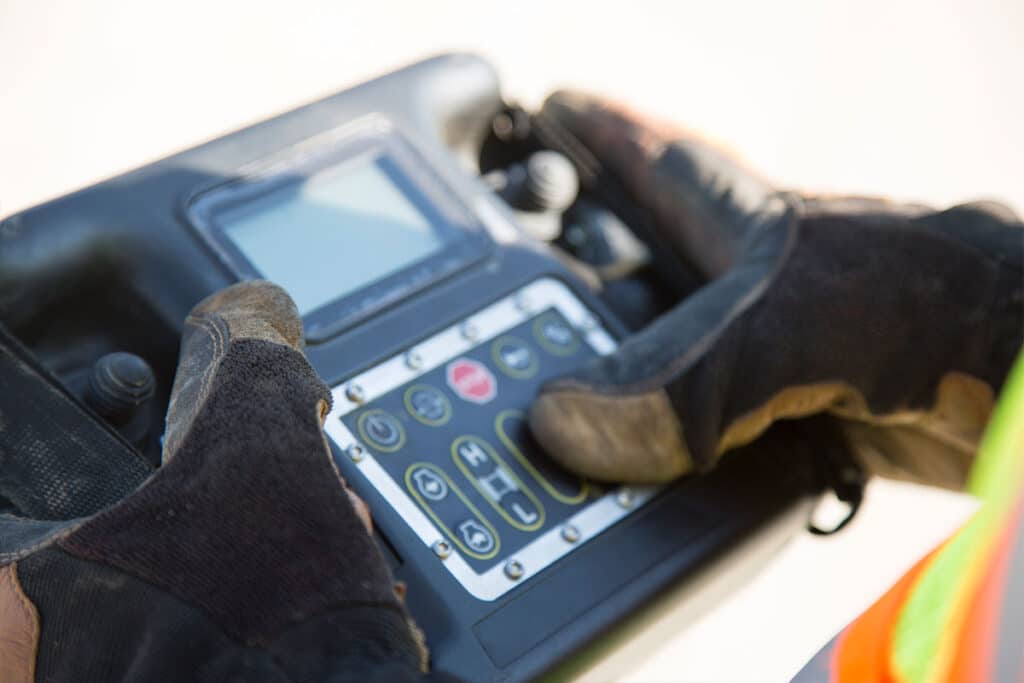

- Simplify machine monitoring with onboard diagnostics.

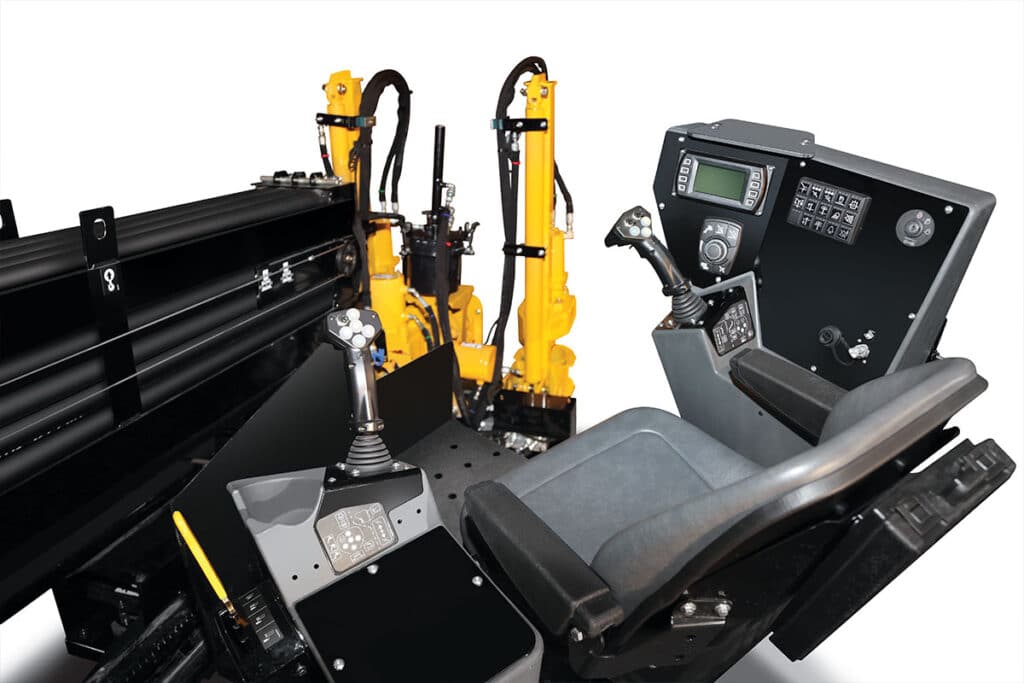

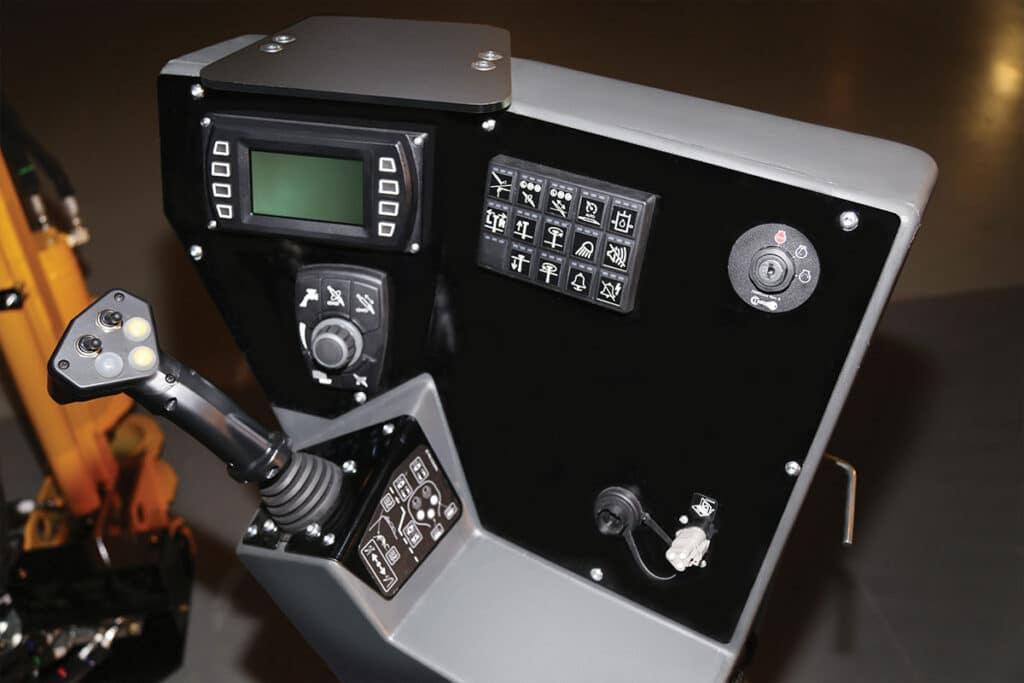

- Common dual joysticks on the current Vermeer drill lineup assist in operator efficiency and training.
General Dimensions and Weights
- Length (Minimum Transport): 204 inches / 518.2 cm
- Width (Minimum Transport): 47.5 inches / 120.7 cm
- Height (Minimum Transport): 74 inches / 188 cm
- Weight: 10850 lbs / 4921.5 kg
- Angle of Approach: 18 deg
- Make and Model: Deutz TD2.9
- Fuel Type: Low sulfur diesel
- Maximum Engine RPM: 2600 rpm
- Gross Horsepower: 74 hp / 55.2 kw
- Aspiration: Turbo charged
- Max Fuel Consumption: 4.5 gph / 17 lph
- Maximum Operating Angle (Fore/Aft)*: 30
- Maximum Operating Angle (Left/Right)*: 30
- Thrust: 19500 lbs / 86.7 kN
- Pullback: 19500 lbs / 86.7 kN
- Maximum Carriage Speed at Maximum Engine RPM: 167 ft/min / 50.9 m/min
- Maximum Carriage Speed in Low at Maximum Engine RPM: 114 ft/min / 34.7 m/min
- Maximum Spindle Torque (Low at Maximum Engine RPM): 2250 ft-lb / 3050.6 Nm
- Maximum Spindle Speed at Max Engine RPM: 257 rpm
- Minimum Bore Diameter: 3 inches / 7.6 cm
- Maximum Ground Drive Speed at Maximum Engine RPM: 3.3 mph / 5.3 km/h
- Automated Rod Loader: Semi-automated
- Noise Level at Operator’s Ear: 85.9 dB(A)
- Guaranteed sound power (CE-rating): 106 dB(A)
- Drill Rack Angle: 17 deg
Drilling Fluid System
- Maximum Flow: 25 gpm / 94.6 L/min
- Maximum Pressure: 1000 psi / 68.9 bar
- Breakout System: Standard hydraulic vice
- Drilling Lights: Optional
- Flow Indicator: Standard
- Stakedown System: Standard
- Strike Alert: Standard
- Remote Lockout: Standard
- Operator Presence: Standard
