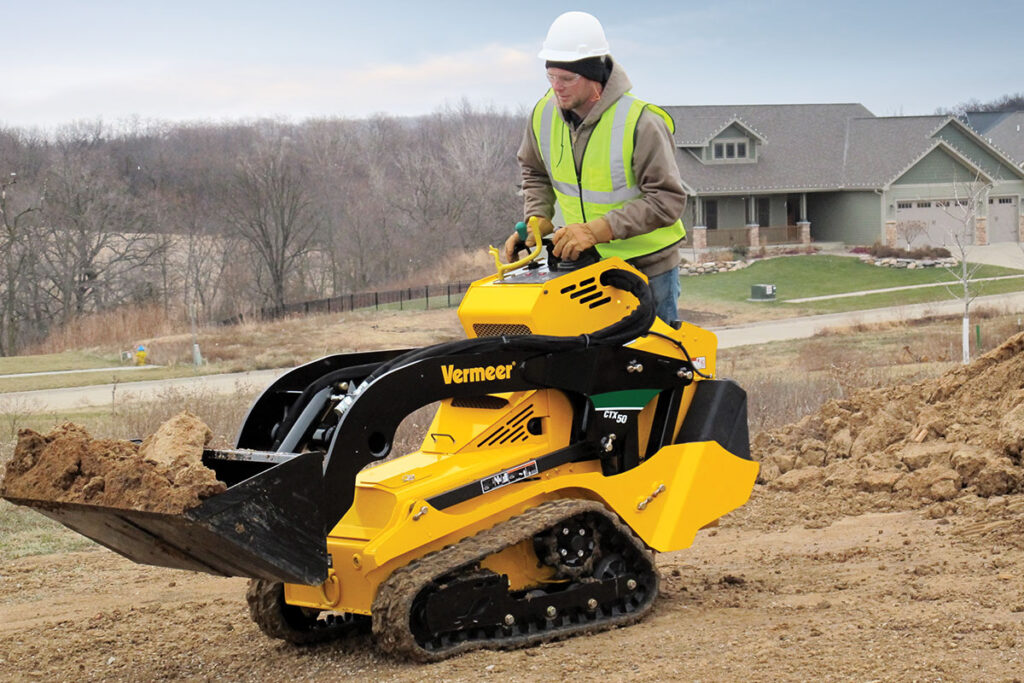

Whether it’s on a commercial worksite or home project, the CTX50 can manoeuvre in and out of small spaces making it well-suited to both the needs of the rental customer and landscape contractor.
- Single joystick ground drive control offers a smooth range of motion without balancing the engagement of two separate controls. The handgrip enables the operator to maintain a secure grip while providing good joystick control.
- Protective steel wings with cushioning increase operator comfort and support, providing a surface to brace against while working in uneven terrain.
- The dedicated spring-cushioned operator platform keeps the operator out of the mud and debris.
- Vertical geometry lift loader arms help provide an ISO-rated operating capacity of 600 lb (272.2 kg).
- The hydraulic pumps are attached directly to the engine giving the machine a greater power advantage over models directing power from the engine through the belt to the pump.
- The undercarriage features a high-mounted track sprocket. The higher mounting reduces premature wear and tear in rocky soil conditions, while the cast sprocket is heat-treated for longer life.
General Dimensions and Weights
- Design: Stand-on/Track drive
- Length (With Standard Bucket): 95 inches / 241.3 cm
- Length (Without Standard Bucket): 75 inches / 190.5 cm
- Width (With Standard Bucket): 42 inches / 106.7 cm
- Width (Without Standard Bucket): 35.5 inches / 90.2 cm
- Height: 54.5 inches / 138.4 cm
- Height (to Hinge Pin): 72 inches / 182.9 cm
- Ground Clearance: 6 inches / 15.2 cm
- Weight (No Bucket): 2100 lbs / 952.5 kg
- Make and Model: Kohler Command PRO EFI ECH740
- Fuel Type: Petrol
- Fuel Tank Capacity: 4 gal / 15.1 L
- Gross Horsepower: 25 hp / 18.6 kW
- Cooling System: Air
- Maximum Engine Operating Angle: 25 deg
- ISO-Rated Operating Capacity: 600 lbs / 272.2 kg
- Tipping Capacity (With 175 lb [79.4 kg] operator): 1715 lbs / 777.9 kg
- Travel Speed: 3.5 mph / 5.6 km/h
- Ground Pressure: 4.5 psi / 31 kPa
- Steering: Single, pilot-operated joystick
- Lift: Single, dual-axis joystick
- Curl: Single, dual-axis joystick
- Hydraulic Pump High Flow: 12.5 gpm / 47.3 L/min
- Hydraulic Pump Relief: 2950 psi / 203.4 bar
- Tank Capacity: 12 gal / 45.4 L
