BC2100XL Wood Chipper

Wood Chipper

Fuel Type: Diesel
Power: 275 hp (205.1 kW)
Capacity: 40″ x 24″ infeed

Request a Quote

Find Nearest Branch Download Brochure

Features

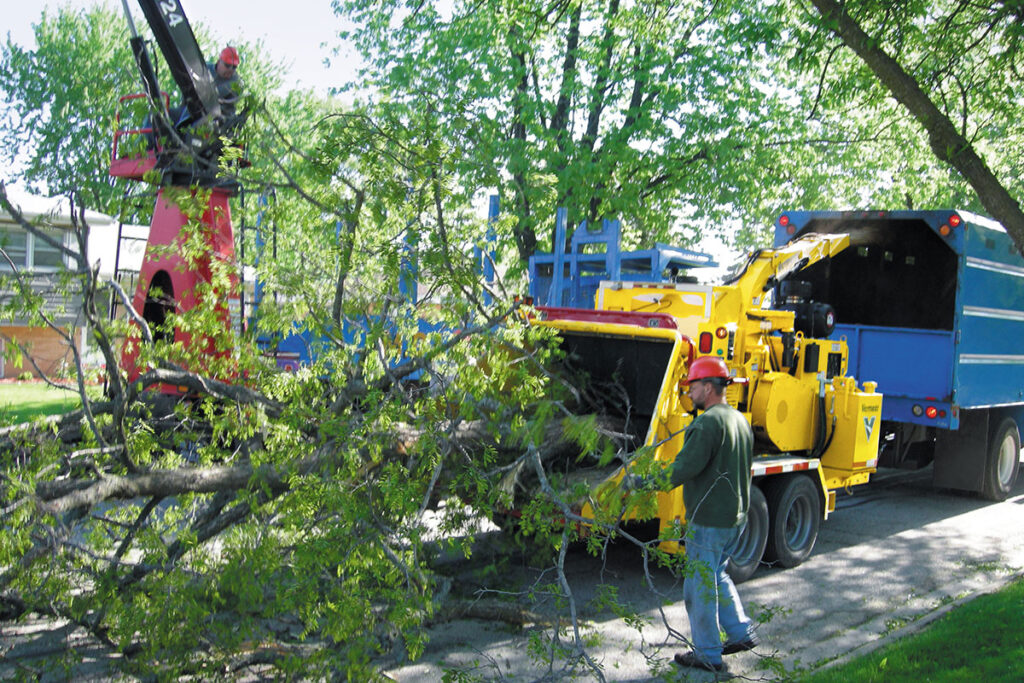

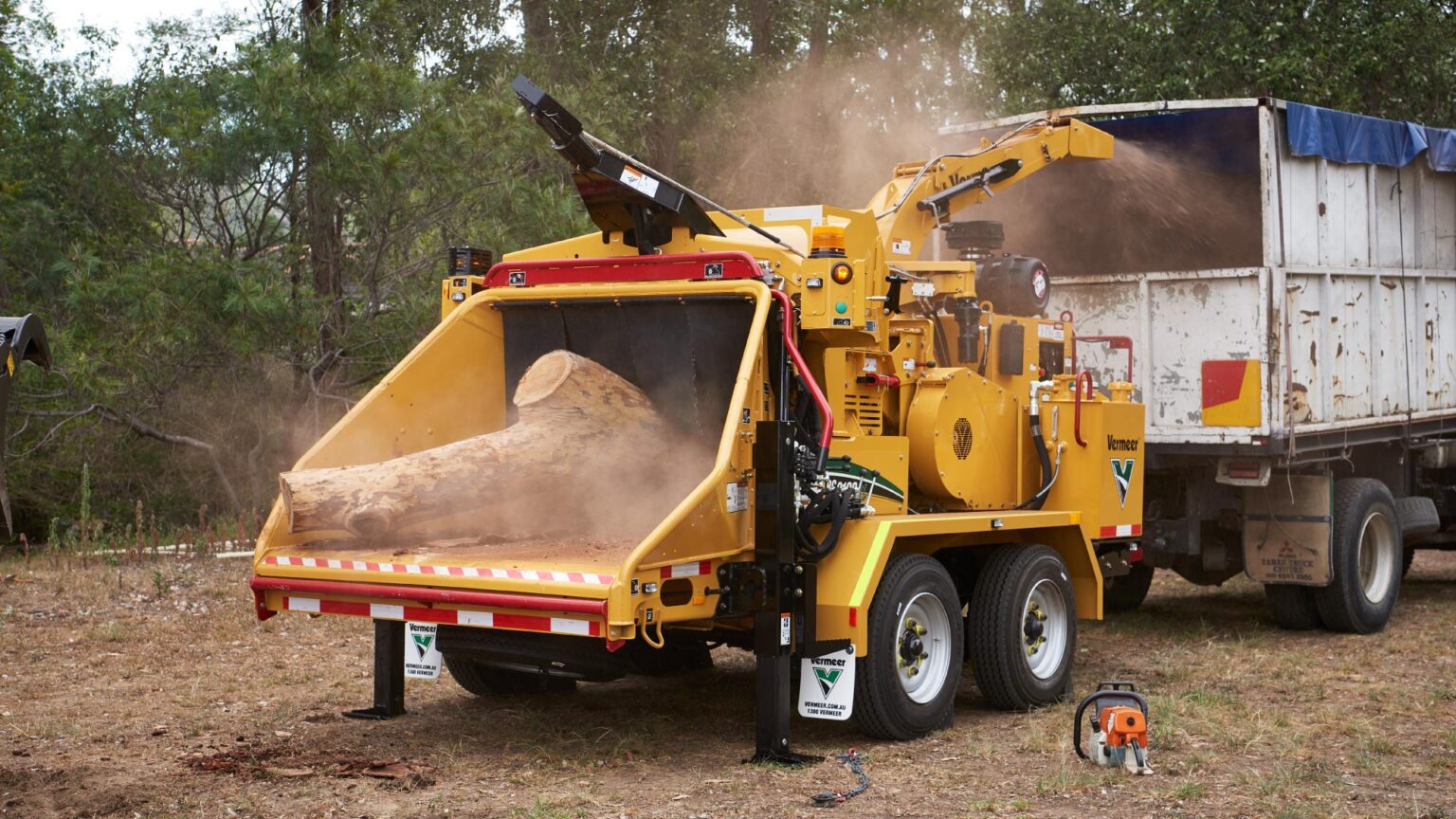

The Vermeer BC2100XL is a wood chipper engineered for high volume waste timber processing, able to process timber up to 21 inches (53.3 cm) in diameter.

Key Features

The combination of the exclusive Vermeer SmartCrush feature and two patent-pending horizontal feed rollers produce a theoretical 10,000 lbs (4,536 kg) of combined pulling force.
Add on the optional winch to lift up to 4,000 lb (1,814 kg) logs directly onto the feed table.
Improve productivity with the SmartFeed system, which monitors engine rpm and senses jams, automatically stopping or reversing the rollers as needed.
Provides operator safety with a 60.5 inches (153.7 cm) feed table for extra distance and an exclusive bottom feed stop bar system.

General Dimensions and Weights

Length (Feed Table Up, Tongue In): 235 inches / 596.9 cm
Length (Table Down, Tongue Extended): 259 inches / 657.9 cm
Width: 95.8 inches / 243.2 cm
Height: 116.5 inches / 295.9 cm
Sound Power: 86 dB(A)
Aggregate Trailer Mass: 8000 kg

Engine

Make and Model: Tier 3 Cummins QSB 6.7 L
Number of Cylinders: 6
Gross Horsepower (Maximum): 275 hp / 205.1 kw
Torque (Max): 730 ft-lb / 989.8 Nm
Fuel Tank Capacity: 65 gal / 246.1 L
Max Fuel Consumption: 15.6 gph / 59.1 lph
Fuel Type: Low sulfur diesel
Air Cleaner: Two stage dry-fleet guard opti air 1300 series
Oil Filter: Spin-on
Recommended Oil: API CH-4/SJ
Oil Volume with Filter: 16 qt / 15.1 L
Maximum Angle of Continuous Operation: 30 deg
Cooling Medium: Liquid
Coolant Capacity (Engine and Radiator): 7.3 gal / 27.6 L
Alternator: 95 amp Delco-Remy
Fan: 26 inches (66 cm) suction
Clutch Drive Engagement: Clutchless PTO

Feed System

Feed Roller Orientation: Horizontal
Number of Feed Rollers: 2
Feed Roller Clamp Load: 3500 lbs / 1587.6 kg
Feed Roller Clamp Type: Hydraulic
Feed Roller Minimum Distance to Drum: 10 inches / 25.4 cm
Feed Roller Dimension: 19 inches / 48.3 cm
Weight of Feed Roller: 972 lbs / 440.9 kg
Feed Roller Dimension (Two): 11 inches / 27.9 cm
Number of Knives (2): 2
Motor Displacement: 4.9 CID
Motor Manufacturer: Eaton
Feed Speed: 100 ft/min
Infeed Table Width: 72 inches / 182.9 cm
Infeed Table Length: 60.5 inches / 153.7 cm
Infeed Hopper Height: 38.5 inches / 97.8 cm
Infeed Throat Capacity: 40 inches x 24 inches / 102 cm x 61 cm
Pinch Point – Distance to End of Feed Table: 60.5 inches / 153.7 cm
Distance from Feed Table to Ground: 30.8 inches / 78.2 cm
Infeed Table Material Thickness: 0.4 inch / 1 cm

Safety System

Bottom Feed Stop Bar: Standard
Reset Method: Green hold to run button
Four Position Feed Control Bar: Standard
Positions: Four positions: emergency stop, forward, neutral, and reverse
Green Hold to Run Button: Standard

Drum/Disc Cutting System

Material Capacity: 21 inches / 53.3 cm
Width: 28 inches / 71.1 cm
Thickness: 0.5 inch / 1.3 cm
Diameter: 36 inches / 91.4 cm
Speed: 1084 rpm
Weight With Shaft: 1500 lbs / 680.4 kg
Safety Lock – Number of Positions: 4
Number of Knives: 4
Knife Thickness: 0.6 inch / 1.6 cm
Material: A8 chipper steel
Useable Edges: 2
Knife Size: 5 inches x 14 inches / 12.7 cm x 35.6 cm
Number of Bolts/Knife: 6
Replaceable Threaded Knife Block: Yes
Number of Paddles: 4
Fixture Method: Weld-on
Air Flow: 3600 cfm
Bedknife Size: 3 inches x 27.5 inches / 7.6 cm x 69.9 cm
Bedknife – Number of Useable Edges: 4

Discharge System

Chute Height: 116 inches / 294.6 cm
Bottom Thickness: 0.1 inch / 0.3 cm
Top Thickness: 0.2 inch / 0.5 cm
Side Wall Thickness: 0.1 inch / 0.3 cm
Deflector Thickness: 0.1 inch / 0.2 cm
Chute Rotation Angle: 270 deg
Rotation Type: Hydraulic

Hydraulic System

Tank capacity: 24 gal / 90.9 L
Recommended Oil Type: Vermeer Hy-Power 68
System Type: Open center
Filtration Method: 10 micron return, 100 mesh suction
Pump Flow at Maximum RPM: 13 gpm / 49.2 L/min
System relief pressure: 2750 psi / 189.6 bar
Auto Reverse PSI: 2550 psi / 175.8 bar
Directional Control: Yes
Oil Cooler: Yes

Electrical System

System Voltage: 12 volts
Battery: 2 – 950 CCA
Standard Gauges: Tachometer, hour meter, trip meter, coolant temperature, engine oil pressure, battery voltage, engine fault code, engine shutdown light and engine fault warning light
Switches: Engine speed, SmartFeed droop (non-remote only)
Controller: C148
Shutdown System: Coolant temperature, intake manifold temperature, oil pressure
Radio Remote Control: Engine speed, discharge chute, forward, stop, reverse feed, SmartCrush down pressure level, SmartFeed droop setting and engine stop

Chassis

Frame Description: 2.5 inches x 8.75 inches C-channel / 6.4 cm x 22.2 cm
Toolbox Description: Lockable
Tongue Description: 2.5 inches x 4.5 inches x .38 inch / 6.4 cm x 11.4 cm x 1 cm
Tongue Extension: 1 inches – 12 inches extension / 2.5 cm – 30.5 cm
Hitch Type: 3 inches (7.6 cm) pintle
Fender Description: Bolt-on
Axle/Suspension: Roger Willex leaf sprung tandem axles
Type: Tandem torsion
Manufacturer: Dexter
Capacity: 8,000
Tires: 235/75R17.5 load range J
Wheels: 17.5 inches x 6.75 inches (44.5 cm x 17.1 cm) BC of 8 on 6.5 inches (16.5 cm)
Brake Type: Electric
Trailer Light Type: LED
